General Information |
|
Summary |

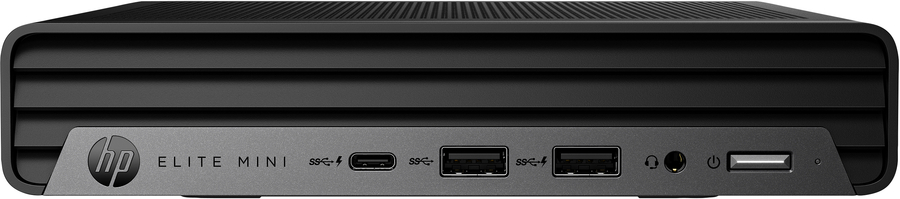

A desktop that can travel
The HP Elite Mini 800 Desktop PC delivers the high-performance needed to develop complex presentations, crunch big numbers, and quickly create compelling content. Equipped with a powerful Intel processor[2], responsive graphics, and smart deployment options, this is the right PC for big jobs done in small spaces. |
|
Processor |
|
Processor family |
Intel® Core™ i5 |
|
Processor manufacturer |
Intel |
|
Processor model |
i5-14500T |
|
Processor generation |
Intel® Core™ i5 (14th gen) |
|
Processor cores |
14 |
|
Processor threads |
20 |
|
Processor boost frequency |
4.8 GHz |
|
Performance cores |
6 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
4.8 GHz |
|
Efficient-core Max Turbo Frequency |
3.4 GHz |
|
Performance-core base frequency |
1.7 GHz |
|
Efficient-core base frequency |
1.2 GHz |
|
Processor cache |
24 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
35 W |
|
Maximum turbo power |
92 W |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory layout (slots x size) |
1 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
4800 MHz |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
256 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
SSD interface |
PCI Express |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel UHD Graphics 770 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Performance |
|
Product type |
Mini PC |
|
Market positioning |
Premium |
|
Motherboard chipset |
Intel Q670 |
|
Password protection |
Yes |
|
Password protection type |
BIOS, Power on |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
No |
|
Ports & interfaces |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
DisplayPorts quantity |
2 |
|
DisplayPort version |
1.4 |
|
HDMI version |
2.1 |
|
Headphone outputs |
1 |
|
Power |
|
Power supply |
9 W |
|
Power supply input voltage |
100 - 240 V |
|
Power supply input frequency |
50/60 Hz |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Number of 2.5" bays |
1 |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Display |
|
Display included |
No |
|
Brand-specific features |
|
HP Support Assistant |
Yes |
|
HP Software provided |
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial |
|
HP segment |
Business |
|
Audio |
|
Audio chip |
Realtek ALC3252 |
|
Weight & dimensions |
|
Width |
177 mm |
|
Depth |
175 mm |
|
Height |
34 mm |
|
Weight |
1.42 kg |
|
Packaging data |
|
Package width |
498 mm |
|
Package depth |
132 mm |
|
Package height |
235 mm |
|
Package weight |
2.95 kg |
