be quiet! BG074 PURE BASE 501 Airflow Mid-Tower ATX Case Black
|
|
Price: $109.00
Manufacturer:
be quiet!
ATX / M-ATX / Mini-ATX, 1x USB Type-C, 2x USB Type-A, ATX PS/2, 2x Pure Wings 3 140mm PWM
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59876450
|
BG074
|
4260052191804 |
Active
|
Details
|
General Information |
|
Summary |
Comfortably compact

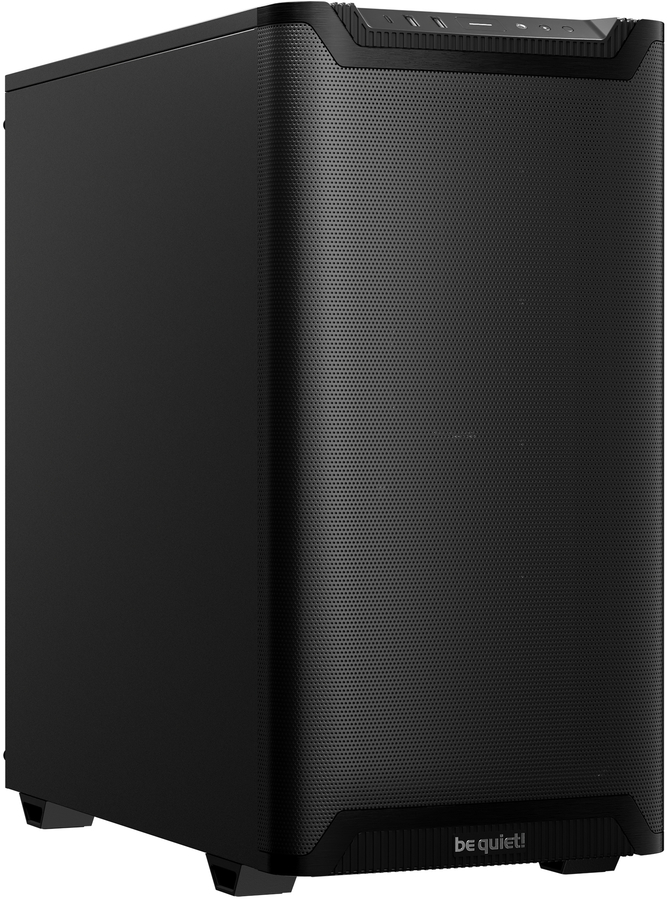

Pure Base 501 Airflow Black is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Black is reduced to excel at its core functions and is aimed at users that appreciate an unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow

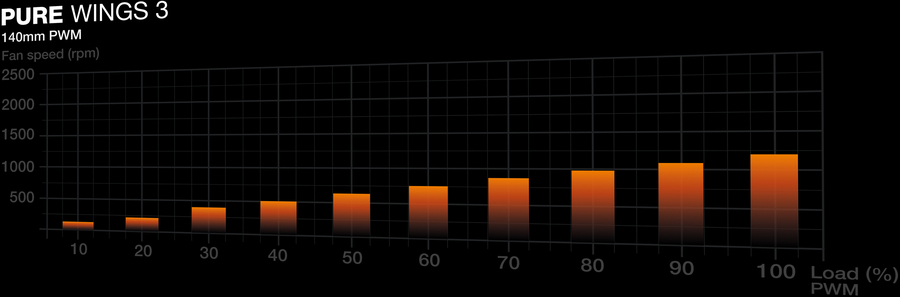

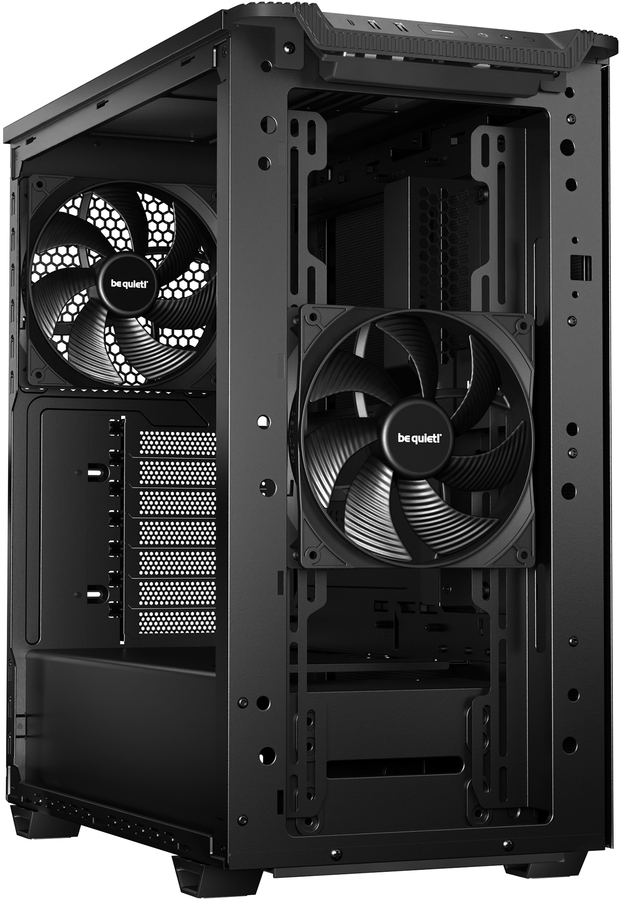

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Black. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware

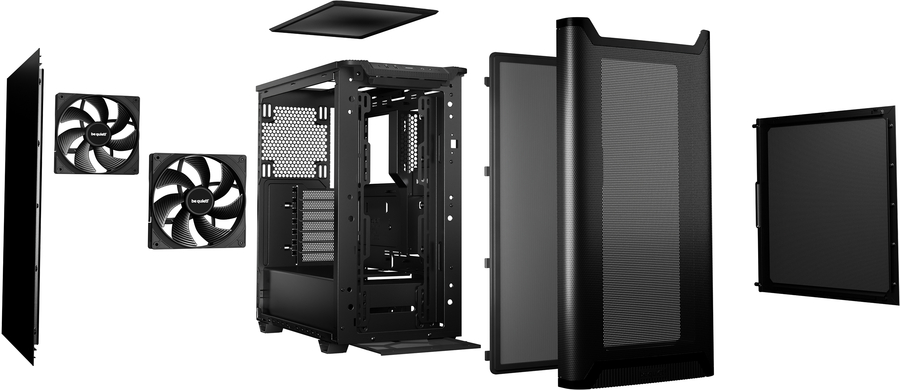

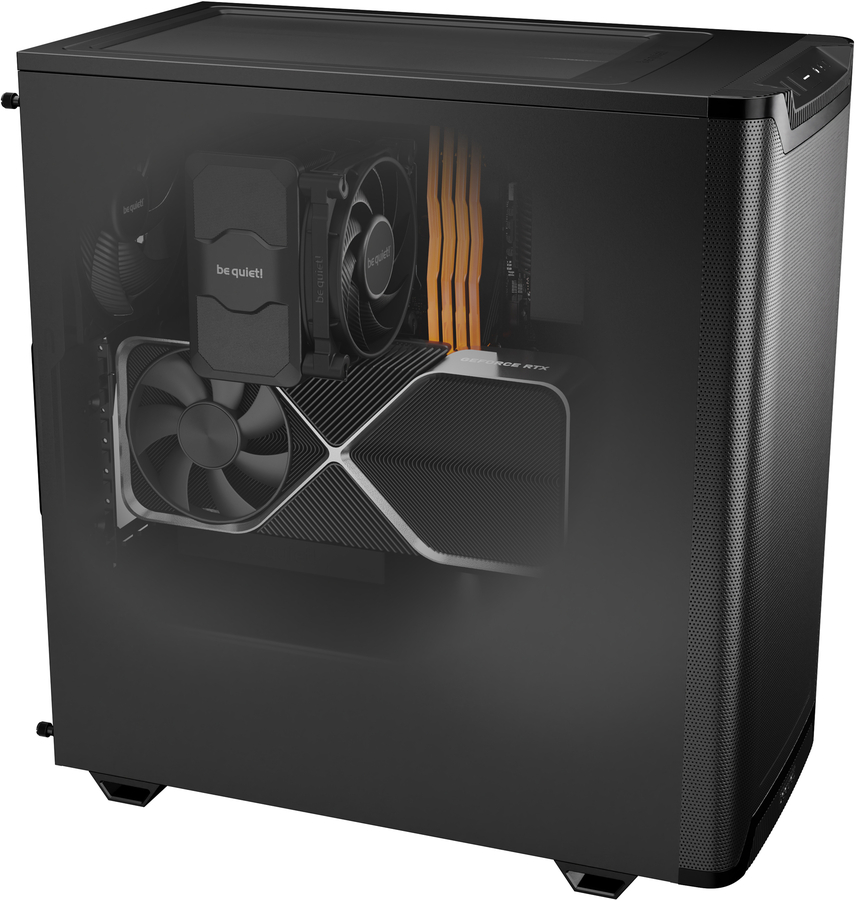

Despite its compact dimensions, Pure Base 501 Airflow Black offers enough space for high-end graphics cards and large coolers. Triple fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots
Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Black can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Black optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system

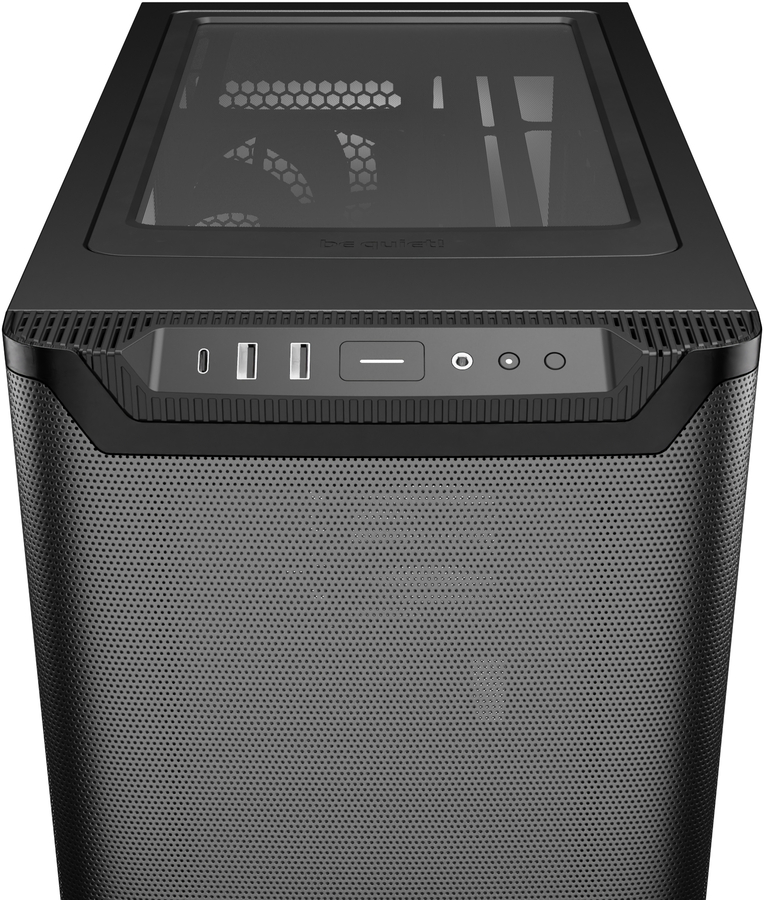

A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity. |
|
Design |
|
Form factor |
Midi Tower |
|
Type |
PC |
|
Product colour |
Black |
|
Supported motherboard form factors |
ATX, micro ATX, Mini-ITX |
|
Number of 3.5" bays |
2 |
|
Number of 5.25" bays |
0 |
|
Material |
Acrylonitrile butadiene styrene (ABS), Steel |
|
Number of 2.5" bays |
5 |
|
Number of expansion slots |
7 |
|
Anti-dust filter |
Yes |
|
Reset button |
Yes |
|
On/off button |
Yes |
|
Maximum CPU cooler height |
17.8 cm |
|
Maximum PSU length |
18 cm |
|
Power supply |
|
Power supply included |
No |
|
Supported power supply form factors |
ATX, PS2 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
|
Audio input |
Yes |
|
Audio output |
Yes |
|
Cooling |
|
Front fans installed |
1x 140 mm |
|
Number of front fans supported (max) |
3 |
|
Front fans diameters supported |
120,140 mm |
|
Rear fans installed |
1x 140 mm |
|
Number of rear fans supported (max) |
1 |
|
Rear fans diameters supported |
120,140 mm |
|
Number of top fans supported (max) |
2 |
|
Top fans diameters supported |
120,140 mm |
|
Maximum airflow |
57.4 cfm |
|
Maximum air pressure |
0.96 mmH2O |
|
Front radiator sizes supported |
120,140,240,280,360 mm |
|
Rear radiator sizes supported |
120,140 mm |
|
Top radiator sizes supported |
120,240 mm |
|
Pulse-width modulation (PWM) support |
Yes |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
Technical details |
|
Compliance certificates |
CE, REACH, RoHS |
|

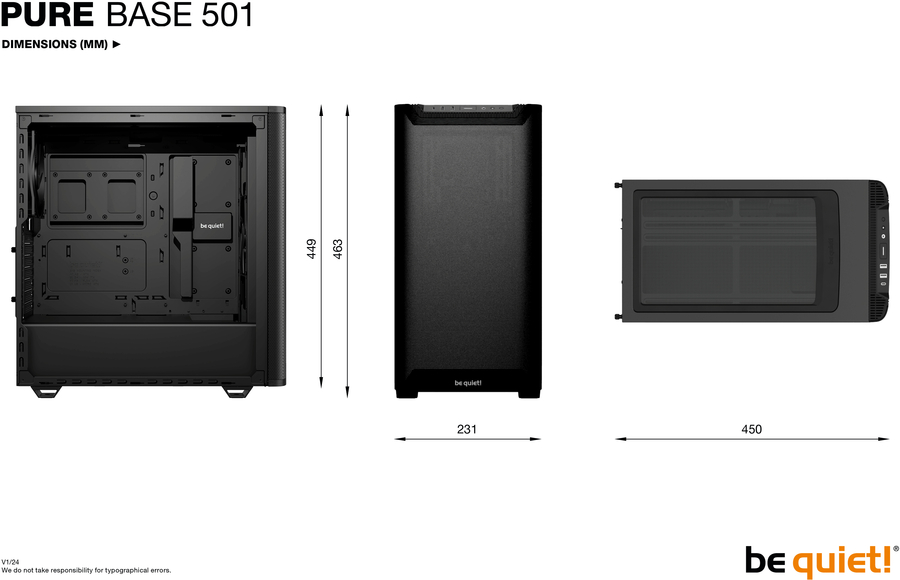

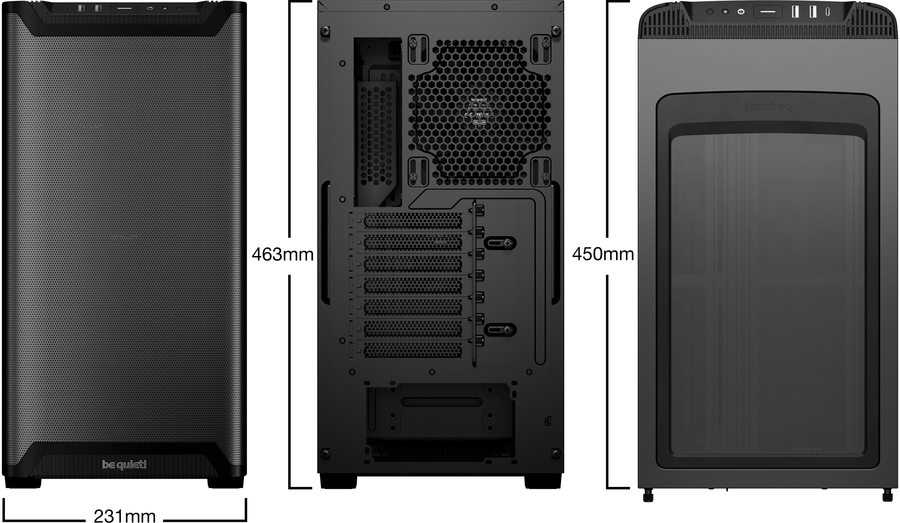

Weight & dimensions |
|
Width |
231 mm |
|
Depth |
450 mm |
|
Height |
463 mm |
|
Weight |
6.8 kg |
|
Packaging data |
|
Package width |
292 mm |
|
Package depth |
518 mm |
|
Package height |
503 mm |
|
Package weight |
8 kg |
|
