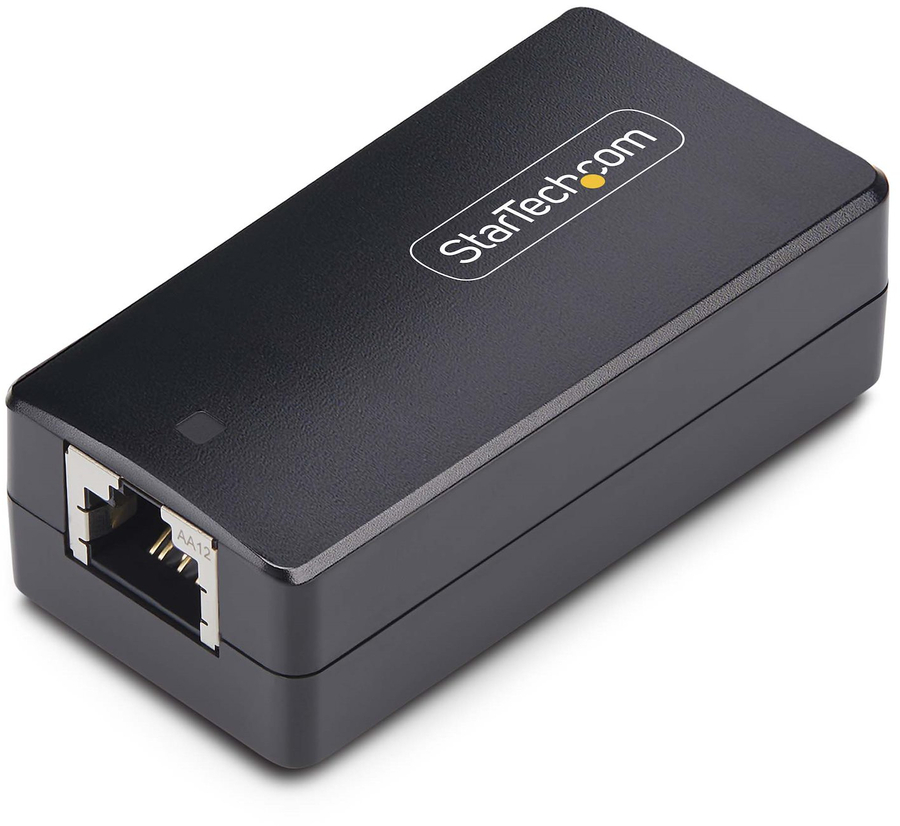

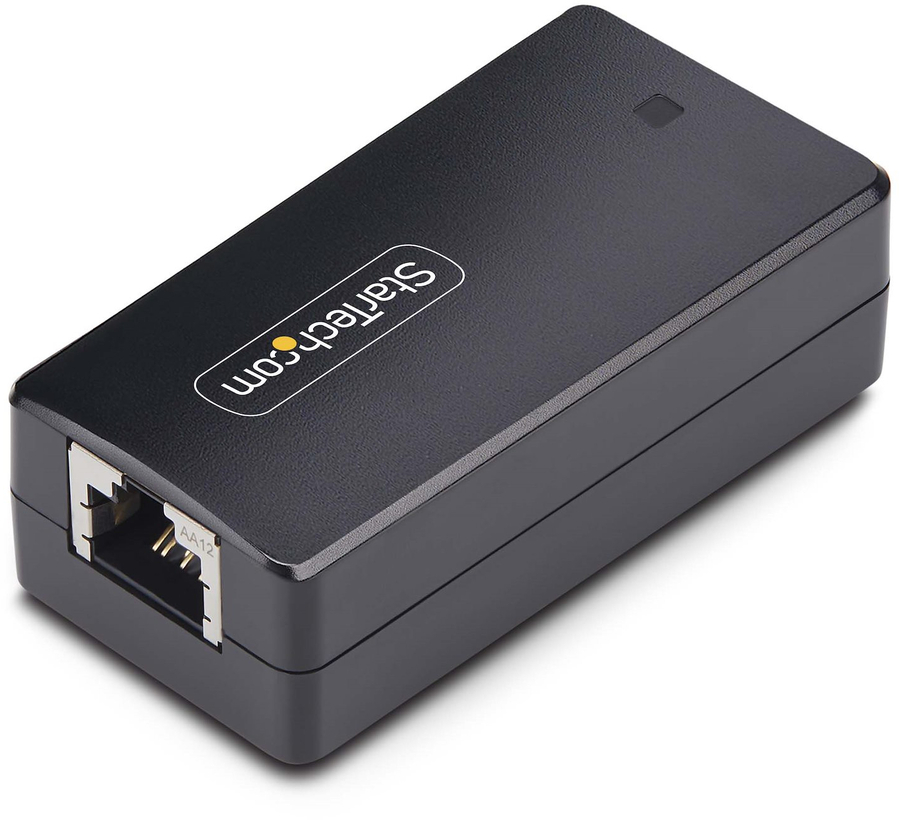

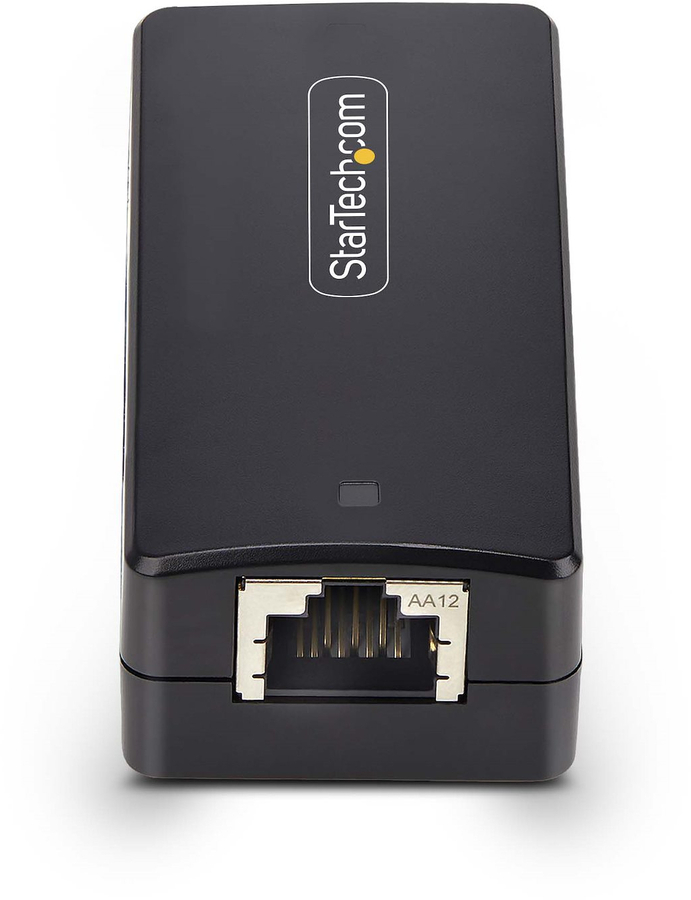

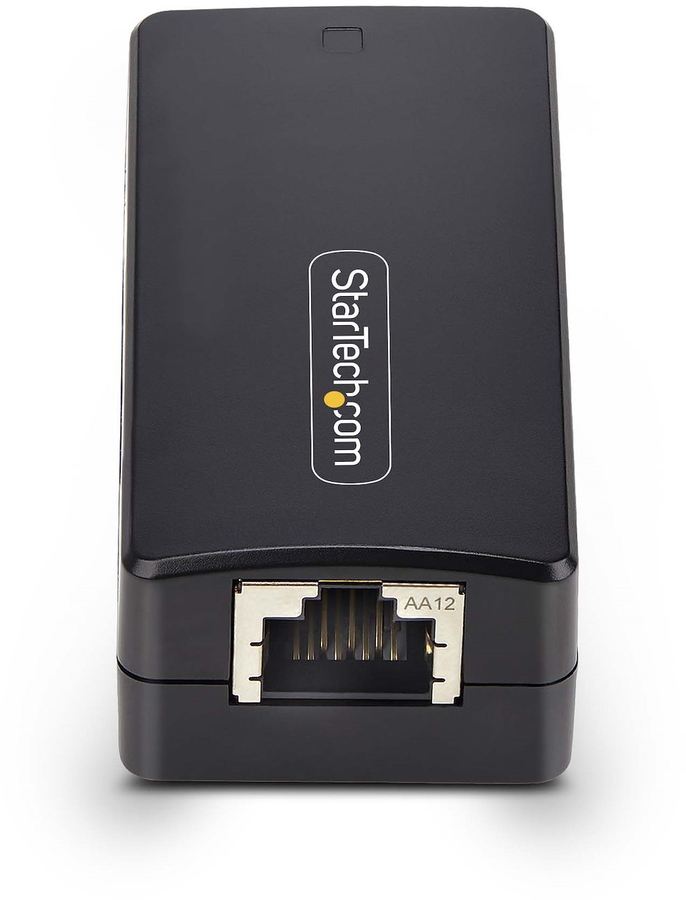

StarTech 1-Port Gigabit Network Isolator Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation IP40 DIN Rail Mountable TAA Compliant
|
|
Price: $61.00
Manufacturer:
StarTech
StarTech.com 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, IP40, TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59885050
|
1G-NETWORK-ISOLATOR
|
65030906968 |
Active
|
Details
|
General Information |
|
Summary |
Protect network devices from harmful power surges with this Network Isolator
This TAA-Compliant 1G Network Isolator with 4kV isolation is bus-powered and provides a separation of all conductive connections between devices connected via an Ethernet cable. The isolator helps prevent ground loops in audio and video equipment.
Ready to Use

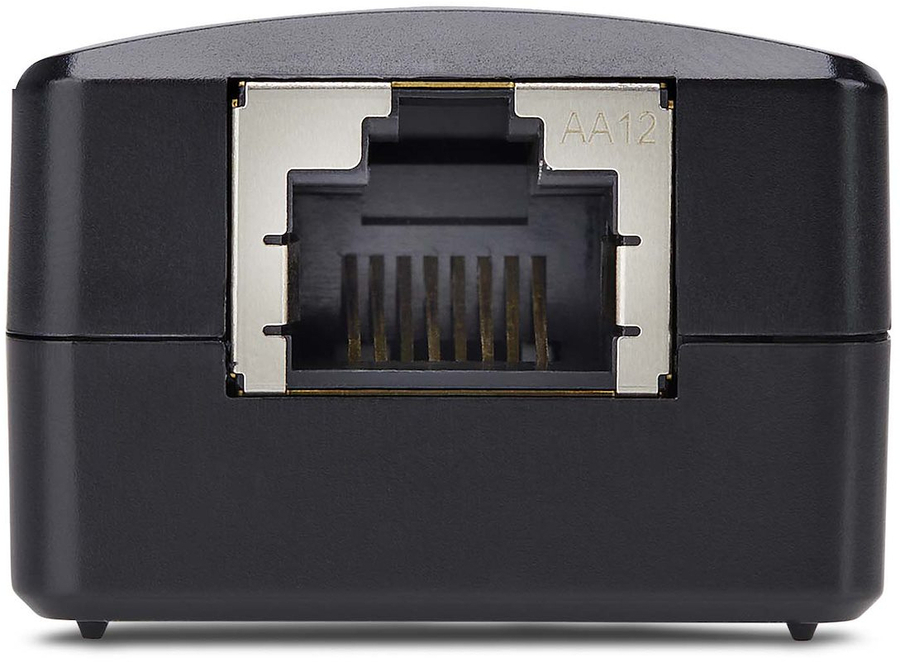

This isolator features simple plug-and-play setup with no software, drivers, power supply, or grounding wire required. The isolator acts as a coupler, with two RJ45 ports for two Cat5 or Cat6 cables to connect compatible equipment to a computer or data network. It is compact, universally compatible and OS independent.
Safe, Reliable, & Efficient
This isolator provides full transparency on the network it is part of. With no IP, it does not route or alter traffic or affect equipment or network performance. Safeguard equipment and operators by blocking stray electrical currents, surges, and ground faults in your network. This device is ETL Safety Listed (IEC 62368-1) and CE: EN55032/EN55035 Certified.
Versatile Mounting Options & Applications

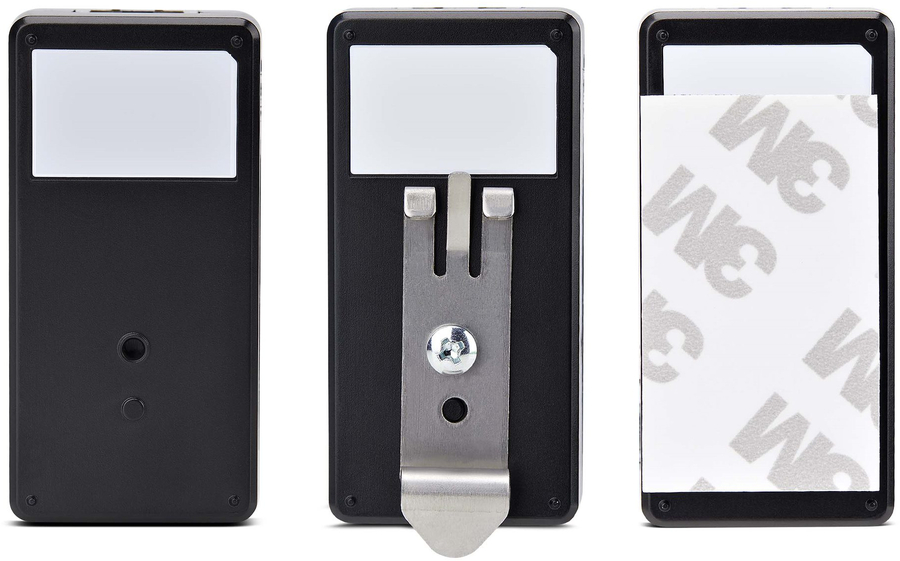

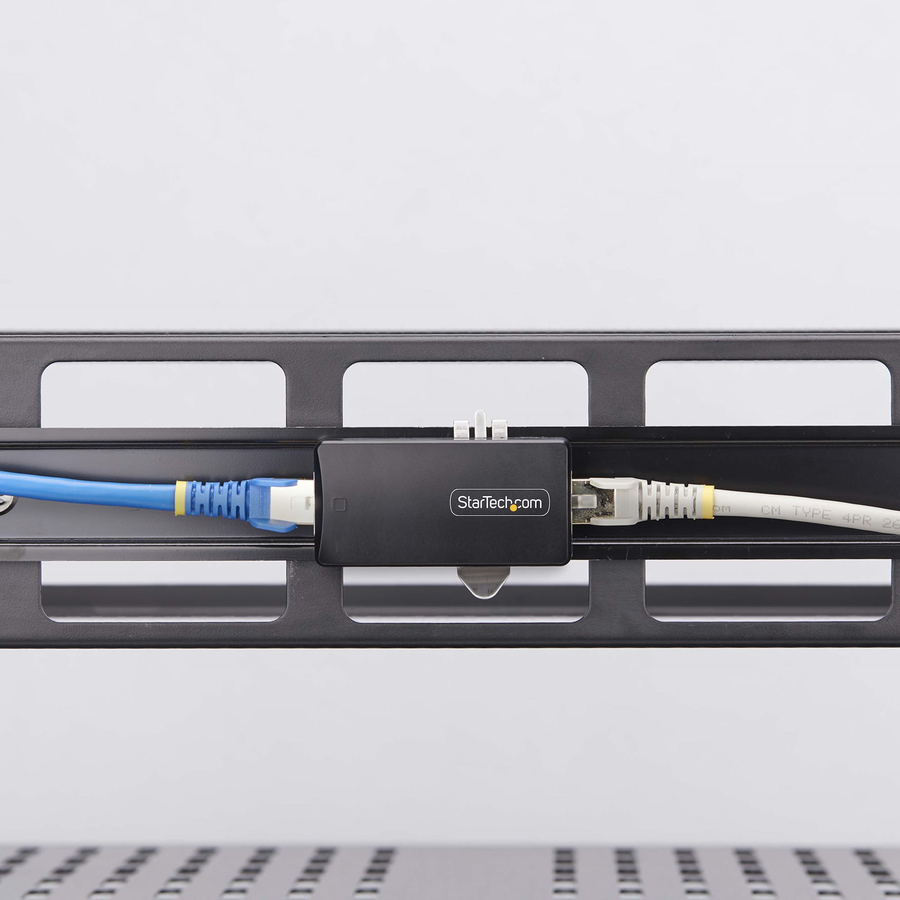

The compact and durable IP40 rated plastic housing supports multiple installation methods, including DIN rail mounting (kit included) or adhesive mounting for versatile placement on various surfaces. Designed for IT professionals to protect network infrastructure in labs and manufacturing facilities. This device is ideal for ensuring safe operation and reducing risks during network maintenance or upgrades.
The StarTech.com Advantage
|
|
Performance |
|
Electrostatic Discharge (ESD) protection (contact) |
4 kV |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
International Protection (IP) code |
IP40 |
|
Ports & interfaces |
|
RJ-45 ports quantity |
1 |
|
Design |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
Logistics data |
|
Products per master (outer) case |
100 pc(s) |
|
Master (outer) case length |
483 mm |
|
Master (outer) case width |
454 mm |
|
Master (outer) case height |
180 mm |
|
Technical details |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
67 mm |
|
Depth |
33 mm |
|
Height |
24 mm |
|
Weight |
31 g |
|
Packaging data |
|
Package width |
110 mm |
|
Package depth |
200 mm |
|
Package height |
29 mm |
|
Package weight |
40 g |
|

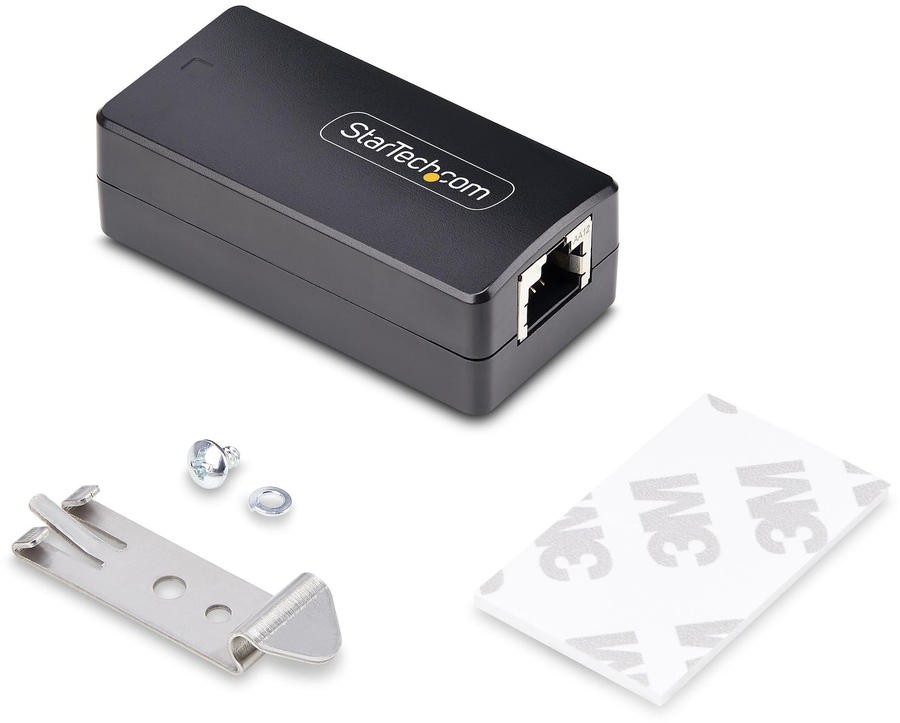

Packaging content |
|
Manual |
Yes |
|
DIN rail kit included |
Yes |
|
Adhesive strip included |
Yes |
|
Quantity |
1 |
|
