EnGenius EOC610 802.11ax Outdoor 5GHz 2x2 CPE with 19dBi Patch Antenna
|
|
Regularly: $364.00
On Sale: $349.44
Sale Ends:
August 2nd, 2025
Manufacturer:
EnGenius
5 GHz, 2×2 MIMO, up to 1200Mbps (Wi‑Fi 6, 802.11ax), 190 x 38 mm, 558g
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59891859
|
EOC610
|
4711488350353 |
Active
|
Details
|
General Information |
|
Summary |
The EnGenius EOC610 802.11 ax 2x2 5GHz Broadband Outdoor Long Range CPE offers reliable and efficient outdoor Wi-Fi connectivity with EnGenius proprietary MAC and beamforming optimization. It features high 26 dBm transmit power and high gain 19 dBi integrated directional antenna for extended Wi-Fi range up to 4 miles point-to-point. It's also weatherproof and offers flexible operation modes with easy installation over 100 meters.
|
|
Features |
|
2.4 GHz |
No |
|
5 GHz |
Yes |
|
6 GHz |
No |
|
Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Frequency band |
5.15 - 5.85 GHz |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
|
Channel bandwidth |
160 MHz |
|
MIMO |
Yes |
|
MIMO type |
Multi User MIMO |
|
Spatial streams |
2 |
|
Spread spectrum method |
OFDMA |
|
VLAN support |
Yes |
|
Virtual LAN features |
Tagged VLAN |
|
Maximum Tx power (2.4 GHz) |
15 dBmW |
|
Maximum Tx power (5 GHz) |
26 dBmW |
|
Security |
|
Security algorithms |
256-bit AES |
|
MAC address filtering |
Yes |
|
IGMP snooping |
Yes |
|
DHCP snooping |
Yes |
|
Remote Authentication Dial-In User Service (RADIUS) |
Yes |
|
Protocols |
|
DHCP server |
Yes |
|
Management features |
|
Syslog |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
Power consumption (max) |
11 W |
|
Design |
|
Placement |
Wall |
|
Product colour |
White |
|
International Protection (IP) code |
IP55 |
|
Antenna |
|
Antenna type |
Internal |
|
Antenna direction type |
Directional |
|
Antenna features |
Integrated antenna |
|
Antennas quantity |
2 |
|
Antenna gain level (max) |
19 dBi |
|
Performance |
|
Built-in processor |
Yes |
|
Flash memory |
1000 MB |
|
Internal memory |
4000 MB |
|
Certificates |
|
Compliance certificates |
CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA, WEEE |
|
Weight & dimensions |
|
Width |
190 mm |
|
Depth |
38 mm |
|
Weight |
558 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|

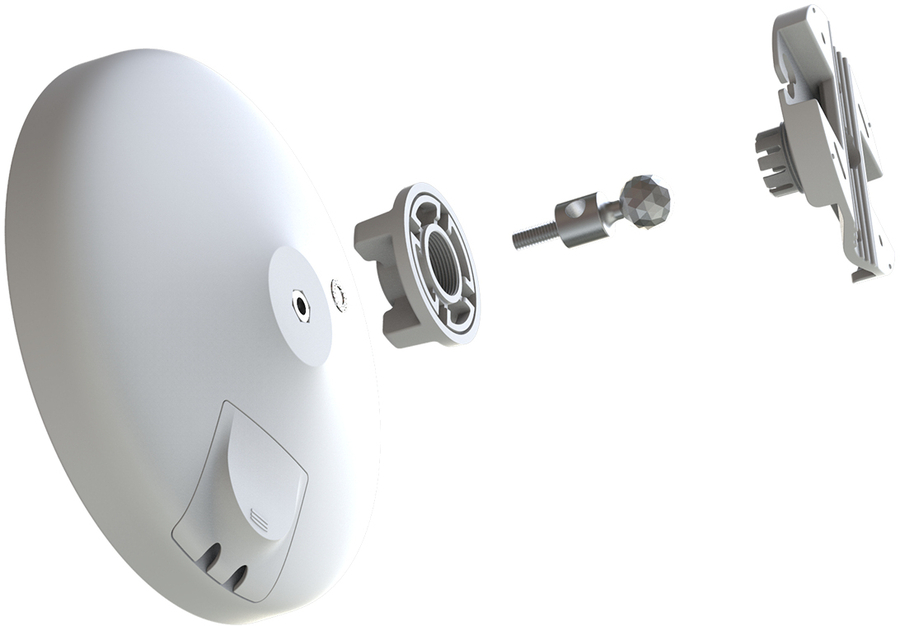

Mounting kit |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
0 - 90% |
|
Operating temperature (T-T) |
-20 - 60 °C |
|
Storage temperature (T-T) |
-40 - 80 °C |
|
Storage relative humidity (H-H) |
0 - 90% |
|
