Network |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|
Ethernet LAN data rates |
100,1000,2500,10000 Mbit/s |
|
Data transfer rate |
10000 Mbit/s |
|
Packet forwarding rate (10 Mbps) |
29.8 pps |
|
Jumbo frames |
12 |
|
Link Fault Pass-through (LFP) |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
1873755 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
International Protection (IP) code |
IP50 |
|

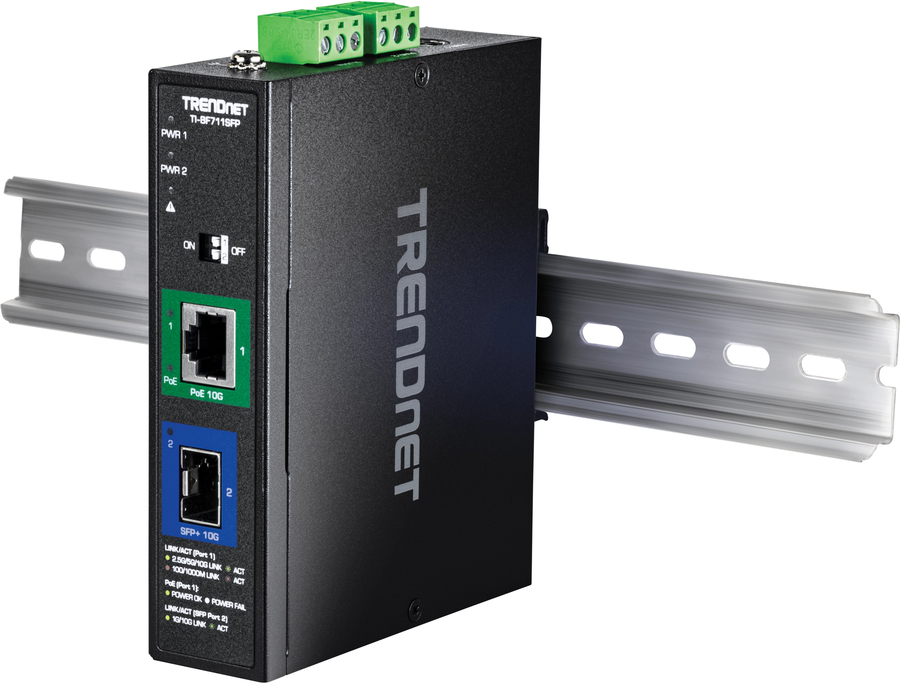

DIN rail mounting |
Yes |
|
Power protection features |
Surge protection, Overload |
|
Ports & interfaces |
|
Fiber optic connector |
SFP+ |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power over Ethernet (PoE) ports quantity |
1 |
|

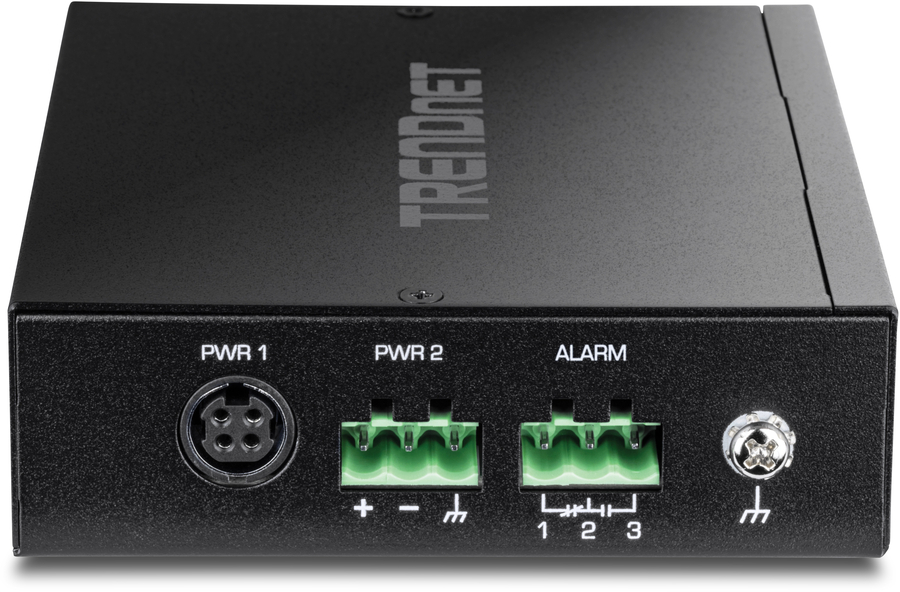

DC-in jack |
Yes |
|
Power |
|
Input voltage |
48 - 57 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
2 A |
|
Output voltage |
48 V |
|
Output current |
3.34 A |
|
Power consumption (typical) |
6.8 W |
|
Power consumption (max) |
8 W |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
95 W |
|
External power adapter |
Yes |
|
Weight & dimensions |
|
Width |
120 mm |
|
Depth |
98 mm |
|
Height |
30 mm |
|
Weight |
476 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Technical details |
|

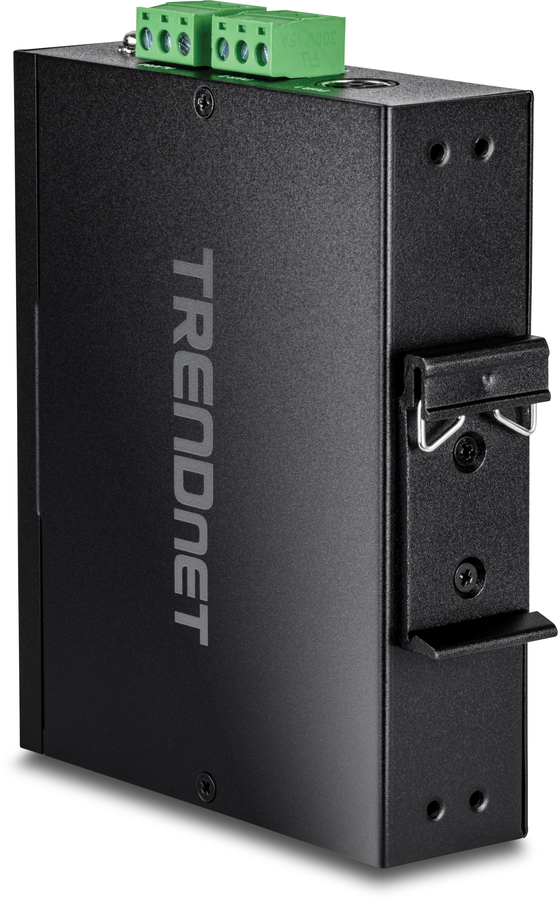

Mounting method |
DIN rail mounted |
|
Suitable for rail mounting |
Yes |
