General Information |
|
Summary |

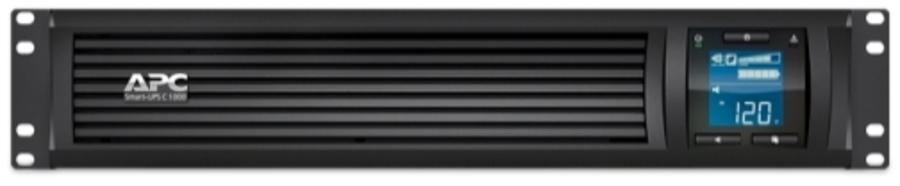

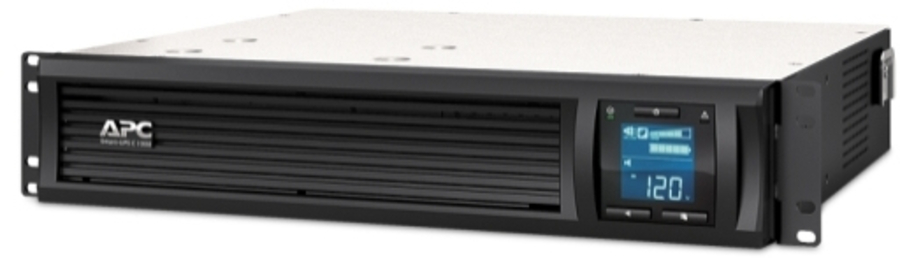

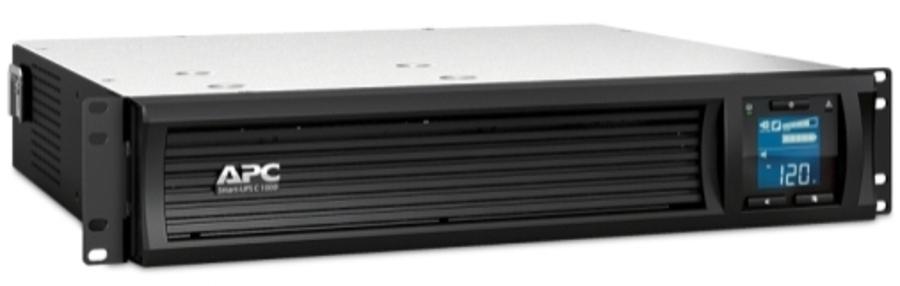

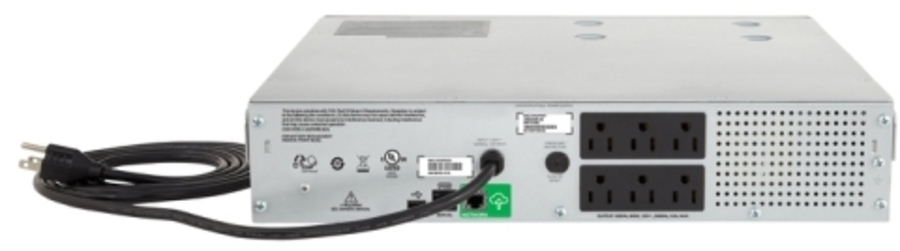

APC Smart-UPS C 1000VA LCD RM 2U 120V with SmartConnect |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
1 kVA |
|
Output power |
600 W |
|
Waveform |
Sine |
|
Input operation voltage (min) |
93 V |
|
Input operation voltage (max) |
130 V |
|
Input frequency |
50/60 Hz |
|
Output operation voltage (min) |
110 V |
|
Output operation voltage (max) |
125 V |
|
Output frequency |
50/60 Hz |
|
Automatic Voltage Regulation (AVR) |
Yes |
|
Surge energy rating |
680 J |
|
Response time |
10 ms |
|
Noise level |
41 dB |
|
Audible alarm(s) |
Yes |
|
Audible alarm modes |
Alarm when on battery, Low battery alarm |
|
Ports & interfaces |
|
USB port |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Battery |
|
Battery life (max) |
6 year(s) |
|
Battery recharge time |
3 h |
|
Hot-swap battery |
Yes |
|
Cold start |
Yes |
|
Design |
|
Product colour |
Black |
|
Display type |
LCD |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 40 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 3048 m |
|
Non-operating altitude |
0 - 15240 m |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Certification |
CSA C22.2 No 107.1, CULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, ICES-003, UL 1778 |
|
Packaging content |
|
Rack mount kit |
Yes |
|
Cables included |
USB cable |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Weight & dimensions |
|
Width |
432 mm |
|
Depth |
406 mm |
|
Height |
86 mm |
|
Weight |
20.5 kg |
|
Packaging data |
|
Package width |
535 mm |
|
Package depth |
570 mm |
|
Package height |
235 mm |
|
Package weight |
20.7 kg |
