General Information |
|
Summary |
Superior technology and cooling

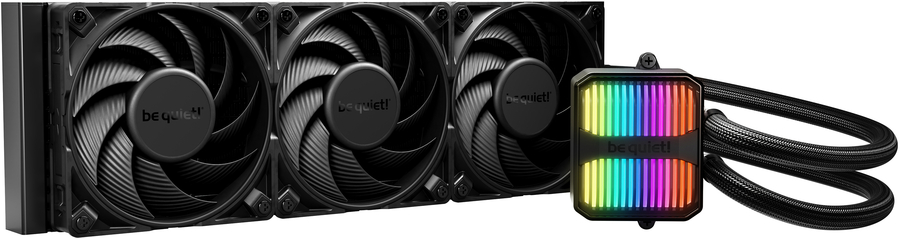

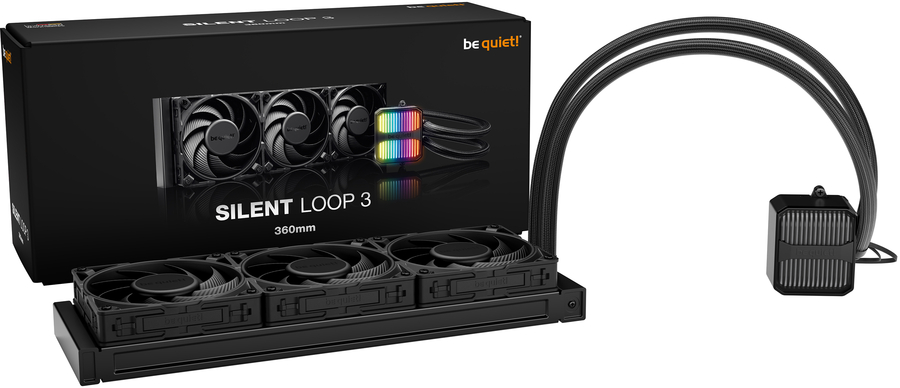

Silent Loop 3 360mm is the virtually inaudible and immensely high performing All-in-One water cooling unit with state-of-the-art technology. Silent Loop 3 is the epitome of a German engineered piece of hardware that embodies what be quiet! is associated with. |
|
Performance |
|
Suitable location |
Processor |
|
Type |
All-in-one liquid cooler |
|
Fan diameter |
12 cm |
|
Supported processor sockets |
Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5 |
|
Noise level (low speed) |
19.8 dB |
|
Noise level (high speed) |
38.8 dB |
|
Maximum airflow |
76.7 cfm |
|
Airflow |
130.3 m³/h |
|
Maximum air pressure |
3.96 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Bearing type |
Fluid Dynamic Bearing (FDB) |
|
Pump connector |
4-pin |
|
Quantity per pack |
1 pc(s) |
|
Pump motor speed |
3500 RPM |
|
Pump motor speed (min) |
1700 RPM |
|
Pump motor speed (max) |
3500 RPM |
|

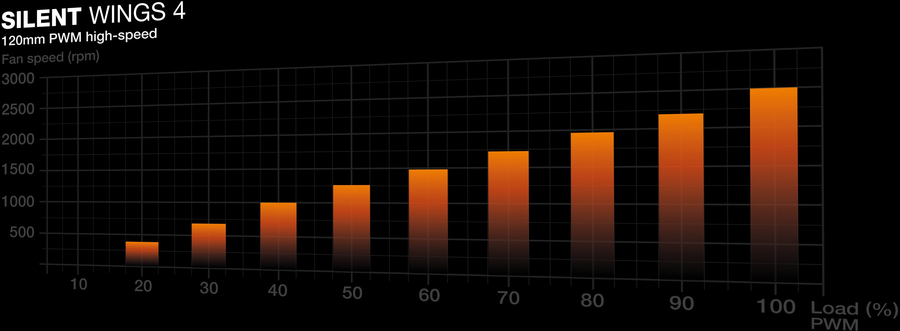

Fan speed (max) |
2500 RPM |
|
Fan's mean time to failure (MTTF) |
300000 h |
|
Design |
|
Product colour |
Black |
|
Radiator material |
Aluminum |
|
Base plate material |
Copper |
|

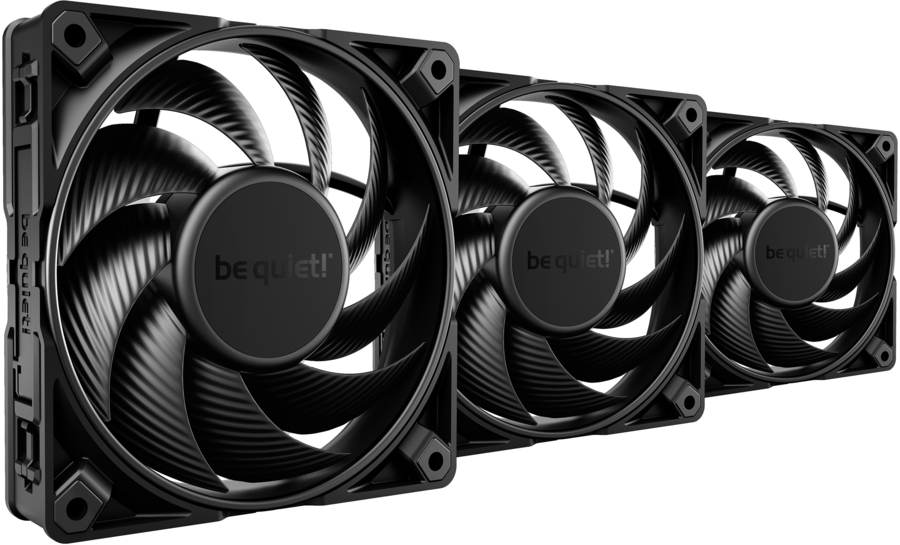

Number of fans |
3 fan(s) |
|
Illumination LED |
Yes |
|
Illumination colour |
Multi |
|
LED connector type |
3-pin |
|
Fan connector |
4-pin |
|
Power |
|
Fan power consumption |
3.6 W |
|
LED voltage |
5 V |
|
Fan voltage |
12 V |
|
Fan current |
0.3 A |
|

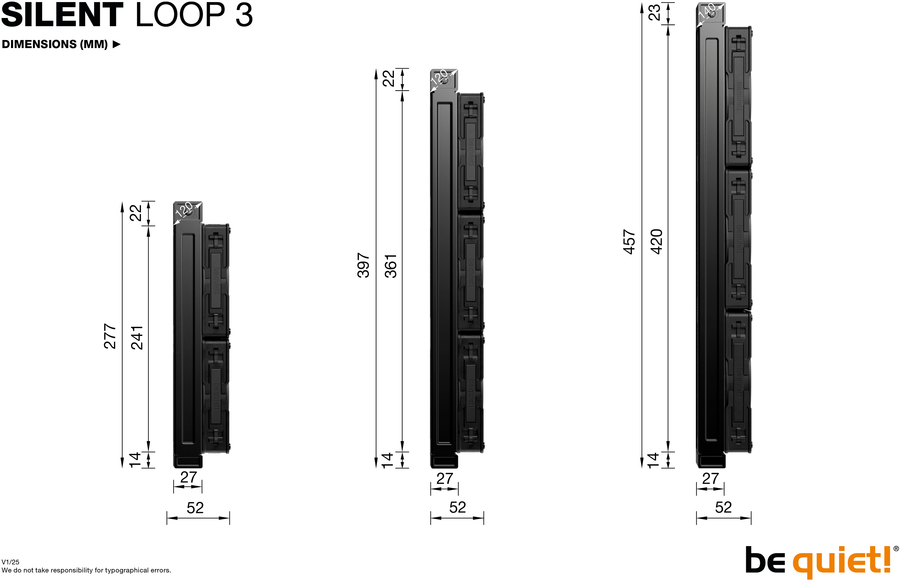

Weight & dimensions |
|
Width |
120 mm |
|

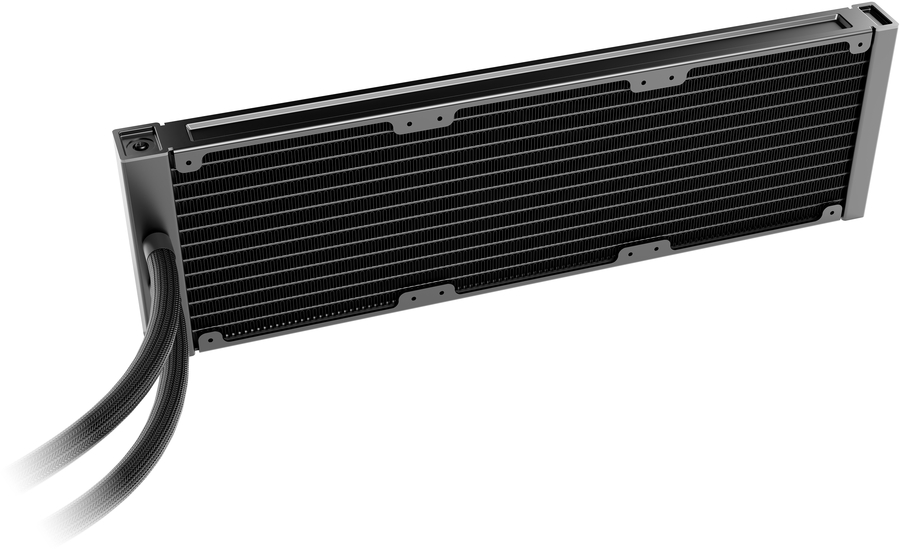

Radiator width |
12 cm |
|
Radiator depth |
39.7 cm |
|
Radiator height |
2.7 cm |
|
Depth |
52 mm |
|
Tube length |
40 cm |
|

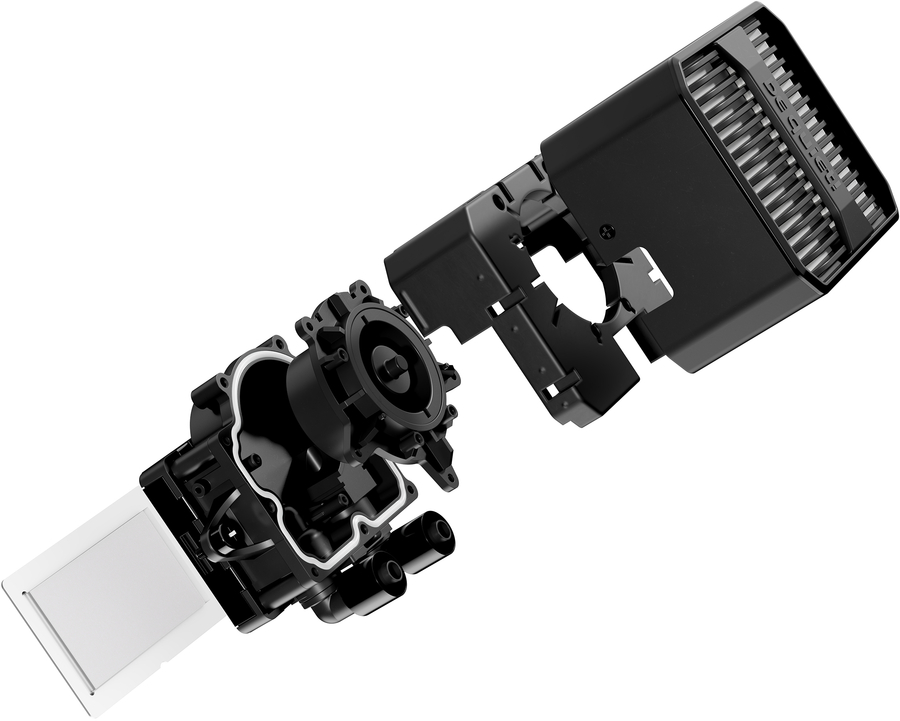

Waterblock width |
8 cm |
|
Waterblock depth |
5.6 cm |
|
Waterblock height |
9.35 cm |
|
Height |
397 mm |
|
Weight |
1.77 kg |
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Cable length |
0.5 m |
|
Package width |
206 mm |
|
Package depth |
461 mm |
|
Package height |
138 mm |
|
Package weight |
3 kg |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
|

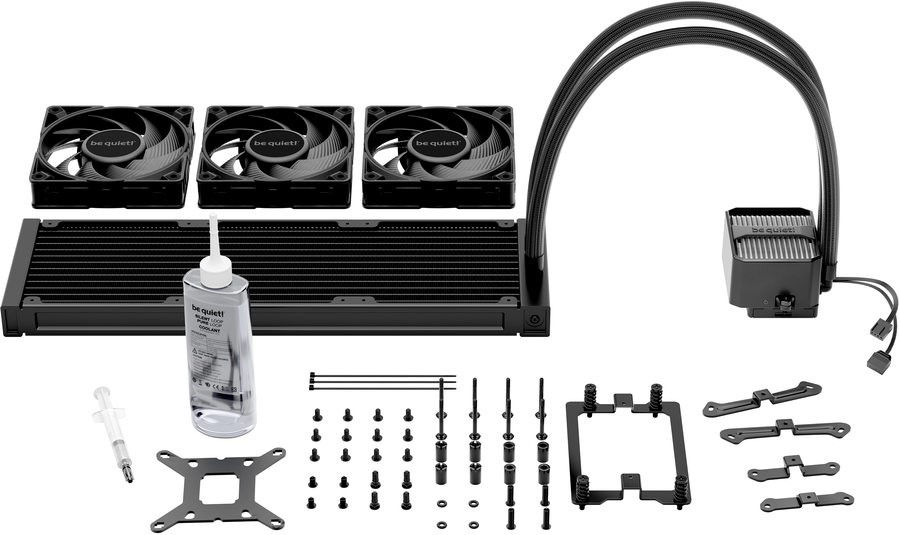

Packaging content |
|
Package type |
Box |
|
Mounting kit |
Yes |
|
Screws included |
Yes |
|
Manual |
Yes |
|
CPU bracket(s) |
Yes |
|
Other features |
|
Thermal grease |
Yes |
|
Logistics data |
|
Products per shipping (inner) case |
4 pc(s) |
|
Shipping (inner) case width |
43 cm |
|
Shipping (inner) case length |
47.6 cm |
|
Shipping (inner) case height |
33.6 cm |
|
Shipping (inner) case gross weight |
13.2 kg |
