General Information |
|
Summary |
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 4677 (Socket E) |
|
Compatible processor series |
Intel® Xeon® |
|
Intel Xeon series |
W-2400, W-3400, W3500, W-2500 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
8 |
|
Maximum internal memory |
2 TB |
|
Memory slots type |
DIMM |
|
Memory channels |
Octa-channel |
|
ECC сompatibility |
ECC |
|
Supported memory clock speeds |
4800,5600 MHz |
|
Supported memory clock speed (max) |
5600 MHz |
|
Maximum RDIMM memory |
256 GB |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
8 |
|
Number of storage drives supported |
14 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
8 |
|
USB 3.2 Gen 2x2 connectors |
1 |
|
Audio connector |
Yes |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of CPU fan connectors |
2 |
|
Number of chassis fan connectors |
6 |
|
EPS power connector (8-pin) |
Yes |
|
Number of EPS power connectors (8-pin) |
4 |
|
TPM connector |
Yes |
|
Number of water pump connectors |
1 |
|
Number of temperature sensor headers |
2 |
|
RGB LED pin header |
Yes |
|
Number of RGB LED pin headers |
4 |
|

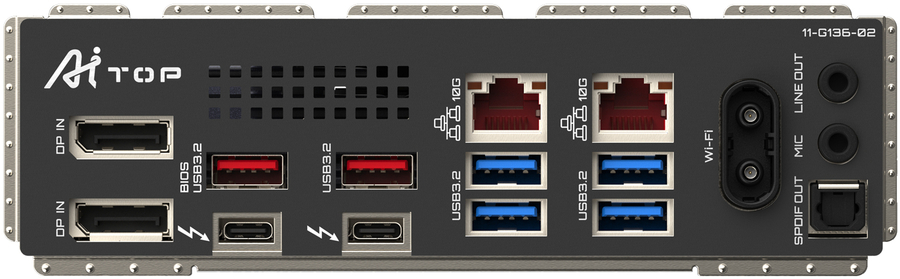

Rear panel I/O ports |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
0 |
|
DVI-D ports quantity |
0 |
|
DisplayPorts quantity |
2 |
|
Headphone outputs |
1 |
|
Line-in |
Yes |
|
S/PDIF out port |
Yes |
|
Digital audio optical out |
1 |
|
Thunderbolt ports quantity |
2 |
|
WiFi-AP antenna jack |
2 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
LAN controller |
Intel X710-AT2 |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
|
WLAN controller model |
Intel Wi-Fi 7 BE200 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.4 |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
Extended ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel W790 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
Product colour |
Black |
|
PC health monitoring |
Fan, Temperature, Voltage, Water cooling |
|
Power source type |
ATX |
|
Windows operating systems supported |
Windows 11 x64 |
|
Expansion slots |
|
PCI Express x16 (Gen 5.x) slots |
5 |
|
Number of M.2 (M) slots |
6 |
|
1st M.2 largest key size |
2280 |
|
1st M.2 highest PCI Express generation |
5.0 |
|
2nd M.2 largest key size |
2280 |
|
2nd M.2 highest PCI Express generation |
5.0 |
|
3rd M.2 largest key size |
2280 |
|
3rd M.2 highest PCI Express generation |
5.0 |
|
4th M.2 largest key size |
2280 |
|
4th M.2 highest PCI Express generation |
5.0 |
|
5th M.2 largest key size |
2280 |
|
5th M.2 highest PCI Express generation |
4.0 |
|
6th M.2 largest key size |
2280 |
|
6th M.2 highest PCI Express generation |
4.0 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
512 Mbit |
|
ACPI version |
5.0 |
|
Clear CMOS jumper |
Yes |
|
Desktop Management Interface (DMI) version |
2.7 |
|
System Management BIOS (SMBIOS) version |
2.7 |
|
Processor special features |
|
Trusted Platform Module (TPM) |
Yes |
|
Logistics data |
|
Country of origin |
Taiwan |
|
Products per shipping (inner) case |
1 pc(s) |
|
Battery |
|
Battery weight |
3 g |
|
Lithium weight per battery |
0.07 g |
|
Number of battery cells |
1 |
|
Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
|
Battery type |
CR2032 |
|
Packaging data |
|
Package width |
363 mm |
|
Package depth |
383 mm |
|
Package height |
93 mm |
|
Package weight |
5.7 kg |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
330 mm |
|
Height |
35 mm |
|
Packaging content |
|
Batteries included |
Yes |
|
Antenna included |
Yes |
|
Screws included |
Yes |
|
Bundled software |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
|
Other features |
|
Weight |
4.87 kg |
|
Technical details |
|
Warranty period |
3 year(s) |
