General Information |
|
Summary |

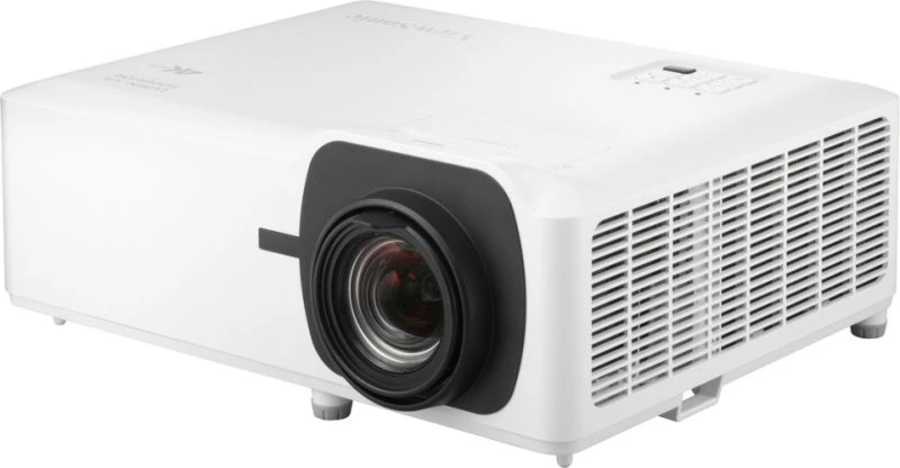

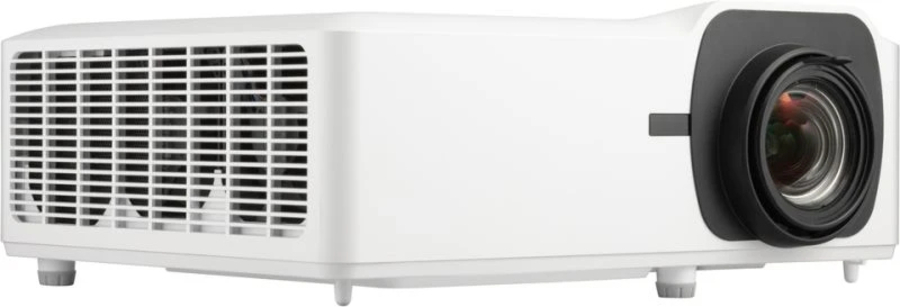

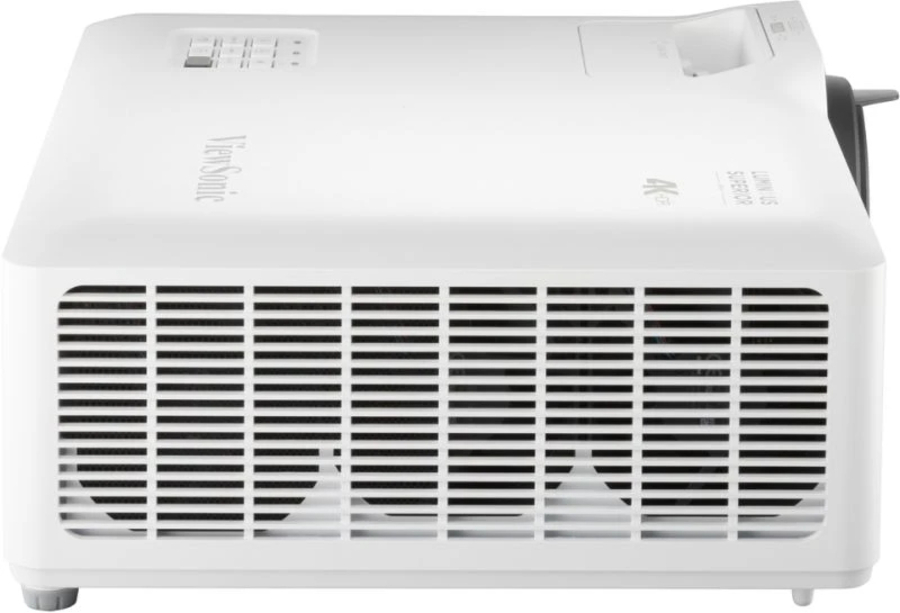

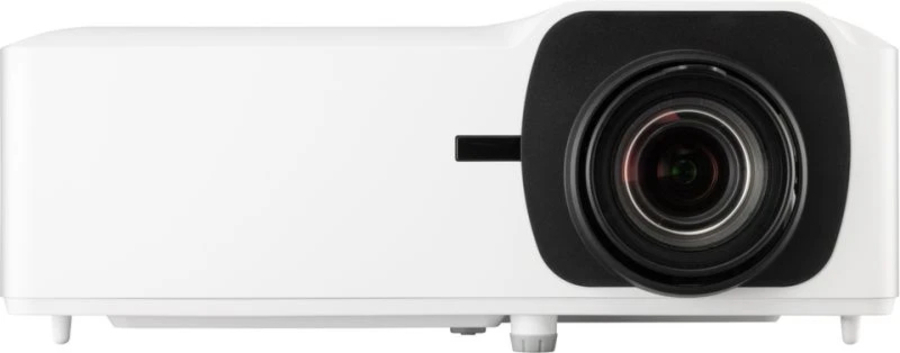

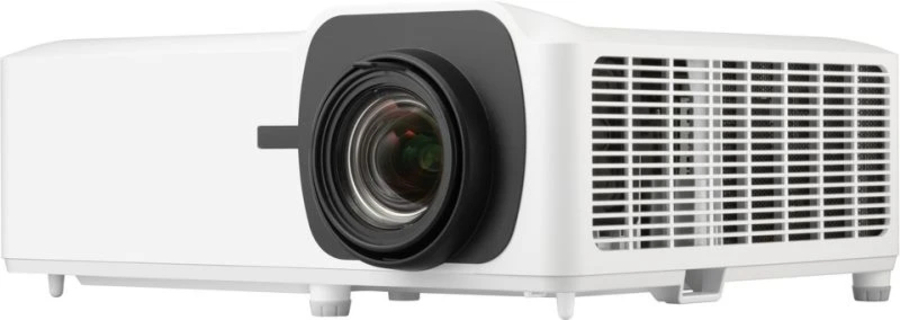

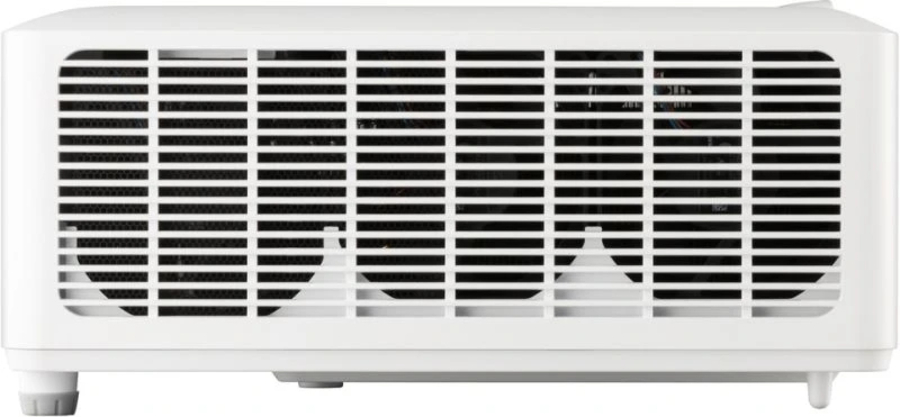

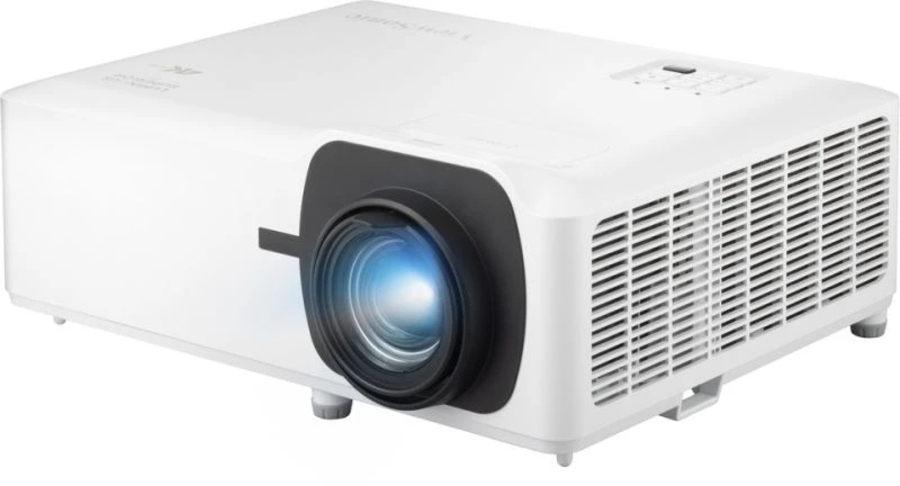

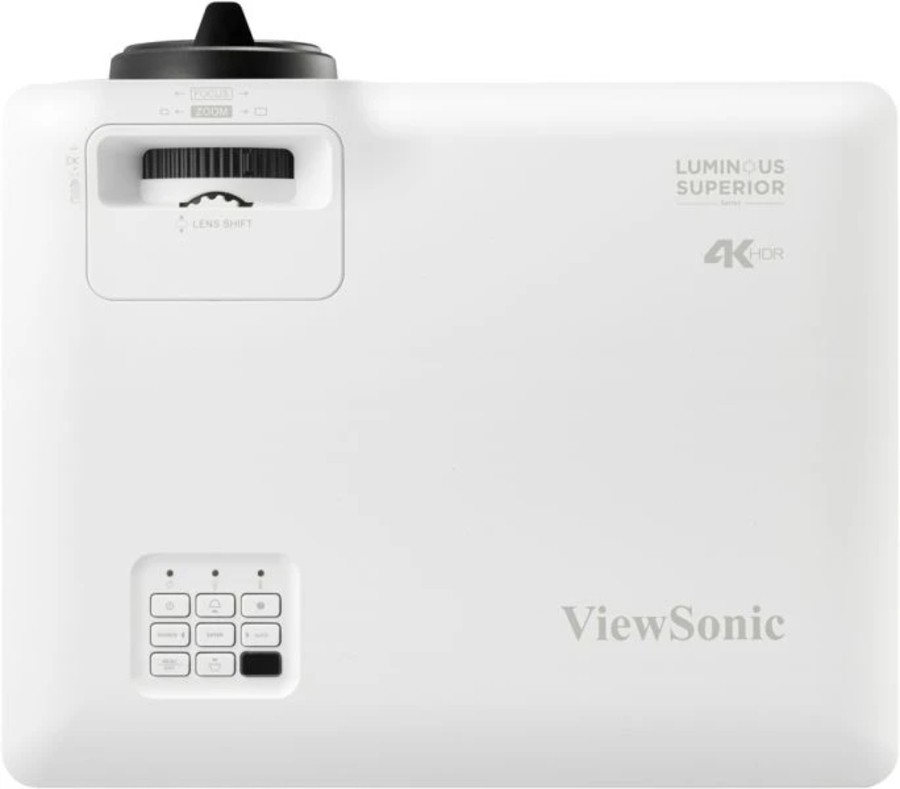

Introducing the LS901-4K from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring 5,500 ANSI lumens of brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens larger than 100 inches. Perfect for museums and educational institutions, the LS901-4K’s ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. With 21:9 aspect ratio support, the LS901-4K is also an ideal choice for Microsoft Teams Rooms. Its 1.7x optical zoom allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into corporate networks. Employing advanced 3rd generation laser phosphor technology, the LS901-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.
|
|
Projector |
|
Projector brightness |
5500 ANSI lumens |
|
Projector native resolution |
UHD 4K (3840x2160) |
|
Contrast ratio (typical) |
3000000:1 |
|
Native aspect ratio |
16:9 |
|
Screen size compatibility |
762 - 7620 mm (30 - 300") |
|
Projection distance |
0.8 - 13.55 m |
|
Number of colours |
1.07 billion colours |
|
Horizontal scan range |
15 - 255 kHz |
|
Vertical scan range |
23 - 240 Hz |
|
Keystone correction, horizontal |
-30 - 30° |
|
Keystone correction, vertical |
-30 - 30° |
|
Light source |
|
Service life of light source |
20000 h |
|
Service life of light source (economic mode) |
30000 h |
|

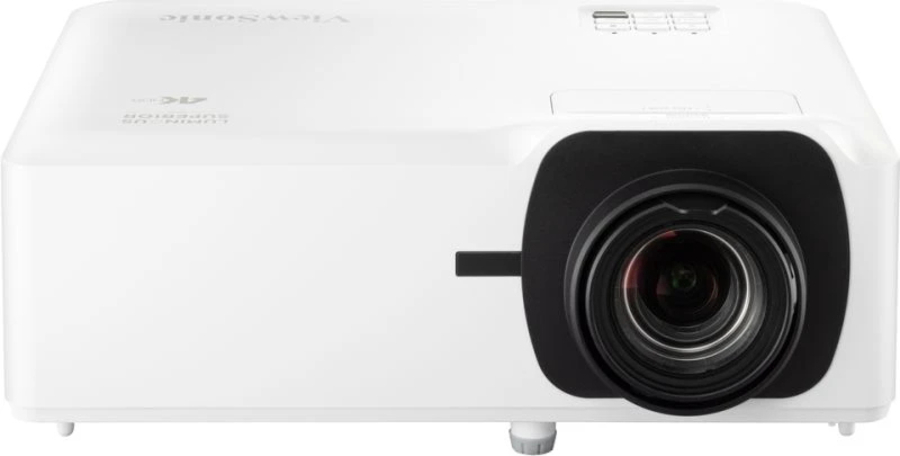

Lens system |
|
Focal length range |
17.63 - 27.9 mm |
|
Aperture range (F-F) |
2.3 - 3 |
|
Zoom capability |
Yes |
|
Vertical lens shift range |
-21 - 0% |
|
Offset |
154% |
|
Video |
|
Full HD |
Yes |
|

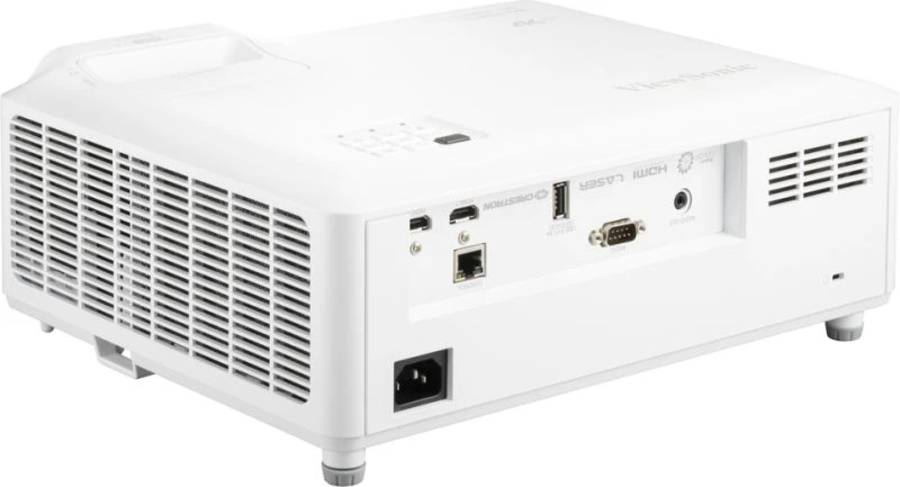

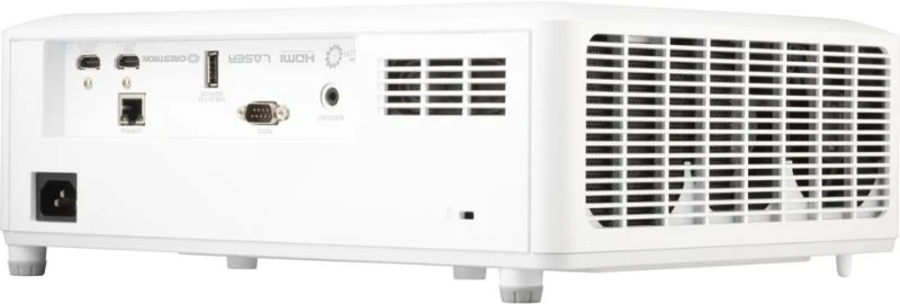

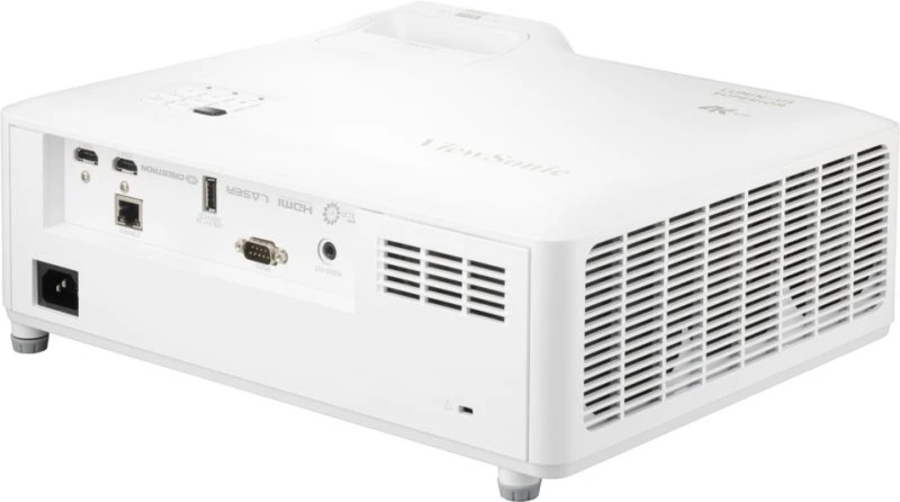

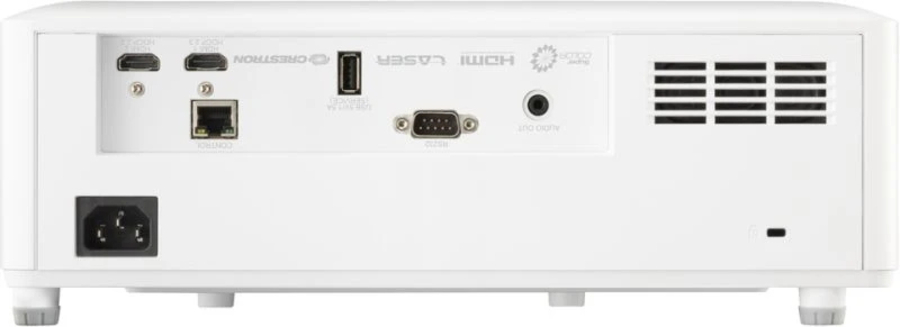

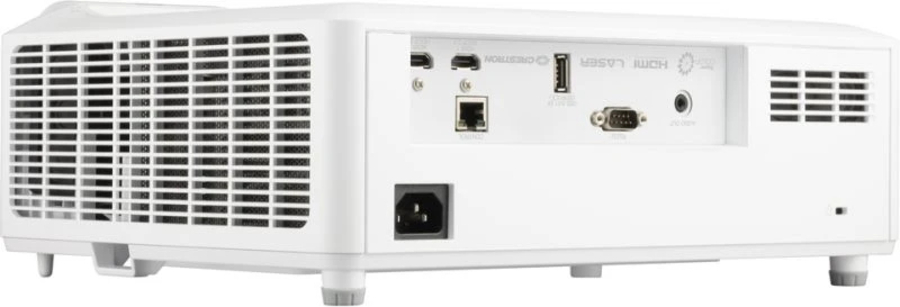

Ports & interfaces |
|
HDMI ports quantity |
2 |
|
Serial interface type |
RS-232 |
|
USB 2.0 ports quantity |
2 |
|
Audio (L/R) out |
1 |
|
AC (power) in |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
Noise level |
31 dB |
|
Noise level (economic mode) |
25 dB |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
30 W |
|
Number of built-in speakers |
2 |
|
Design |
|
Product type |
Standard throw projector |
|
Market positioning |
Education |
|
Product colour |
White |
|
LED indicators |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (typical) |
245 W |
|
Power consumption (standby) |
0.5 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Weight |
4.85 kg |
|
Width |
337 mm |
|
Depth |
280 mm |
|
Height |
132 mm |
|
Package width |
496 mm |
|
Package depth |
387 mm |
|
Package height |
195 mm |
|
Package weight |
6.8 kg |
|
Packaging content |
|

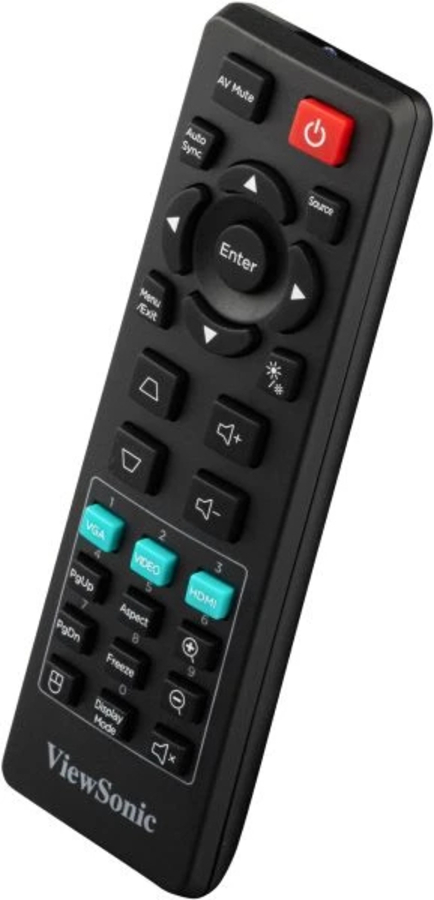

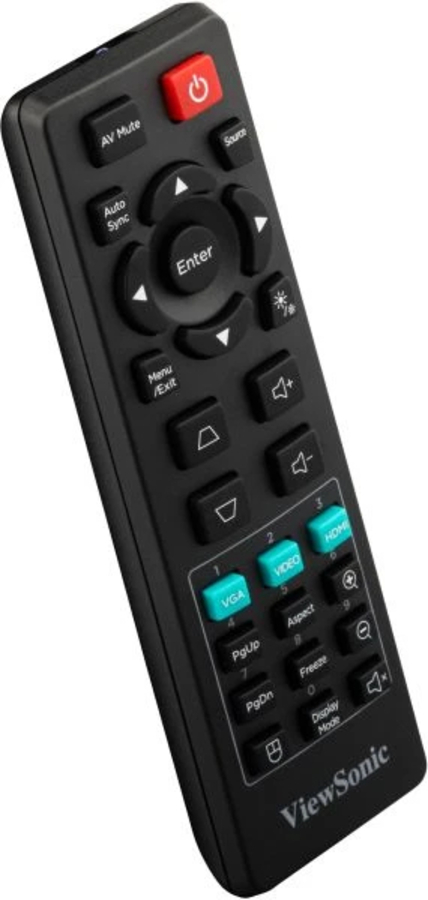

Remote control included |
Yes |
|
Manual |
Yes |
