General Information |
|
Summary |

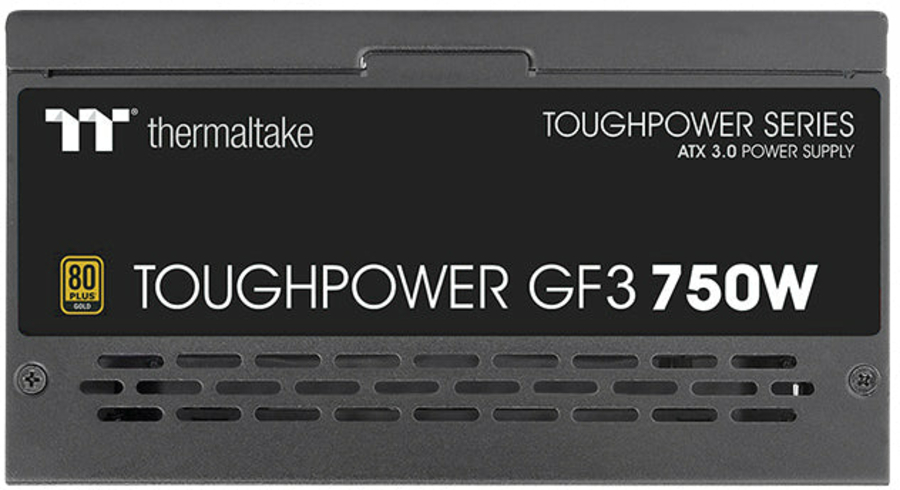

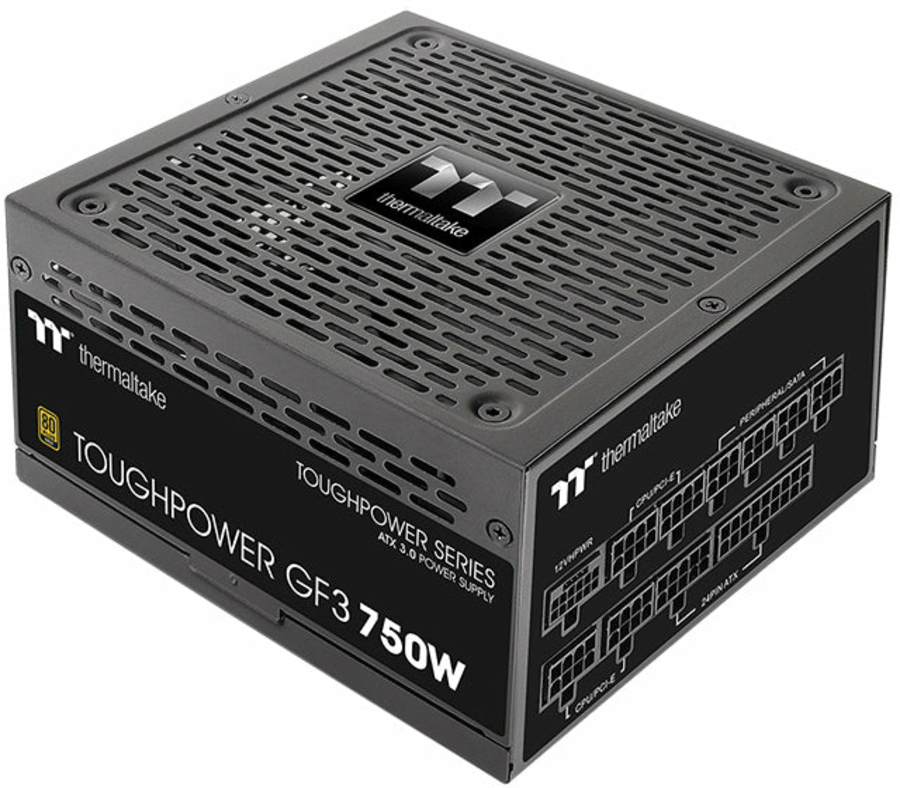

Toughpower GF3 750W Gold - TT Premium Edition
PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 750W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.
Fully Compatible With Intel PSDG ATX 3.0 Specifications
Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.
Made to Comply with the Latest Graphics Cards
As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.
PCIe Gen 5.0 Ready
Toughpower GF3 750W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.

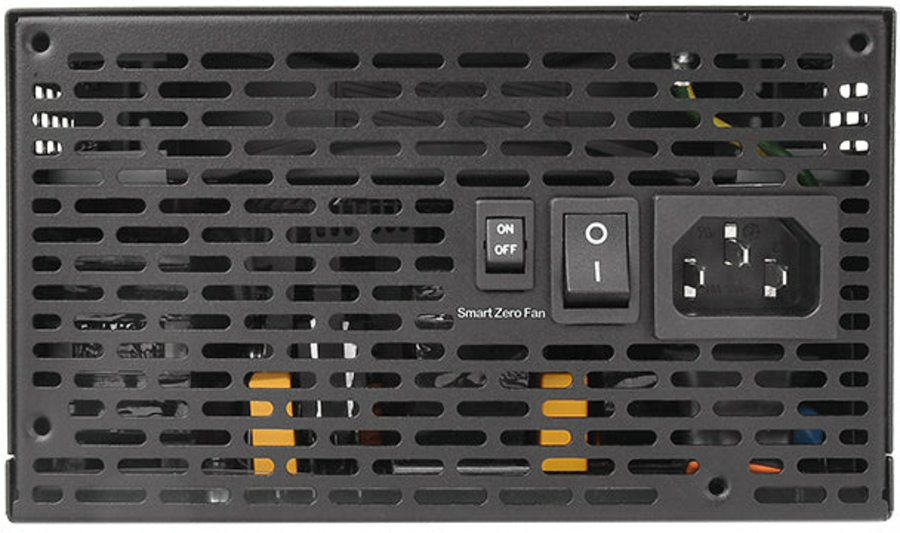

Ultra Quiet Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise Design
Top-end build quality with low ripple noise. All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation, more strict than Intel’s standard +5%,-7% for major rails and ±10% for -12V, is set to no more than ±2% for major rails, providing steady clean power through exceptional voltage stability.

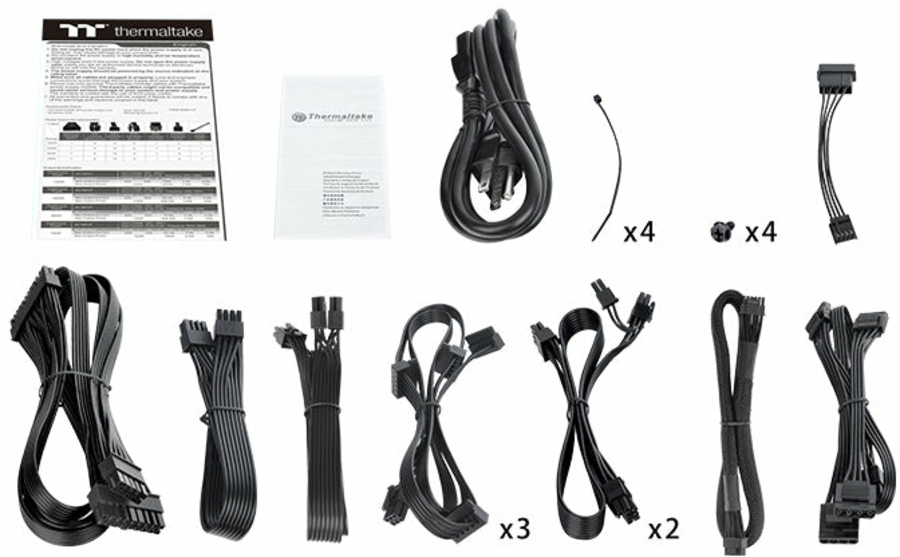

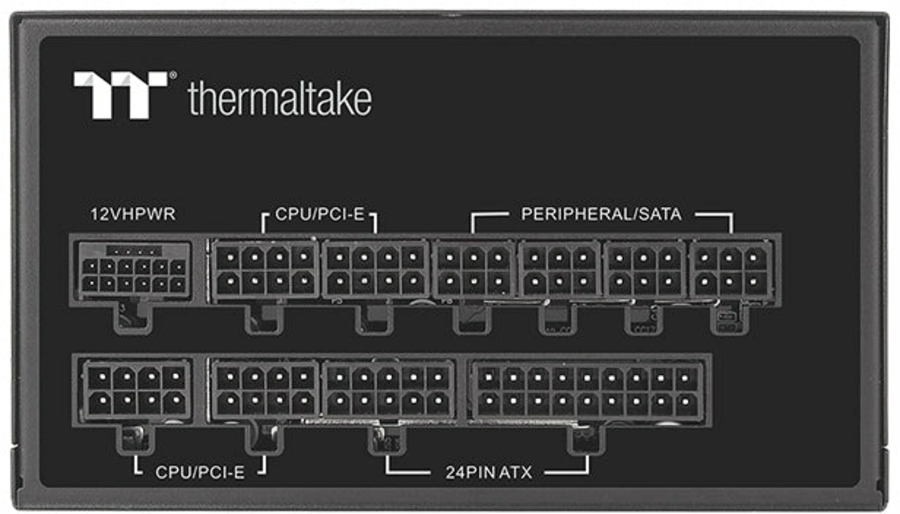

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
100% High Quality Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

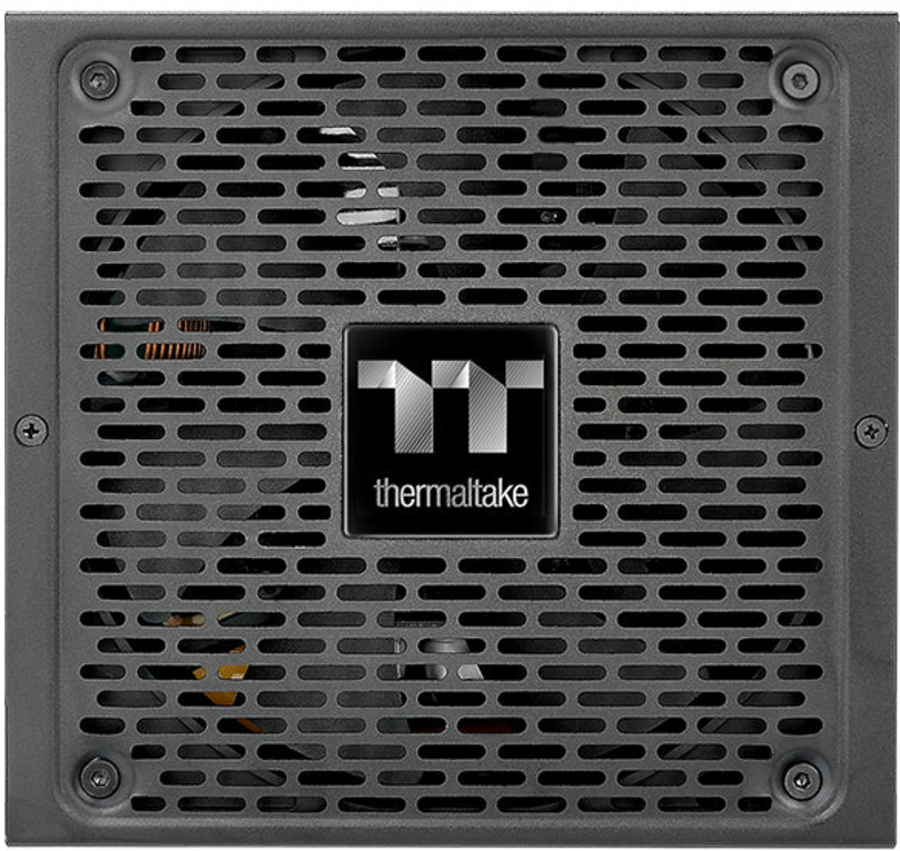

135mm Fluid Dynamic Bearing fan
Featuring a 135mm fluid bearing fan to guarantee superior cooling performance.
80 PLUS Gold Certified and Intel C6/C7 States Ready
Tough power GF3 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
CYBENETICS - EFFICIENCY LEVEL CERTIFICATION – GOLD
Toughpower GF3 750W is certified to CYBENETICS GOLD in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥87% to ＜89% of 115V input and 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power). |
|
Power |
|
Total power |
750 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power Factor Correction (PFC) type |
Active |
|
Number of +12V rail(s) |
1 |
|
Hold time |
17 ms |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
4 |
|
Motherboard power cable length |
60 cm |
|
Number of SATA power connectors |
4 |
|
SATA power cable length |
150,500 mm |
|
EPS power connector (8-pin) |
Yes |
|
EPS power connector (4+4 pin) |
Yes |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power connectors (12+4 pin) |
1 |
|
PCI Express power connectors (12+4 pin) cable length |
500 mm |
|
Floppy drive power connector |
1 |
|
Floppy disk drive cable length |
10 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
3.0 |
|
Mean time between failures (MTBF) |
100000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
13.5 cm |
|
Number of fans |
1 fan(s) |
|
Illumination |
No |
|
On/off switch |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Certificates |
|
Certification |
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
160 mm |
|
Height |
86 mm |
|
Weight |
1.63 kg |
