Sapphire Radeon RX 9070 XT Nitro+ 16GB Video Card

Home :: Audio & Video Products :: Video Products ::

Regularly: ~~$1178.00~~
On Sale: $1137.96 Sale Ends: May 4th, 2025

Manufacturer: Sapphire

16 GB, GDDR6, 256-bit, 3060 MHz boost clock, PCI-Express 5.0 x16, 2x DisplayPort, 2x HDMI, 12V-2x6(H++), ARGB

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
59946065	11348-01-20G	4895106295872	Active

Details

General Information

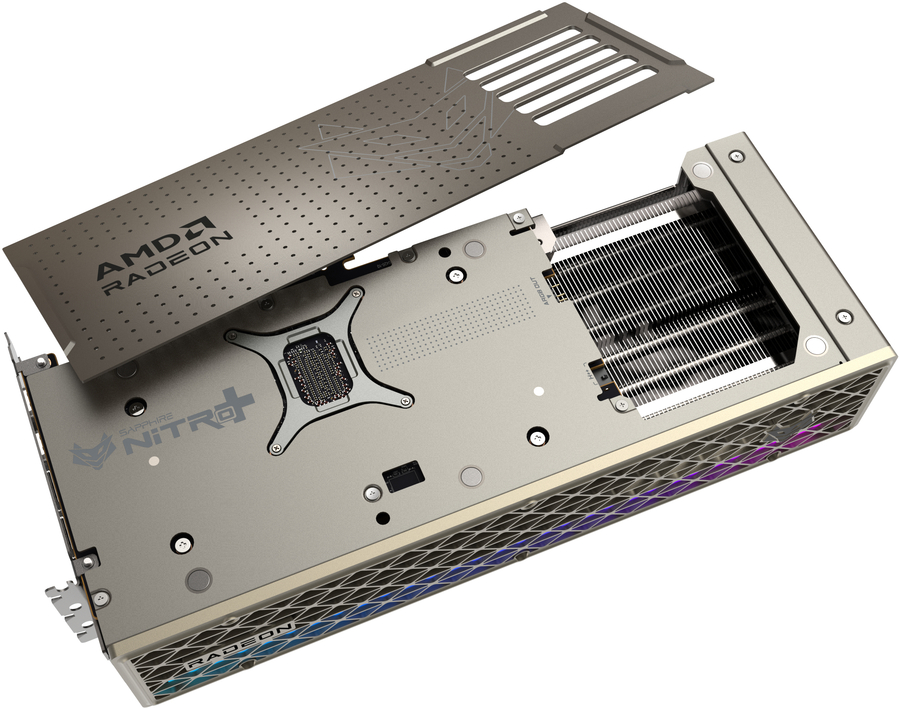

Summary	Backplate Provides rigidity and helps cool your card by increasing heat dissipation. ARGB Personalize the look of your NITRO + card with its built-in ARGB. Outputs Choose from HDMI® and DisplayPort™ 2.1a slots for a maximum of 4 outputs Cooling Innovative cooling technologies to ensure optimal performance and airflow. Honeywell PTM7950 TIM The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics. Quick Connect MagniPlate The magnetic backplate on the graphics card combines sleek design with practical functionality. Engineered for effortless installation, its magnetic attachment ensures a secure fit while enhancing heat dissipation and overall durability. This premium feature not only protects your graphics card but also elevates your build with a clean, modern aesthetic—perfect for gamers and creators who demand performance and style. AeroCurve Fan Blade The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications. STEALTH Hidden Power Cable The hidden power connection feature seamlessly conceals external power cables, delivering a clean and clutter-free look for your build. Designed for maximum aesthetics and organization, it ensures your graphics card stands out without any visible distractions—perfect for showcasing a sleek, professional setup. FrameDefense The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance. Cold Rolled Steel Frame Experience a superior and beautifully crafted frame on the NITRO+ AMD Radeon™ RX 9070 XT Graphics Card with a Cold Rolled Steel Frame that fortifies the shroud structure and durability while encasing the sides of the PCB for a strong encasement alongside the All Metal Backplate. Integrated Cooling Module Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use. Free Flow The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads. High TG Copper PCB The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation. Fan Quick Connect If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place. Optimized Composite Heatpipe The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module. Two-Ball Bearing These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation. L-Shape Graphics Card Supporter The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance. External ARGB Control Sync Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control. ARGB Light Bar With tasteful shroud design augmented by ARGB LEDs, you can change the colors of the LED, for a customized design. This can be controlled via TriXX software. Choose from different modes including the colourful rainbow mode or turn off the LEDs. Fuse Protection In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe. Digital Power Design SAPPHIRE NITRO+ AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency TRI-X COOLING TECHNOLOGY An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system Heat is dissipated by a trio of large efficient fans running anticlockwise to maximize airflow.
Processor
Graphics processor family	AMD
Graphics processor	Radeon RX 9070 XT
Maximum resolution	7680 x 4320 pixels
CUDA	No
Parallel processing technology support	Not supported
Compute units	64
Processor boost clock speed	3060 MHz
Processor boost clock speed (Gaming mode)	2520 MHz
Stream processors	4096
Maximum displays per videocard	4
Infinity cache	64 MB
Ray accelerators	64
AI accelerators	128
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Data transfer rate	20 Gbit/s
Ports & interfaces
Interface type	PCI Express x16 5.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
DisplayPort version	2.1a
Performance
TV tuner integrated	No
DirectX version	12 Ultimate
Dual Link DVI	No
AMD FreeSync	Yes
Design
Cooling type	Active
Cooling technology	Sapphire Tri-X
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Bracket height	Full-Height (FH)
Number of slots	3.2
Illumination	Yes
Illumination colour	Multi
Product colour	Grey
Power
Minimum system power supply	750 W
Supplementary power connectors	1x 12-pin
Thermal Design Power (TDP)	330 W
System requirements
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Linux operating systems supported	Yes
Minimum RAM	8192 MB
Weight & dimensions
Length	330.8 mm
Depth	65.7 mm
Height	128.5 mm
Packaging data
Package type	Box
