TRENDnet TI-FGSC Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter
|
|
Price: $116.00
Manufacturer:
TRENDnet
Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter (1km, 0.62mi.)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59946078
|
TI-FGSC
|
710931163186 |
Active
|
Details
|
General Information |
|
Summary |

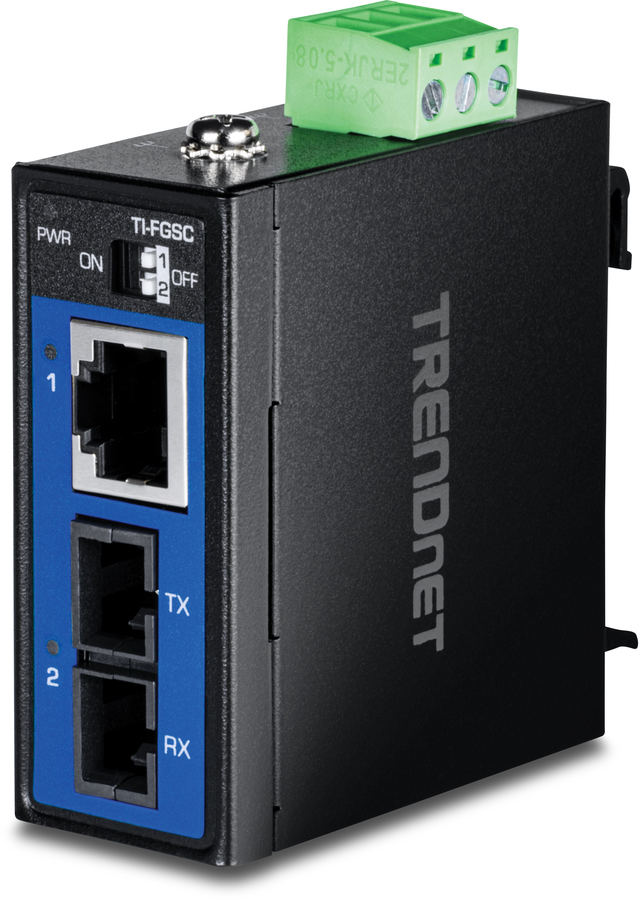

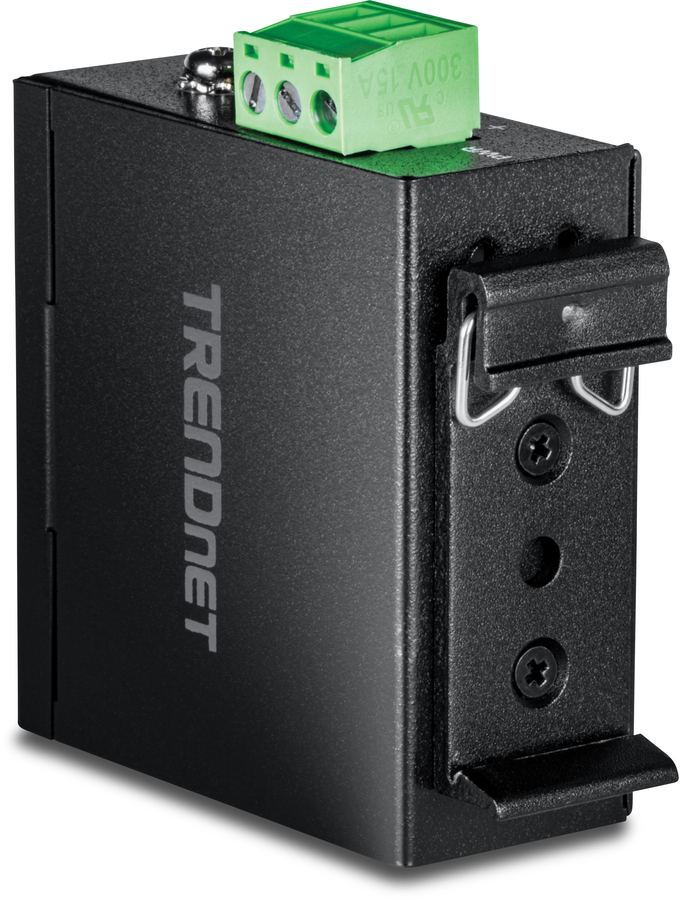

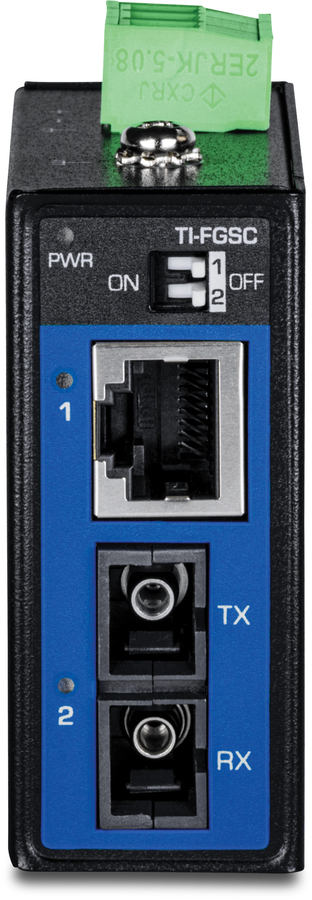

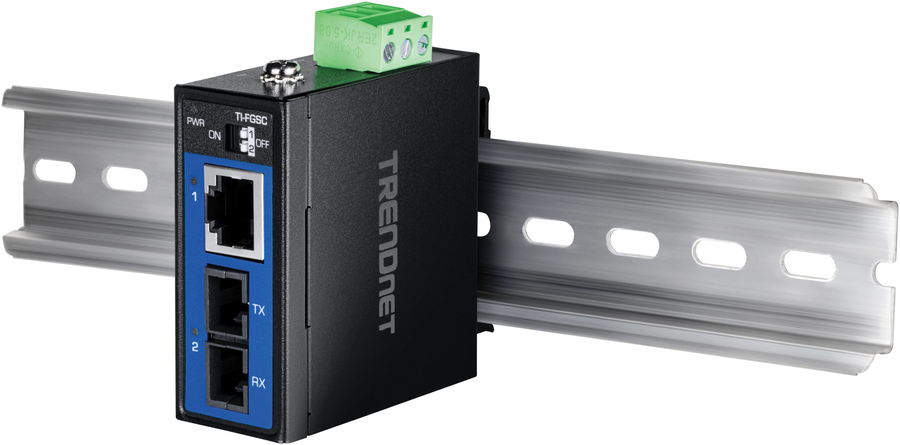

TRENDnet’s Hardened Industrial 1000BASE-LX Multi-Mode SC Fiber Converter, model TI-FGSC, features a gigabit RJ45 port and a 1000BASE-LX SC interface port for building-to-building or long-distance fiber optic cable runs of up to 1km (0.62 mi.). The industrial multi-mode media converter’s compact IP50-rated design allows for flexible installation, provides ingress dust protection, and includes DIN-rail and wall mounting hardware options. The industrial SC fiber converter’s rugged design provides resistance to standard compliance levels of shock and vibration, and operates within an extreme temperature range of -40° – 75° C (-40° – 167° F). The front panel DIP switches quickly allow switching between switch/converter modes, and enable or disable Link Fault Pass
Through (LFPT).
|
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
16000 |
|
Auto MDI/MDI-X |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
1000 m |
|
Wavelength |
1310 nm |
|
Link budget |
15 dB |
|
Buffer size |
64 KB |
|
Mean time between failures (MTBF) |
5109029 h |
|
Features |
|
Internal |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
International Protection (IP) code |
IP50 |
|
DIN rail mounting |
Yes |
|
Ports & interfaces |
|
Fiber optic connector |
SC |
|
Connectivity technology |
Wired |
|

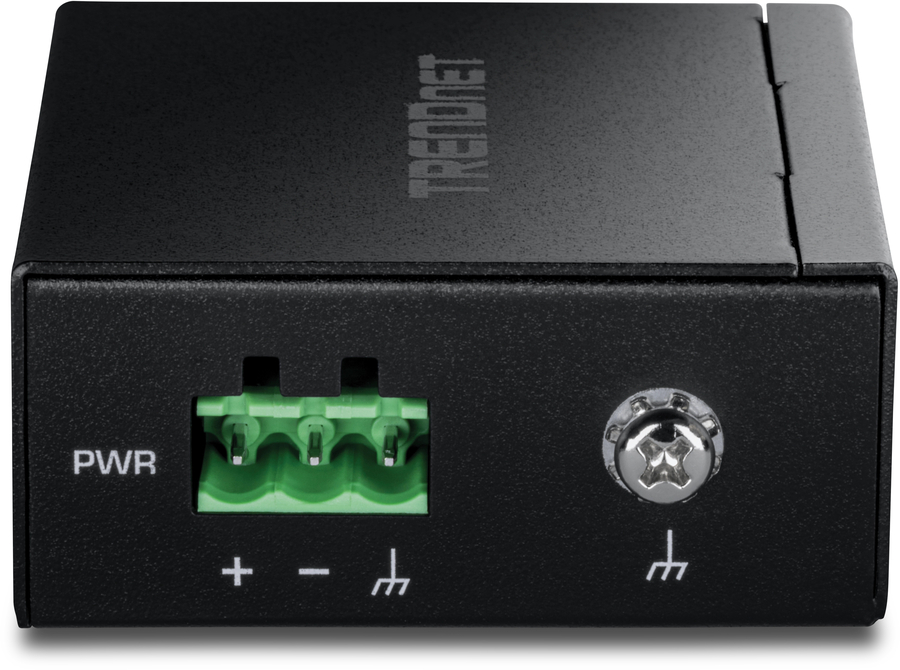

Power |
|
Input voltage |
12 - 60 V |
|
Power consumption (max) |
2.148 W |
|
Weight & dimensions |
|
Width |
62 mm |
|
Depth |
58 mm |
|
Height |
27 mm |
|
Weight |
148 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Certificates |
|
Certification |
CE
FCC
LVD |
|
