Game TUF. Built to Last.

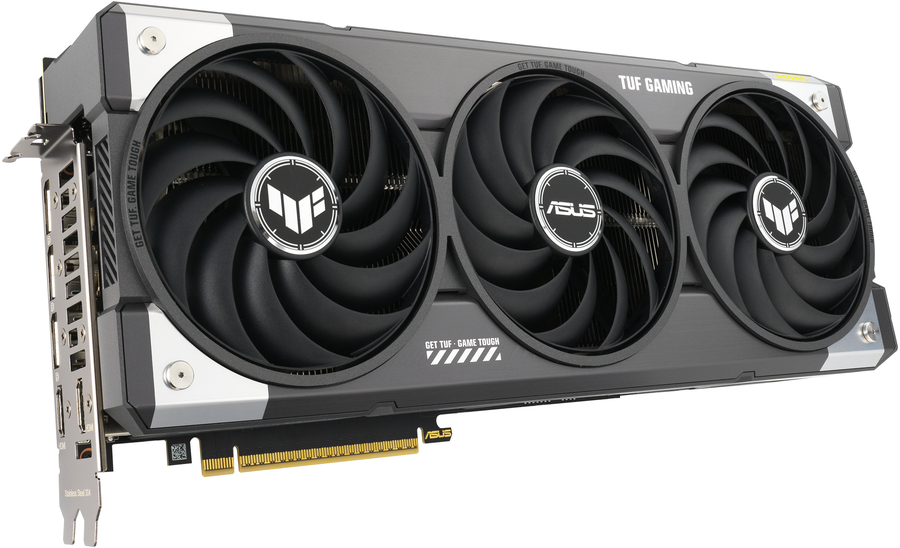

ASUS TUF Gaming GeForce RTX™ 5070 Ti
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070 Ti, designed to withstand the harshest conditions and deliver unparalleled performance.
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5070 Ti |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
8960 |
|
Processor boost clock speed |
2452 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
16 GB |
|
Graphics card memory type |
GDDR7 |
|
Memory bus |
256 bit |
|
Data transfer rate |
28 Gbit/s |
|
Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|
HDMI ports quantity |
2 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1b |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
2.1b |
|
Performance |
|
TV tuner integrated |
No |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NVIDIA G-SYNC |
Yes |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
3 fan(s) |
|
Form factor |
Full-Height/Full-Length (FH/FL) |
|
Number of slots |
3.125 |
|
Illumination |
Yes |
|
Illumination colour |
Multi |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
850 W |
|
Supplementary power connectors |
1x 16-pin |
|
Weight & dimensions |
|
Weight |
1.62 kg |
|
Length |
329 mm |
|
Depth |
62.5 mm |
|
Height |
140 mm |
|
Packaging data |
|
Package width |
420 mm |
|
Package depth |
226 mm |
|
Package height |
87 mm |
|
Package weight |
2.41 kg |
|
Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
