General Information |
|
Summary |
Unleash big connections in small spaces

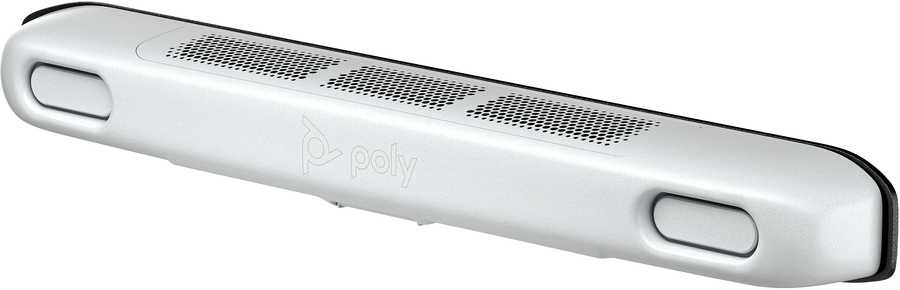

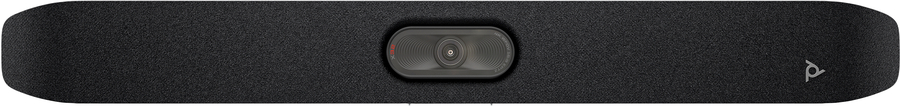

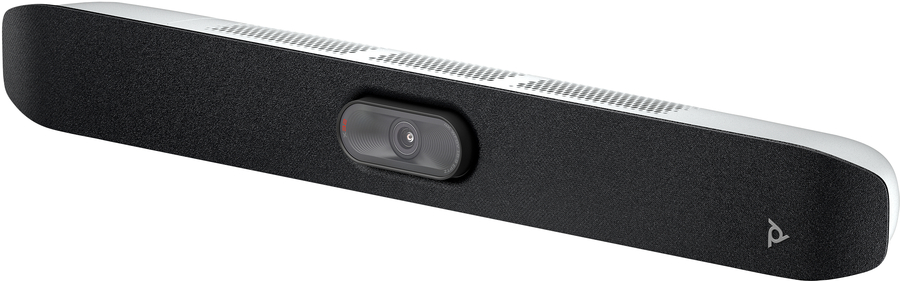

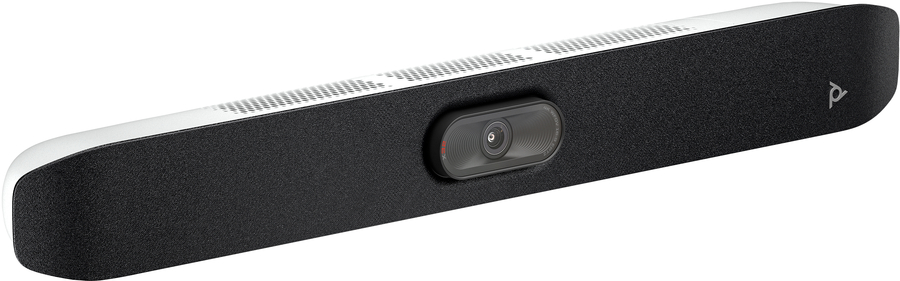

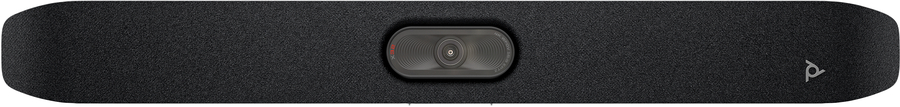

Small rooms, big conversations. Simplify the moment with the all-in-one Poly Studio X32 video bar. Deliver an immersive and inclusive experience with advanced audio and video AI technology and connect instantly with built-in video conferencing apps. |
|
Performance |
|
Product type |
Video collaboration bar |
|
Product colour |
Black |
|
Number of cameras |
1 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.0 |
|
Signal-to-Noise Ratio (SNR) |
63 dB |
|
Video |
|
HD type |
4K Ultra HD |
|
Maximum video resolution |
3840 x 2160 pixels |
|
Total megapixels |
20 MP |
|
Supported video modes |
720p, 1080p |
|
Supported graphics resolutions |
800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1600 x 1200, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 3840 x 2160 |
|
Maximum frame rate |
30 fps |
|
Video formats supported |
AVC, H.264, H.265 |
|
Audio |
|
Built-in speaker(s) |
Yes |
|
Number of speakers |
2 |
|
Voice codecs |
G.711, G.719, G.722, G.722.1, G.728, G.729A |
|
Automatic gain control |
Yes |
|
RMS rated power |
10 W |
|
Ports & interfaces |
|
HDMI output ports quantity |
2 |
|
HDMI input ports quantity |
1 |
|
HDMI version |
1.4/2.0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Networking standards |
IEEE 802.3bt |
|
Security algorithms |
128-bit AES, 256-bit AES, TLS |
|
Camera |
|
Megapixel (approx.) |
20 MP |
|
Zoom capability |
Yes |
|
Digital zoom |
5x |
|
Horizontal field of view |
120° |
|
Diagonal field of view |
132° |
|
Microphone |
|
Microphone sensitivity |
-26 dB |
|
Number of microphones |
4 |
|
Technical details |
|
Total carbon footprint (kg of CO2e) |
50 |
|
General Product Safety Regulation (GPSR) URL |
https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf |
|
Features |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Logistics data |
|
Country of origin |
Mexico |
|
Pallet gross weight |
370 kg |
|
UNSPSC-code |
45111902 |
|
Sustainability |
|
Sustainable technologies and materials |
Contains at least 50% recycled plastic content; Fabric contains 100% recycled PET; Paper-based packaging derived from at least 70% recycled materials |
|
Sustainability compliance |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
15 - 80% |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Heat dissipation |
55 BTU/h |
|
Power |
|
Power source type |
PoE |
|
DC input voltage |
42.5 - 57 V |
|
Weight & dimensions |
|
Width |
576.8 mm |
|
Depth |
66.1 mm |
|
Height |
74.8 mm |
|
Weight |
1.14 kg |
|
Packaging data |
|
Package width |
118 mm |
|
Package depth |
194 mm |
|
Package height |
667 mm |
|
Package weight |
3 kg |
|
Packaging content |
|
Cables included |
HDMI, LAN (RJ-45) |
|
Mounting kit |
Yes |
