General Information |
|
Summary |
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Unified static configuration |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Gigabit Ethernet (copper) ports quantity |
8 |
|
Network |
|
Networking standards |
IEEE 802.3ab, IEEE 802.1ab, IEEE 802.3i, IEEE 802.1p, IEEE 802.3x, IEEE 802.3at, IEEE 802.1Q |
|
10G support |
No |
|
Zero Touch Provisioning (ZTP) |
Yes |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
Fast leave |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
|
Number of VLANs |
32 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
16 Gbit/s |
|
Forwarding rate |
11.9 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
15000 |
|
Packet buffer memory |
4 MB |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Design |
|
Rack mounting |
No |
|
Stackable |
No |
|
Product colour |
Black |
|
LED indicators |
Yes |
|

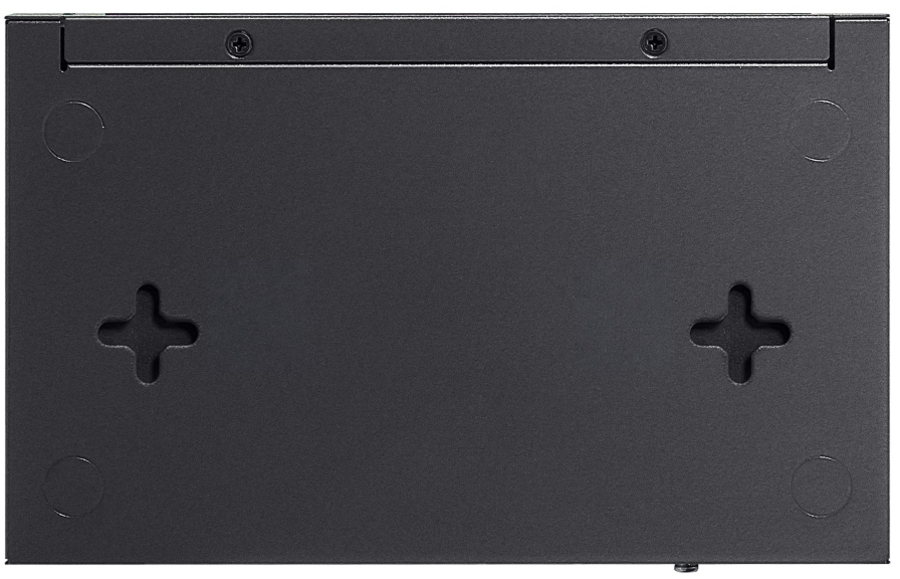

Wall mountable |
Yes |
|
Performance |
|
Flash memory |
64 MB |
|
Firmware upgradeable |
Yes |
|
Fanless |
Yes |
|
Mean time between failures (MTBF) |
1141726 h |
|
Power |
|
Power source |
DC |
|
Power supply included |
Yes |
|
DC input voltage |
5 V |
|
Input current |
0.6 A |
|
Power consumption (max) |
2.7 W |
|
Surge protection |
Yes |
|
Surge protection voltage |
6 kV |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Heat dissipation |
9.09 BTU/h |
|
Weight & dimensions |
|
Width |
158 mm |
|
Depth |
100.7 mm |
|
Height |
25.4 mm |
|
Packaging content |
|
User guide |
Yes |
|
Packaging data |
|
AC adapter included |
Yes |
|
Package type |
Box |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
