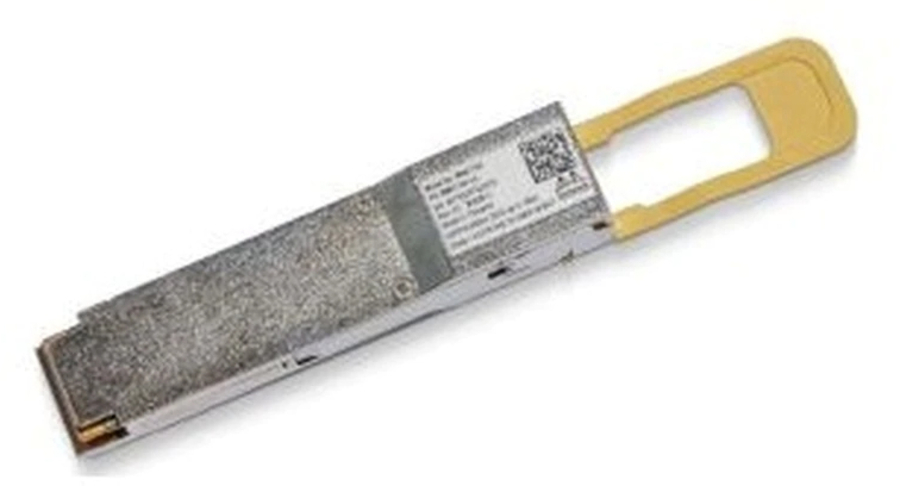

NVIDIA MMA1T00-VS 200GbE QSFP56 MMF Transceiver
|
|
Regularly: $937.00
On Sale: $899.52
Sale Ends:
August 16th, 2025
Manufacturer:
NVIDIA
200 Gbit/s, 100m, 850 nm, 3.6V
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59961471
|
MMA1T00-VS
|
7290108486438 |
Active
|
Details
|
General Information |
|
Summary |
200GbE QSFP56 MMF Transceiver
NVIDIA Networking MMA1T00-VS transceiver is a 4-channel, pluggable, QSFP56, optical transceiver designed for use in 200GbE Ethernet applications. This module incorporates NVIDIA Networking integrated circuit technology in order to provide high performance. The transceiver operates over 4-lane parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is QSFP56 MSA compliant. The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds. The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard. |
|
Performance |
|
SFP transceiver type |
Fiber optic |
|
Maximum data transfer rate |
200000 Mbit/s |
|
Multi-mode fiber (MMF) supported |
Yes |
|
Fiber optic connector |
MPO12, QSFP56 |
|
Maximum transfer distance |
100 m |
|
Wavelength |
850 nm |
|
Networking standards |
IEEE 802.3 |
|
Features |
|
Product colour |
Aluminium, Beige |
|
Power |
|
Input voltage |
3.6 V |
|
Operational conditions |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Weight & dimensions |
|
Width |
18.4 mm |
|
Depth |
121.9 mm |
|
Height |
11.8 mm |
|
