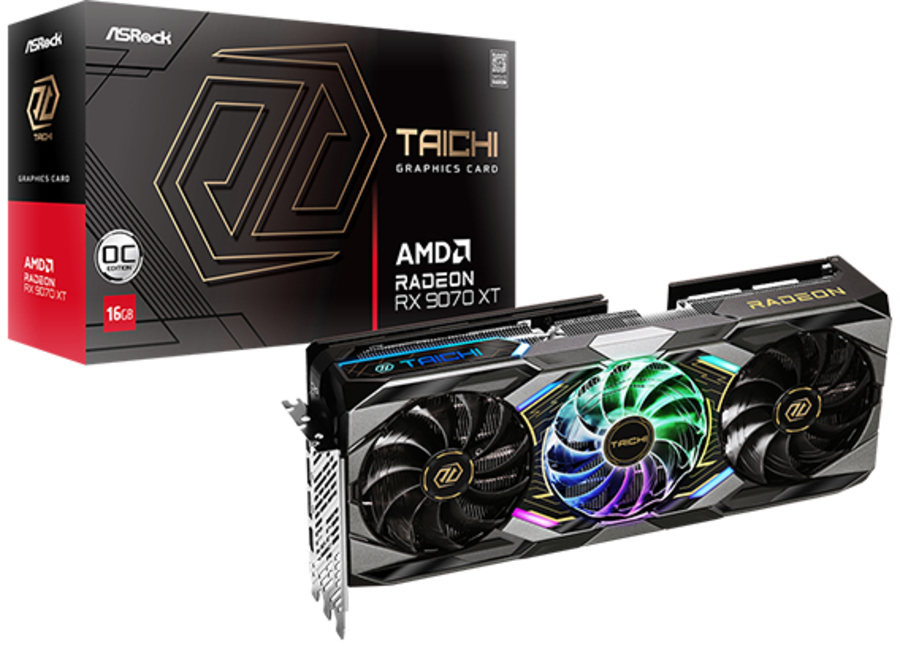

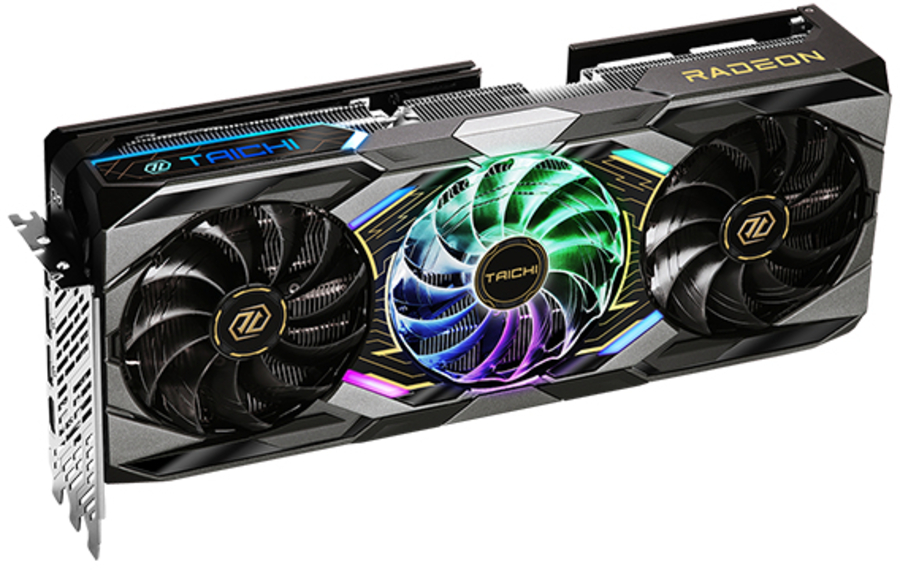

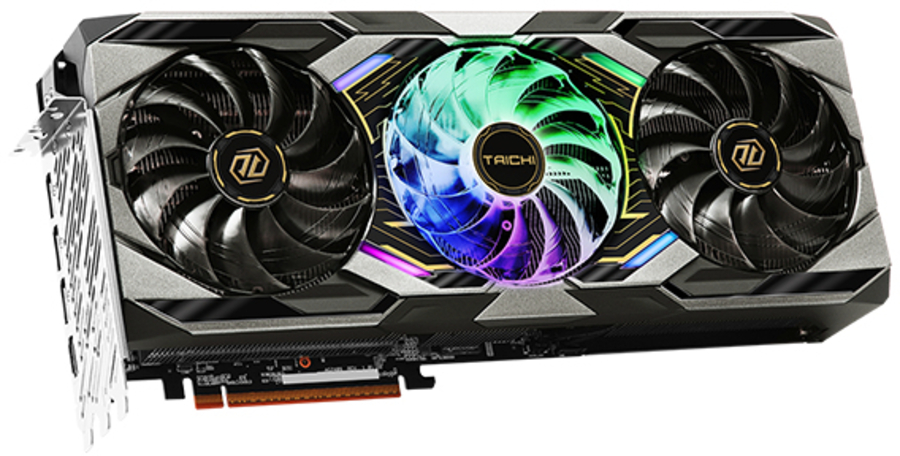

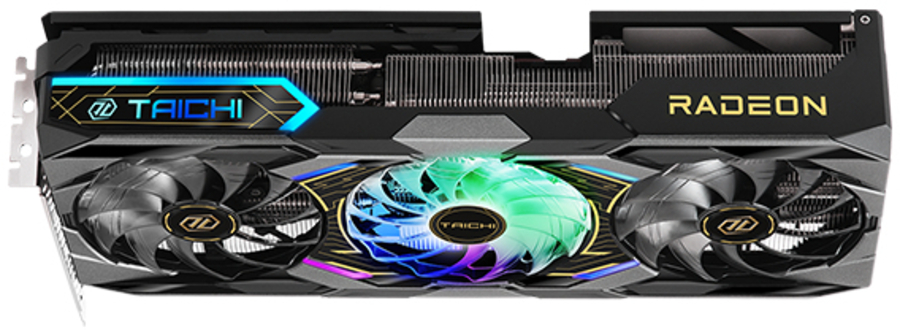

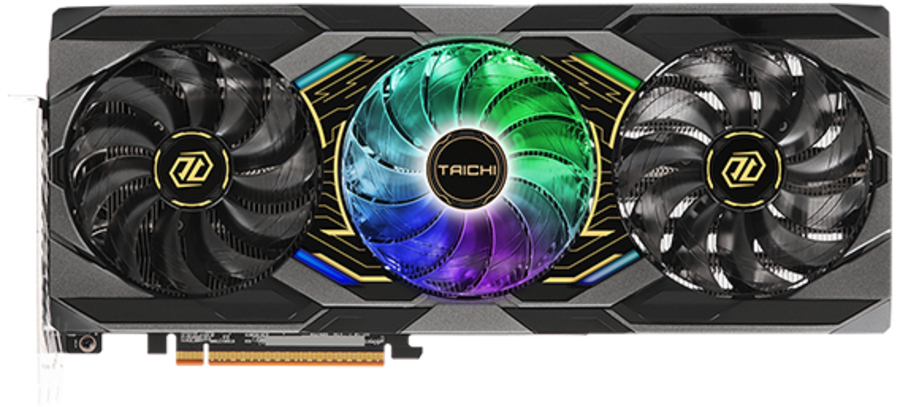

ASRock Radeon RX 9070 XT Taichi OC 16GB Video Card
|
|
Price: $1138.00
Manufacturer:
ASRock
AMD Radeon RX 9070 XT, 16GB GDDR6, 256 bit, PCI Express x16 5.0, 1 x HDMI (2.1b), 3 x DP (2.1a), DirectX 12 Ultimate, OpenGL 4.6
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59961502
|
RX9070XT TC 16GO
|
- |
Active
|
Details
|
General Information |
|
Summary |
Reverse Spin
The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.
Taichi 3X Cooling System
Crafted for the best balance between the thermal efficiency and silence by all the details improved.
Striped Ring Fan
Designed For Enhanced Airflow
ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin
Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Honeywell PTM7950
Phase-change Thermal Pad
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Polychrome SYNC
Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
ARGB Pin-header
More ARGB, More Fancy.
With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.
16 Power Phase Design with SPS
More Power Phase Equipped to Deliver More Sufficient Power.
Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.
Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Dual BIOS
Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS. |
|
Processor |
|
Graphics processor family |
AMD |
|
Graphics processor |
Radeon RX 9070 XT |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
No |
|
Processor boost clock speed |
3100 MHz |
|
Processor boost clock speed (Gaming mode) |
2750 MHz |
|
Stream processors |
4096 |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
16 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
256 bit |
|
Data transfer rate |
20 Gbit/s |
|
Ports & interfaces |
|
Interface type |
PCI Express x16 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
HDMI version |
2.1b |
|
DisplayPort version |
2.1a |
|
Performance |
|
TV tuner integrated |
No |
|
DirectX version |
12 Ultimate |
|
Shader model version |
No |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
HDCP |
Yes |
|
Design |
|
Cooling type |
Active |
|
Number of fans |
3 fan(s) |
|
Number of slots |
3 |
|
Illumination |
Yes |
|
Power |
|
Minimum system power supply |
850 W |
|
Weight & dimensions |
|
Weight |
1.55 kg |
|
Length |
330 mm |
|
Depth |
140 mm |
|
Height |
61 mm |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Cables included |
Power |
|
