General Information |
|
Summary |
Game TUF. Built to Last.

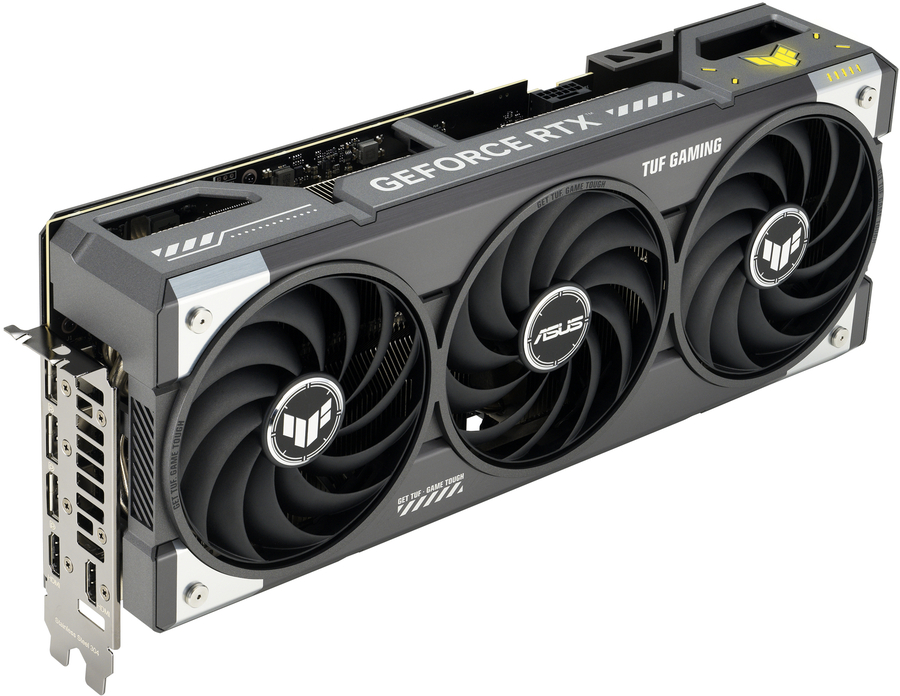

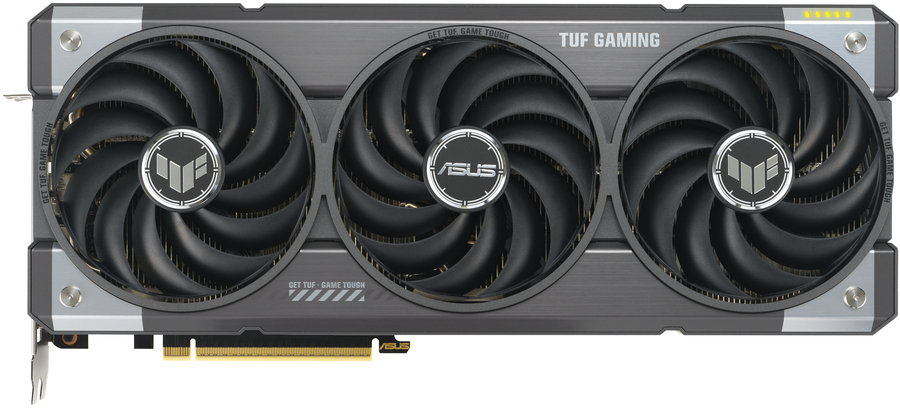

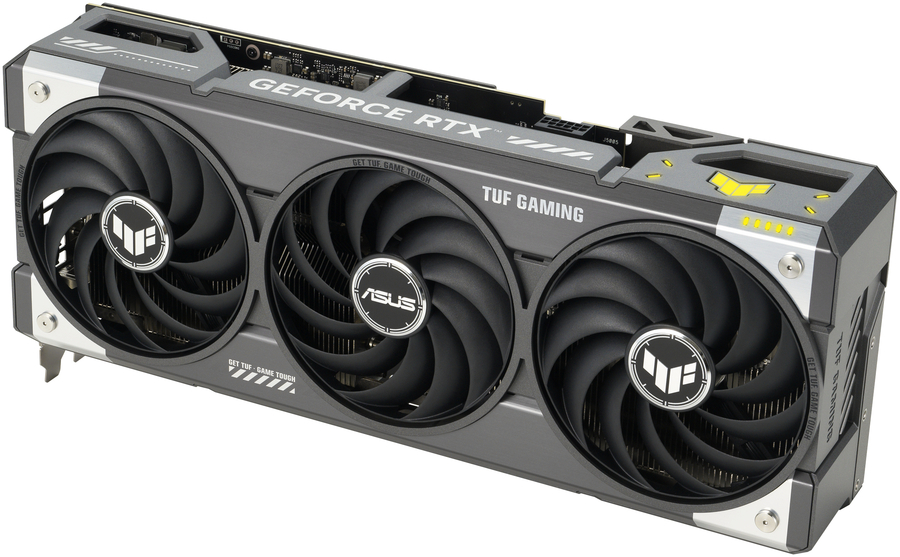

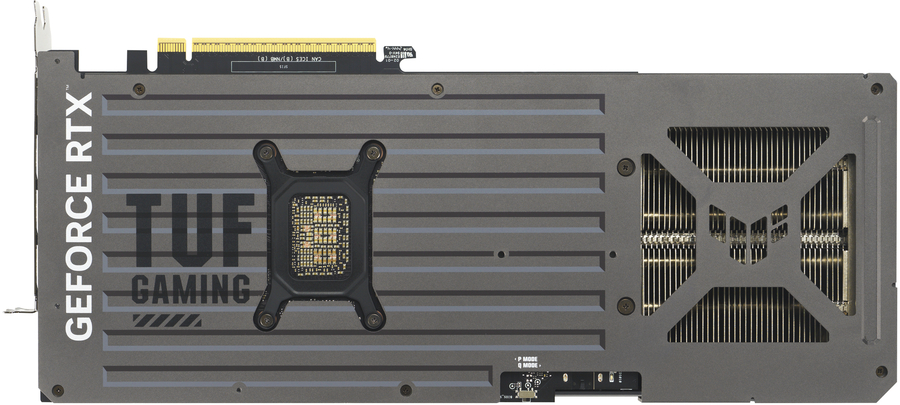

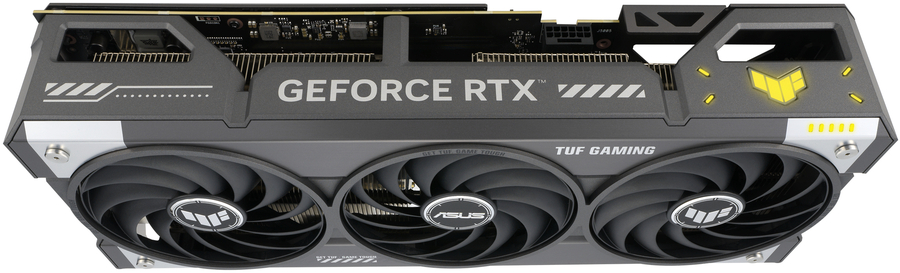

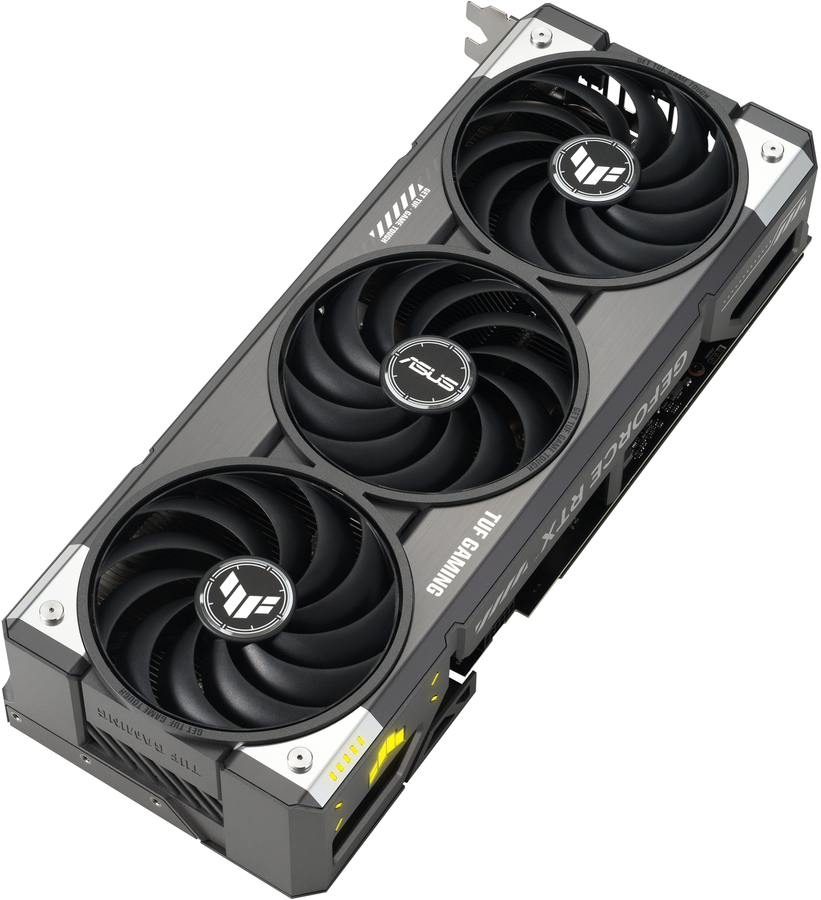

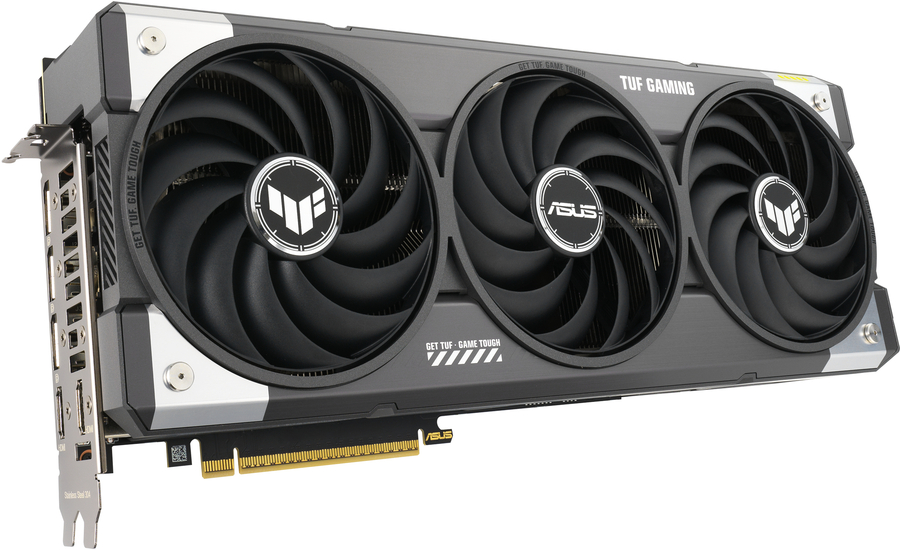

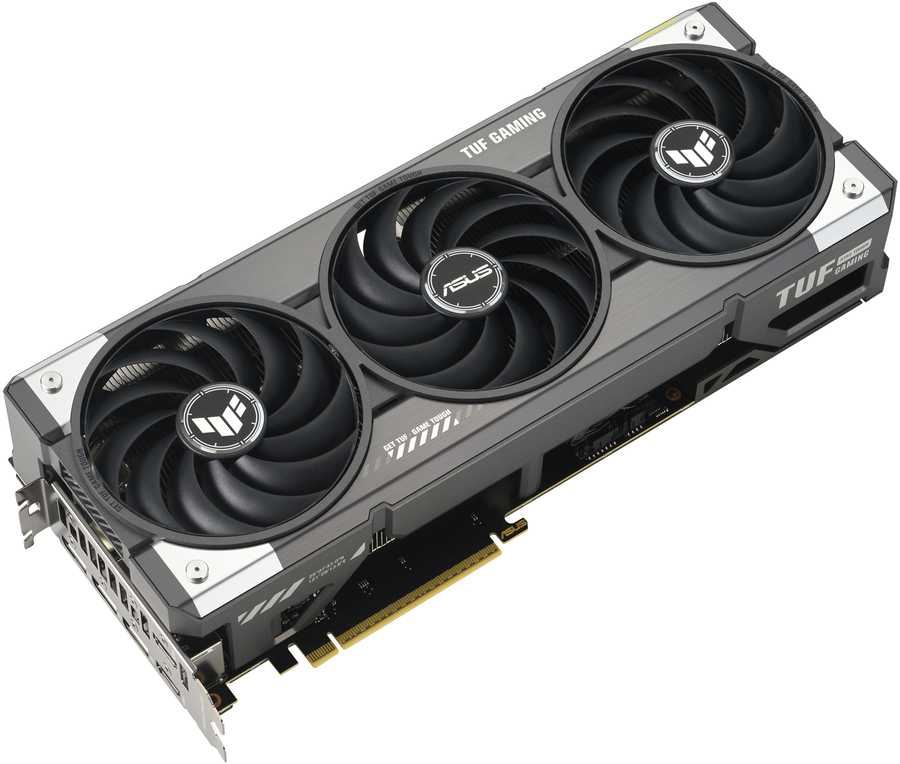

ASUS TUF Gaming GeForce RTX™ 5070
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070, designed to withstand the harshest conditions and deliver unparalleled performance. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5070 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
6144 |
|
Processor boost clock speed |
2610 MHz |
|
Processor frequency (OC mode) |
2640 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
12 GB |
|
Graphics card memory type |
GDDR7 |
|
Memory bus |
192 bit |
|
Data transfer rate |
28 Gbit/s |
|

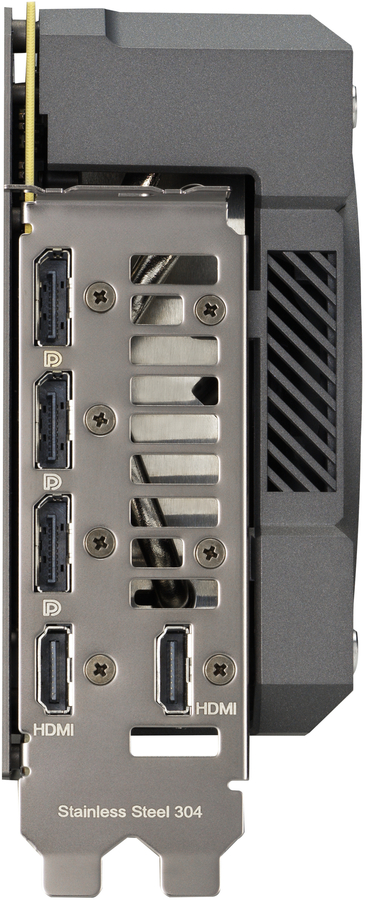

Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|
HDMI ports quantity |
2 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1b |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
2.1b |
|
Performance |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
Virtual Reality (VR) ready |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NVIDIA G-SYNC |
Yes |
|
NPU performance up to |
1026 TOPs |
|
Overclocked (OC) edition |
Yes |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
3 fan(s) |
|
Bracket height |
Full-Height (FH) |
|
Number of slots |
3.125 |
|
Illumination |
Yes |
|
Illumination colour |
Multi |
|
Product colour |
Multicolour |
|
Power |
|
Minimum system power supply |
750 W |
|
Supplementary power connectors |
1x 16-pin |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Weight & dimensions |
|
Length |
329 mm |
|
Depth |
62.5 mm |
|
Height |
140 mm |
|

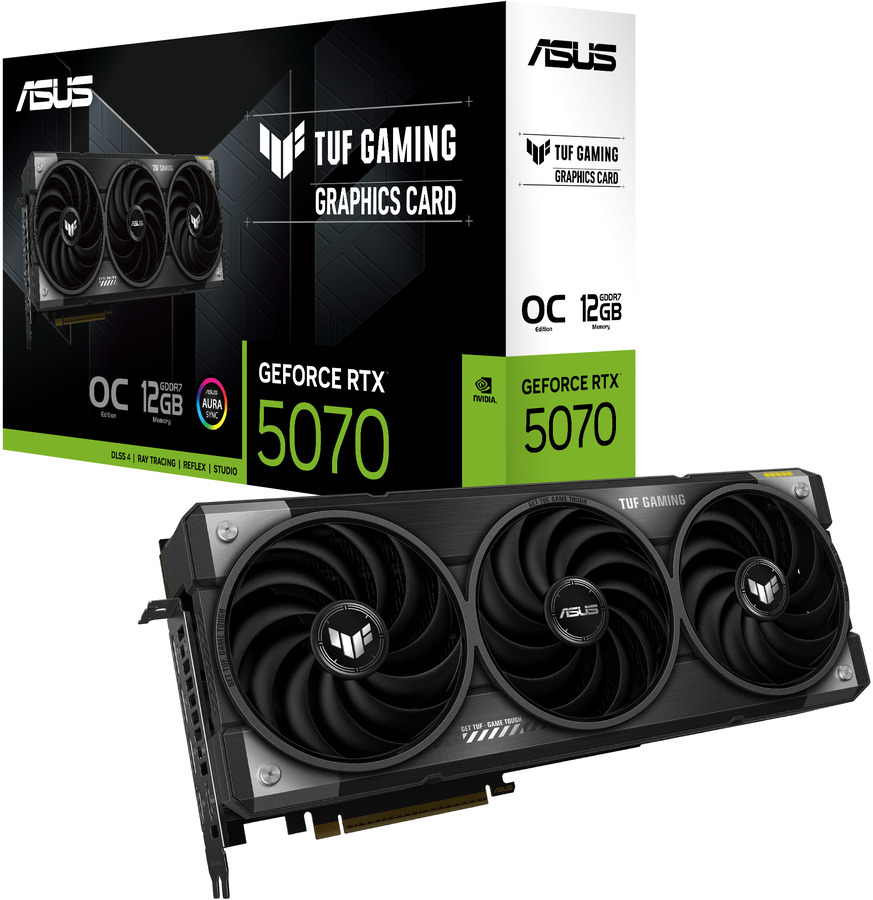

Packaging data |
|
Package type |
Box |
