General Information |
|
Summary |

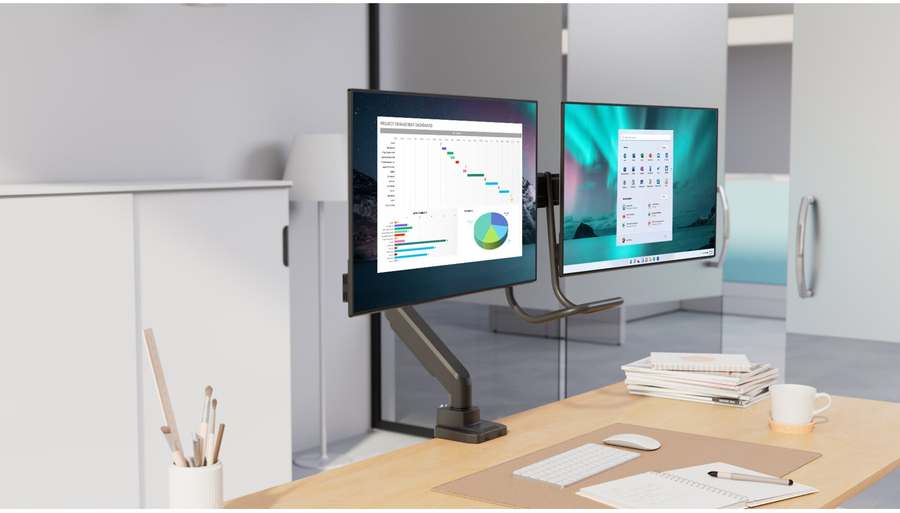

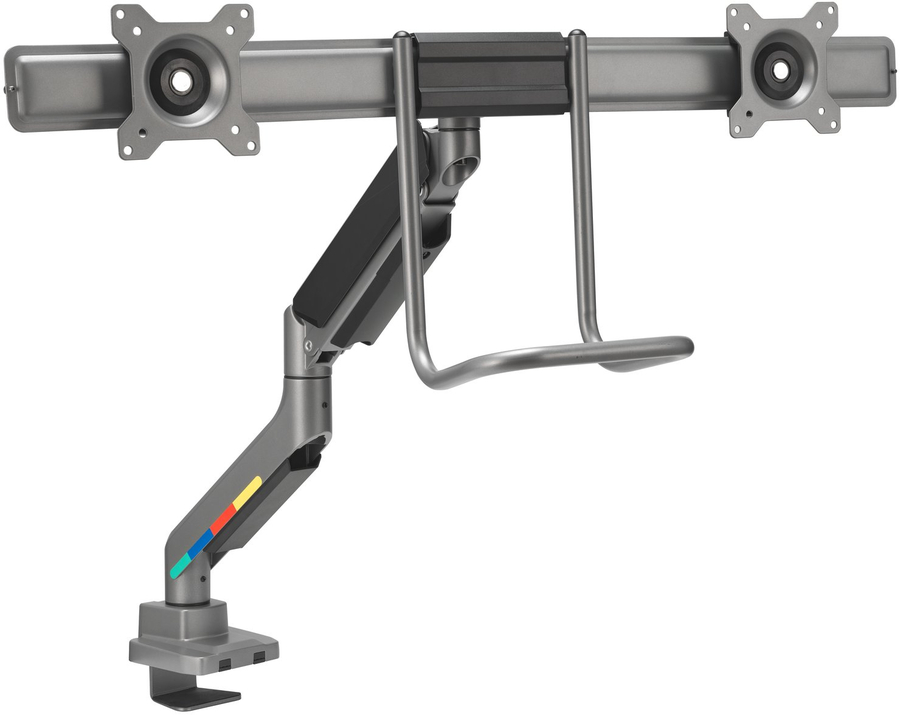

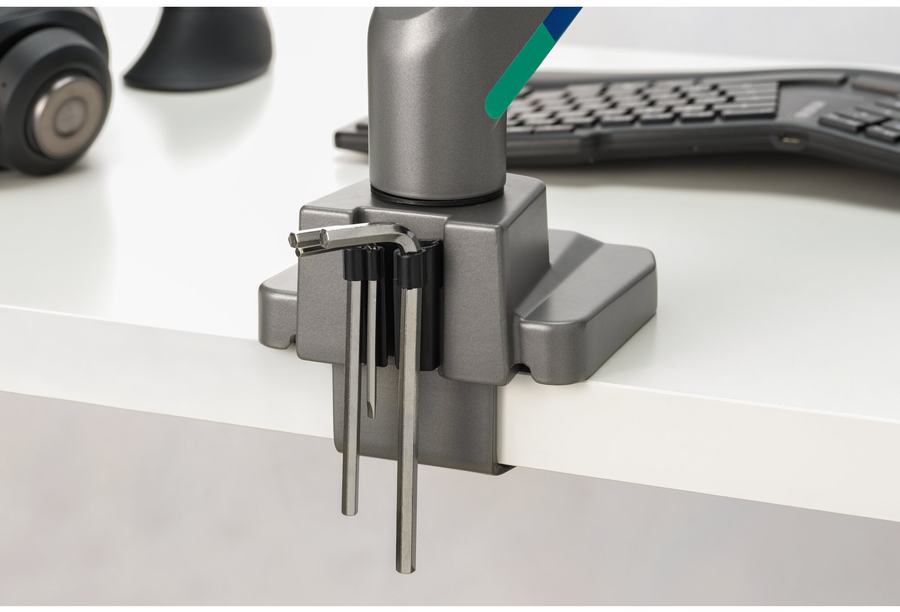

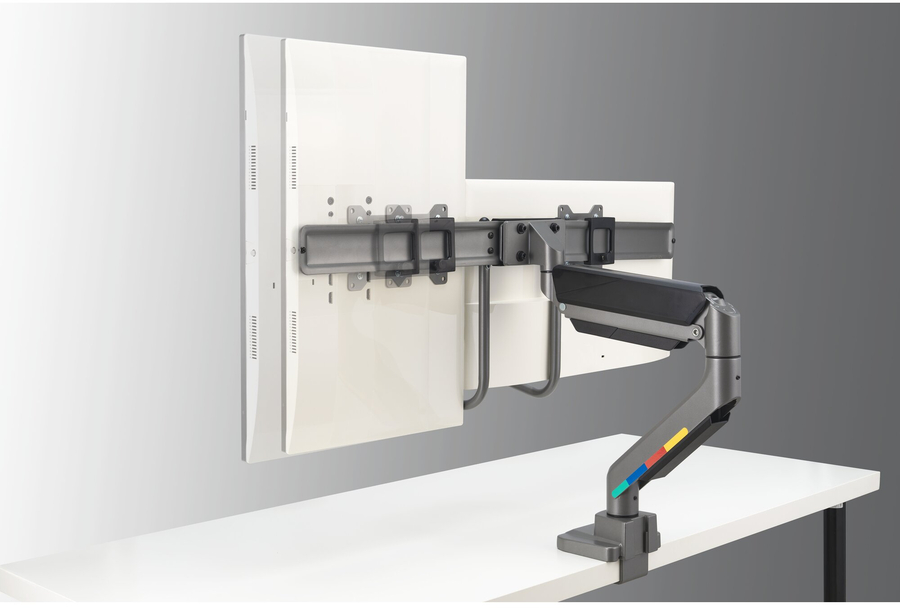

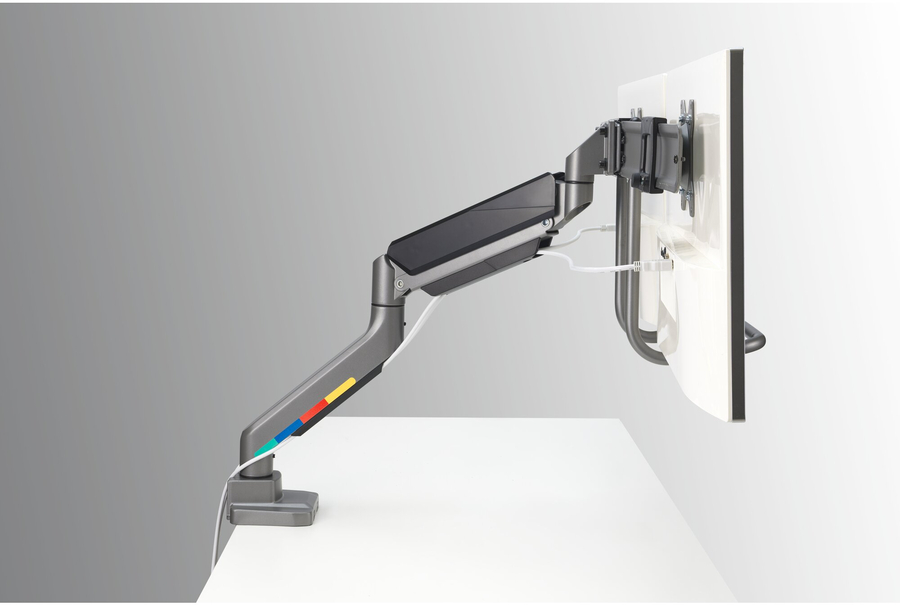

An ideal solution for shared workspaces, SmartFit™ Dual Monitor Arm with Crossbar and Handle harnesses the power of gas spring technology to unlock effortless ergonomic control for your dual-monitor setup. Simply grasp the easy-grip handle to smoothly raise or lower your monitors with the lightest of touches. The gas spring makes even the heaviest dual-monitor configurations feel weightless, enabling you to fine-tune ergonomic positioning throughout the day with less physical exertion. With a separate horizontal adjustment for each monitor, achieving the perfect viewing setup is easy. The innovative curved horizontal rail accommodates two side-by-side 32” monitors weighing up to 9kg (19.8lbs) each, together with the C-clamp providing hassle-free installation. Includes a 5-year limited warranty. |
|
Mounting |
|
Number of displays supported |
2 |
|
Maximum weight capacity (per display) |
9 kg |
|
Maximum screen size |
81.3 cm (32") |
|
Mounting type |
Desk |
|
Maximum weight capacity |
18 kg |
|
Minimum VESA mount |
75 x 75 mm |
|
Maximum VESA mount |
100 x 100 mm |
|
Mounting |
Clamp/Grommet |
|
Ergonomics |
|
Height adjustment |
Yes |
|
Height adjustment type |
Gas spring |
|
Height adjustment range |
265 - 560 mm |
|

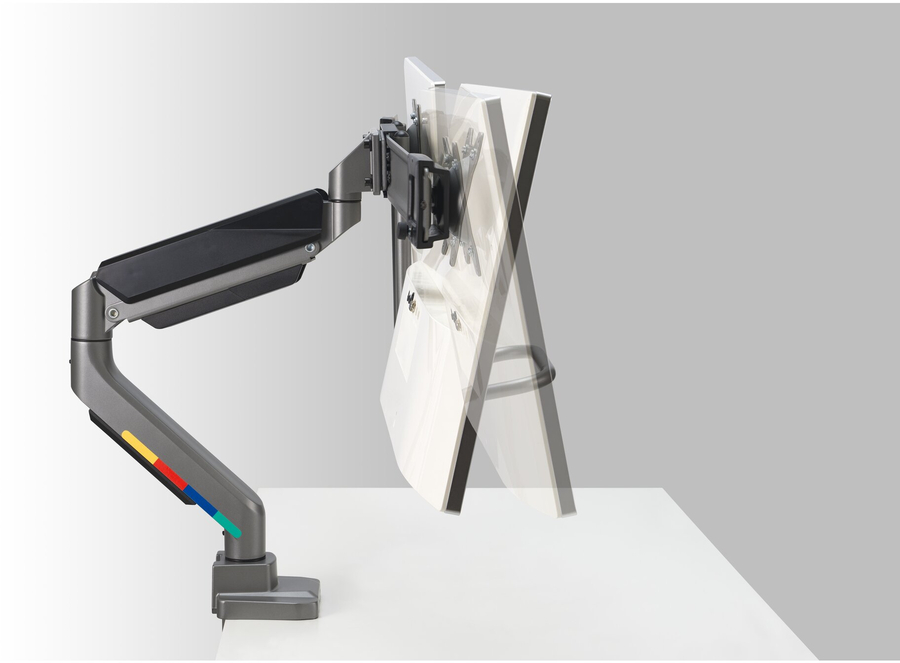

Tilt adjustment |
Yes |
|
Tilt angle range |
-10 - 10° |
|
Swivelling |
Yes |
|
Swivel angle range |
-10 - 10° |
|

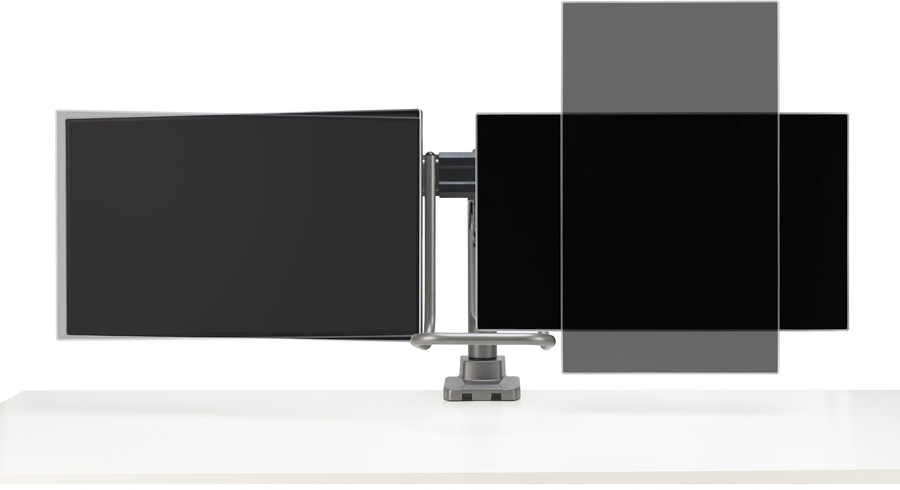

Rotating |
Yes |
|
Angle of rotation |
360° |
|
Design |
|
Product colour |
Grey |
|
Housing material |
Aluminium, Plastic, Steel |
|
Weight & dimensions |
|
Width |
850 mm |
|
Depth |
640 mm |
|
Height |
690 mm |
|
Weight |
6.7 kg |
|
Packaging data |
|
Package width |
455 mm |
|
Package depth |
323 mm |
|
Package height |
153 mm |
|
Package weight |
7.75 kg |
|
Packaging content |
|
Manual |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Storage temperature (T-T) |
-10 - 60 °C |
|
Other features |
|
Compliance certificates |
REACH, RoHS |
|
Logistics data |
|
Master (outer) case width |
475 mm |
|
Master (outer) case length |
342 mm |
|
Master (outer) case height |
325 mm |
|
Master (outer) case gross weight |
16.3 kg |
|
Products per master (outer) case |
2 pc(s) |
|
Country of origin |
China |
