General Information |
|
Summary |

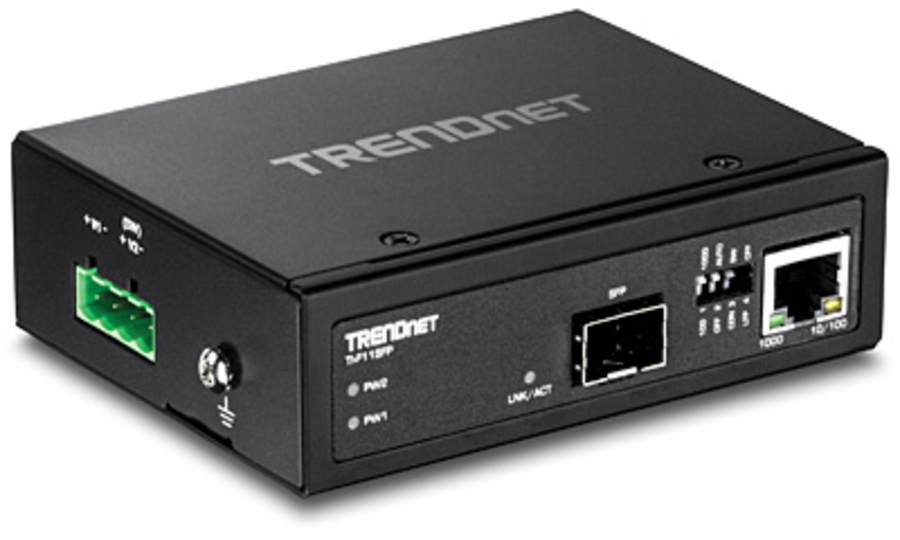

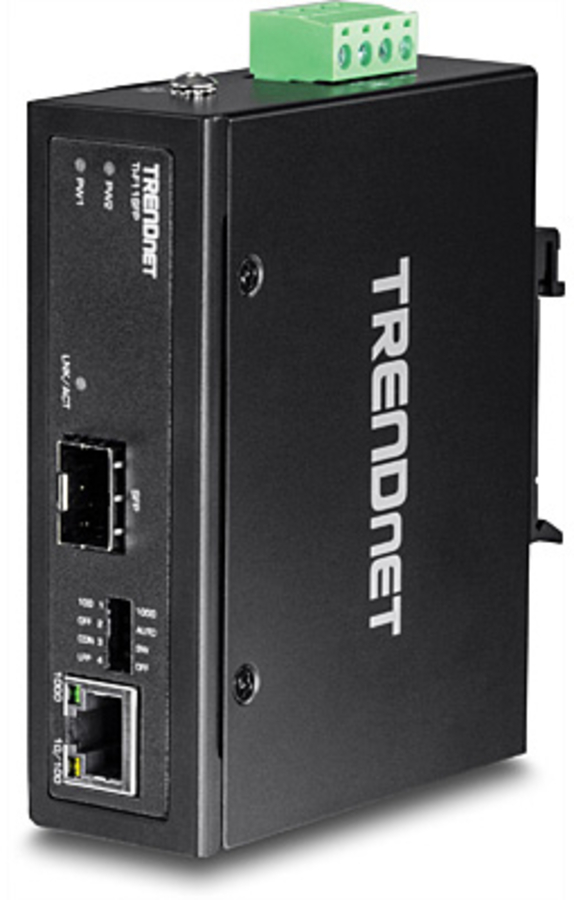

Hardened Industrial 100/1000BaseT to SFP Media Converter |
|
Network |
|
Maximum data transfer rate |
1000 Mbit/s |
|
Converter input interface |
1000Base-T |
|
Networking standards |
IEEE 802.3u, IEEE 802.3 |
|
Ethernet interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Jumbo frames support |
Yes |
|
Duplex system |
Full, Half |
|
Performance |
|
Maximum transfer distance |
80000 m |
|
Buffer size |
1024 KB |
|
Mean time between failures (MTBF) |
510304 h |
|
Features |
|
Internal |
No |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Fiber ports quantity |
1 |
|
Power |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
113 mm |
|
Depth |
82 mm |
|
Height |
31 mm |
|
Weight |
152 g |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Certificates |
|
Certification |
FCC
CE |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
Other features |
|
Power requirements |
12 - 56 VDC / 18 - 36 VAC |
