General Information |
|
Summary |

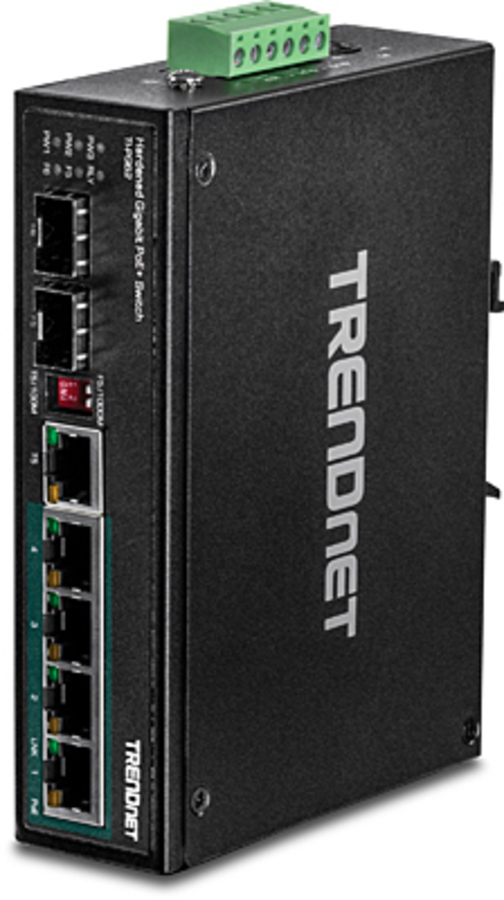

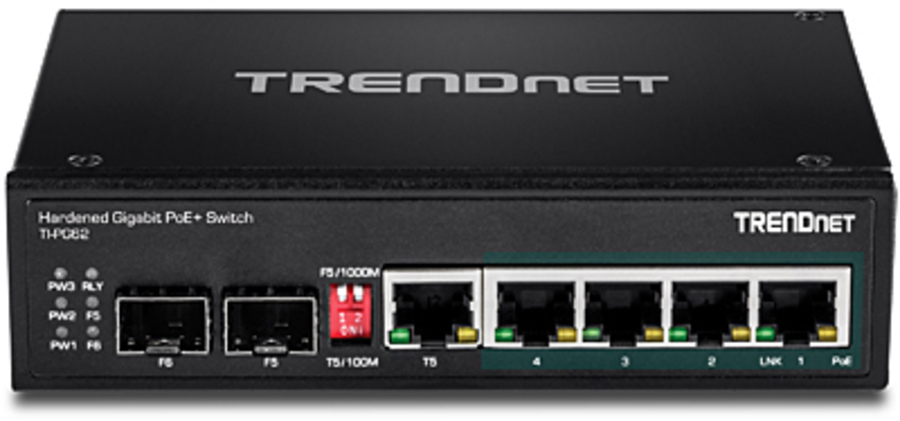

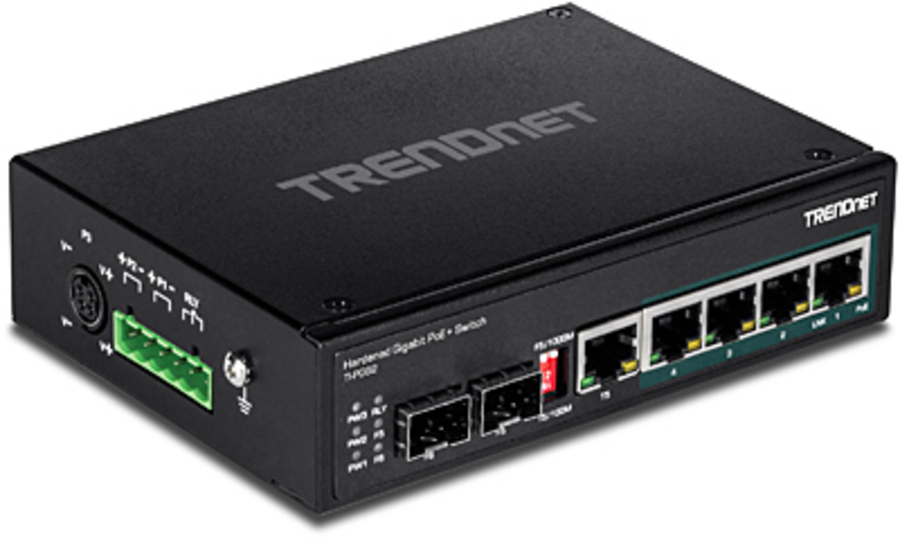

6port hardened Industrial Gigabit PoE+ Switch 5 Gigabit / 1 shared SFP / 1 dedicated SFP |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
4 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
Combo SFP ports quantity |
1 |
|
SFP module slots quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
No |
|
Full duplex |
Yes |
|
Auto-negotiation |
Yes |
|
MAC address auto-learning supported |
Yes |
|
MAC address auto-aging supported |
Yes |
|
Data transmission |
|
MAC address table |
1000 entries |
|
Switching capacity |
12 Gbit/s |
|
Throughput |
8.9 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

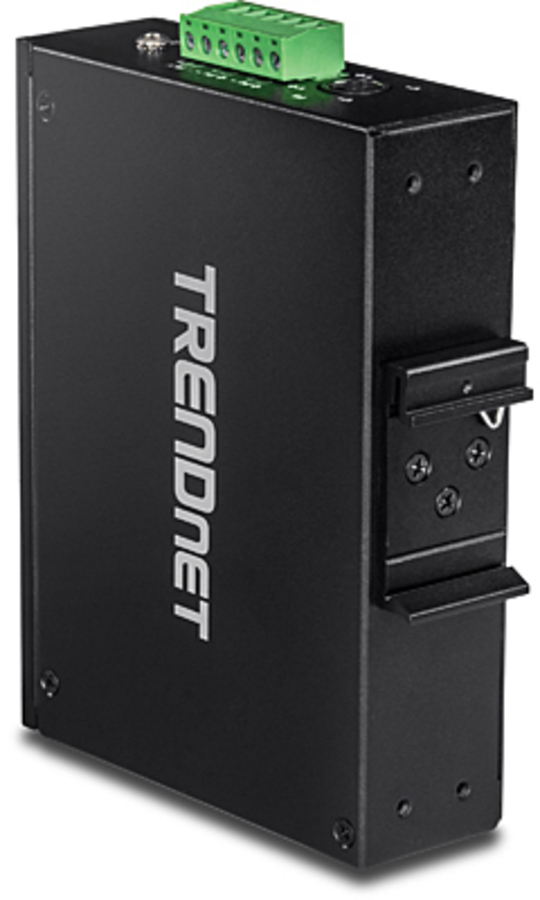

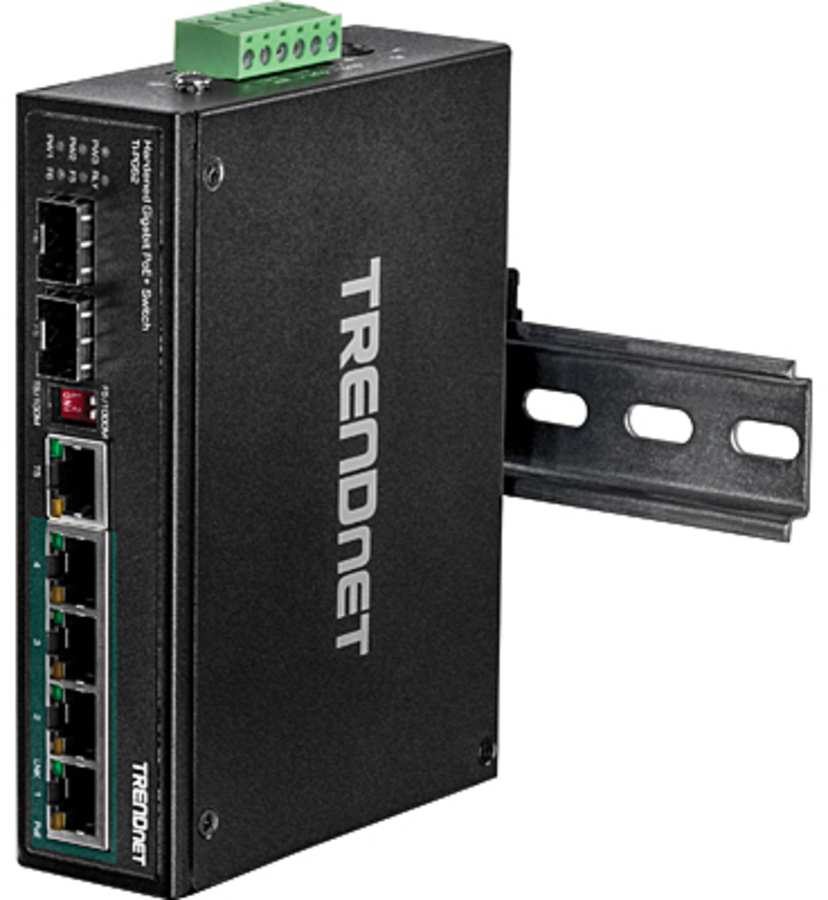

DIN rail mounting |
Yes |
|
Performance |
|
Buffer size |
1024 KB |
|
Mean time between failures (MTBF) |
460304 h |
|
Power |
|
Redundant power supply (RPS) support |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
2 A |
|
Input voltage |
48 - 56 V |
|
Output voltage |
48 V |
|
Output current |
3.34 A |
|
Power consumption (max) |
5.76 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
4 |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Other features |
|

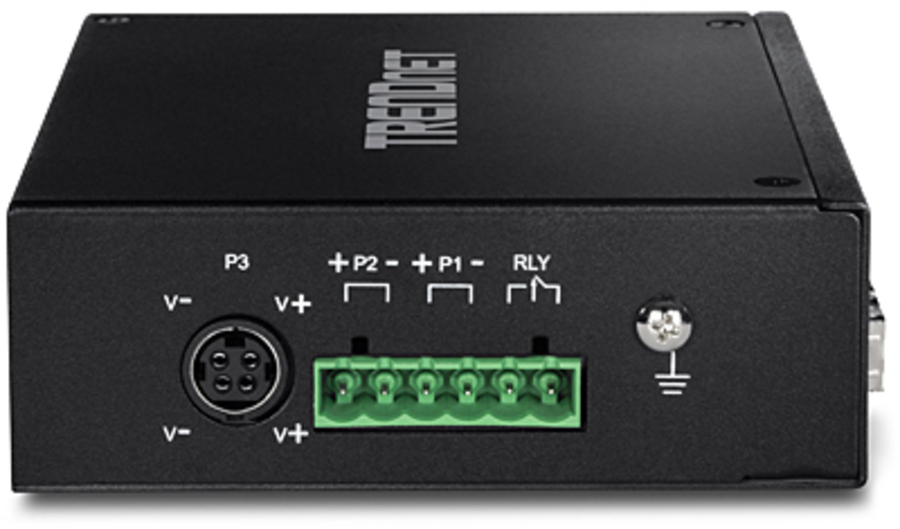

Terminal block port |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Weight & dimensions |
|
Width |
143 mm |
|
Depth |
105 mm |
|
Height |
36 mm |
|
Weight |
500 g |
|
Packaging content |
|
Quick start guide |
Yes |
|
Packaging data |
|

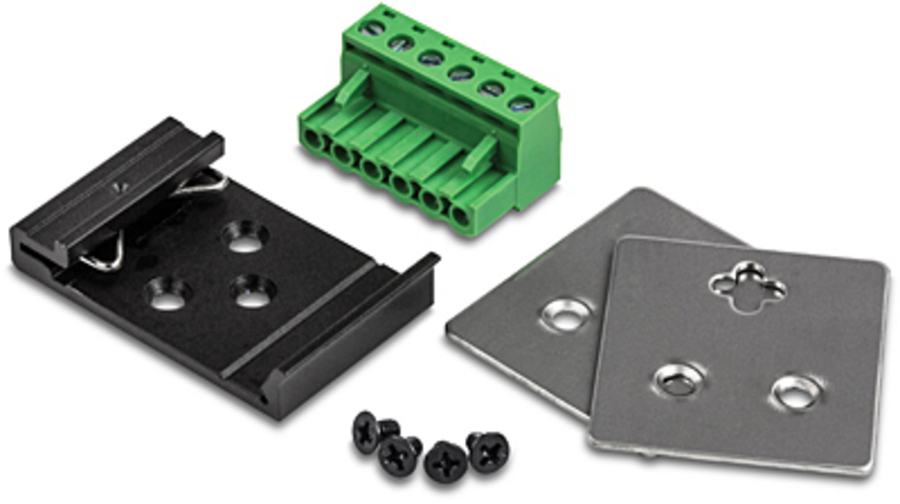

Wall mounting kit |
Yes |
|
Terminal block included |
Yes |
|
Certificates |
|
Certification |
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
