General Information |
|
Summary |

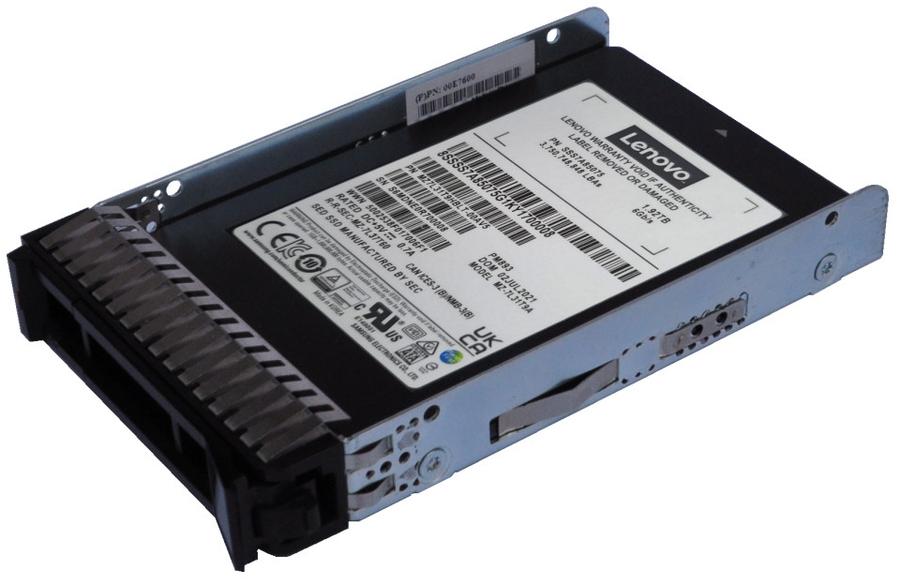

IBM ThinkSystem 960GB SATA 6Gb s Mixed Use 2.5 Multi Vendor Hot Swap Solid State Drive v2 |
|
Features |
|
SSD capacity |
960 GB |
|
SSD form factor |
2.5" |
|
Interface |
Serial ATA III |
|
NVMe |
No |
|
Memory type |
V-NAND TLC |
|
Component for |
Server/workstation |
|
Hardware encryption |
No |
|
Data transfer rate |
6 Gbit/s |
|
Random read (4KB) |
81000 IOPS |
|
Random write (4KB) |
48500 IOPS |
|
S.M.A.R.T. support |
Yes |
|
H/W PLP function |
Yes |
|
End-to-End Data Protection |
Yes |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^17 bits read |
|
Mean time between failures (MTBF) |
2000000 h |
|
Certification |
UL
TUV
FCC
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI) |
|
Weight & dimensions |
|
Width |
70 mm |
|
Depth |
100 mm |
|
Height |
7 mm |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Non-operating vibration |
20 G |
|
Non-operating shock |
1.5 G |
|
Maximum operating altitude |
3050 m |
