Processor |
|
Processor family |
Intel Xeon E |
|
Processor cores |
4 |
|
Processor socket |
LGA 1700 |
|

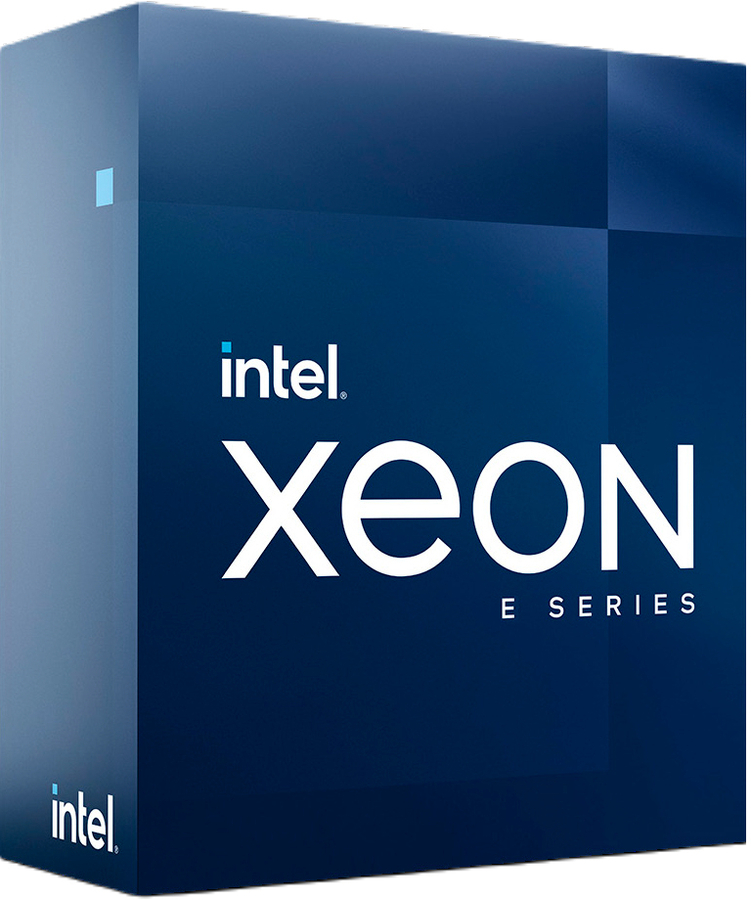

Package type |
Box |
|
Processor manufacturer |
Intel |
|
Processor model |
E-2434 |
|
Processor base frequency |
3.4 GHz |
|
Processor operating modes |
64-bit |
|
Processor threads |
8 |
|
System bus rate |
16 GT/s |
|
Performance cores |
4 |
|
Processor boost frequency |
5 GHz |
|
Processor cache |
12 MB |
|
Thermal Design Power (TDP) |
55 W |
|
Stepping |
B0 |
|
Maximum number of DMI lanes |
8 |
|
Processor codename |
Raptor Lake |
|
Processor ARK ID |
236192 |
|
Memory |
|
Memory channels |
Dual-channel |
|
Maximum internal memory supported by processor |
128 GB |
|
Memory types supported by processor |
DDR5-SDRAM |
|
ECC |
Yes |
|
Graphics |
|
On-board graphics card |
No |
|
Discrete graphics card |
No |
|
On-board graphics card model |
Not available |
|
Discrete graphics card model |
Not available |
|
Features |
|
Execute Disable Bit |
Yes |
|
Idle States |
Yes |
|
Thermal Monitoring Technologies |
Yes |
|
Market segment |
Server |
|
Use conditions |
Server/Enterprise |
|
Maximum number of PCI Express lanes |
20 |
|
PCI Express slots version |
5.0 |
|
PCI Express configurations |
2x8+1x4, 1x16+1x4 |
|
Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
|
Scalability |
1S |
|
CPU configuration (max) |
1 |
|
Embedded options available |
No |
|
Export Control Classification Number (ECCN) |
5A992C |
|
Commodity Classification Automated Tracking System (CCATS) |
740.17B1 |
|
Processor special features |
|
Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
|
Intel® Turbo Boost Technology |
2.0 |
|
Intel® AES New Instructions (Intel® AES-NI) |
Yes |
|
Enhanced Intel SpeedStep Technology |
Yes |
|
Intel Trusted Execution Technology |
Yes |
|
Intel® Turbo Boost Technology 2.0 frequency |
5 GHz |
|
Intel® Transactional Synchronization Extensions |
No |
|
Intel® Total Memory Encryption |
Yes |
|
Intel VT-x with Extended Page Tables (EPT) |
Yes |
|
Intel® Secure Key |
Yes |
|
Intel® OS Guard |
Yes |
|
Intel 64 |
Yes |
|
Intel Virtualization Technology (VT-x) |
Yes |
|
Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
|
Intel Turbo Boost Max Technology 3.0 |
No |
|
Intel® Boot Guard |
Yes |
|
Mode-based Execute Control (MBE) |
Yes |
|
Intel® Optane™ DC Persistent Memory Supported |
No |
|
Intel® Virtualization Technology with Redirect Protection (VT-rp) |
Yes |
|
Microprocessor PCIe Revision |
Gen 5 |
|
Intel® Total Memory Encryption - Multi Key |
Yes |
|
Operational conditions |
|
Tjunction |
100 °C |
|
Logistics data |
|
Harmonized System (HS) code |
8542310001 |
|
Other features |
|
Maximum internal memory |
128 GB |
|
Technical details |
|
Launch date |
Q4'23 |
|
Status |
Launched |
|
Servicing status |
Baseline Servicing |
