General Information |
|
Summary |

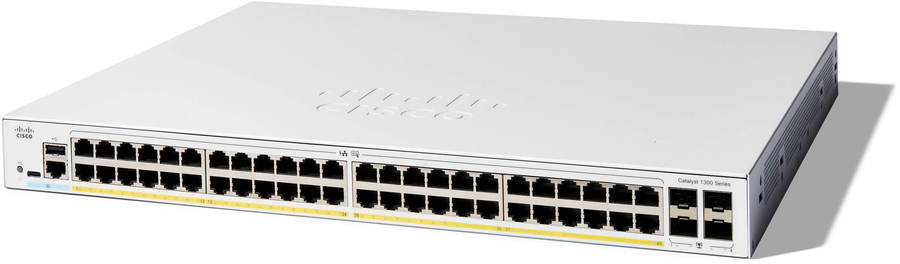

Catalyst 1300 48port GE, Full PoE, 4x1G SFP |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2/L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
ARP inspection |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
48 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
4 |
|
Installed SFP+ modules quantity |
0 |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
Ethernet LAN data rates |
1000 Mbit/s |
|
VLAN support |
Yes |
|
Data transmission |
|
Static route |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Security |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
Security algorithms |
HTTPS, SSH, SSL/TLS |
|
MAC address filtering |
Yes |
|
SSH/SSL support |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Product colour |
White |
|
Housing material |
Metal |
|
Reset button |
Yes |
|
LED indicators |
Yes |
|
Performance |
|
Processor frequency |
1400 MHz |
|
Internal memory |
1024 MB |
|
Flash memory |
512 MB |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
Power plug type |
Type C |
|
Other features |
|
Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-25 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
350 mm |
|
Depth |
444.5 mm |
|
Height |
43.9 mm |
|
Packaging data |
|
Package width |
480.8 mm |
|
Package depth |
571.8 mm |
|
Package height |
95 mm |
|
Package weight |
7.06 kg |
|
Logistics data |
|
Country of origin |
China |
