Aten US3384I 8X4 USB 3.2 Gen 1 Industrial Hub Switch
|
|
Regularly: $395.00
On Sale: $383.15
Sale Ends:
August 31st, 2025
Manufacturer:
Aten
8 x 4 USB 3.2 Gen 1 Sharing Switch
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59977767
|
US3384I
|
4710469349492 |
Active
|
Details
|
General Information |
|
Summary |
Driven by the shift to hybrid and remote work, the US3384i is designed to elevate your BYOM/BYOD meeting experience with ease. Meeting room setups are straightforward and effortless, thanks to its plug-and-play design that allows connections to up to 8 PCs/laptops and sharing of up to 4 USB 3.2 Gen 1 devices in no time. With blazing-fast data transmission, cross-platform compatibility (e.g. Windows, macOS, Linux), and flexible port-switching, the USB sharing switch further streamlines meeting workflows, enhances collaboration, and reduces the overhead of IT procurement and management for workplaces.

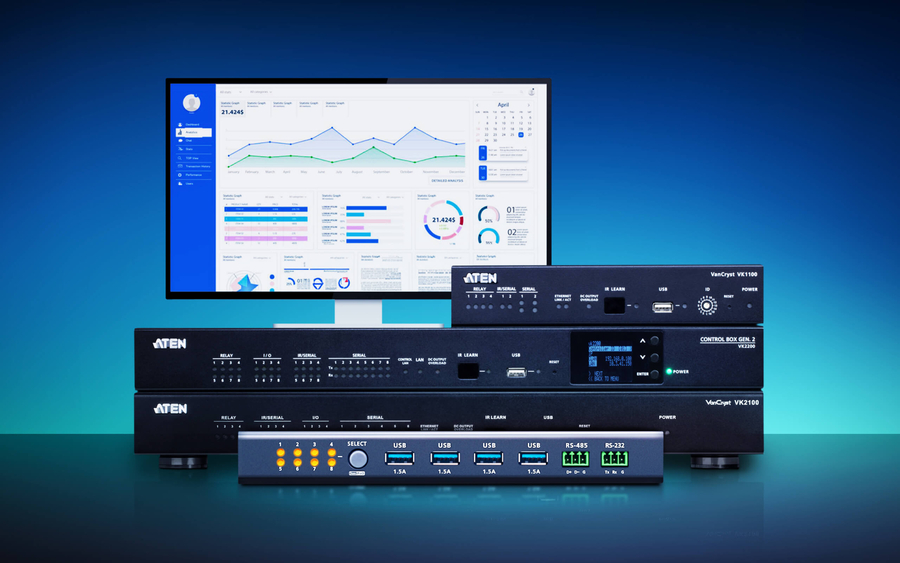

Seamless Integration into Control System
The USB sharing switch can be seamlessly integrated into a control system (e.g. ATEN Control System – VK1100A, VK211) as part of the meeting room setup via its serial connectivity, with the control system serving as a centralized platform to streamline AV/IT management and simplify maintenance.
Power-On Detection to Switch Control
The USB switch will shift the PC focus to the most recently connected host device, with the corresponding port LED illuminated to indicate which active port has control over the resources.
Note: Long press the pushbutton to turn on/off the Power-On Detection feature.

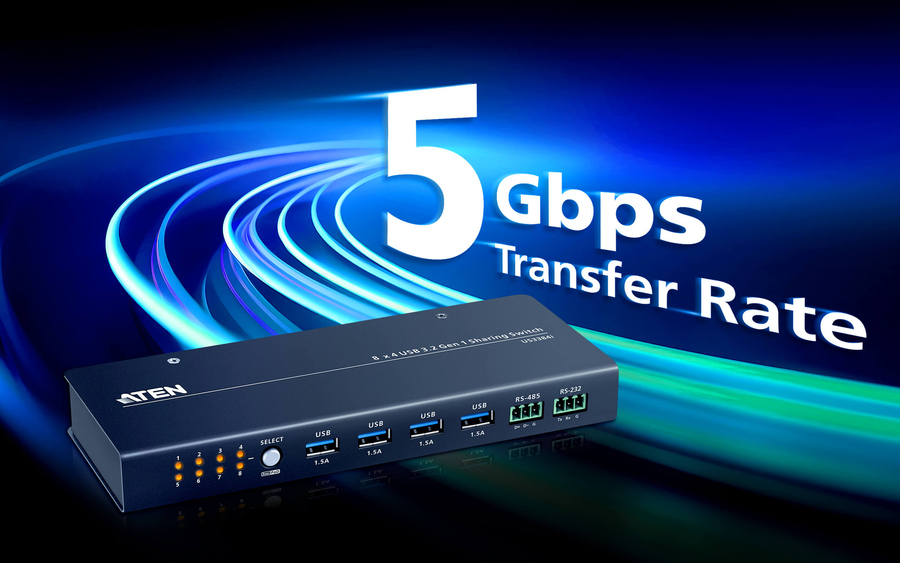

Up to 5 Gbps Data Transfer Rate with USB 3.2 Gen 1
To maintain an efficient meeting flow, take advantage of the superior 5 Gbps data transfer speed of the built-in USB 3.2 Gen 1 ports, which are also backward compatible with USB 2.0/1.1 devices.
|
|
Ports & interfaces |
|
Number of computers controlled |
8 |
|
Keyboard port type |
USB |
|
Mouse port type |
USB |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
8 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity |
4 |
|
Serial ports quantity |
2 |
|
DC-in jack |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
DC |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 80% |
|
Weight & dimensions |
|
Width |
80.6 mm |
|
Depth |
200 mm |
|
Height |
25 mm |
|
Weight |
500 g |
|
Packaging content |
|
Manual |
Yes |
|
