General Information |
|
Summary |

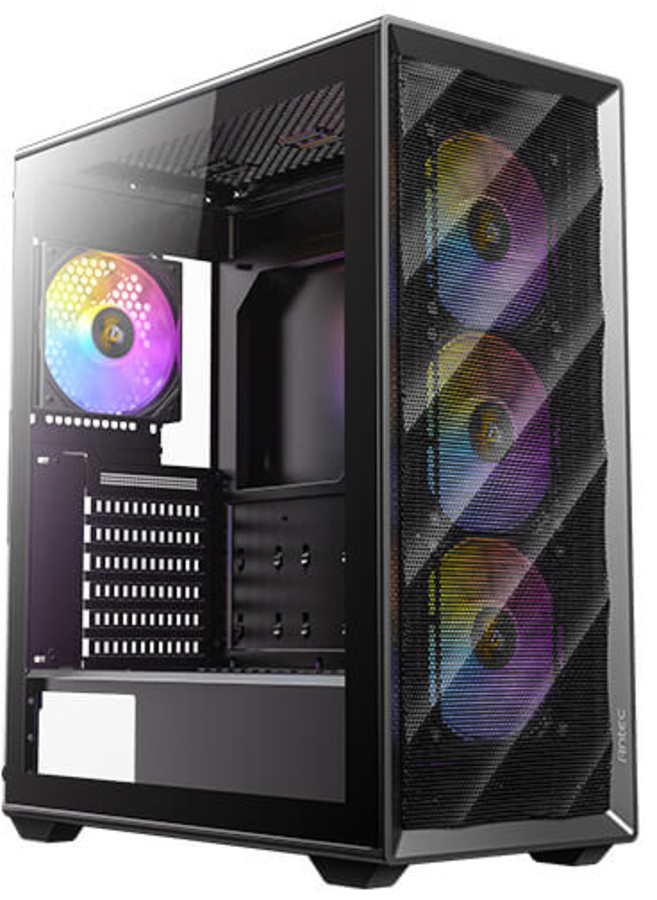

Unique Design & Powerful Heat Dissipation
The AX85 ARGB features a unique design and excellent cooling performance. The full tempered glass side panel allows you to show off your gaming configurations without any obstacles. 8 x 120mm fans can be installed simultaneously.

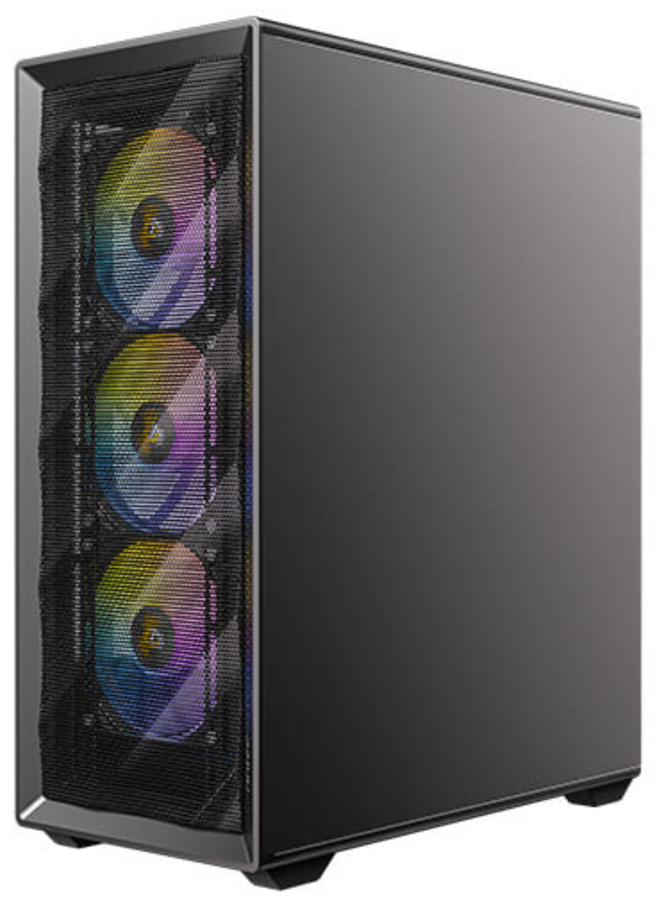

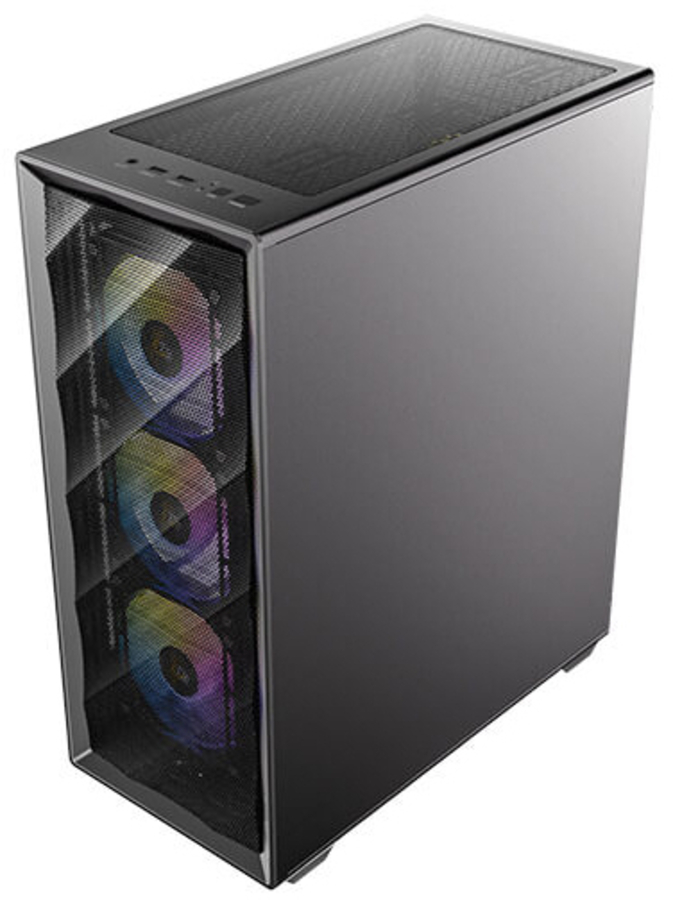

Ripple-Patterned Mesh Front Panel
The wave-like design with vast mesh on the front panel ensures massive airflow and maximum cooling performance, while enhancing dust prevention at the same time.

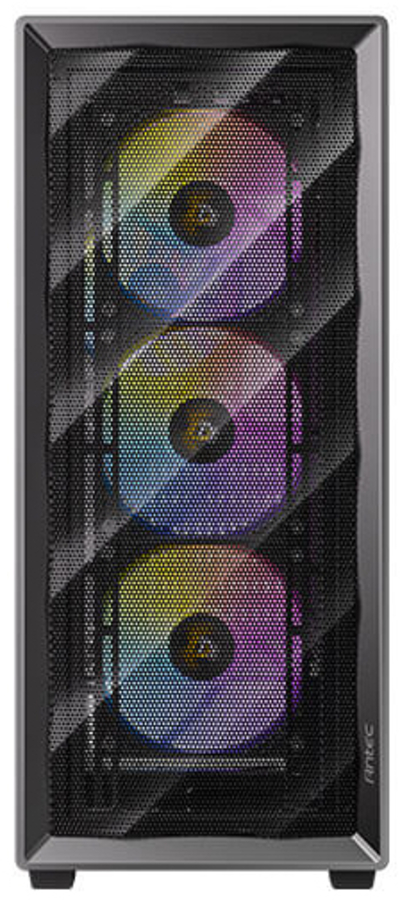

High-Airflow Front Panel
Large-area mesh front panel for massive airflow.

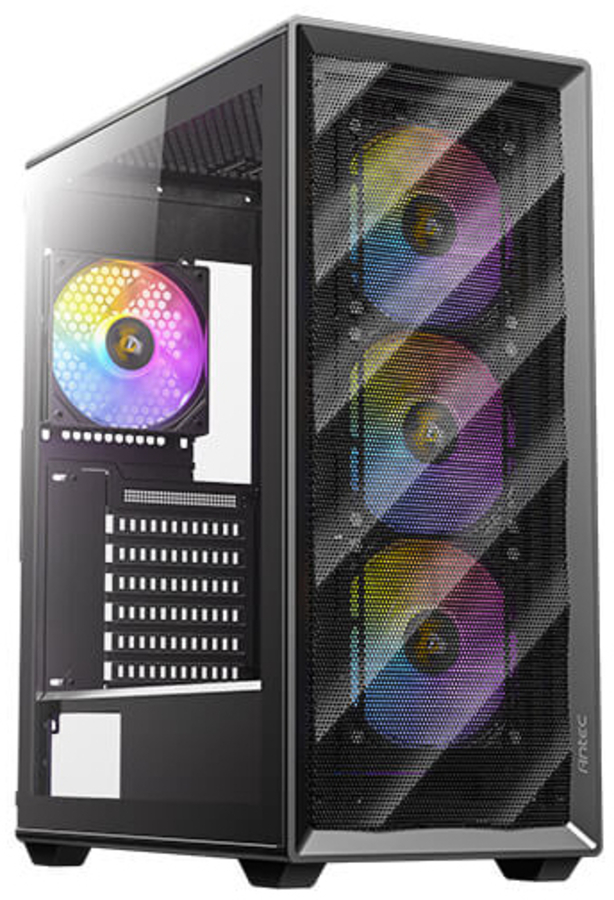

Pre-Installed 4 x 120mm ARGB fans
Use the major case fan to daisy-chain the other fans for ARGB sync and create your personal style.

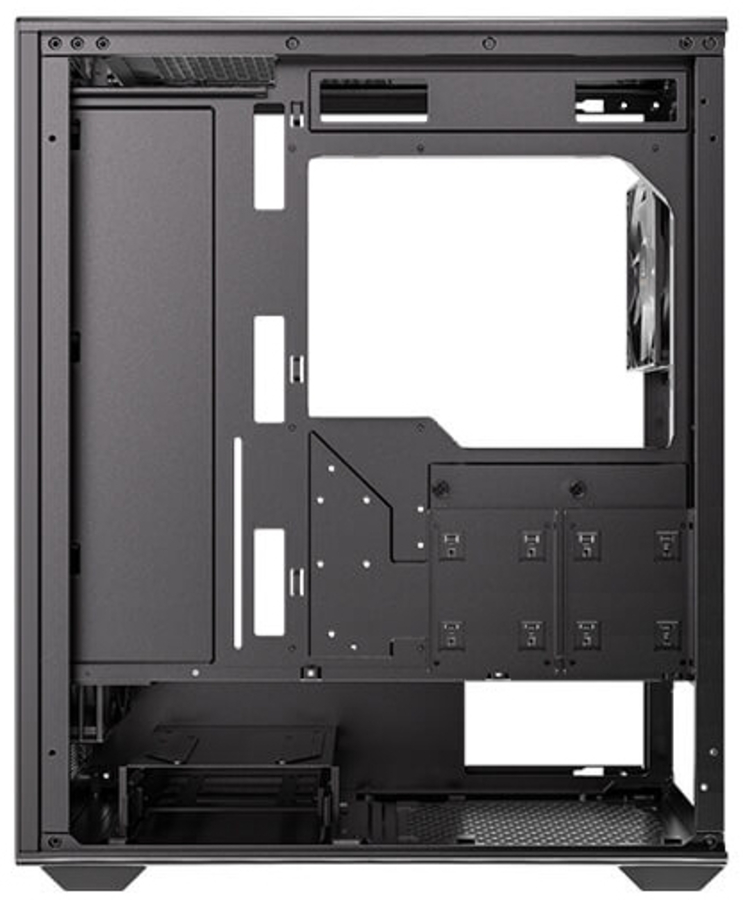

Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.

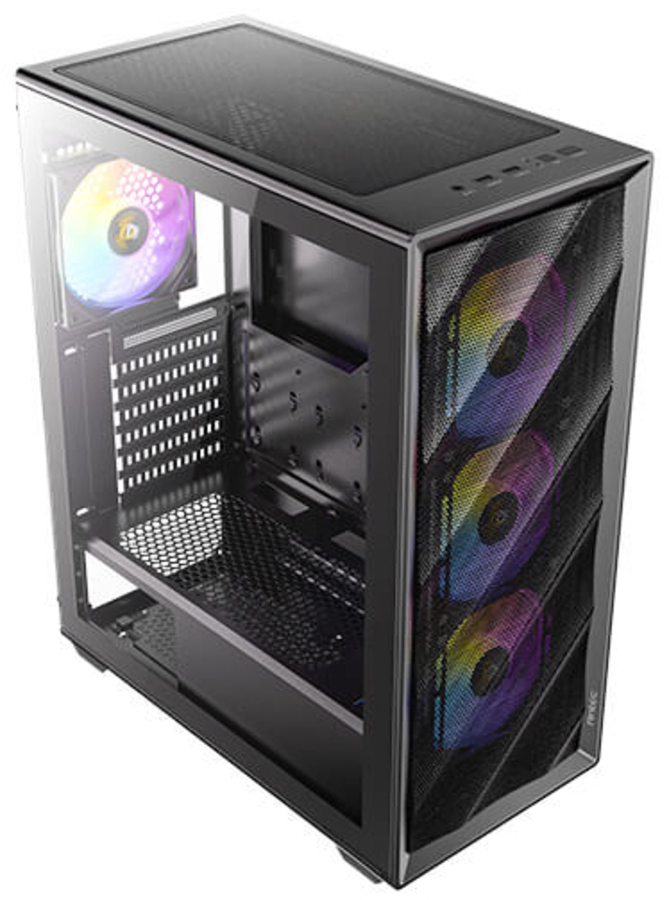

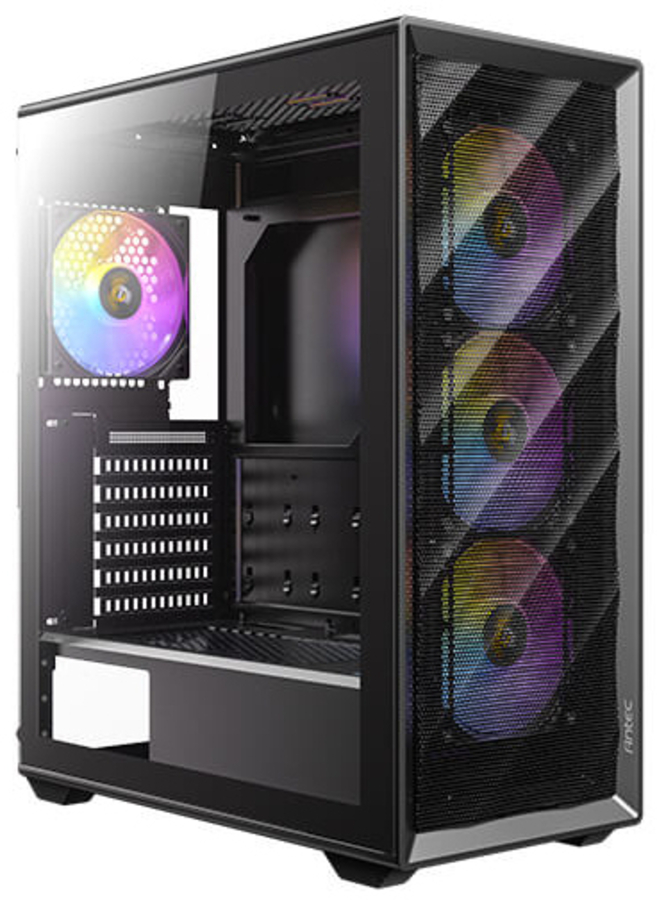

Tempered Glass Side Panel
Showcase your custom water-cooling system and fancy components.
Front 360 Radiator Available
Support 360mm radiator in front. |
|
Design |
|
Form factor |
Midi Tower |
|
Type |
PC |
|
Product colour |
Black |
|
Supported motherboard form factors |
ATX, ITX, micro ATX |
|
Number of 3.5" bays |
2 |
|
Material |
Plastic, Steel |
|
Number of 2.5" bays |
2 |
|

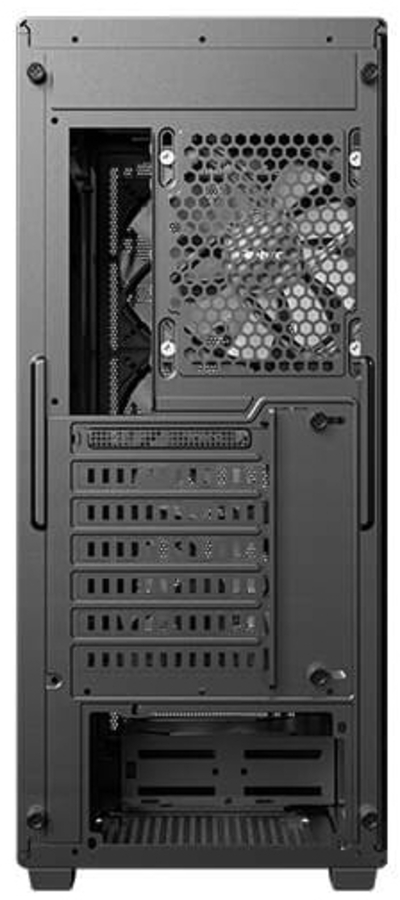

Number of expansion slots |
7 |
|
Side window |
Yes |
|

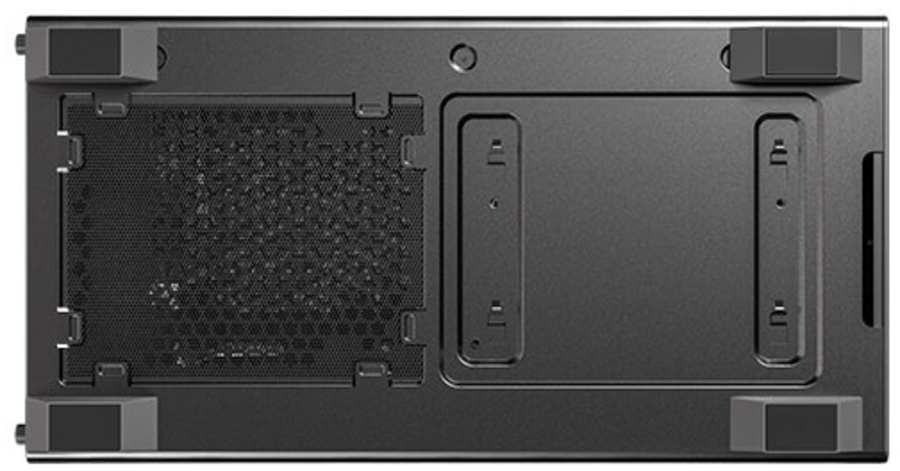

Anti-dust filter |
Yes |
|
On/off button |
Yes |
|
Maximum CPU cooler height |
16 cm |
|
Maximum graphics card length |
37 cm |
|
Maximum PSU length |
37 cm |
|
Power supply |
|
Power supply included |
No |
|

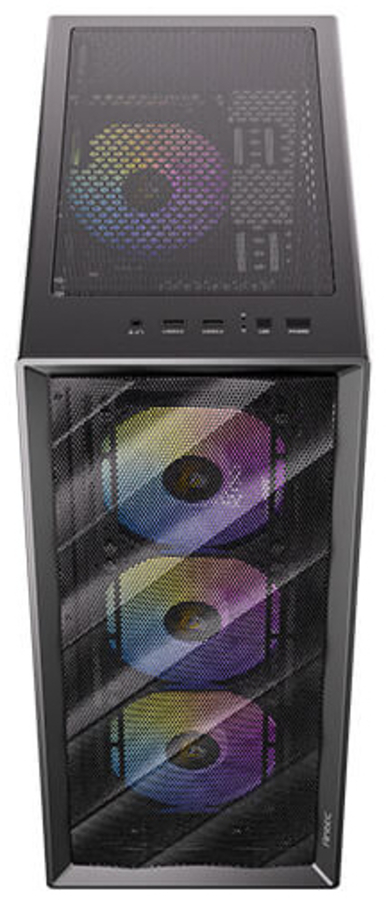

Ports & interfaces |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Combo headphone/mic port |
Yes |
|
Cooling |
|
Front fans installed |
3x 120 mm |
|
Number of front fans supported (max) |
3 |
|
Front fans diameters supported |
120,140 mm |
|
Rear fans installed |
1x 120 mm |
|
Number of rear fans supported (max) |
1 |
|
Rear fans diameters supported |
120 mm |
|
Number of top fans supported (max) |
2 |
|
Top fans diameters supported |
120,140 mm |
|
Front radiator sizes supported |
120,140,240,280,360 mm |
|
Rear radiator sizes supported |
120 mm |
|
Top radiator sizes supported |
120,140 mm |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
Weight & dimensions |
|
Width |
205 mm |
|
Depth |
393 mm |
|
Height |
485 mm |
|
Weight |
6.3 kg |
|
Packaging data |
|
Package width |
270 mm |
|
Package depth |
445 mm |
|
Package height |
552 mm |
|
Package weight |
7.5 kg |
