General Information |
|
Summary |

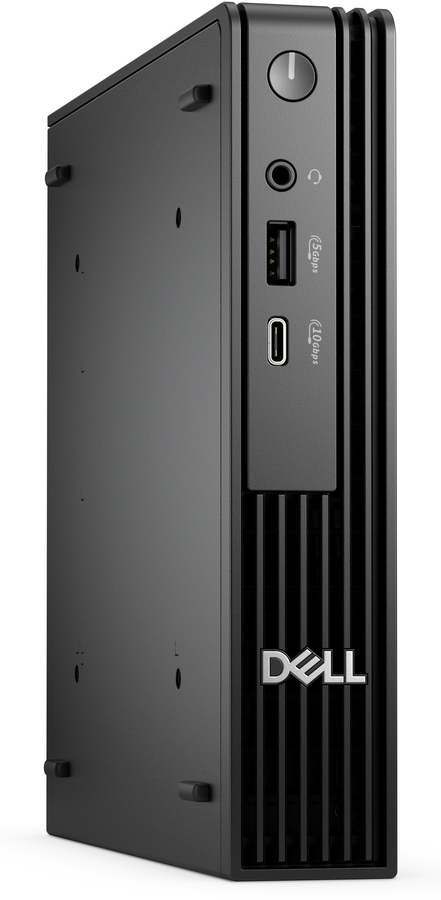

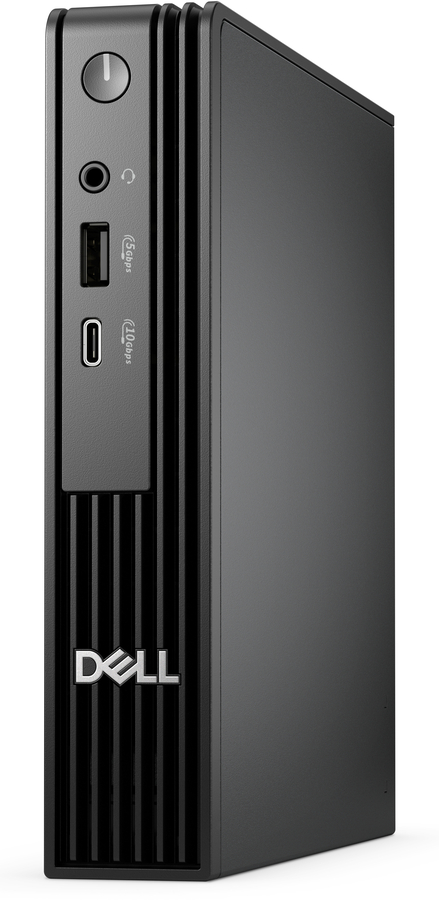

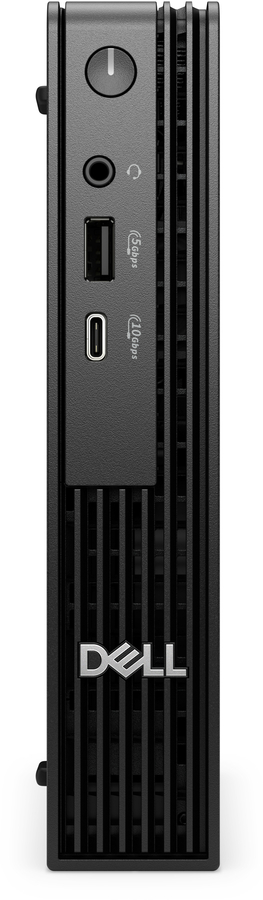

Ultracompact desktops designed to maximise efficiency and productivity in small workspaces. |
|
Processor |
|
Processor family |
Intel® Core™ i3 |
|
Processor manufacturer |
Intel |
|
Processor model |
i3-14100T |
|
Processor generation |
Intel® Core™ i3 (14th gen) |
|
Processor cores |
4 |
|
Processor threads |
8 |
|
Processor boost frequency |
4.4 GHz |
|
Performance cores |
4 |
|
Efficient cores |
0 |
|
Performance-core Max Turbo Frequency |
4.4 GHz |
|
Performance-core base frequency |
2.7 GHz |
|
Processor cache |
12 MB |
|
Processor cache type |
Smart Cache |
|
Number of processors installed |
1 |
|
Processor base power |
35 W |
|
Maximum turbo power |
69 W |
|
Neural processor unit (NPU) |
|
AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory slots |
2x SO-DIMM |
|
Non-ECC |
Yes |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Number of storage drives installed |
1 |
|
Total SSDs capacity |
256 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
SSD memory type |
TLC |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel UHD Graphics 730 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000Base-T(X) |
|
LAN controller |
Intel WGI219LM |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Antenna type |
2x2 |
|
Bluetooth |
Yes |
|

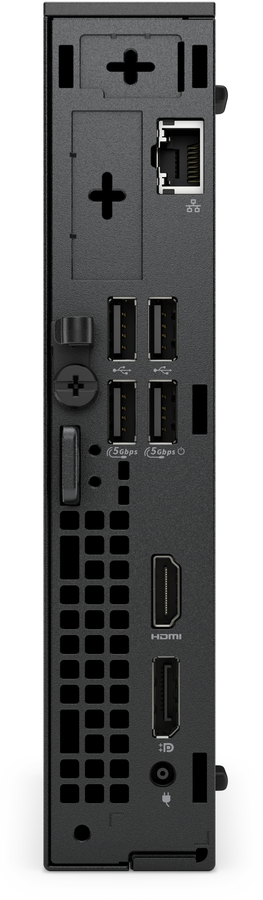

Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4a |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|
Number of rear USB ports |
4 |
|
Number of front USB ports |
2 |
|
Number of front audio ports |
1 |
|
Design |
|
Chassis type |
Micro PC |
|
Product colour |
Black |
|
Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Performance |
|
Product type |
Mini PC |
|
Market positioning |
Business |
|
Motherboard chipset |
Intel Q870 |
|
Audio chip |
Realtek ALC3204 |
|
Audio system |
High Definition Audio |
|
Trusted Platform Module (TPM) |
Yes |
|
Trusted Platform Module (TPM) version |
2.0 |
|
Software |
|
Operating system installed |
Windows 11 Pro |
|
Operating system architecture |
64-bit |
|
Power |
|
Power supply |
180 W |
|
Power supply input voltage |
100 - 240 V |
|
Power supply input frequency |
50 / 60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage temperature (T-T) |
-40 - 65 °C |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
-15.2 - 3048 m |
|
Non-operating altitude |
-15.2 - 10668 m |
|
Operating vibration |
0.26 G |
|
Non-operating vibration |
1.37 G |
|
Operating shock |
40 G |
|
Non-operating shock |
105 G |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Climate +, EPEAT Gold |
|
Weight & dimensions |
|
Width |
36 mm |
|
Depth |
178 mm |
|
Height |
182 mm |
|
Weight |
1.16 kg |
|
Packaging content |
|
Mouse included |
Yes |
|
Mouse connectivity |
Wired |
|
Keyboard included |
Yes |
|
Keyboard connectivity |
Wired |
|
Display |
|
Display included |
No |
