Moza RS084 R16 V2 Direct Drive Wheel Base
|
|
Regularly: $907.00
On Sale: $870.72
Sale Ends:
August 16th, 2025
Manufacturer:
Moza
R16 Wheel Base, 360W, 110V~220V AC —>36V DC, 1000Hz, 327 x 170 x 130 mm, 8.9 kg, Black
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59984458
|
RS084
|
6973137270858 |
Active
|
Details
|
General Information |
|
Summary |
The MOZA R16 V2 delivers an uncompromising sim racing experience with 16Nm of direct drive torque, a 21-bit magnetic encoder, and a high-performance slanted pole servo motor. Built with an aviation-grade aluminum body and powered by the advanced NexGen 4.0 force feedback algorithm, the R16 V2 offers unmatched precision, smoothness, and realism for competitive sim racers.

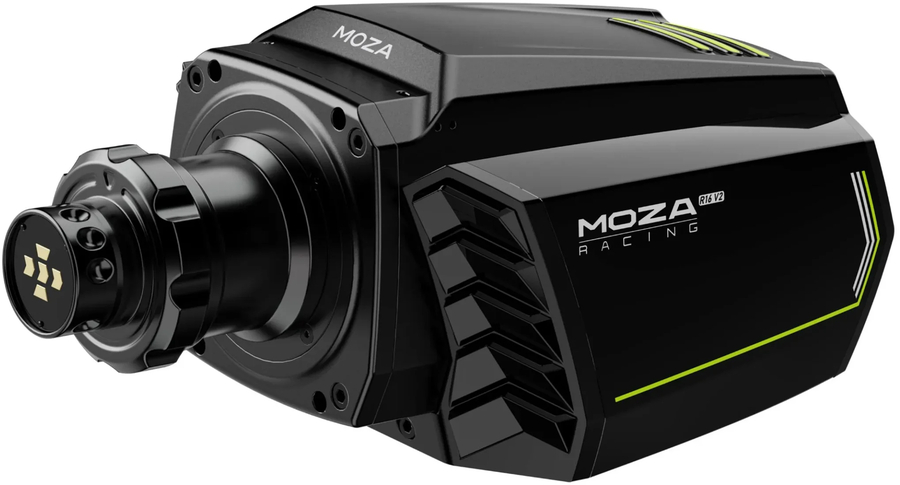

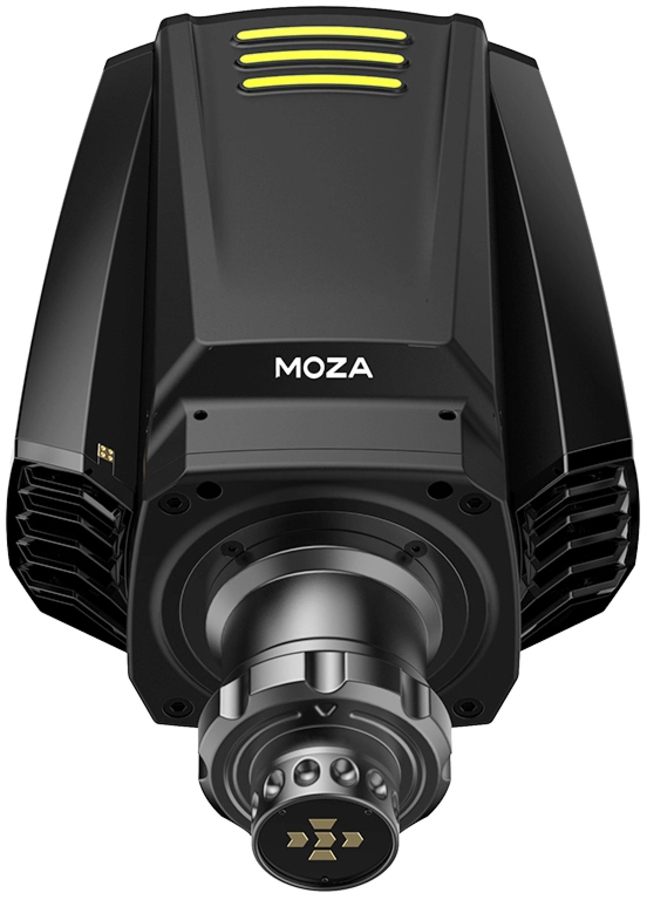

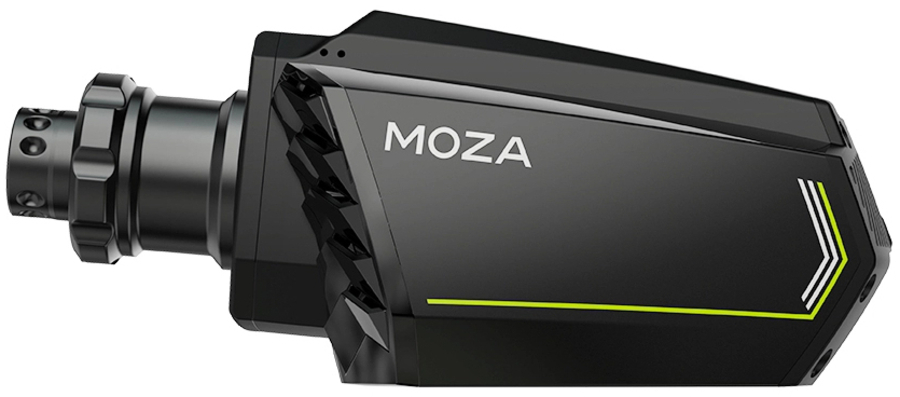

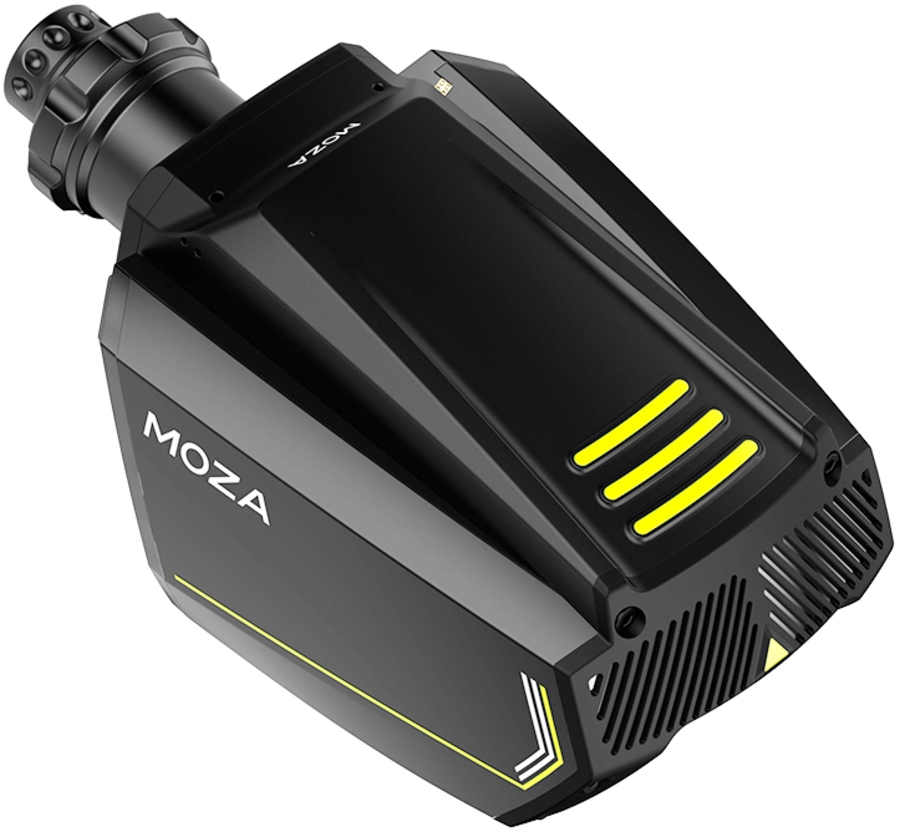

R16 V2 Direct Drive Wheel Base
Precision. Power. Perfection.
21-Bit Magnetic Encoder
With 280MHz High-Performance Processor
Divides each full rotation into 2,097,152 precise steps.
Delivers microscopic 0.00017° resolution.
Enables ultra-smooth control feel and instant response.
Reproduces exceptionally detailed force feedback.
High-Performance Slanted Pole Servo Motor
Race-grade Performance for Sim Racing
Innovative Segmented Rotor Design
Asymmetric segmented skew design Significantly reduces cogging torque & EM vibration Near-silent operation at all speeds
High Torque Density
Optimized slot-fill copper windings High-permeability silicon steel core NdFeB permanent magnets for maximum output
18-Slot/16-Pole Configuration
Multi-slot/pole design minimizes torque ripple. Enhanced damping for smoother feedback. Delivers precise and detailed steering response
Wide Torque Range
Low back-EMF design. Maintains consistent torque at high RPM. Eliminates abrupt torque drop-off
16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.
Carbon Fiber Wrapped Rotor
Automotive-grade rotor protection.
Effectively suppresses eddy current losses.
Superior thermal management for sustained performance.
NexGen 4.0 Force Feedback Algorithm
Enhanced Dynamic Feedback
More refined and detailed force feedback.
Sharper, more defined curbs and rumble strip sensations.
Instant response to weight shifts and tire slip.
New cogging torque compensation for ultra-smooth steering.
Sturdy All-aluminum Body
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.
Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices. |
|
Features |
|
Product type |
Racing wheel base |
|
Product colour |
Black |
|
Material |
Aluminium |
|
Peak torque |
16 N⋅m |
|
Drive type |
Direct drive |
|
Weight & dimensions |
|
Width |
170 mm |
|
Depth |
327 mm |
|
Height |
130 mm |
|
Weight |
8.9 kg |
|
Packaging content |
|
Cables included |
Power, USB |
|
Power |
|
Input voltage |
110 - 220 V |
|
Peak power |
360 W |
|
