General Information |
|
Summary |
Wi-Fi That Goes Anywhere
The TL-WR3002X has multiple functional modes to get you connected no matter where you are. It also includes several features to keep you up and running.
Wi-Fi 6 Speeds Anywhere You Want Them
The TL-WR3002X delivers the speed and performance you need in a travel-ready size that goes wherever you do.

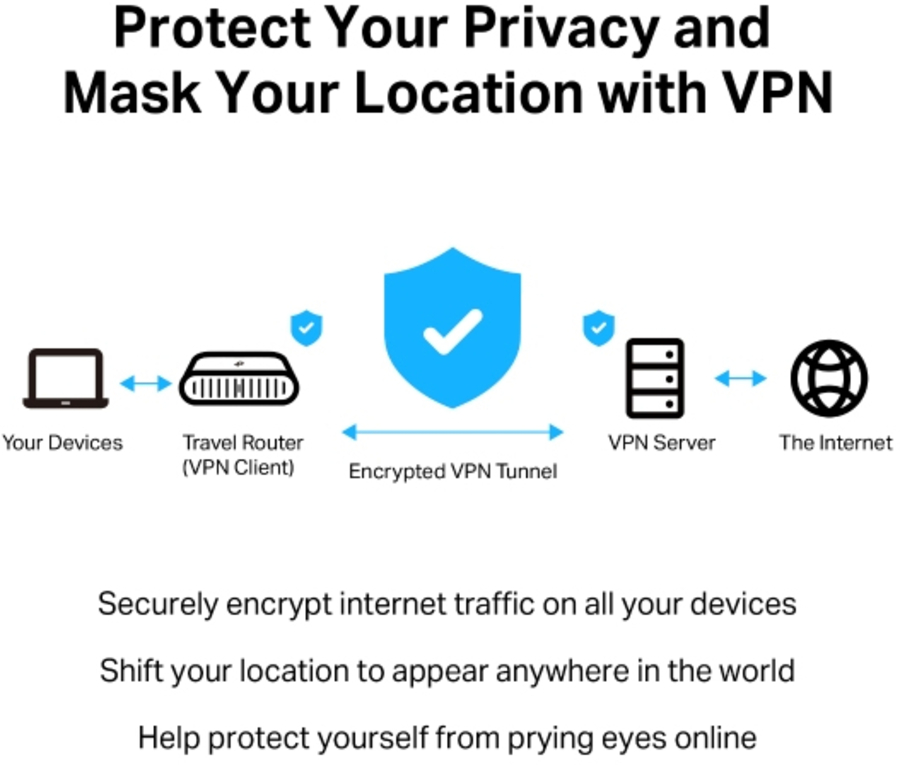

24/7 Secure Surfing with VPN Encryption
VPN Clients and Server Supported
Supporting OpenVPN, WireGuard®, PPTP, and L2TP VPN protocols, TL-WR3002X maintains your network’s privacy and security, whether working remotely or using public WiFi. It can simultaneously run a VPN and regular internet connection, offering protection and flexibility.
|
|
WAN connection |
|
Ethernet WAN |
Yes |
|
DSL WAN |
No |
|
SIM card slot |
No |
|
3G/4G USB modem compatibility |
Yes |
|
WAN connection type |
RJ-45 |
|
Wireless LAN features |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
WLAN data transfer rate (max) |
2402 Mbit/s |
|
Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
|
WLAN data transfer rate (first band) |
2402 Mbit/s |
|
WLAN data transfer rate (second band) |
574 Mbit/s |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Number of guest networks (2.4 GHz) |
1 |
|
Number of guest networks (5 GHz) |
1 |
|
VPN support |
OpenVPN Server
PPTP VPN Server
L2TP VPN Server
Wireguard VPN Serve
PPTP VPN Client
L2TP VPN Client
Wireguard VPN Client |
|

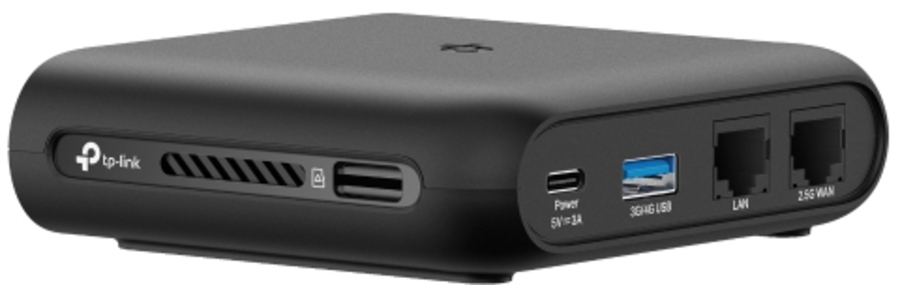

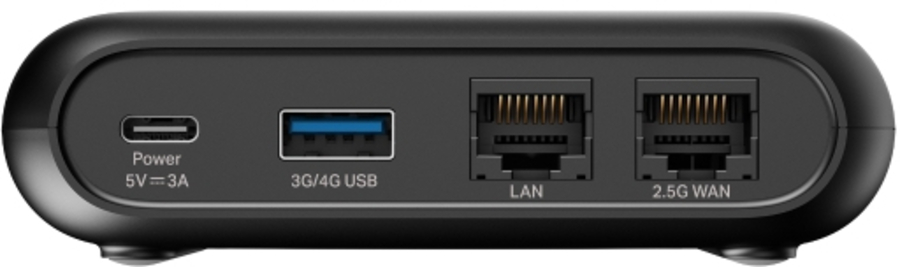

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
1 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
Memory card slot(s) |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash) |
|
Maximum memory card size |
512 GB |
|
Management features |
|
Web-based management |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
Reset button |
Yes |
|
Security |
|
Security algorithms |
WPA, WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3-Personal |
|
Firewall |
Yes |
|
Access Control List (ACL) |
Yes |
|
Protocols |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
Design |
|
Product type |
Portable router |
|
Product colour |
Black |
|
Certificates |
|
Compliance certificates |
Federal Communications Commission (FCC) |
|
Packaging content |
|
Cables included |
LAN (RJ-45), USB |
|
Antenna |
|
Antenna design |
Internal |
|
Power |
|
Power source type |
DC |
|
External power adapter |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
System requirements |
|
Introduction year |
2025 |
|
Weight & dimensions |
|
Width |
105 mm |
|
Depth |
91.3 mm |
|
Height |
30 mm |
