General Information |
|
Summary |
Impressive lighting and airflow

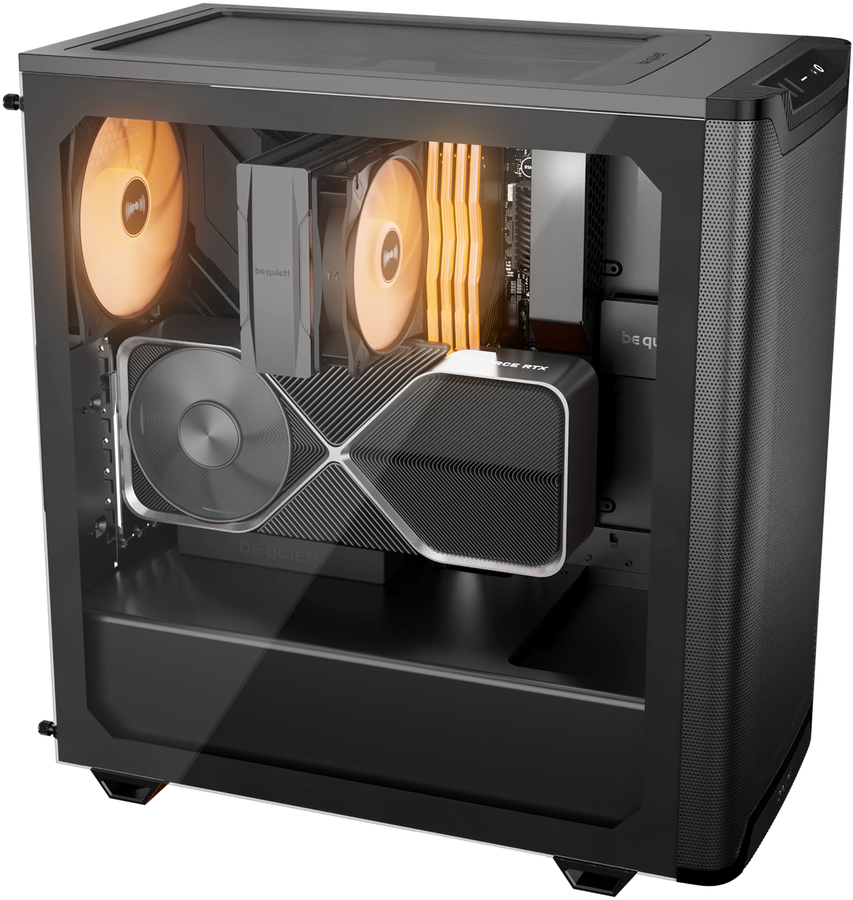

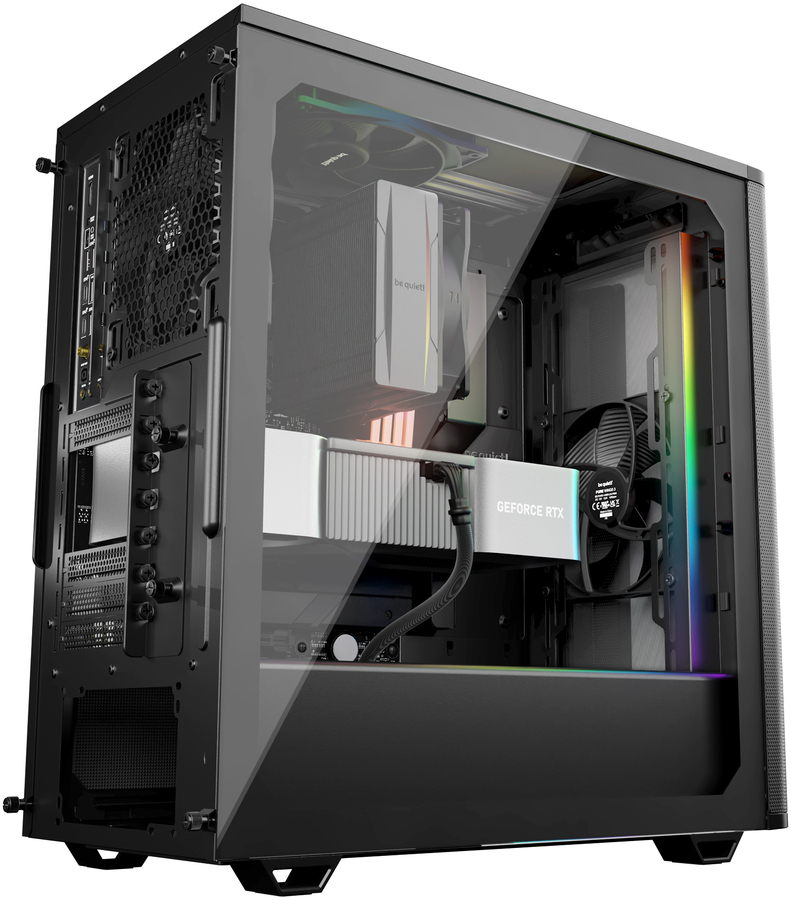

Pure Base 501 DX Black is an impressively illuminated be quiet! ATX case with compact dimensions and high airflow for any application. Elevate your system with the elegant ARGB lighting and relish the show. |
|
Design |
|
Form factor |
Midi Tower |
|
Type |
PC |
|
Product colour |
Black |
|
Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
|
Number of 3.5" bays |
2 |
|
Number of 5.25" bays |
0 |
|
Material |
Acrylonitrile butadiene styrene (ABS), Glass, Steel |
|
Number of 2.5" bays |
5 |
|
Number of expansion slots |
7 |
|
Side window |
Yes |
|

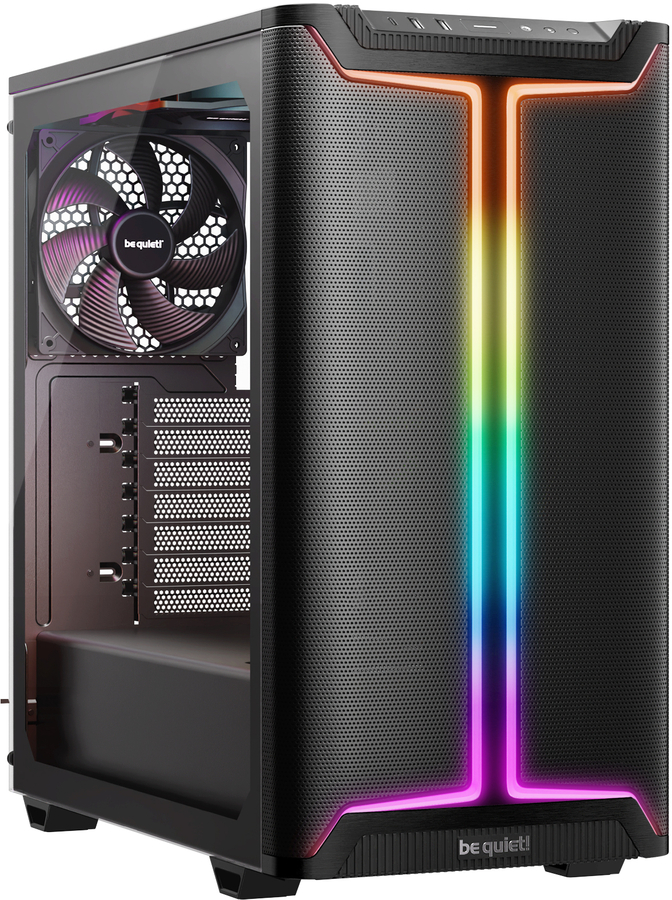

Illumination |
Yes |
|
Illumination colour |
Multi |
|
Illumination location |
Front |
|
Anti-dust filter |
Yes |
|
Maximum graphics card length |
36.8 cm |
|
Maximum PSU length |
20 cm |
|
Power supply |
|
Power supply included |
No |
|
Supported power supply form factors |
ATX, PS2 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
|
Audio input |
Yes |
|
Audio output |
Yes |
|

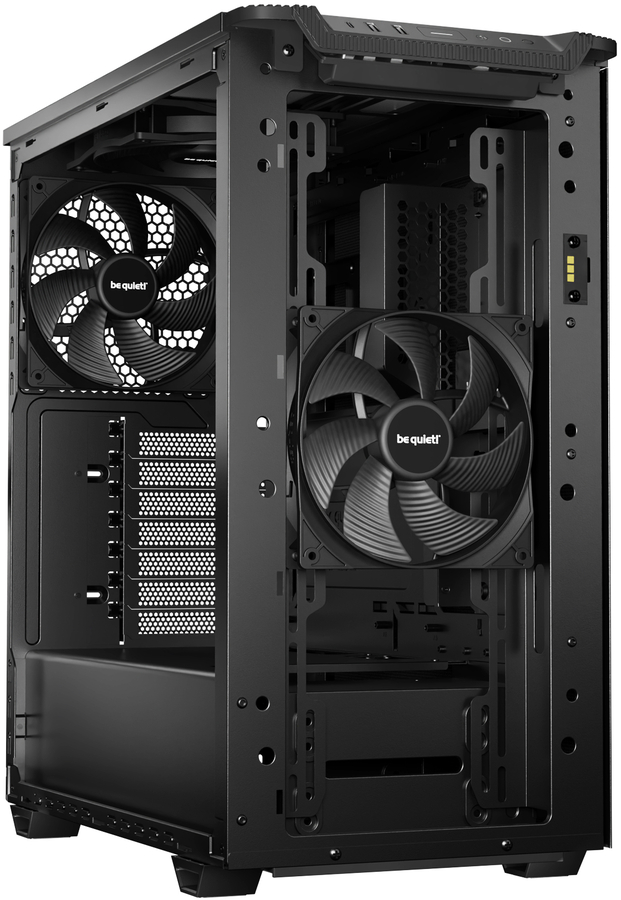

Cooling |
|
Front fans installed |
1x 140 mm |
|
Number of front fans supported (max) |
3 |
|
Front fans diameters supported |
120,140 mm |
|
Rear fans installed |
1x 140 mm |
|
Number of rear fans supported (max) |
1 |
|
Rear fans diameters supported |
120,140 mm |
|
Top fans installed |
1x 140 mm |
|
Number of top fans supported (max) |
2 |
|
Top fans diameters supported |
120,140 mm |
|
Maximum airflow |
57.4 cfm |
|
Noise level (high speed) |
21.9 dB |
|
Fan rated voltage |
5 - 13.2 V |
|
Fan rated current |
0.06 A |
|
Fan power consumption |
3.6 W |
|
Maximum air pressure |
0.96 mmH2O |
|
Liquid cooling capability |
Yes |
|
Front radiator sizes supported |
120,140,240,280,360 mm |
|
Rear radiator sizes supported |
120,140 mm |
|
Top radiator sizes supported |
120,240 mm |
|
Pulse-width modulation (PWM) support |
Yes |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, RoHS, UKCA, WEEE |
|

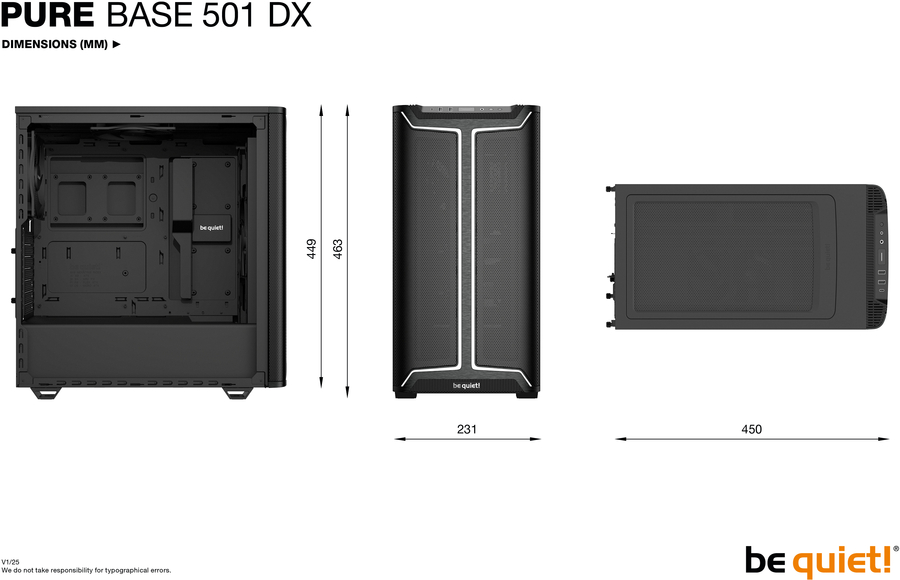

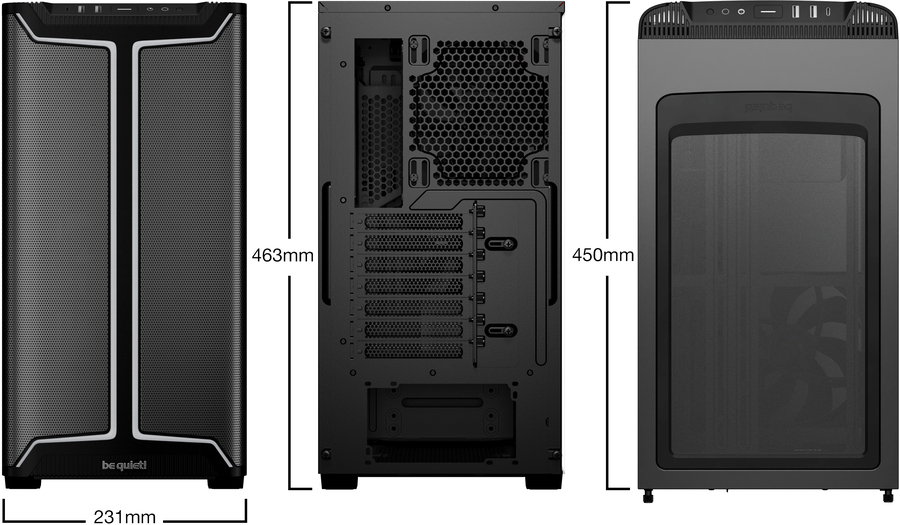

Weight & dimensions |
|
Width |
231 mm |
|
Depth |
450 mm |
|
Height |
463 mm |
|
Weight |
7.8 kg |
|
Packaging data |
|
Package width |
292 mm |
|
Package depth |
518 mm |
|
Package height |
503 mm |
|
Package weight |
9.2 kg |
|
Other features |
|
Volume |
24.4 L |
|
Fan connector |
4-pin |
