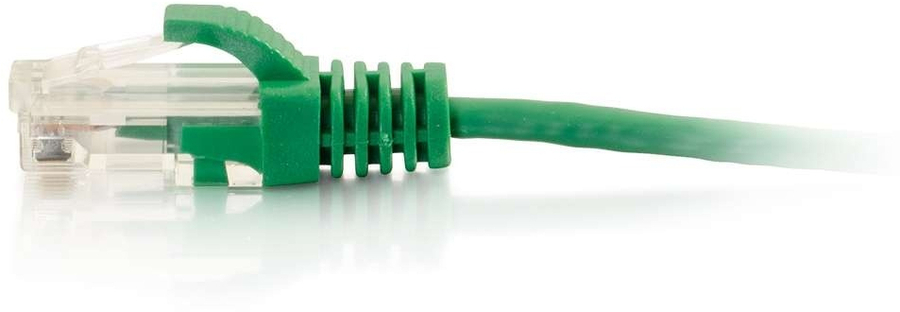

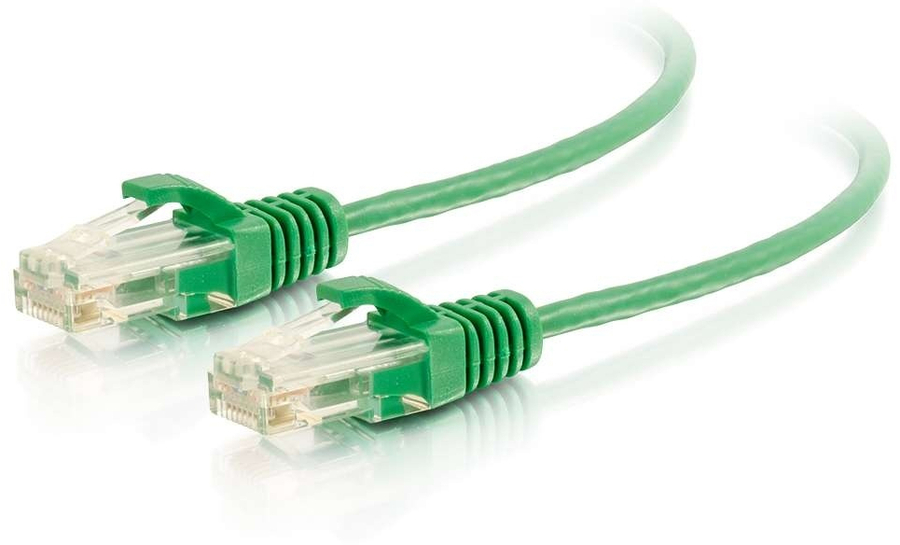

C2G 6-foot CAT6 Snagless Slim Patch Cable Green
|
|
Regularly: $7.00
On Sale: $6.72
Sale Ends:
August 16th, 2025
Manufacturer:
C2G
RJ-45 - RJ-45, M/M, PoE, 500 MHz, Cat 6, 10 Gbps, UTP, 1.8 m
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60017808
|
C2G02223
|
- |
Active
|
Details
|
General Information |
|
Summary |
The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.
This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
This patch cable does not meet the recommend conductor size, 22-26AWG, requirement of ANSI/TIA-568-C.2. Attenuation is increased due to the smaller 28AWG conductors. |
|
Features |
|
Cable length |
1.8 m |
|
Cable standard |
Cat6 |
|
Cable shielding |
U/UTP (UTP) |
|
Connector 1 |
RJ-45 |
|
Connector 2 |
RJ-45 |
|
Product colour |
Green |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
Connector contacts plating |
Gold |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Cable shape |
Round |
|
Conductor type |
Stranded |
|
Conductor material |
Copper |
|
Cable rating |
CMR |
|
Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
AWG wire size |
28 |
|
Data transfer rate |
10000 Mbit/s |
|
Bend radius (min) |
1.52 cm |
|
Power over Ethernet (PoE) |
Yes |
|
Molded cable boot |
Yes |
|
Snagless cable boot |
Yes |
|
Plug and Play |
Yes |
|
Operational conditions |
|
Operating temperature (T-T) |
-20 - 80 °C |
|
Storage temperature (T-T) |
-20 - 80 °C |
|
Certificates |
|
Compliance certificates |
CE, REACH, RoHS |
|
Weight & dimensions |
|
Outer diameter |
3.8 mm |
|
Packaging data |
|
Package type |
Polybag |
|
Other features |
|
Impedance |
100 Ω |
|
