General Information |
|
Summary |
Primed for Power

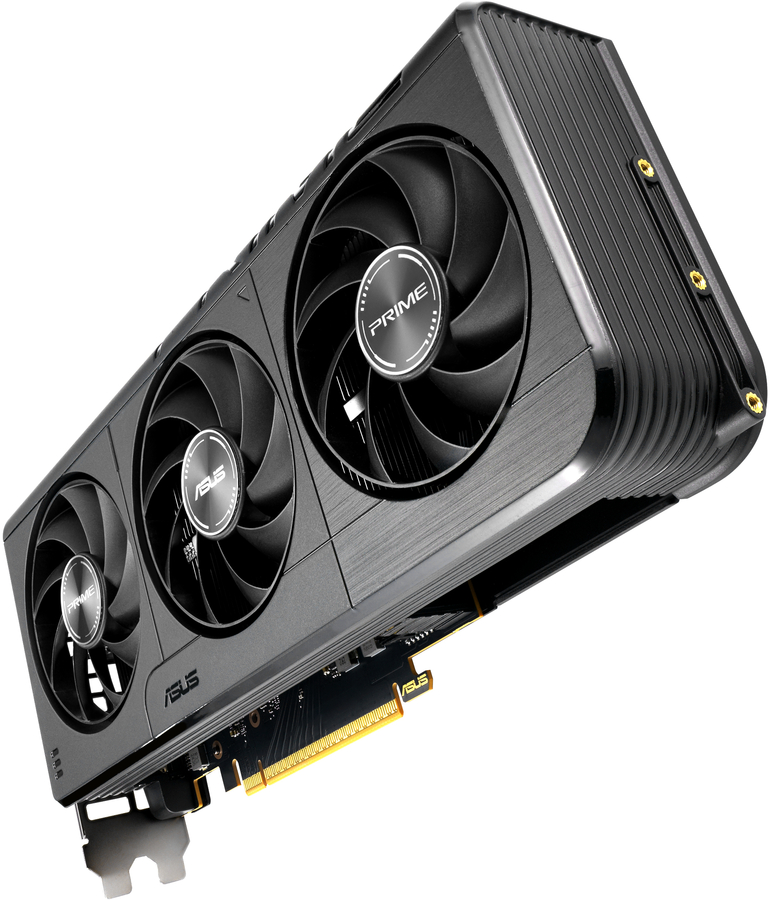

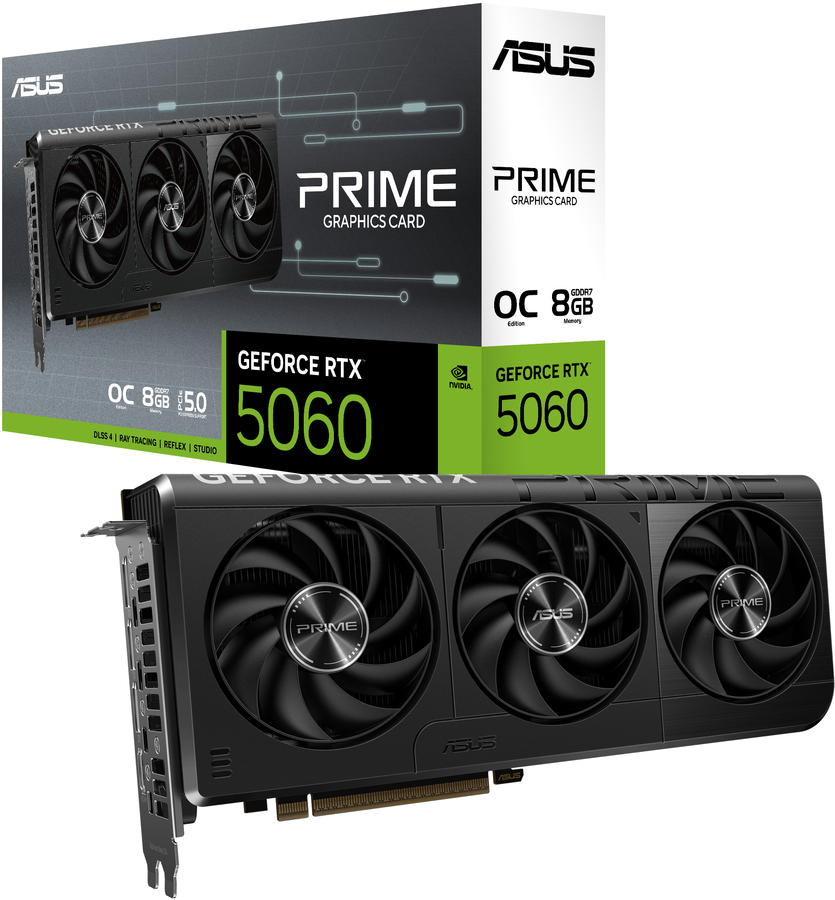

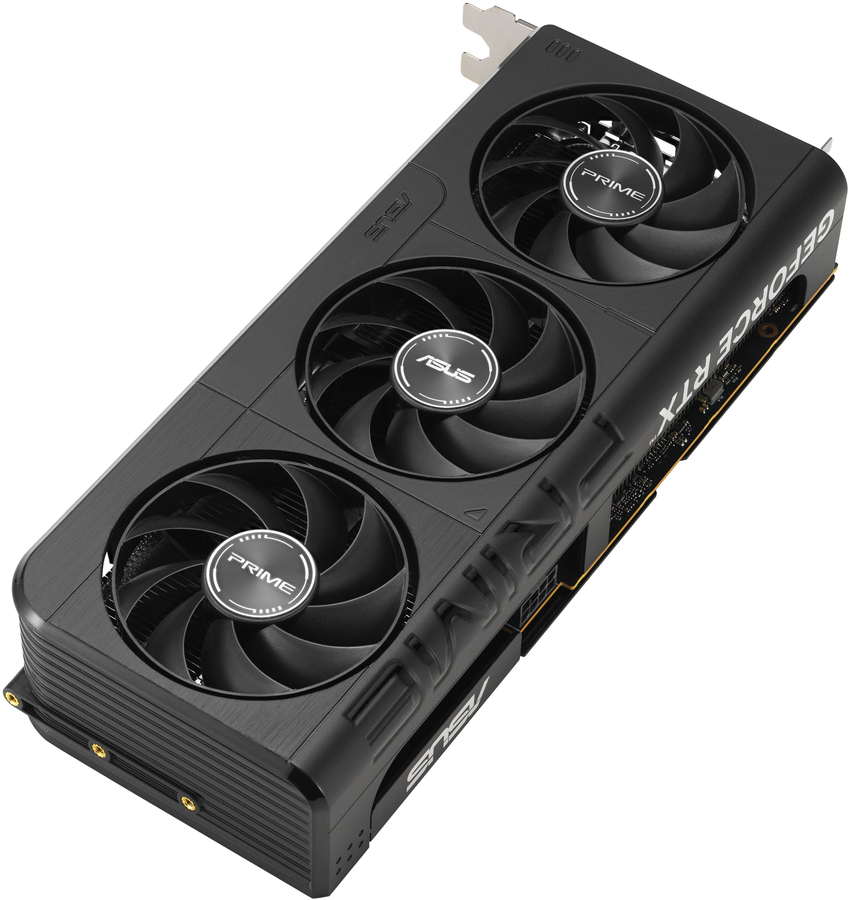

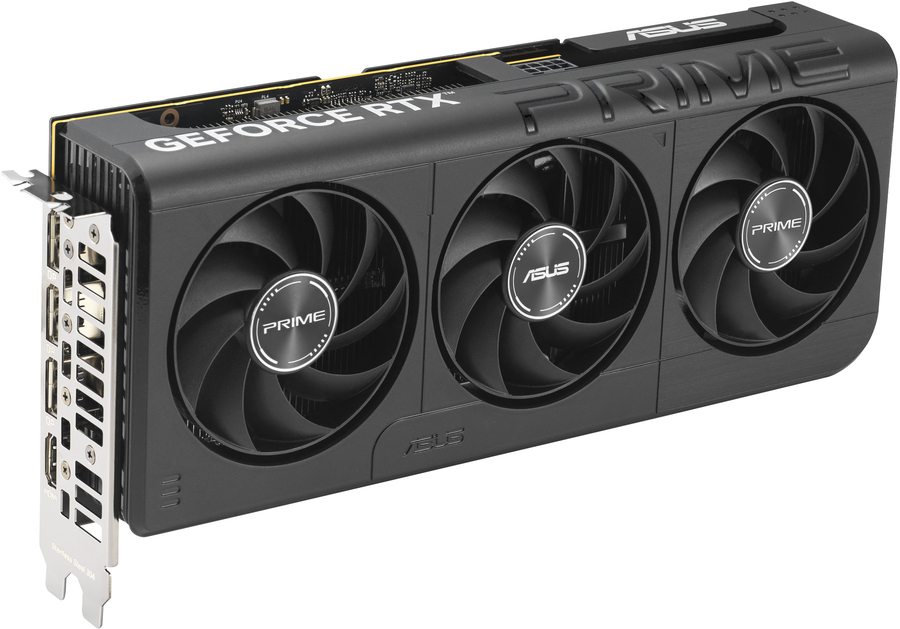

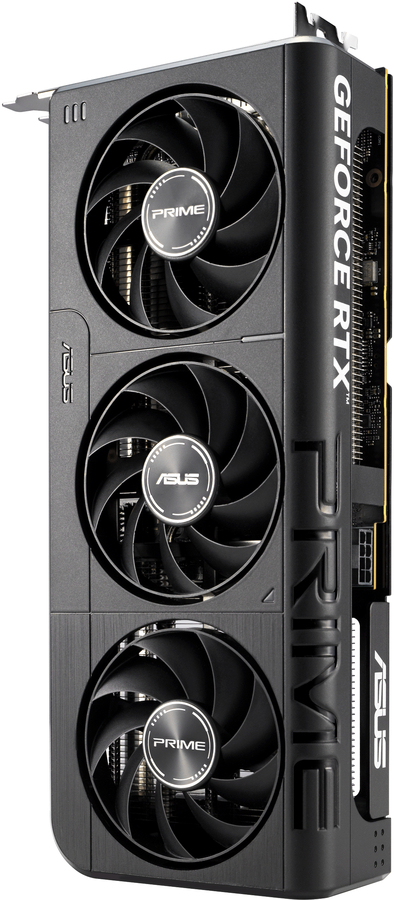

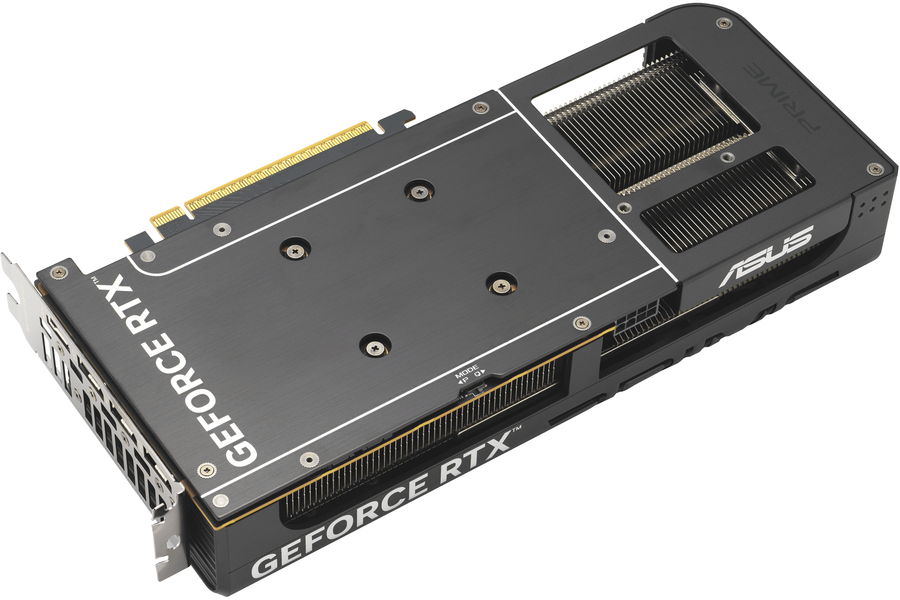

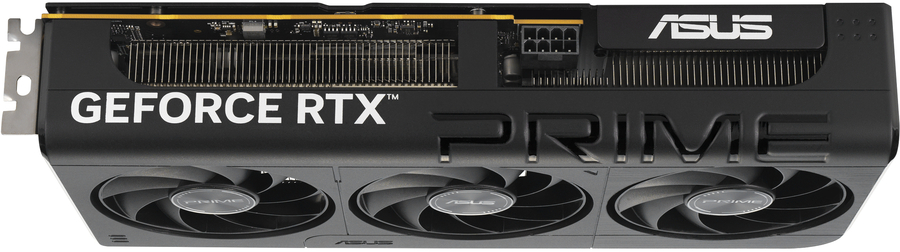

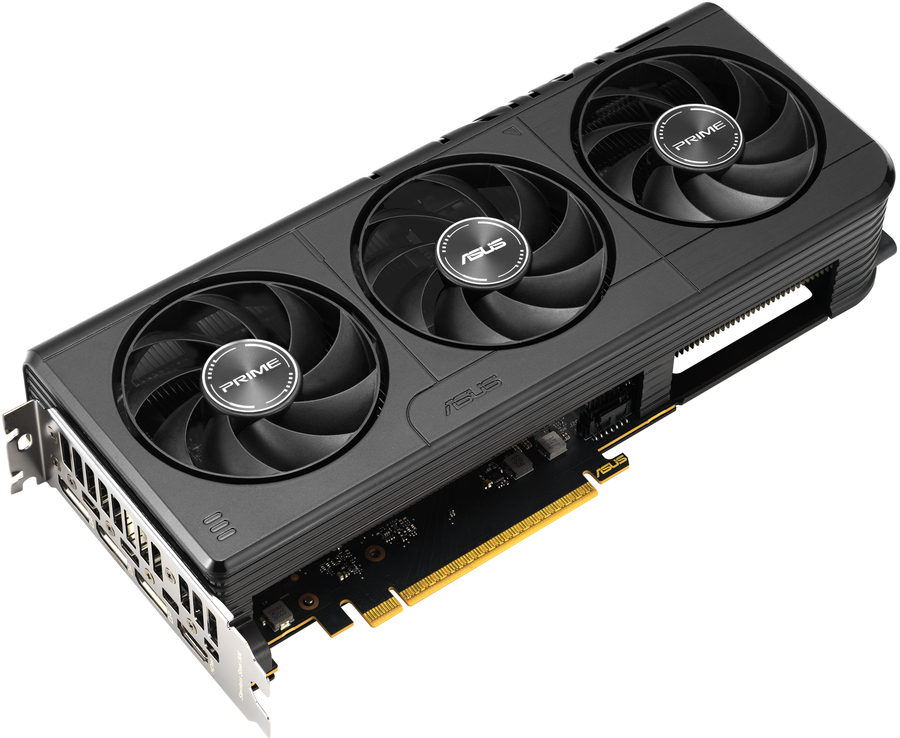

Experience Primal performance with the Prime GeForce RTX 5060, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5060 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
3840 |
|
Processor boost clock speed |
2565 MHz |
|
Processor frequency (OC mode) |
2595 MHz |
|
Stream processors |
4 |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
8 GB |
|
Graphics card memory type |
GDDR7 |
|
Memory bus |
128 bit |
|
Data transfer rate |
28 Gbit/s |
|

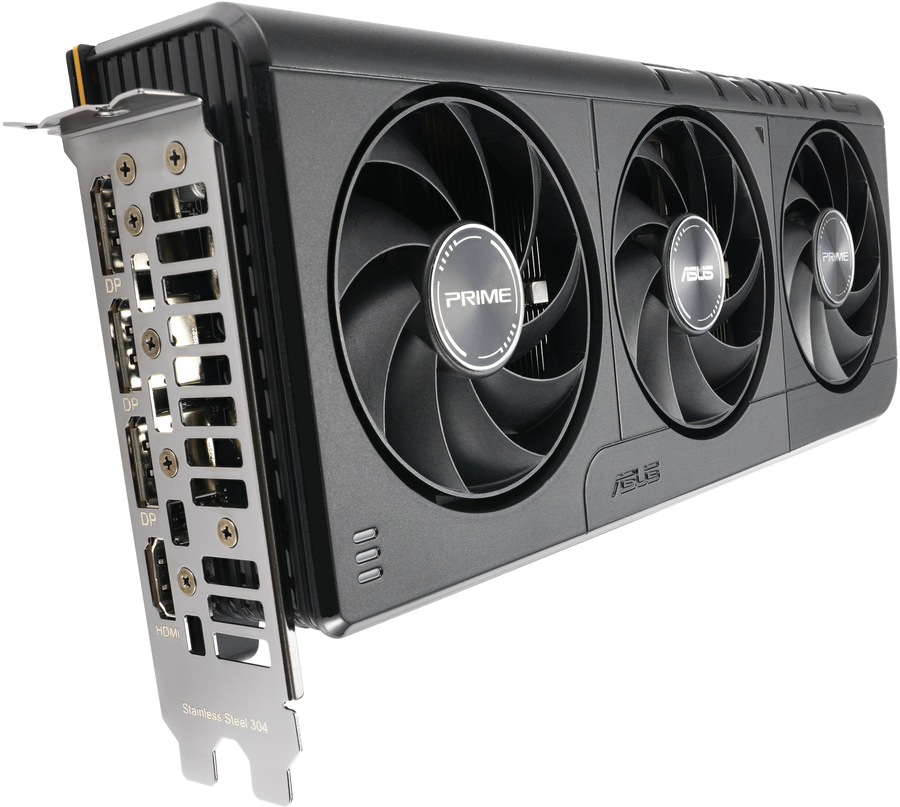

Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1b |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
2.1b |
|
Performance |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
Virtual Reality (VR) ready |
Yes |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NVIDIA G-SYNC |
Yes |
|
NPU performance up to |
630 TOPs |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
3 fan(s) |
|
Number of slots |
2.5 |
|
SFF ready |
Yes |
|
Product colour |
Multicolour |
|
Power |
|
Minimum system power supply |
550 W |
|
Supplementary power connectors |
1x 8-pin |
|
System requirements |
|
Windows operating systems supported |
Yes |
|
Weight & dimensions |
|
Weight |
775 g |
|
Length |
268.3 mm |
|
Depth |
50 mm |
|
Height |
120 mm |
|
Packaging data |
|
Package width |
405 mm |
|
Package depth |
233 mm |
|
Package height |
88.5 mm |
|
Package weight |
1.42 kg |
|
Package type |
Box |
