Improves Your Cisco Nexus 7000-Series Switch’s Performance by Keeping It Cool

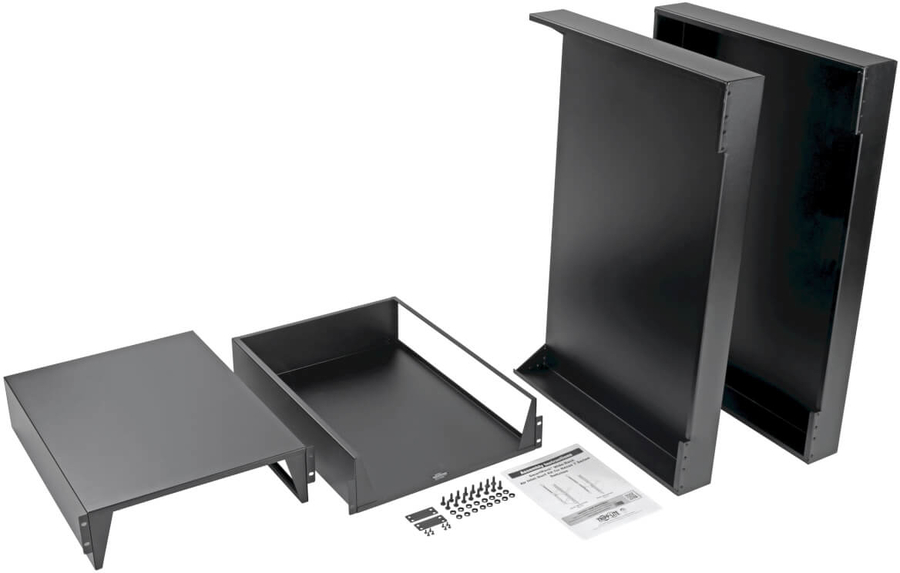

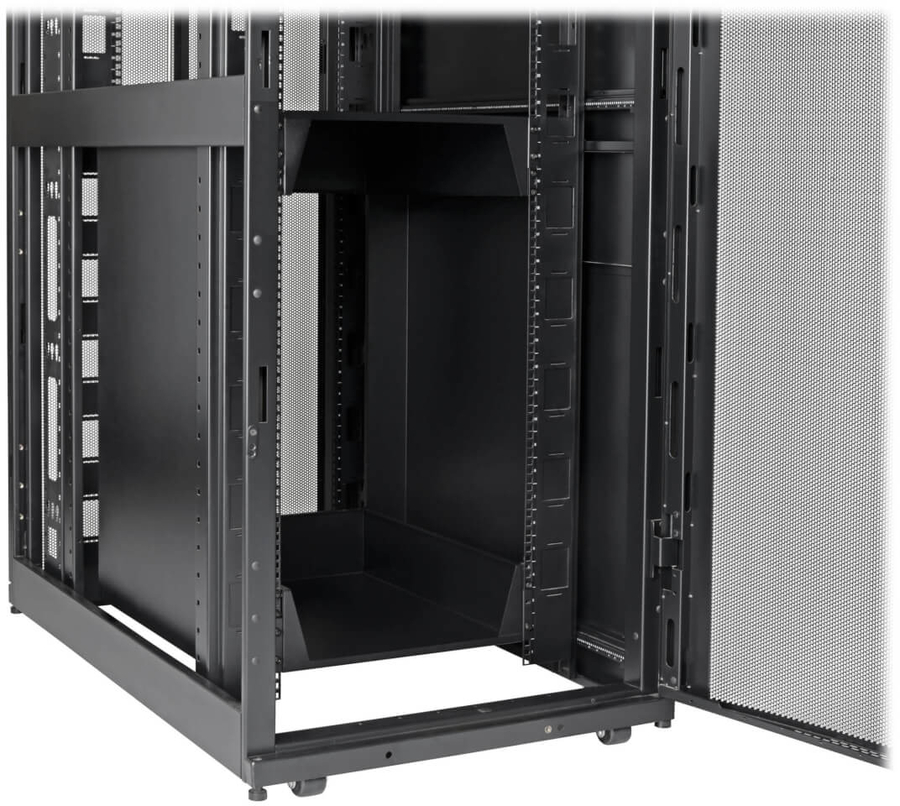

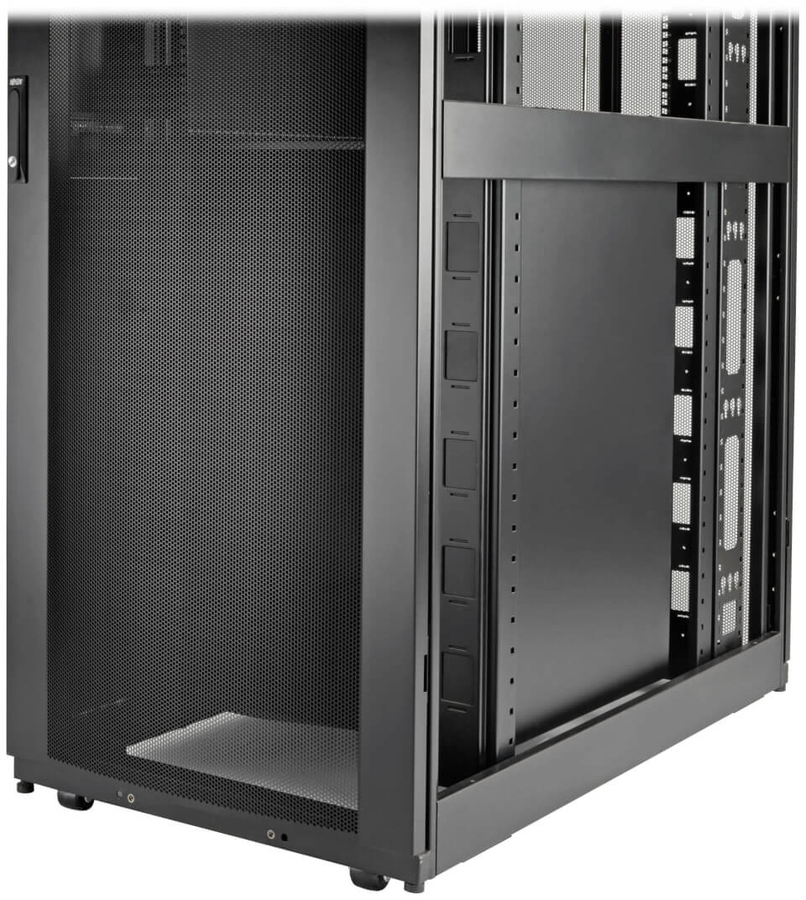

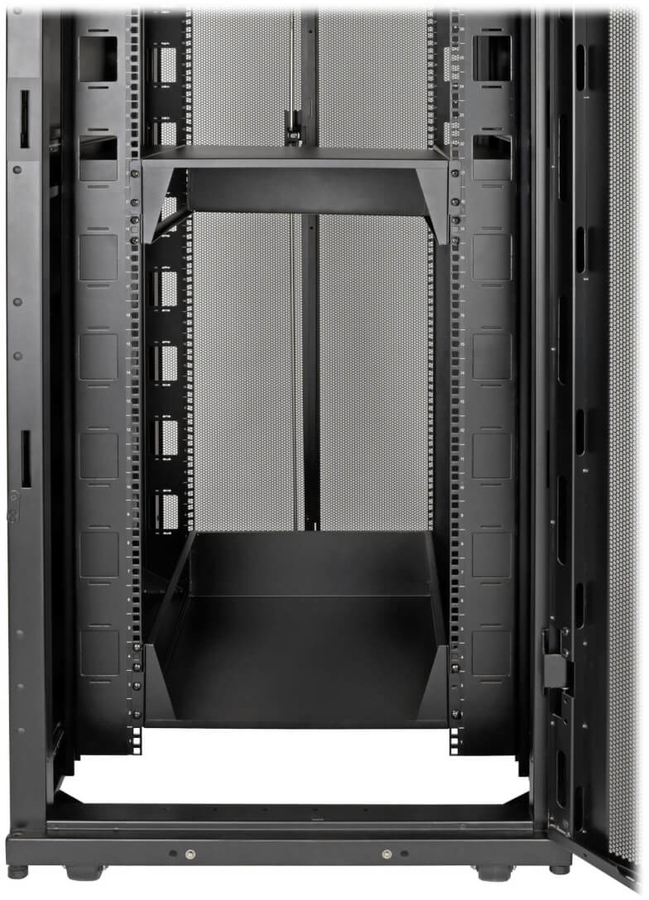

This SmartRack rack-mount ducting kit pulls cool air from the front of the rack and directs it toward the rear exhaust of your Cisco Nexus switch. Dual tray ducts direct cool airflow on the top and bottom of the switch, and two boxes direct airflow to the sides. The side boxes create a concentrated exhaust pathway to prevent warm air from recirculating back to the rack’s cold-aisle side. This extra airflow keeps your switch cool to ensure it maintains peak performance.
Easy to Install Efficiently with Included Hardware
The SRDUCTN7009 is designed for extra-wide 750-millimeter racks, including SRW6UDPVRT and SRW9UDPVRT, and does not fit standard-width racks. All necessary mounting hardware is included for hassle-free setup that saves you time and money on installation. The 9U unit is designed specifically to accept Cisco Nexus 7000 switches, but its modular and spacious design can also house other equipment that requires concentrated ducting. |
|
Features |
|
Type |
Vented blank panel |
|
Product colour |
Black |
|
Rack capacity |
9U |
|
Certification |
EIA-310-E |
|
Country of origin |
China |
|
Weight & dimensions |
|
Height |
887.5 mm |
|
Weight |
23.5 kg |
|
Packaging data |
|
Package width |
264.9 mm |
|
Package depth |
950 mm |
|
Package height |
674.9 mm |
|
Package weight |
36.3 kg |
|
Packaging content |
|
Screws included |
Yes |
|
Number of screws |
23 |
|
Washers included |
Yes |
|
Number of washers included |
16 |
|
Technical details |
|
Master (outer) case GTIN (EAN/UPC) |
10037332196436 |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Master (outer) case width |
1344.9 mm |
|
Master (outer) case length |
964.9 mm |
|
Master (outer) case height |
810 mm |
|
Master (outer) case gross weight |
122 kg |
|
Products per master (outer) case |
5 pc(s) |
|
Harmonized System (HS) code |
7326.90.8688 |
