General Information |
|
Summary |
Converged Next-Generation Firewall and SD-WAN

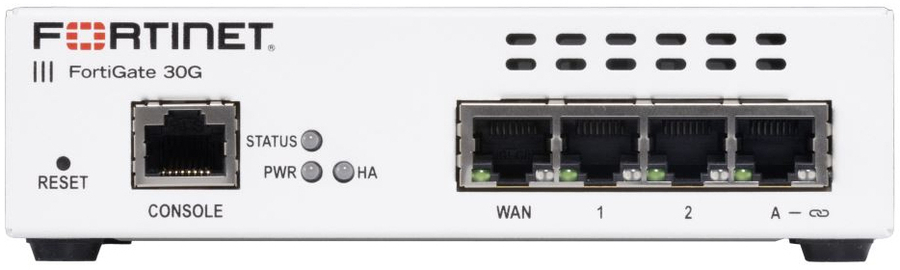

The FortiGate and FortiWiFi 30G series integrate firewalling, SD-WAN, and security in one appliance, making them perfect for building secure networks at distributed enterprise sites and transforming WAN architecture at any scale.
The 30G series is powered by FortiOS, the industry’s first converged networking and security operating system. This convergence enables businesses to efficiently and optimally secure today’s dynamic digital infrastructures.
As a cornerstone of the Fortinet Security Fabric platform, the FortiGate NGFW works seamlessly with FortiGuard AI-Powered Security Services to deliver coordinated, automated, end-to-end threat protection in real time.
The 30G family is built on the patented SD-WAN-based ASIC, which delivers unmatched performance over traditional CPUs with lower cost and reduced power consumption. This application-specific design and embedded multi-core processor further accelerate the convergence of networking and security functions in the 30G family to optimize secure connections and deliver a robust user experience at branch locations. |
|
Data transmission |
|
Firewall throughput |
5.85 Mpps |
|
Firewall (UDP 1518) throughput |
4 Gbit/s |
|
IPSec VPN throughput |
3.5 Gbit/s |
|
IPS/IDS throughput |
800 Mbit/s |
|
Threat protection throughput |
500 Mbit/s |
|
SSL inspection throughput |
400 Mbit/s |
|
Gateway antivirus throughput |
200 Gbit/s |
|
Firewall latency |
2.87 µs |
|
Security policies (max) |
2000 |
|
Network |
|
Concurrent SSL/VPN connections (maximum) |
600000 |
|
VPN tunnels quantity |
250 |
|
Ports & interfaces |
|
Connectivity technology |
Wired |
|
Gigabit Ethernet (copper) ports quantity |
4 |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Console port |
RJ-45 |
|
Number of console ports |
1 |
|
WAN connection |
Ethernet (RJ-45) |
|
Storage |
|
Storage media type |
SSD |
|
Total storage capacity |
30 GB |
|
SSD capacity |
30 GB |
|
Number of SSDs installed |
1 |
|
Design |
|
Form factor |
Desktop |
|
Power |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
2 A |
|
DC input voltage |
12 V |
|
Power consumption (typical) |
6.8 W |
|
Power consumption (max) |
8.2 W |
|
Certificates |
|
Certification |
USGv6/IPv6 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-35 - 70 °C |
|
Operating relative humidity (H-H) |
20 - 90% |
|
Operating altitude |
0 - 3048 m |
|
Weight & dimensions |
|
Width |
142 mm |
|
Depth |
160 mm |
|
Height |
40.5 mm |
|
Weight |
600 g |
