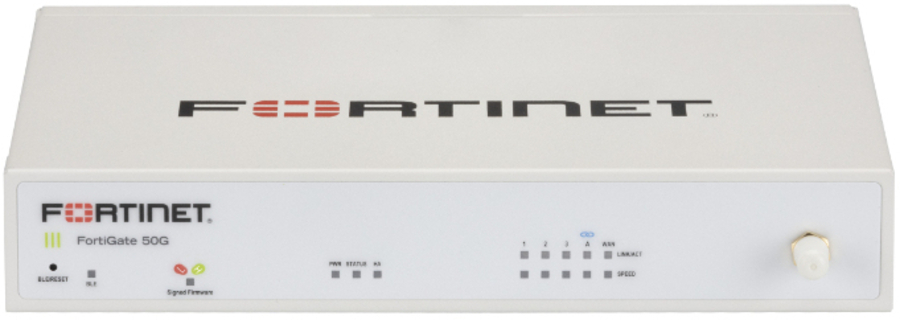

FortiGate FortiWiFi 50G Series
Converged Next-Generation Firewall (NGFW) and SD-WAN The FortiGate Next-Generation Firewall 50G series is ideal for building security-driven networks at distributed enterprise sites and transforming WAN architecture at any scale.
With a rich set of AI/ML-based FortiGuard security services and our integrated Security Fabric platform, the FortiGate FortiWiFi 50G series delivers coordinated, automated, end-to-end threat protection across all use cases.
FortiGate has the industry’s first integrated SD-WAN and zero-trust network access (ZTNA) enforcement within an NGFW solution and is powered by one OS. FortiGate FortiWiFi 50G automatically controls, verifies, and facilitates user access to applications, delivering consistency with a seamless and optimized user experience. |
|
Data transmission |
|
Firewall throughput |
6 Mpps |
|
Firewall (UDP 1518) throughput |
5 Gbit/s |
|
IPSec VPN throughput |
4.5 Gbit/s |
|
Threat protection throughput |
1100 Mbit/s |
|
SSL performance |
699 transactions/sec |
|
SSL inspection throughput |
1300 Mbit/s |
|
Gateway antivirus throughput |
200 Gbit/s |
|
Firewall latency |
2.42 µs |
|
Security policies (max) |
2000 |
|
Default number of virtual firewalls |
5 |
|
Maximum number of virtual firewalls |
5 |
|
Performance |
|
Antenna design |
External |
|
SIM card slot |
Yes |
|
Mobile network generation |
5G |
|
MIMO |
Yes |
|
Network |
|
Wi-Fi |
Yes |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
|
Active TCP connections (max) |
720000 |
|
Management features |
|
LED indicators |
Yes |
|
Ports & interfaces |
|
Connectivity technology |
Wired & Wireless |
|
USB 2.0 ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
4 |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Console port |
RJ-45 |
|
Number of console ports |
1 |
|
WAN connection |
Ethernet (RJ-45) |
|
DC-in jack |
Yes |
|
Design |
|
Form factor |
Desktop |
|
Built-in fan |
No |
|
Power |
|
AC input voltage |
100-240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
3 A |
|
DC input voltage |
12 V |
|
Power consumption (typical) |
20.43 W |
|
Power consumption (max) |
23.59 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-35 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
216 mm |
|
Depth |
178 mm |
|
Height |
42 mm |
|
Weight |
1.1 kg |
