General Information |
|
Summary |

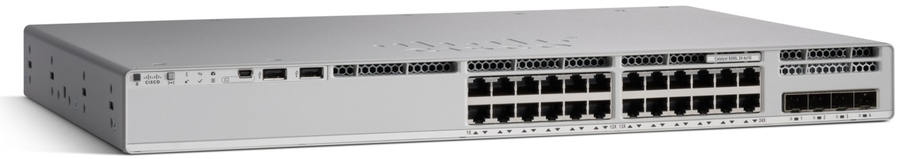

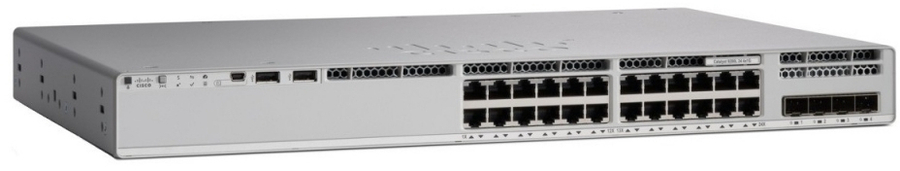

FOR CONFIGURATIONS ONLY - Catalyst 9200 24-port PoE+, Network Advantage - Hardware must be accompanied by a DNA or Cisco One License |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L3 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Traffic classification |
Yes |
|
ARP inspection |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
MIB support |
BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Fast Ethernet (copper) ports quantity |
24 |
|
Power connector |
AC-in jack |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
Yes |
|
Copper ethernet cabling technology |
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
|
Full duplex |
Yes |
|
IP routing |
Yes |
|
Routing entries |
3000 |
|
Flow control support |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
1024 |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
128 Gbit/s |
|
Forwarding rate |
95.23 Mpps |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9198 |
|
Packet buffer memory |
4.1 MB |
|
Security |
|
Access Control List (ACL) |
Yes |
|
Security algorithms |
128-bit AES |
|
Multicast features |
|
Multicast support |
Yes |
|
Multicast MAC address table |
1000 entries |
|
IPv4 multicast entries |
3000 |
|
IPv6 multicast entries |
1500 |
|
Protocols |
|
Management protocols |
SNMPv1/v2c/v3 |
|
Routing protocols |
CDP, EIGRP, OSPF, RIP, VRRP |
|
Design |
|
Product colour |
Grey |
|
Electromagnetic compatibility |
47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
|
Performance |
|
Memory type |
DRAM |
|
Internal memory |
2000 MB |
|
Flash memory |
4000 MB |
|
Power |
|
Power supply included |
Yes |
|
Redundant power supply (RPS) support |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Input current |
12 - 6 A |
|
Power consumption (typical) |
125 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
24 |
|
Power over Ethernet plus (PoE+) ports quantity |
24 |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Operating altitude |
0 - 3000 m |
|
Weight & dimensions |
|
Width |
445 mm |
|
Depth |
350 mm |
|
Height |
44 mm |
|
Weight |
5.5 kg |
|
Packaging data |
|
Package type |
Box |
|
Certificates |
|
Certification |
RoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
|
