General Information |
|
Summary |
Catalyst 1000 24 port GE, POE, 4 x 10G SFP |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Traffic classification |
Yes |
|
ARP inspection |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
24 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
SFP+ module slots quantity |
4 |
|
Console port |
RJ-45/Mini-USB |
|
USB 2.0 ports quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
|
10G support |
Yes |
|
Full duplex |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Ethernet LAN data rates |
100,1000,10000 Mbit/s |
|
VLAN support |
Yes |
|
Number of VLANs |
4094 |
|
Data transmission |
|
MAC address table |
16000 entries |
|
Switching capacity |
128 Gbit/s |
|
Forwarding rate |
41.67 Mpps |
|
Static route |
Yes |
|
Number of static routes |
16 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10240 |
|
Security |
|
DHCP features |
DHCP snooping |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
IGMP entries |
1024 |
|
SSH/SSL support |
Yes |
|
Loop protection |
Yes |
|
BPDU filtering/protection |
Yes |
|
Authentication |
Web-based authentication |
|
Authentication type |
RADIUS |
|
Multicast features |
|
Multicast support |
Yes |
|
IPv4 multicast entries |
1024 |
|
IPv6 multicast entries |
1024 |
|
Design |
|
Product colour |
Grey |
|
Market segment |
Business |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM7 |
|
Processor frequency |
800 MHz |
|
Memory type |
DRAM |
|
Internal memory |
512 MB |
|
Flash memory |
256 MB |
|
Mean time between failures (MTBF) |
698220 h |
|
Power |
|
AC input voltage |
110 - 220 V |
|
AC input frequency |
50 - 60 Hz |
|
Power plug type |
Type C |
|

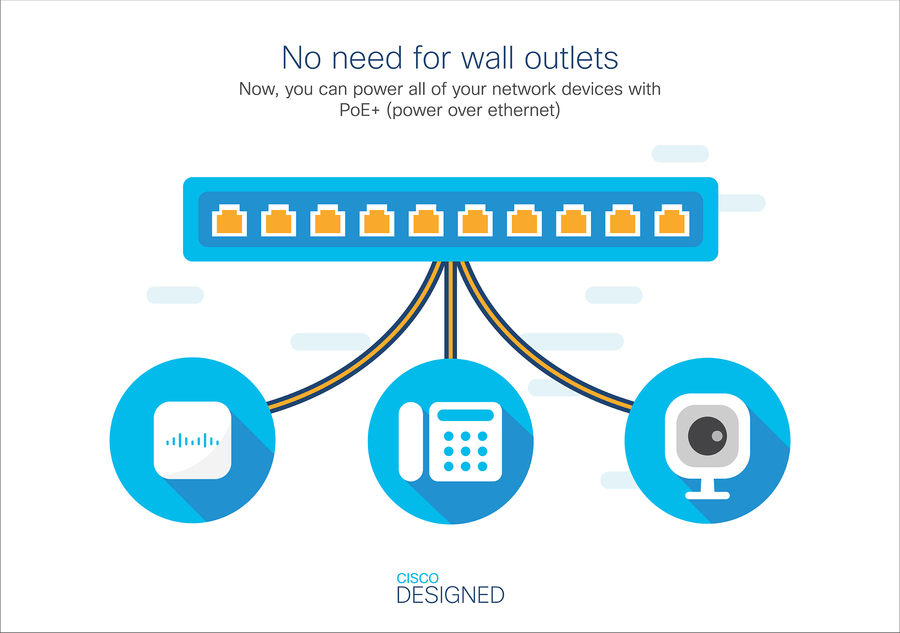

Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) type supported |
PoE+ |
|
Power over Ethernet plus (PoE+) ports quantity |
24 |
|
Total Power over Ethernet (PoE) budget |
195 W |
|
Other features |
|
Packaging content |
C1000-24P-4X-L Switch, Accessory Kit, 1 printed document |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-25 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Operating altitude |
0 - 3000 m |
|
Non-operating altitude |
0 - 4500 m |
|
Weight & dimensions |
|
Width |
444.5 mm |
|
Depth |
299 mm |
|
Height |
44 mm |
|
Weight |
3.68 kg |
|
Packaging data |
|
Package width |
390.7 mm |
|
Package depth |
549.4 mm |
|
Package height |
147.6 mm |
|
Package weight |
5.7 kg |
|
Technical details |
|
Products per shipping (inner) case |
1 pc(s) |
|
Certificates |
|
Certification |
UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24
Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Common Language Equipment Identifier (CLEI) code |
|
Logistics data |
|
Quantity per pack |
1 pc(s) |
|
Country of origin |
China |
|
Harmonized System (HS) code |
85176990 |
|
Products per master (outer) case |
1 pc(s) |
