General Information |
|
Summary |
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1000W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC build

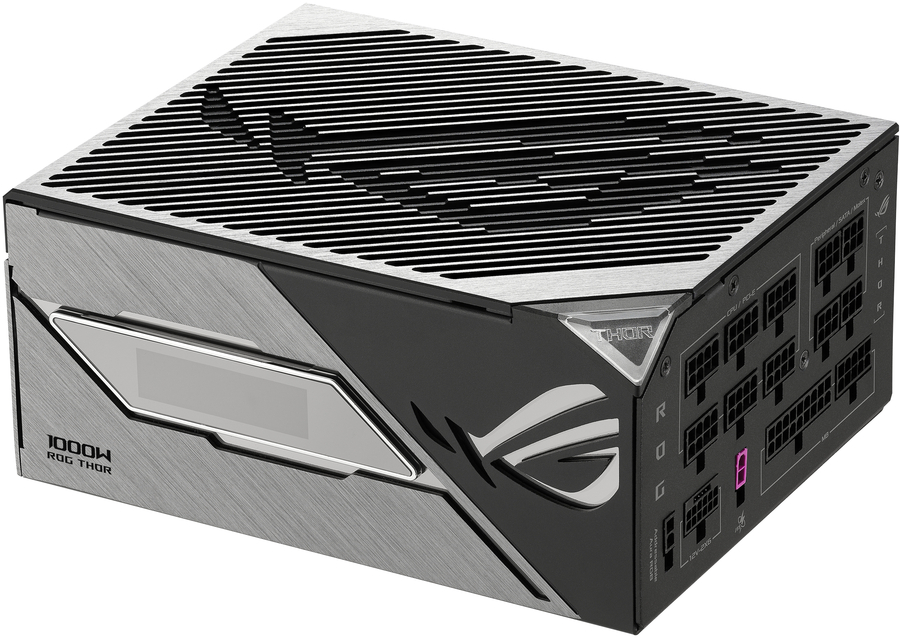

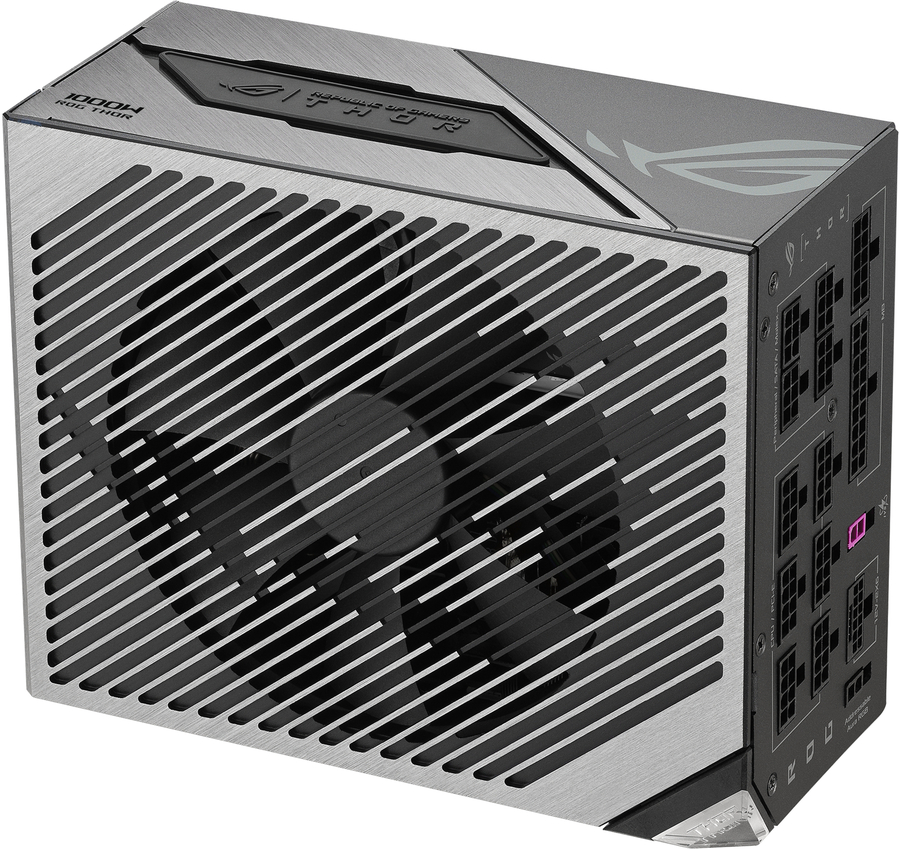

ROG THOR 1000W PLATINUM III
ULTIMATE POWER. UNMATCHED STABILITY.

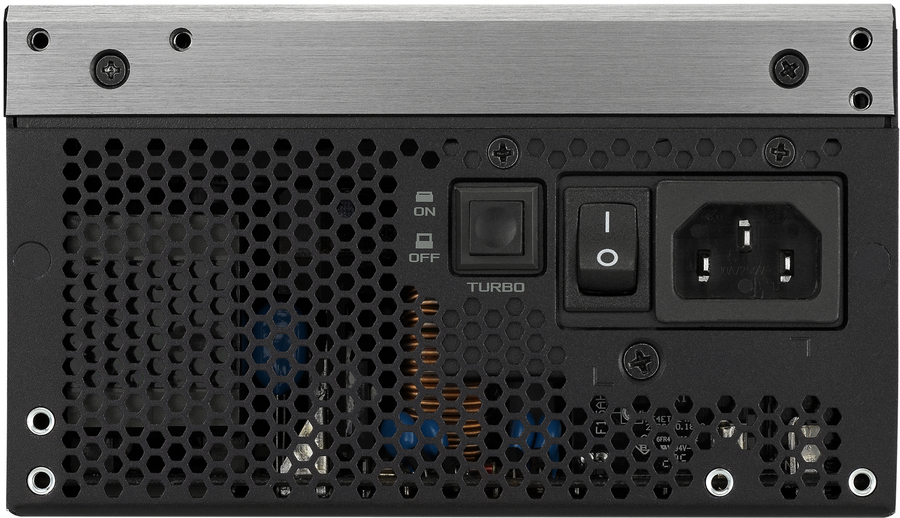

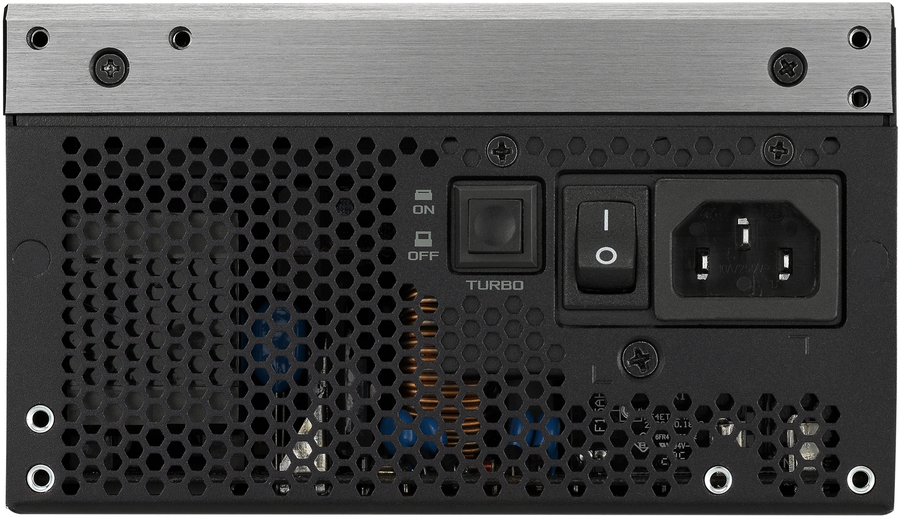

The ROG Thor 1000W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.

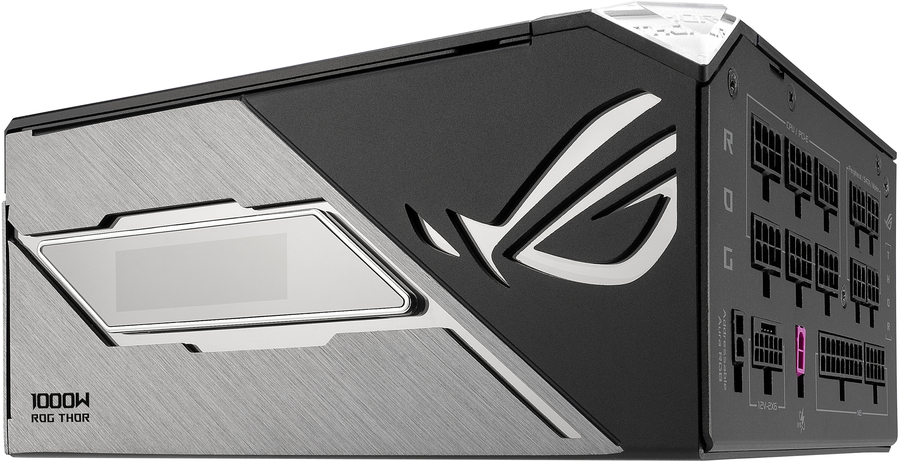

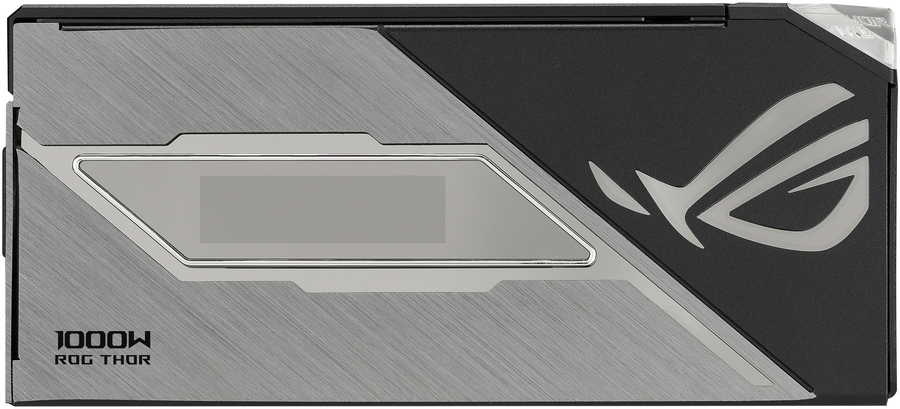

The ROG Thor 1000W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation. |
|
Power |
|
Total power |
1000 W |
|
AC input voltage |
100 - 240 V |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
125 W |
|
Combined power (+12V) |
1000 W |
|
Combined power (+5V) |
125 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
30 A |
|
Max output current (+12V) |
83.33 A |
|
Max output current (+5V) |
25 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under power |
|

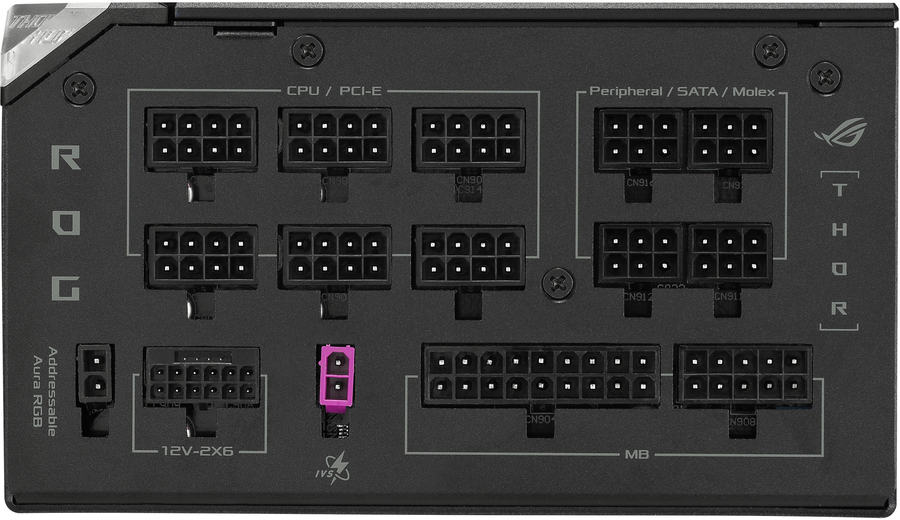

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
6 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
7 |
|
SATA power cable length |
400,120 mm |
|
Peripheral (Molex) power cable length |
400,150 mm |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power connectors (16-pin) |
1 |
|
PCI Express power cable length |
75 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
100 cm |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Platinum |
|
ATX version |
3.1 |
|
Bearing technology |
DBB |
|
Mean time between failures (MTBF) |
120000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Number of fans |
1 fan(s) |
|

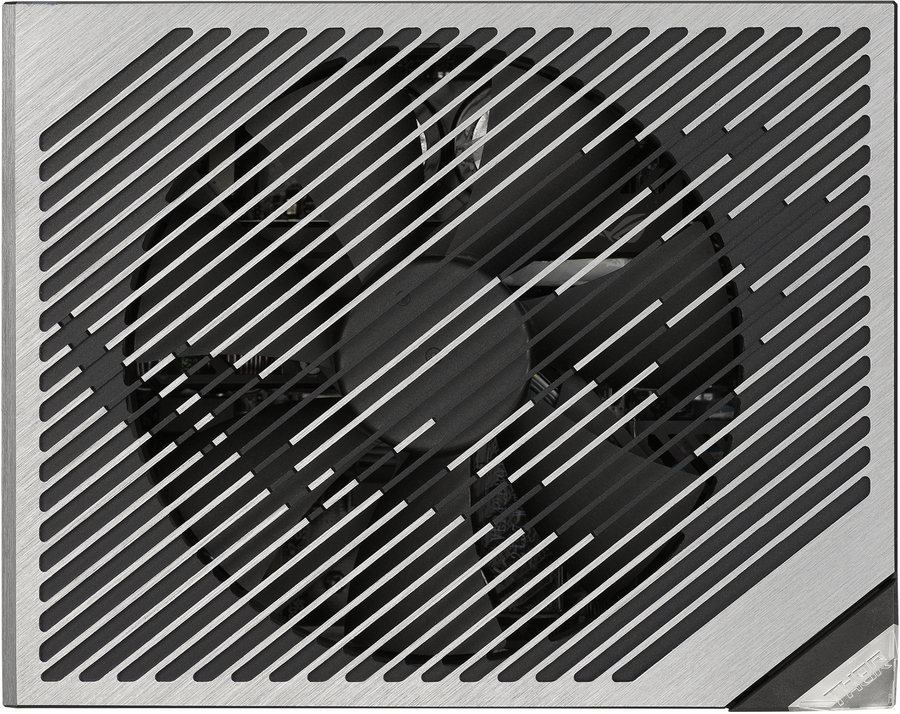

Fan location |
Top |
|
Illumination |
Yes |
|
Packaging content |
|
Cables included |
CPU, PCIe, SATA, Peripheral (Molex) |
|
Weight & dimensions |
|
Width |
190 mm |
|
Depth |
150 mm |
|
Height |
86 mm |
|
Weight |
2.37 kg |
|
Packaging data |
|
Package width |
379 mm |
|
Package depth |
241 mm |
|
Package height |
127 mm |
|
Package weight |
5.08 kg |
|
Package type |
Box |
