General Information |
|
Summary |

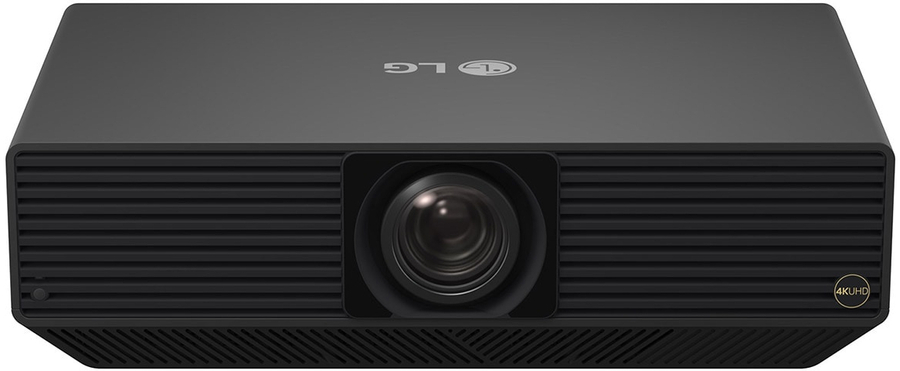

Laser 4K UHD & 3M:1 CR
Exceptional picture quality
With 8.3 mega pixels utilizing 4K UHD (3840 x 2160) resolution, LG ProBeam delivers precisive details from 40-inch up to the 300-inch screen. With 3M:1 contrast ratio, it can express deep darkness and brightness.
7,000 ANSI Lumens brightness
Accurate color even in bright ambient
Thanks to the 7,000 ANSI Lumens brightness, LG BU70QGT can produce clear picture quality even in bright indoor environments such as building lobbies.
Edge blending
Seamless panoramic view
By supporting Edge blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously.
Flexible and easy installation
Simply adjust screen distortion

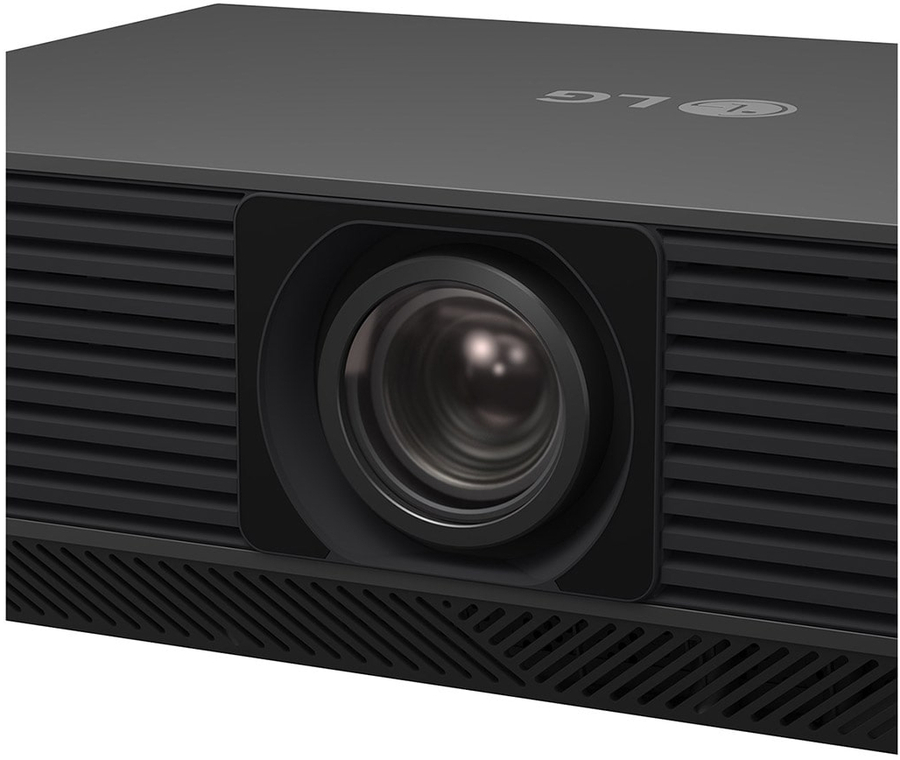

With zoom x1.6 & lens shift (V 60/-33%, H ±28%) functionality, the user can easily set the screen through fine-tuning by adjusting the lens and zoom.
Up to 25 point warping
Simple and delicate screen adjustment
You can adjust screen distortion and set up a precise screen by using the 4/9/15/25 point warping function on the screen.
Screen rotation
Rotate the screen as you want
As supporting Screen rotation you can position the projector anywhere you want, or rotate the screen without physically changing the projector's position.
SuperSign
The easy way to manage and maintain
By supporting signage-optimized functions, various solutions such as content distribution and remote management of installed projectors are provided.
LG SuperSign CMS
It is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, so multiple users can easily access the server from pc or mobile, then manages content creation and editing, scheduling, and distribution.
LG SuperSign Control+
SuperSign Control+ is a remote control and monitoring software solution. It focuses on large scale deployment. Multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real-time, control them, and adjust their setting values.
LG ConnectedCare
It is a cloud service solution that can remotely manage the operating status of installed projectors, helping your stable business operations by providing remote monitoring and fault diagnosis.
LG Projection Calculator
You can simulate LG projector in your space with LG Projection Calculator. |
|
Projector |
|
Projector brightness |
7000 ANSI lumens |
|
Projection technology |
DLP |
|
Projector native resolution |
UHD 4K (3840x2160) |
|
Contrast ratio (typical) |
3000000:1 |
|
Native aspect ratio |
16:9 |
|
Screen size compatibility |
1016 - 7620 mm (40 - 300") |
|
Supported aspect ratios |
16:9, 21:9 |
|
Uniformity |
85% |
|
Light source |
|
Light source type |
Laser |
|
Service life of light source |
20000 h |
|
Lens system |
|
Focus |
Motorized |
|
Zoom capability |
Yes |
|
Throw ratio |
1.53 ~ 2.45 |
|
Horizontal lens shift range |
-28 - 28% |
|
Vertical lens shift range |
-33 - 60% |
|
Offset |
110% |
|
Video |
|
Full HD |
Yes |
|

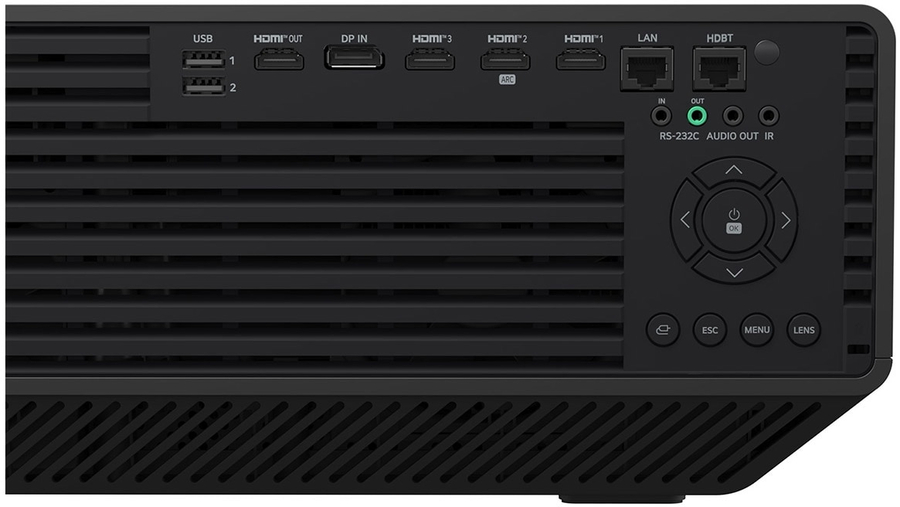

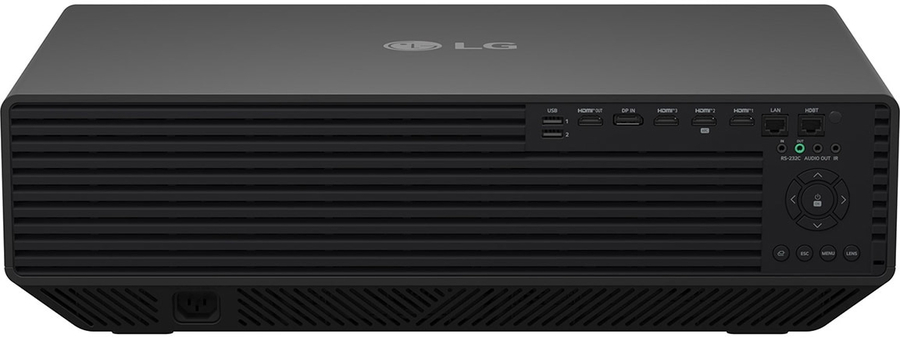

Ports & interfaces |
|
HDMI ports quantity |
4 |
|
Serial interface type |
RS-232C |
|
Microphone in |
Yes |
|
Consumer Electronics Control (CEC) |
SimpLink |
|
Audio Return Channel (ARC) |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Features |
|
HDCP |
Yes |
|
International Protection (IP) code |
IP5X |
|
Noise reduction |
Yes |
|
Operating system installed |
webOS |
|
Operating system version |
6.0 |
|
Multimedia |
|
Built-in speaker(s) |
Yes |
|
RMS rated power |
10 W |
|
Number of built-in speakers |
2 |
|
Design |
|
Product colour |
Black |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Display |
|
Built-in display |
No |
|
Power |
|
Power source |
AC |
|
Power consumption (standby) |
0.5 W |
|
Power consumption (max) |
500 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Weight & dimensions |
|
Weight |
17.8 kg |
|
Width |
570 mm |
|
Depth |
360 mm |
|
Height |
159 mm |
|
Package width |
770 mm |
|
Package depth |
479 mm |
|
Package height |
265 mm |
|
Package weight |
20.5 kg |
|
Packaging content |
|

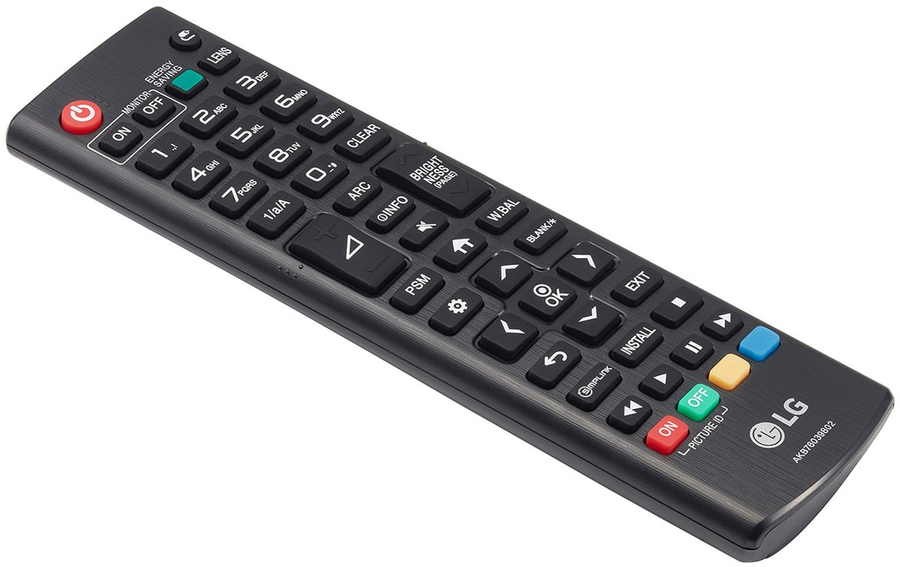

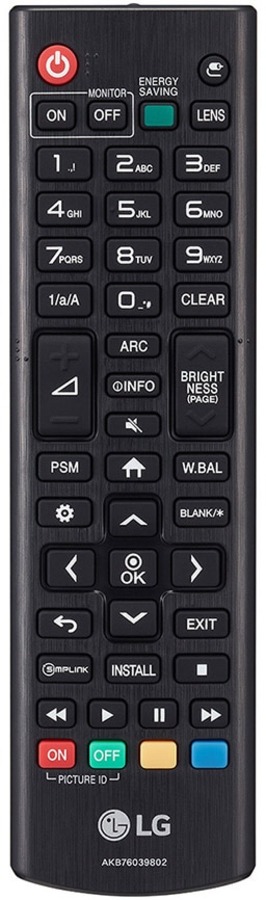

Remote control included |
Yes |
