General Information |
|
Summary |
Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences. |
|
Processor |
|
Graphics processor family |
AMD |
|
Graphics processor |
Radeon RX 9060 XT |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
No |
|
Parallel processing technology support |
Not supported |
|
Processor boost clock speed |
3320 MHz |
|
Processor boost clock speed (Gaming mode) |
2780 MHz |
|
Stream processors |
2048 |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
16 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
128 bit |
|
Memory clock speed |
20000 MHz |
|
Data transfer rate |
20 Gbit/s |
|

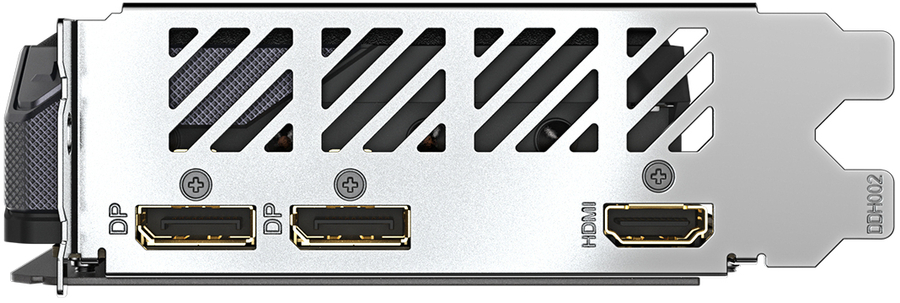

Ports & interfaces |
|
Interface type |
PCI Express x16 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
2 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1b |
|
Mini DisplayPorts quantity |
0 |
|
Performance |
|
TV tuner integrated |
No |
|
DirectX version |
12.0 |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
Overclocked (OC) edition |
Yes |
|
Warranty period |
3 year(s) |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
GIGABYTE WINDFORCE 3X |
|
Number of fans |
3 fan(s) |
|
Form factor |
Full-Height/Full-Length (FH/FL) |
|
Illumination |
Yes |
|
Illumination colour |
Multi |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
450 W |
|
Supplementary power connectors |
1x 8-pin |
|
Thermal Design Power (TDP) |
151 W |
|
Weight & dimensions |
|
Weight |
840 g |
|
Length |
281 mm |
|
Depth |
40 mm |
|
Height |
118 mm |
|
Packaging data |
|
Package width |
182.5 mm |
|
Package depth |
354 mm |
|
Package height |
75 mm |
|
Package weight |
1.29 kg |
|
Package type |
Box |
|
Logistics data |
|
Products per shipping (inner) case |
1 pc(s) |
