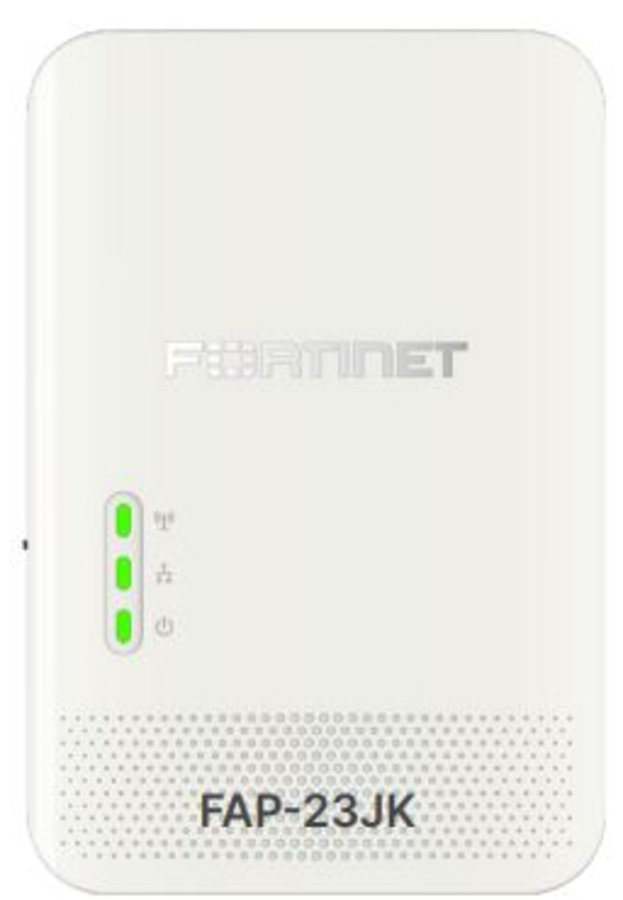

Fortinet FAP-23JK-A WiFi 7 Wall Plate AP
|
|
Price: $887.00
Manufacturer:
Fortinet
FAP-23JK-A - Wi-Fi 7, 2x2 Indoor Tri-radio 11be 6Ghz Desktop , LAN, PSE Capable APs, Region Code A
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
60052319
|
FAP-23JK-A
|
- |
Active
|
Details
|
General Information |
|
Summary |
These enterprise class Wi-Fi 7 indoor wall plate AP provide three radios and two spatial streams. These access points support the 6 GHz band and have one 10 Gigabit Ethernet and three 1 Gigabit Ethernet ports and one port supports the PSE OUT. The APs can provide 24/7 background scanning across all bands while still providing access on 2.4 GHz, 5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and location applications. |
|
Features |
|
2.4 GHz |
Yes |
|
5 GHz |
Yes |
|
6 GHz |
Yes |
|
Maximum data transfer rate |
9335 Mbit/s |
|
Maximum data transfer rate (2.4 GHz) |
688 Mbit/s |
|
Maximum data transfer rate (5 GHz) |
2882 Mbit/s |
|
Maximum data transfer rate (6 GHz) |
5765 Mbit/s |
|
Networking standards |
IEEE 802.11be, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11mc, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az, IEEE 802.1Q, IEEE 802.11u, IEEE 802.11w, IEEE 802.3bz |
|
Bluetooth |
Yes |
|
MIMO |
Yes |
|
MIMO type |
Multi User MIMO |
|
Cellular Coexistence Filter (CCF) |
Yes |
|
Trusted Platform Module (TPM) |
Yes |
|
Security |
|
Security algorithms |
EAP-TTLS, PEAP, EAP-SIM, EAP-AKA, EAP-FAST, WPA, WPA3, WPA2 |
|
Wireless Intrusion Detection System (WIDS) |
Yes |
|
Wireless Intrusion Prevention System (WIPS) |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
3 |
|
WAN connection |
Ethernet (RJ-45) |
|
RS-232 interface |
Yes |
|
Power |
|
Power over Ethernet (PoE) |
Yes |
|
DC voltage range |
27.24 - 54 V |
|
Power consumption (max) |
31 W |
|
Design |
|
Placement |
Wall, Table |
|
Product colour |
White |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
LED indicators |
Yes |
|
Antenna |
|
Antenna type |
Internal |
|
Antennas quantity |
5 |
|
Performance |
|
Built-in processor |
Yes |
|
Processor model |
ARM Cortex-A53 |
|
Processor frequency |
1500 MHz |
|
Internal memory |
2048 MB |
|
Certificates |
|
Certification |
RoHS, FCC |
|
Weight & dimensions |
|
Width |
120 mm |
|
Depth |
180 mm |
|
Height |
40 mm |
|
Weight |
520 g |
|
Packaging data |
|
Package weight |
840 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Mounting kit |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Operating temperature (T-T) |
0 - 45 °C |
|
Storage temperature (T-T) |
-30 - 70 °C |
|
