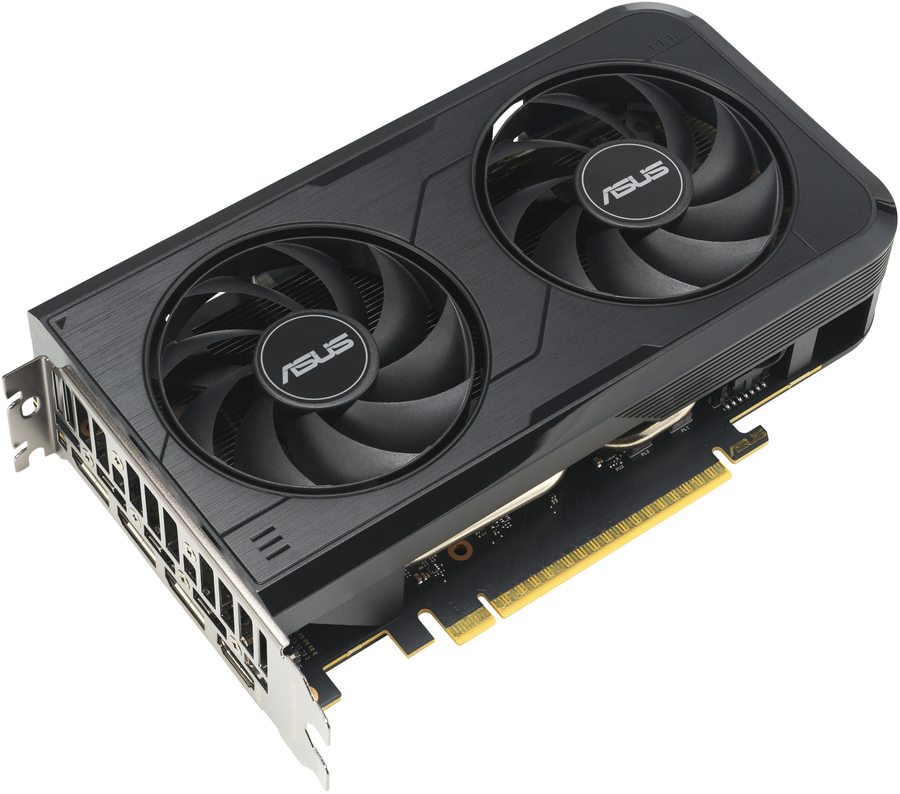

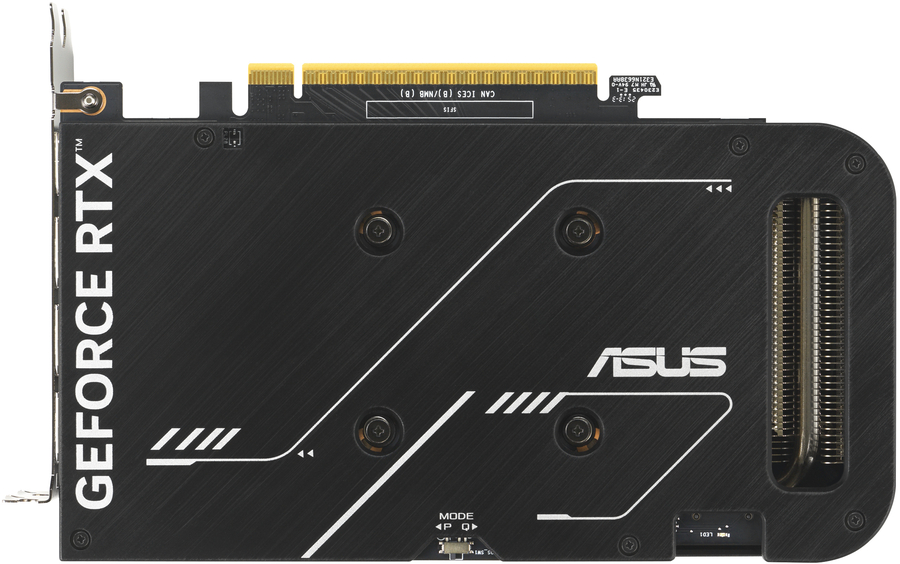

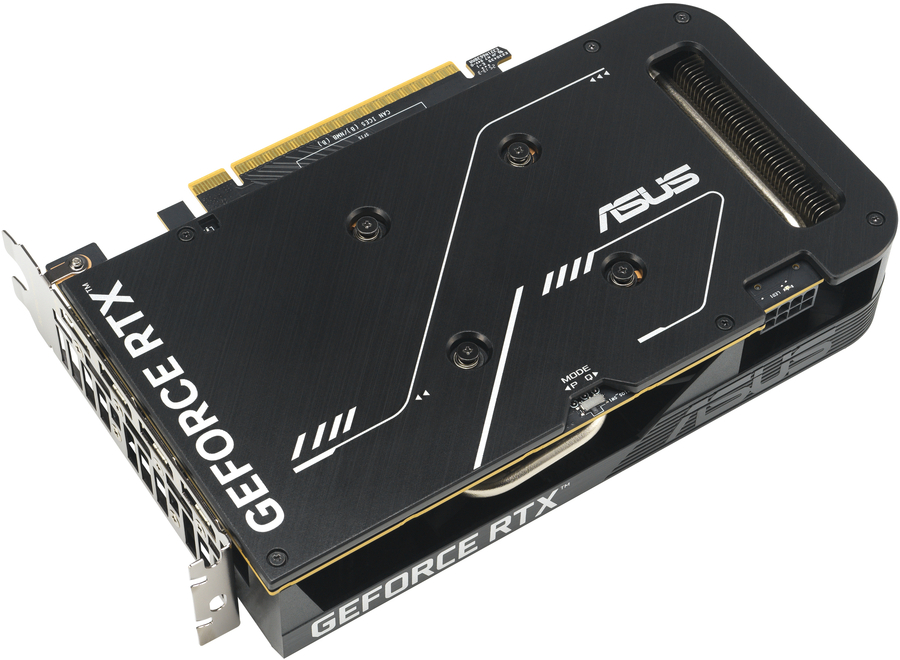

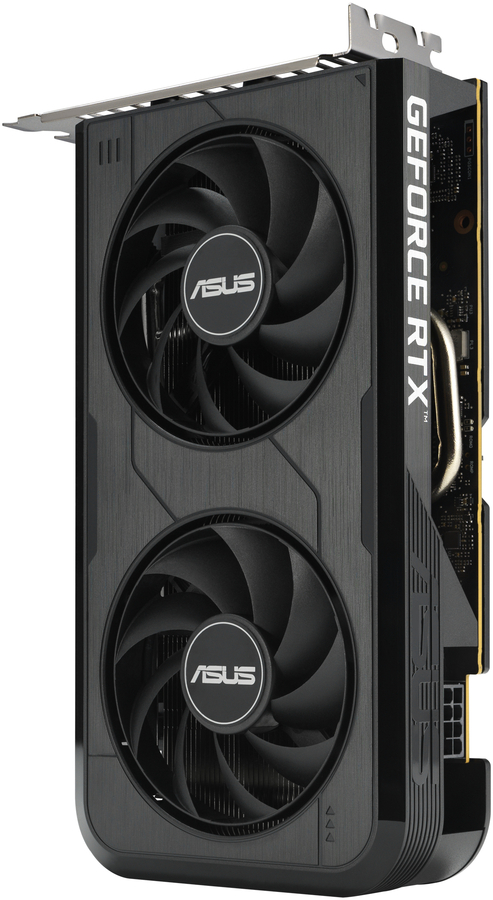

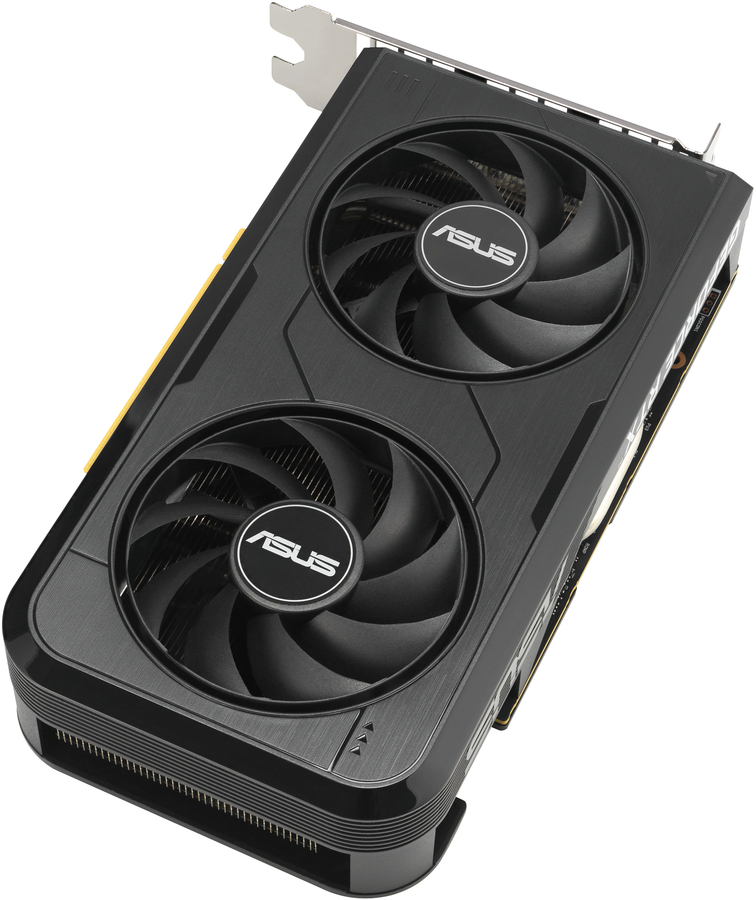

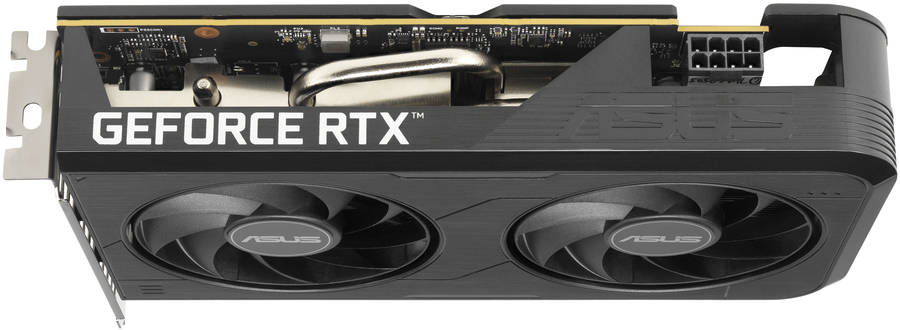

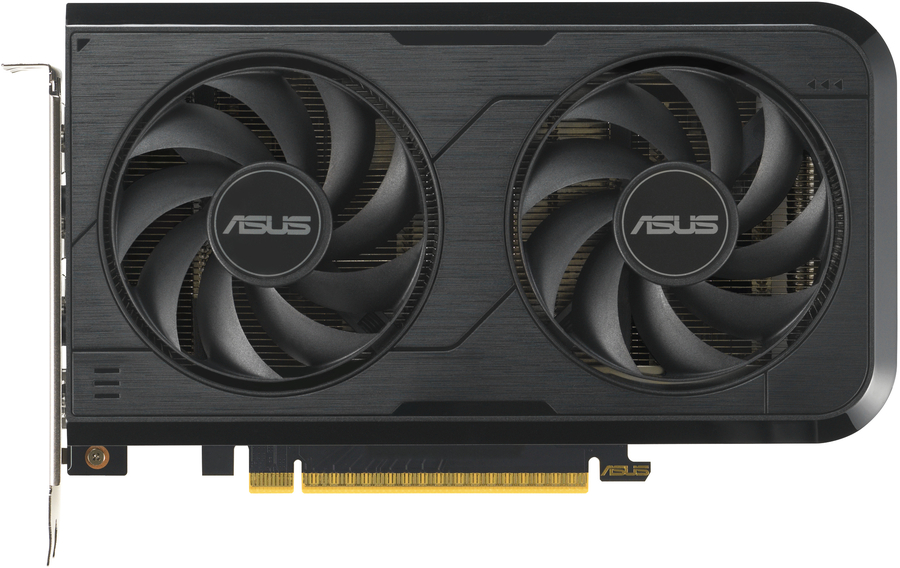

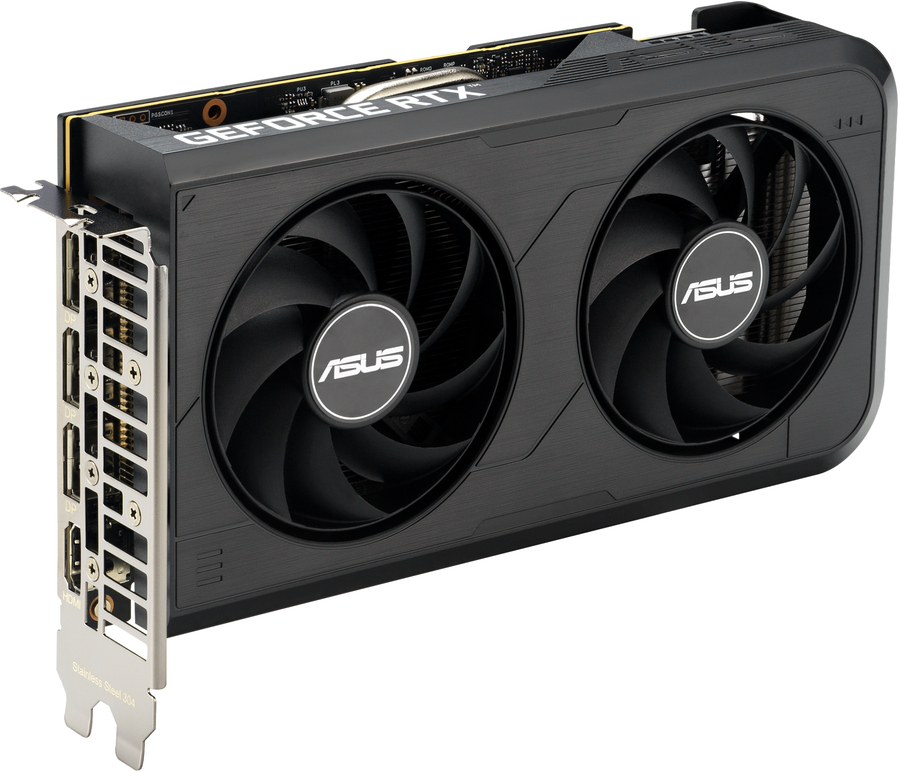

DUAL GEFORCE RTX™ 5050
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5050 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2-slot Design

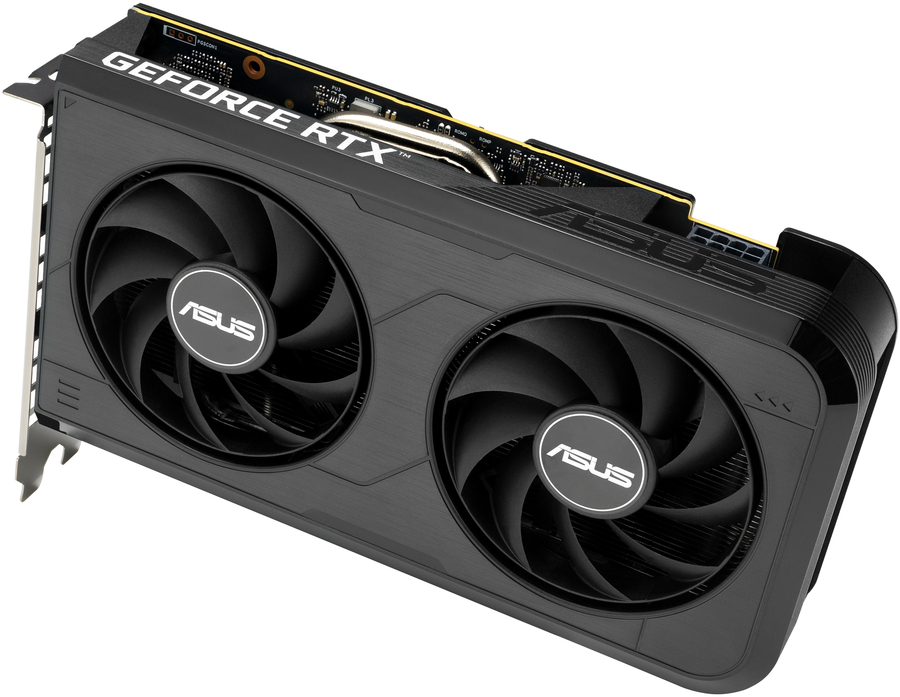

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

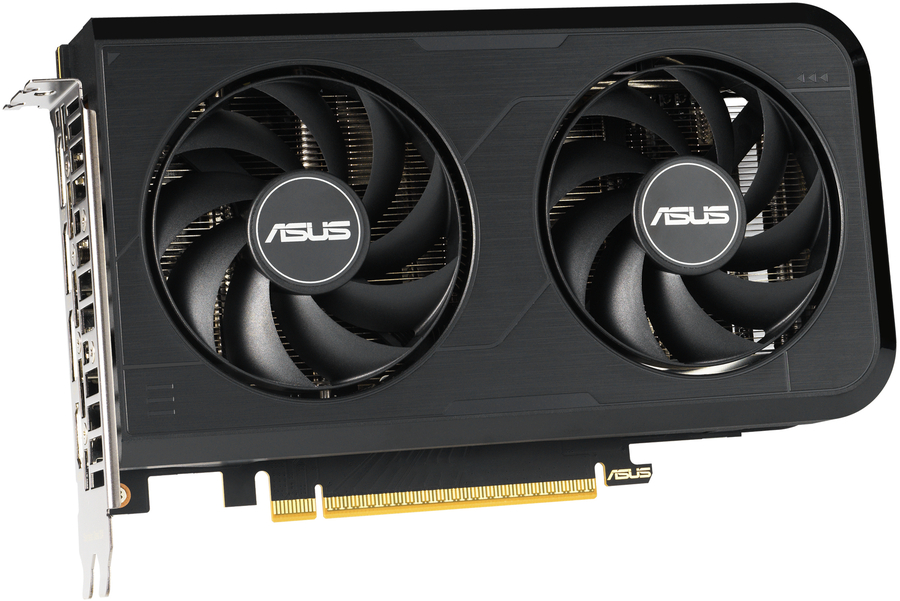

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5050 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
2560 |
|
Processor boost clock speed |
2572 MHz |
|
Processor frequency (OC mode) |
2602 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
8 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
128 bit |
|
Data transfer rate |
20 Gbit/s |
|

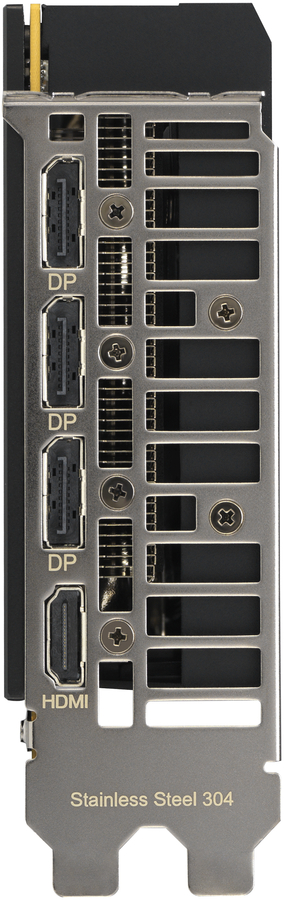

Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
HDMI version |
2.1b |
|
DisplayPort version |
2.1b |
|
Performance |
|
TV tuner integrated |
No |
|
OpenGL version |
4.6 |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NPU performance up to |
421 TOPs |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
2 fan(s) |
|
Number of slots |
2 |
|
SFF ready |
Yes |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
550 W |
|

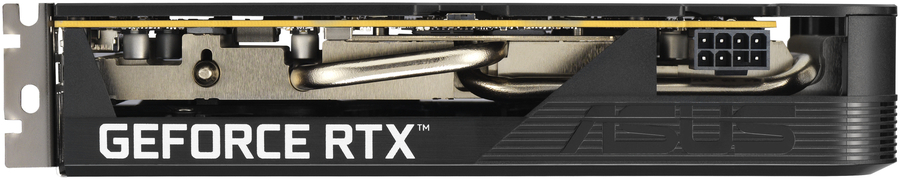

Supplementary power connectors |
1x 8-pin |
|
Weight & dimensions |
|
Weight |
510 g |
|
Length |
203 mm |
|
Depth |
40 mm |
|
Height |
120.2 mm |
|
Packaging data |
|
Package width |
303 mm |
|
Package depth |
220 mm |
|
Package height |
55 mm |
|
Package weight |
848 g |
|

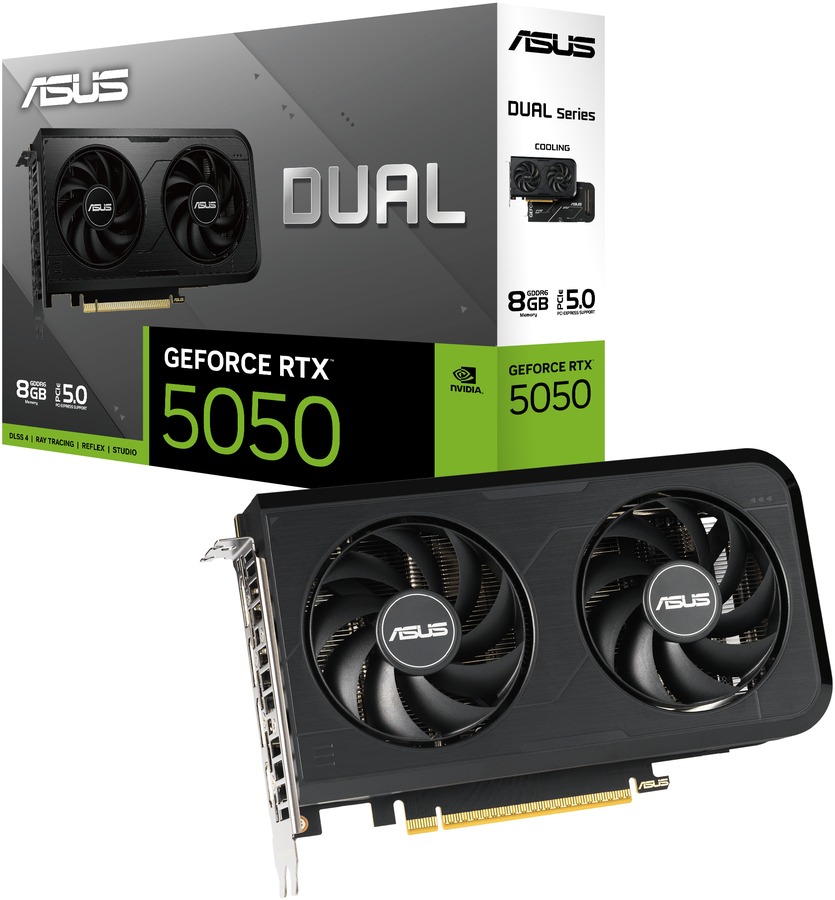

Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
