General Information |
|
Summary |
Primed for Power

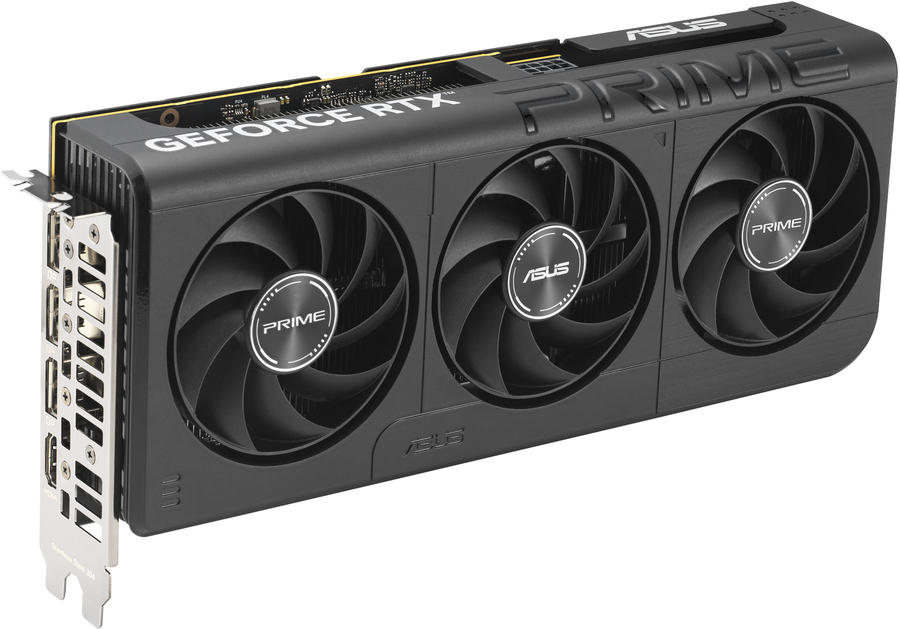

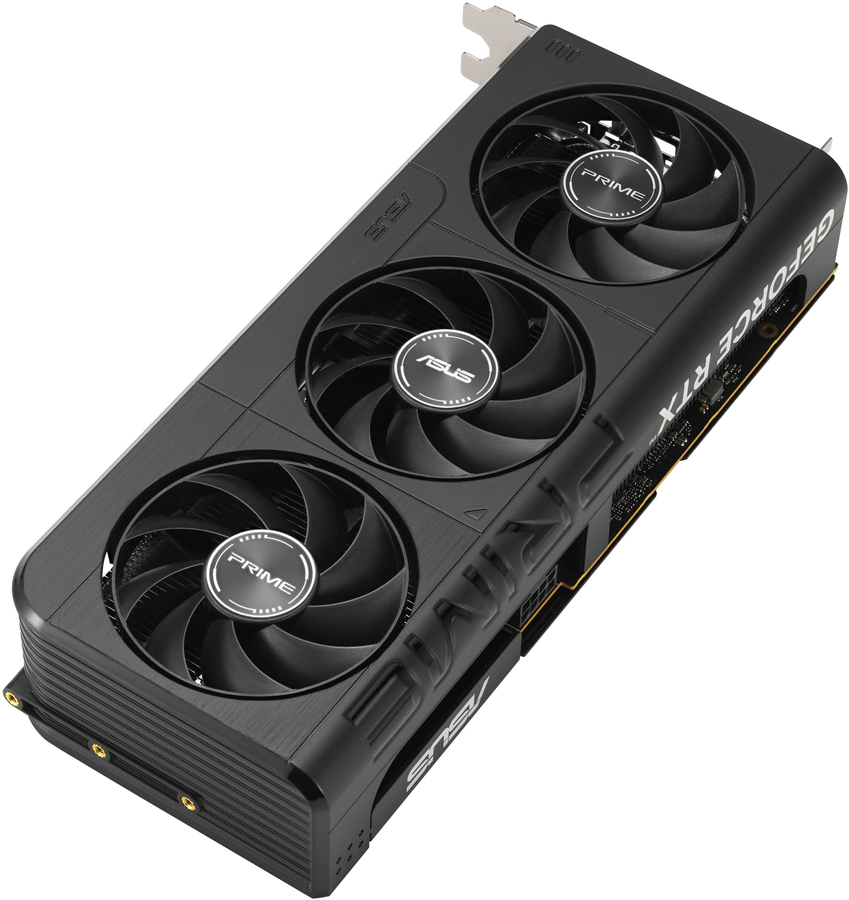

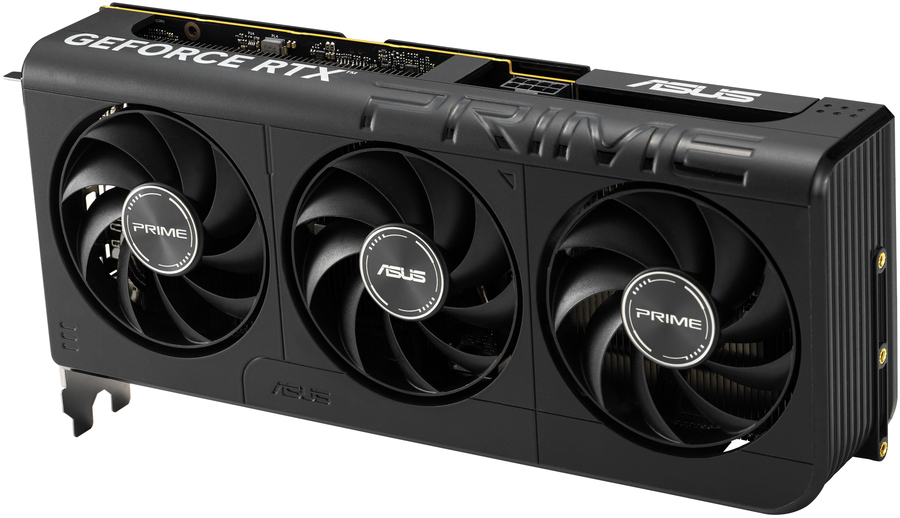

Experience Primal performance with the Prime GeForce RTX 5050, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design

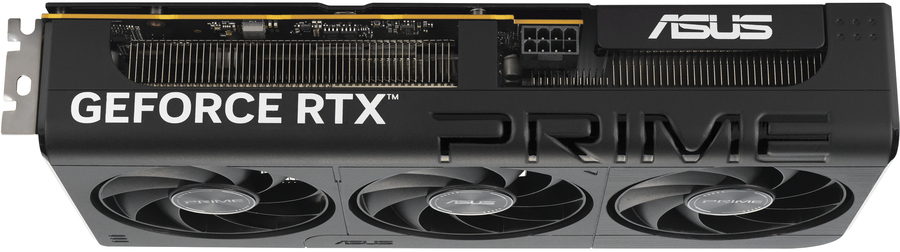

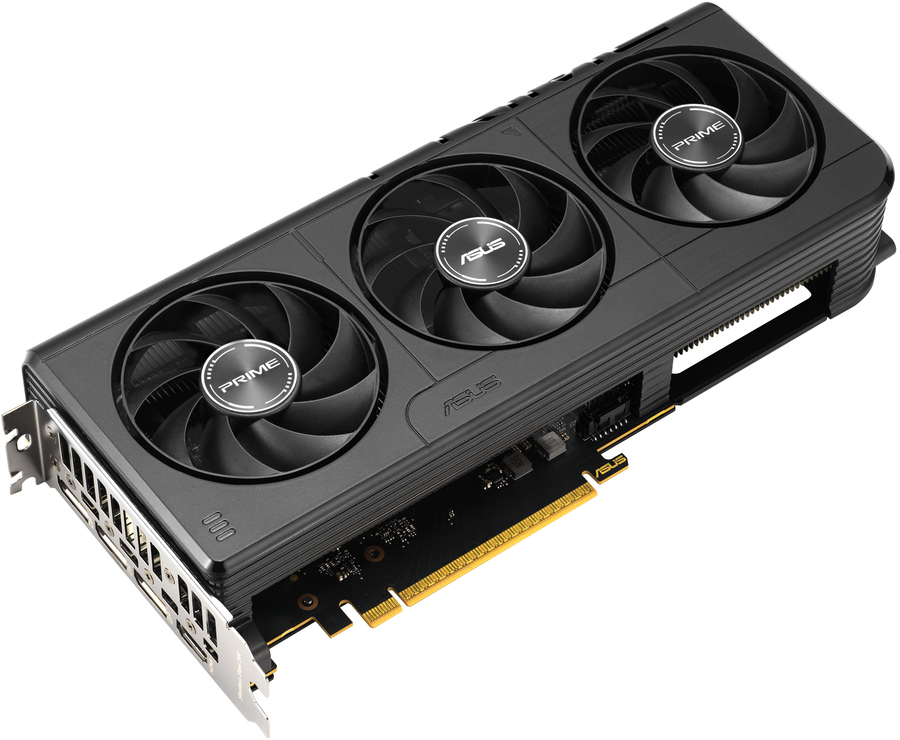

The Prime RTX 5050 features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades

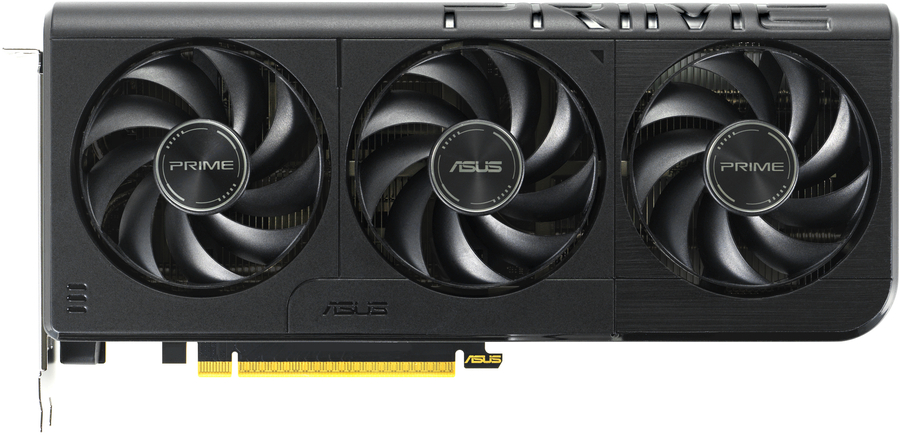

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

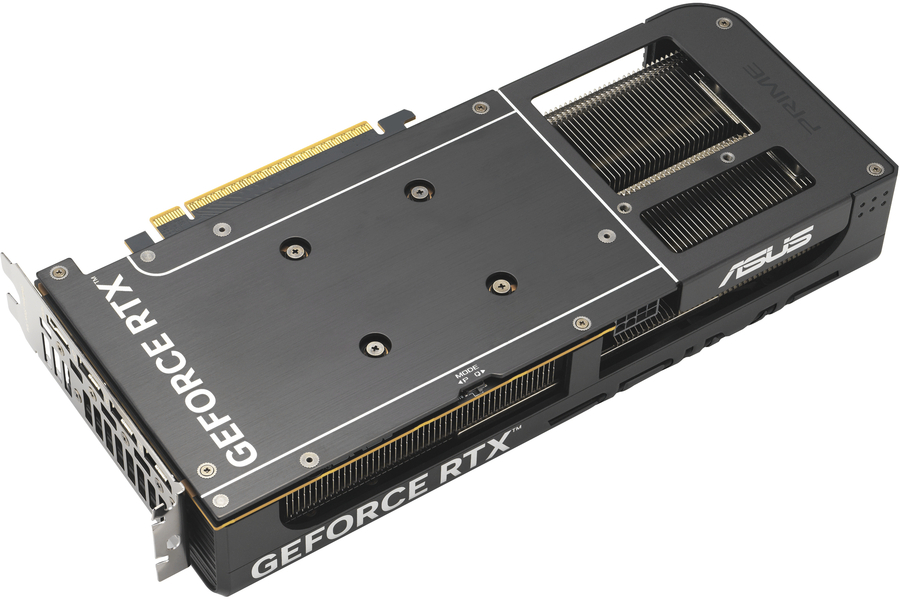

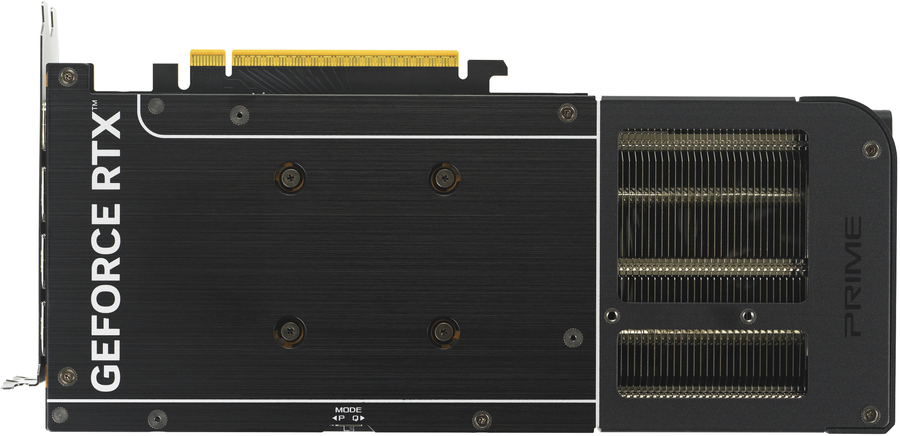

Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
|
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 5050 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
2560 |
|
Processor boost clock speed |
2677 MHz |
|
Processor frequency (OC mode) |
2707 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
8 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
128 bit |
|
Data transfer rate |
20 Gbit/s |
|

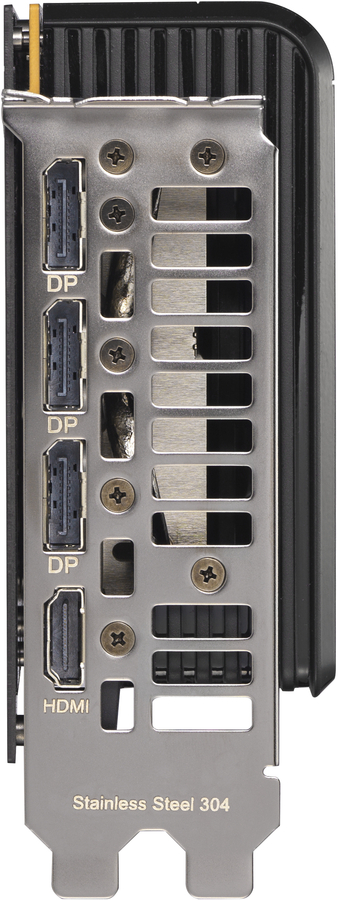

Ports & interfaces |
|
Interface type |
PCI Express 5.0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
HDMI version |
2.1b |
|
DisplayPort version |
2.1b |
|
Performance |
|
TV tuner integrated |
No |
|
OpenGL version |
4.6 |
|
Dual Link DVI |
No |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NPU performance up to |
439 TOPs |
|
Overclocked (OC) edition |
Yes |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
3 fan(s) |
|
Number of slots |
2.5 |
|
SFF ready |
Yes |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
550 W |
|
Supplementary power connectors |
1x 8-pin |
|
Weight & dimensions |
|
Weight |
766 g |
|
Length |
268.3 mm |
|
Depth |
50 mm |
|
Height |
120 mm |
|
Packaging data |
|
Package width |
405 mm |
|
Package depth |
233 mm |
|
Package height |
88.5 mm |
|
Package weight |
1.41 kg |
|
Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
