General Information |
|
Summary |
2.5GbE connectivity and diverse storage options

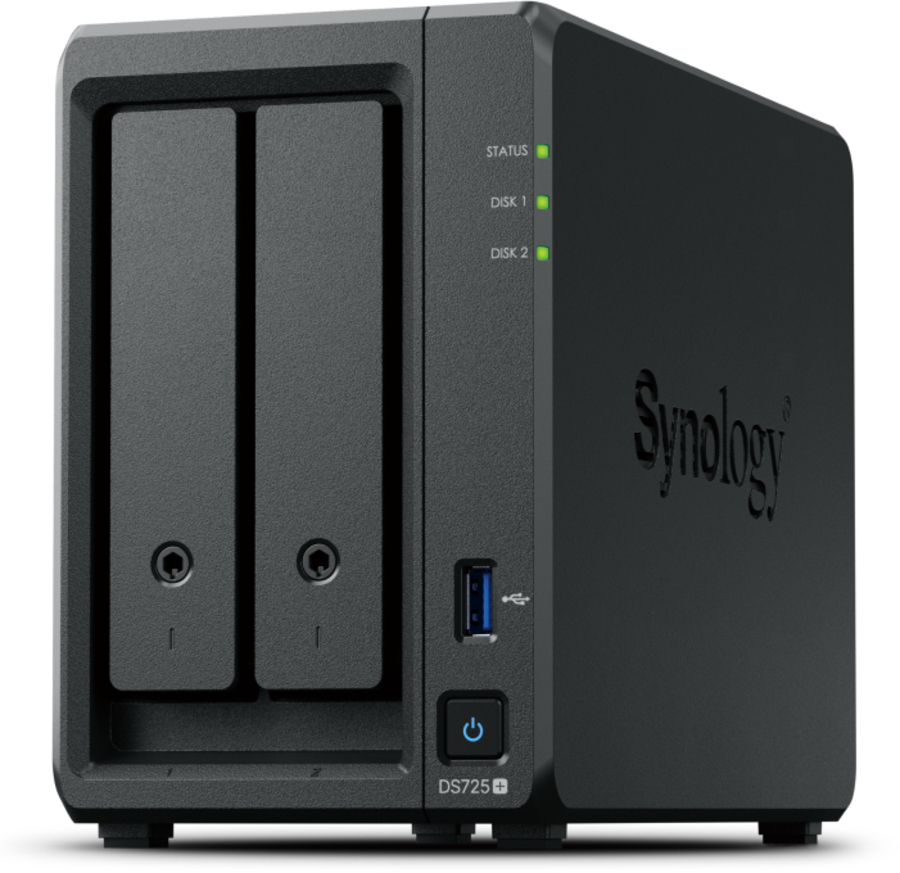

The DS725+ features built-in 2.5GbE networking and supports both SATA SSDs and HDDs in 2.5"/3.5" internal bays, as well as M.2 NVMe drives via M.2 slots for use as cache. |
|
Storage |
|
Storage drives installed |
No |
|
Total installed storage capacity |
0 TB |
|
Number of storage drives installed |
0 |
|
Number of storage drives supported |
7 |
|
Installed storage drive type |
No |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive capacity |
0 GB |
|
RAID support |
Yes |
|
Supported storage drive interfaces |
M.2, Serial ATA |
|
Storage drive sizes supported |
3.5,M.2,2.5 |
|
Maximum supported storage capacity |
140 TB |
|
Number of M.2 (M & B) slots |
2 |
|
RAID levels |
0, 1, 5, 6, 10, JBOD |
|
Hot-swap drive bays |
Yes |
|
Supported file systems |
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
|
Processor |
|
Processor family |
Ryzen Embedded |
|
Processor manufacturer |
AMD |
|
Processor model |
R1600 |
|
Processor frequency |
2.6 GHz |
|
Processor generation |
AMD Ryzen Embedded R1000 Series |
|
Processor boost frequency |
3.1 GHz |
|
Processor cores |
2 |
|
Processor threads |
4 |
|
Memory |
|
Internal memory |
4 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
32 GB |
|
Memory slots |
2 |
|
Memory form factor |
SO-DIMM |
|
ECC |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
2500 Mbit/s |
|
Wake-on-LAN ready |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
Design |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
1 fan(s) |
|
Fan diameter |
9.2 cm |
|
Drive bay locking |
Yes |
|
LED indicators |
Yes |
|
Performance |
|
Type |
NAS |
|
Device class |
Home & Home Office |
|
Backup function |
Yes |
|
Backup features |
Cloud, iSCSI LUN |
|
Multilingual support |
Yes |
|
Number of users |
512 user(s) |
|
Noise level |
17.9 dB |
|
Snapshot |
Yes |
|
Web-based management |
Yes |
|
Access Control List (ACL) |
Yes |
|
On/off switch |
Yes |
|
System log |
Yes |
|
Power |
|
Power supply location |
External |
|
Power supply unit (PSU) capacity |
65 W |
|
Power consumption (typical) |
20.41 W |
|
Power consumption (HDD standby) |
7.87 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50 - 60 Hz |
|
Weight & dimensions |
|
Width |
106 mm |
|
Depth |
223 mm |
|
Height |
166 mm |
|
Weight |
1.51 kg |
|
Packaging content |
|
External power adapter |
Yes |
|
Cables included |
AC, LAN (RJ-45) |
|
Power cables quantity |
1 |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Storage relative humidity (H-H) |
5 - 95% |
|
Other features |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
RoHS |
