General Information |
|
Summary |

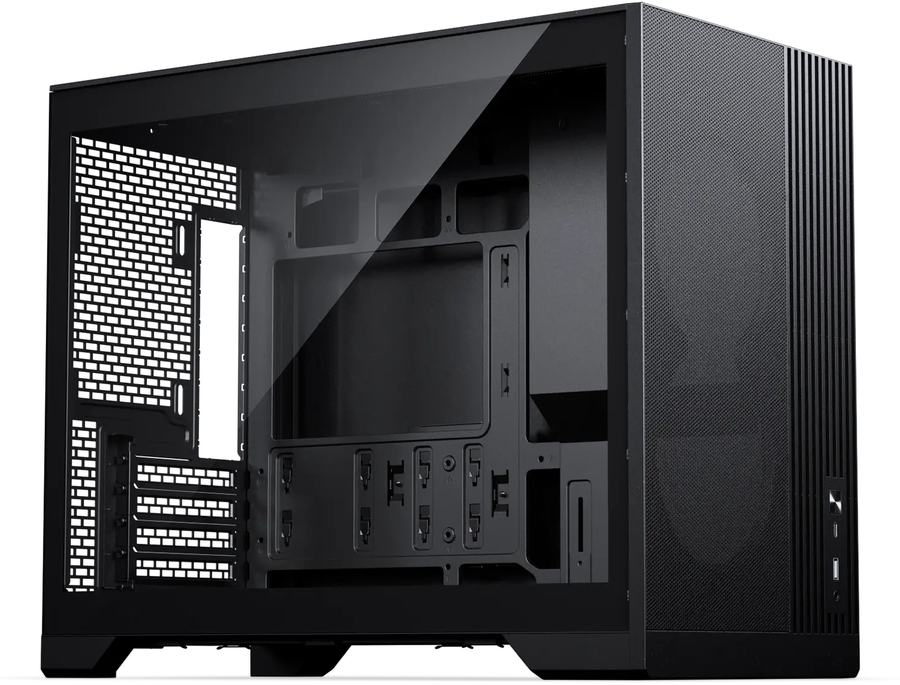

Compact Micro ATX Gaming Chassis

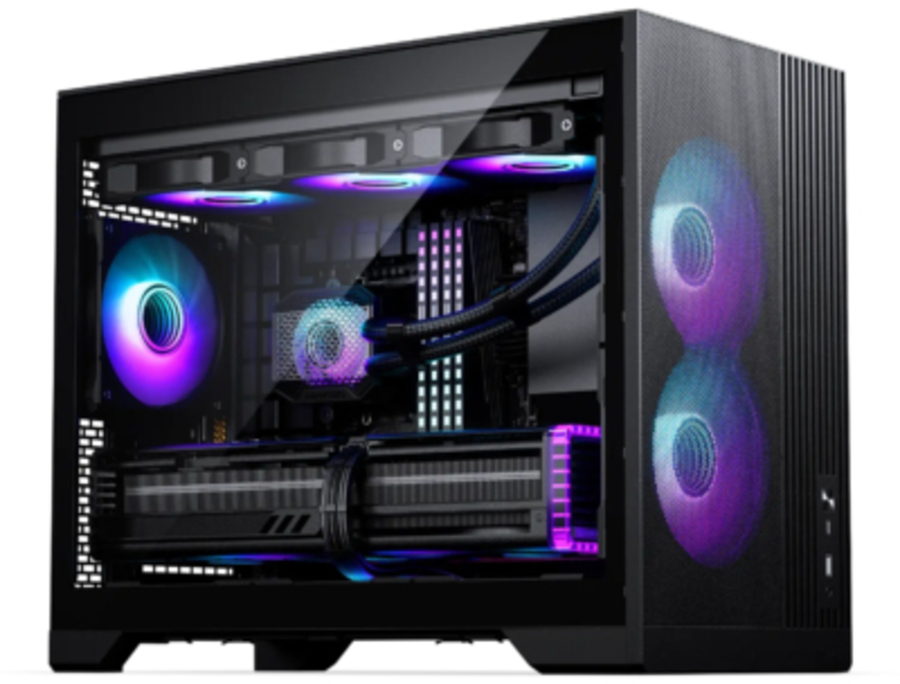

The XT M3 is a powerful yet compact microATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top, provide plenty of cooling options within its sleek and clean appearance.
With its innovative layout and strikingly clean design, the XT M3 is a microATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis
Supports a total of nine 120 fans for powerful cooling within this compact chassis.
Dedicated 360 radiator space in the top of the chassis.
Triple fan locations in the bottom for direct GPU cooling.
Organized by Design
Spacious cable routing area for clean and efficient management.
Fully compatible with Rear-Connect mainboards for streamlined builds. |
|
Design |
|
Form factor |
Micro Tower |
|
Type |
PC |
|
Product colour |
Black |
|
Supported motherboard form factors |
micro ATX, Mini-ITX |
|
Number of 3.5" bays |
1 |
|
Number of 2.5" bays |
2 |
|
Number of expansion slots |
4 |
|
Side window |
Yes |
|
Suitable for |
Gaming |
|
Illumination |
Yes |
|
Illumination colour |
Multi |
|
Illumination location |
Back, Front |
|
Tempered glass panel(s) |
Yes |
|
Cable management |
Yes |
|
Maximum CPU cooler height |
17.5 cm |
|
Maximum graphics card length |
43 cm |
|
Maximum PSU length |
15 cm |
|
Power supply |
|
Power supply location |
Rear |
|
Number of power supply units |
1 |
|
Ports & interfaces |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
Combo headphone/mic port |
Yes |
|
Cooling |
|
Front fans installed |
2x 140 mm |
|
Number of front fans supported (max) |
2 |
|
Front fans diameters supported |
140 mm |
|
Rear fans installed |
1x 120 mm |
|
Number of rear fans supported (max) |
1 |
|
Rear fans diameters supported |
120 mm |
|
Number of top fans supported (max) |
3 |
|
Top fans diameters supported |
140 mm |
|
Number of bottom fans supported (max) |
3 |
|
Bottom fans diameters supported |
120 mm |
|
Liquid cooling capability |
Yes |
|
Suitable location |
Computer case |
|
Top radiator sizes supported |
360 mm |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
SSD form factor |
2.5" |
|
Weight & dimensions |
|
Width |
460 mm |
|
Depth |
235 mm |
|
Height |
370 mm |
|
Weight |
5.57 kg |
