General Information |
|
Summary |
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences. |
|
Power |
|
Total power |
750 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
12 - 6.5 A |
|
Power factor |
0.9 |
|
Power Factor Correction (PFC) type |
Active |
|

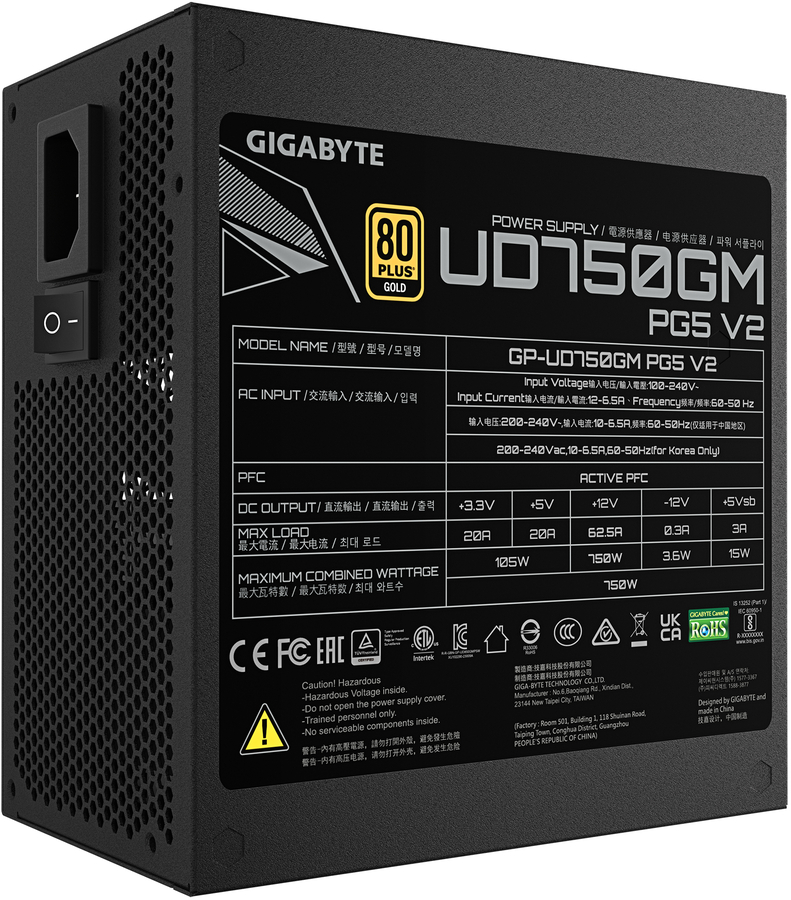

Combined power (+3.3V) |
105 W |
|
Combined power (+12V) |
750 W |
|
Combined power (+5V) |
105 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
62.5 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Hold time |
16 ms |
|
Efficiency |
90% |
|
Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
|

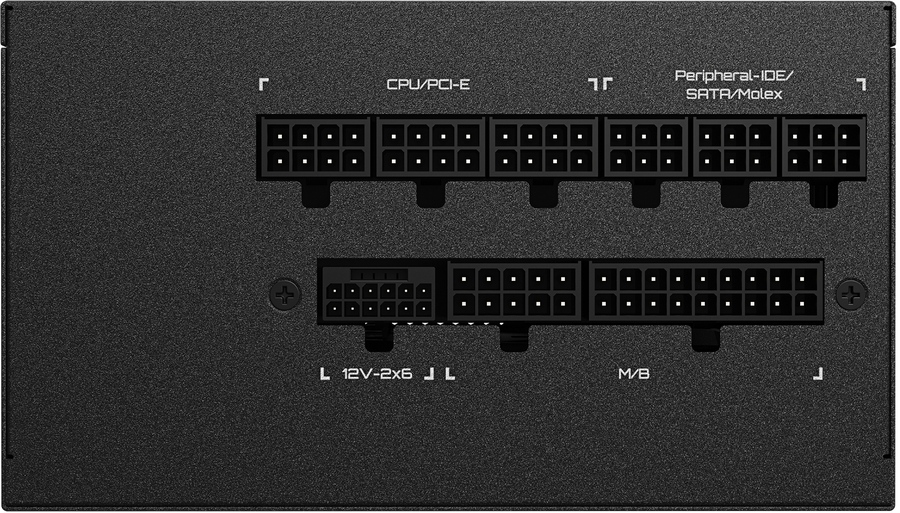

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
3 |
|
Motherboard power cable length |
61 cm |
|
Number of SATA power connectors |
8 |
|
SATA power cable length |
150,600 mm |
|
Peripheral (Molex) power cable length |
150,500 mm |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power connectors (12+4 pin) |
1 |
|
PCI Express power connectors (12+4 pin) cable length |
700 mm |
|
PCI Express power cable length |
60 cm |
|
CPU power connector (4+4 pin) |
Yes |
|
CPU power cable length |
65 cm |
|
Floppy drive power connector |
1 |
|
PCI Express connector |
Yes |
|
Number of EPS connectors |
2 |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
ATX version |
3.1 |
|
Bearing technology |
HYB |
|
Mean time between failures (MTBF) |
100000 h |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|

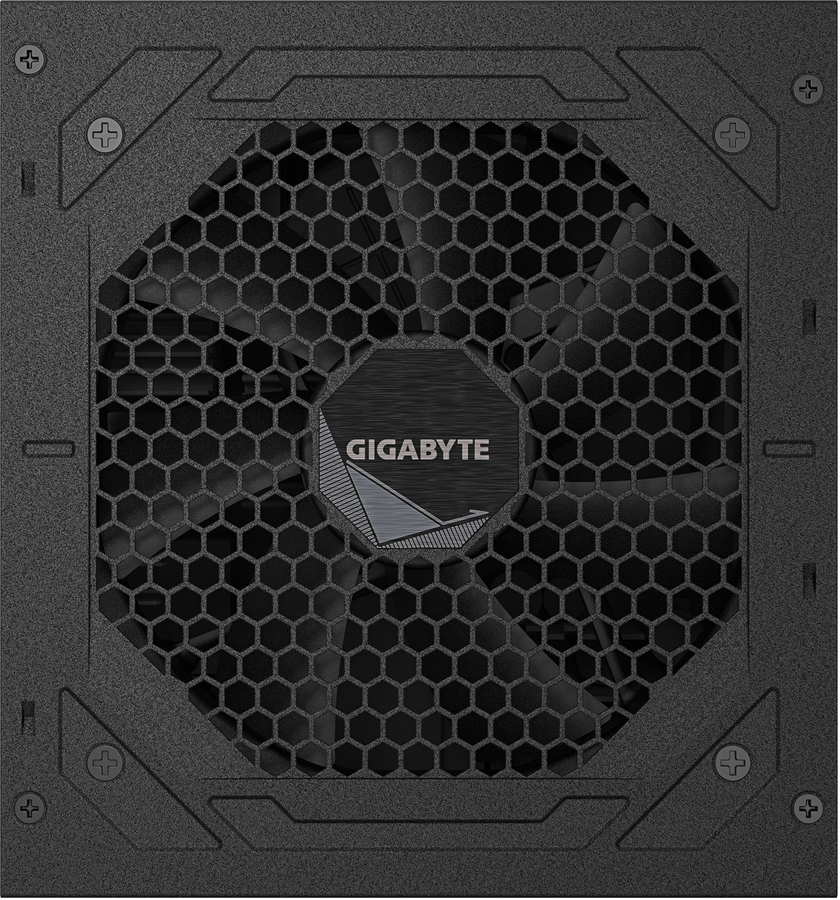

Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|
On/off switch |
Yes |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
140 mm |
|
Height |
86 mm |
|
Weight |
2.34 kg |
|
Packaging data |
|
Package width |
618 mm |
|
Package depth |
269 mm |
|
Package height |
211 mm |
|
Package weight |
2.5 kg |
|

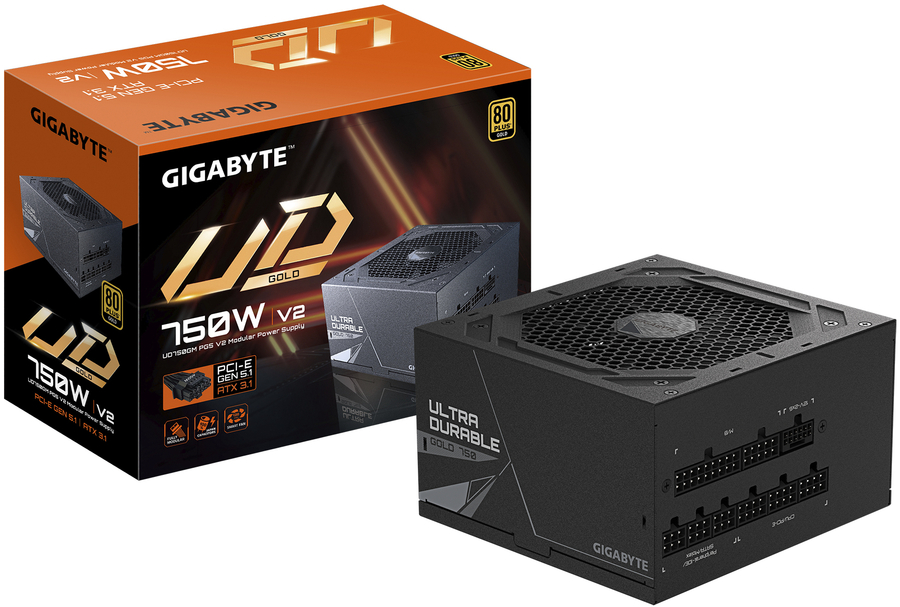

Package type |
Box |
|
Logistics data |
|
Warranty period |
5 year(s) |
