General Information |
|
Summary |
ASUS Prime AP202 ARGB

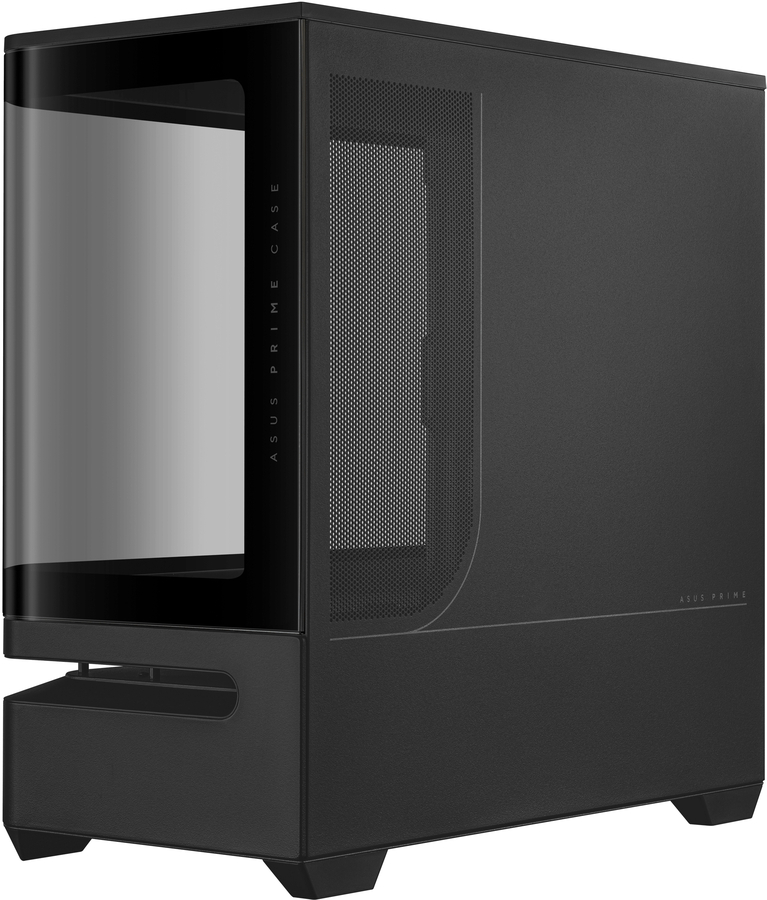

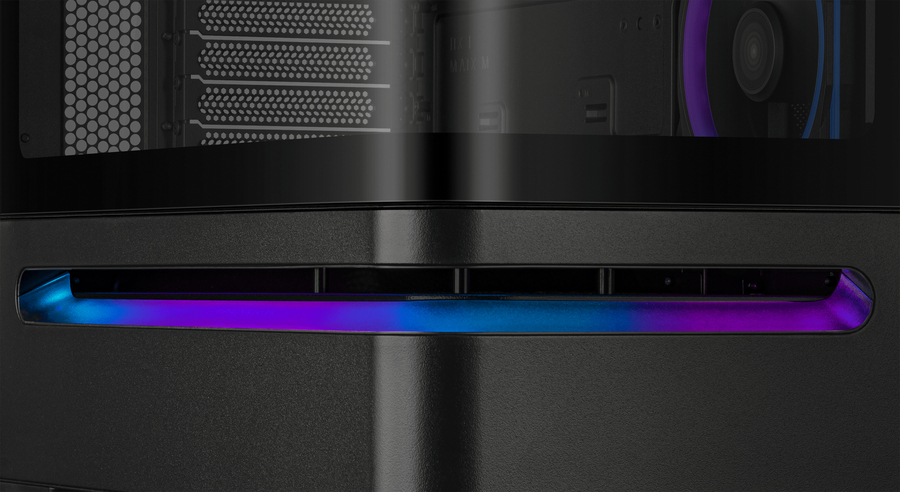

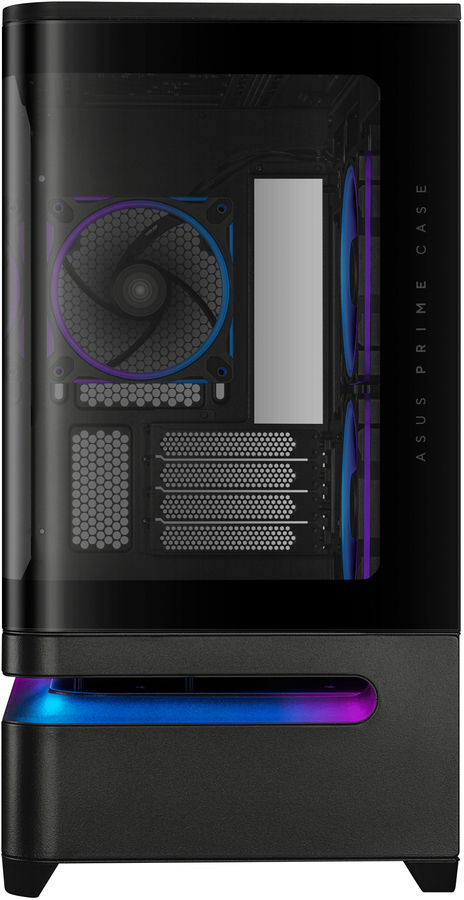

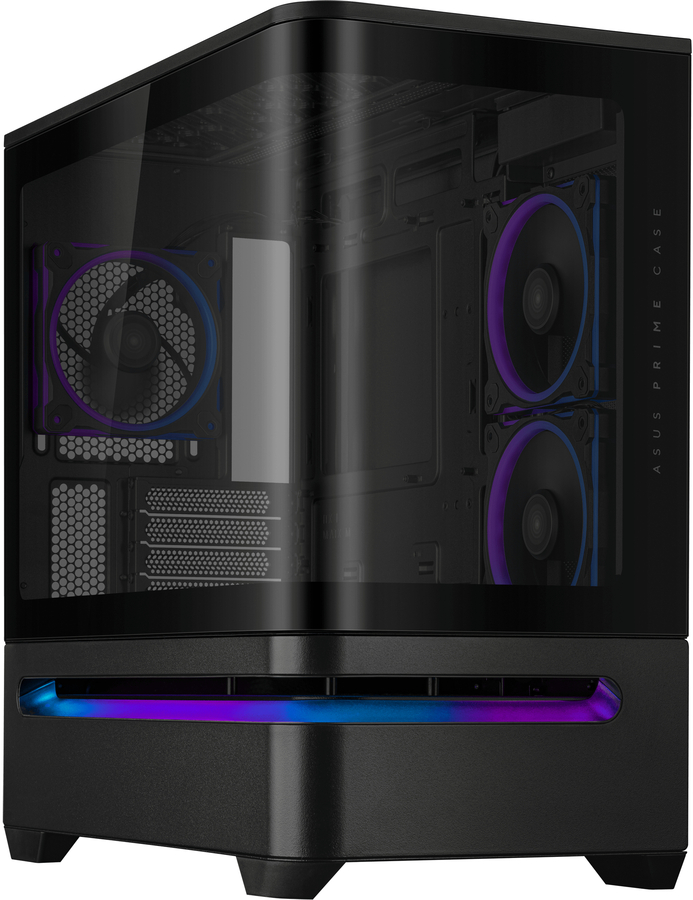

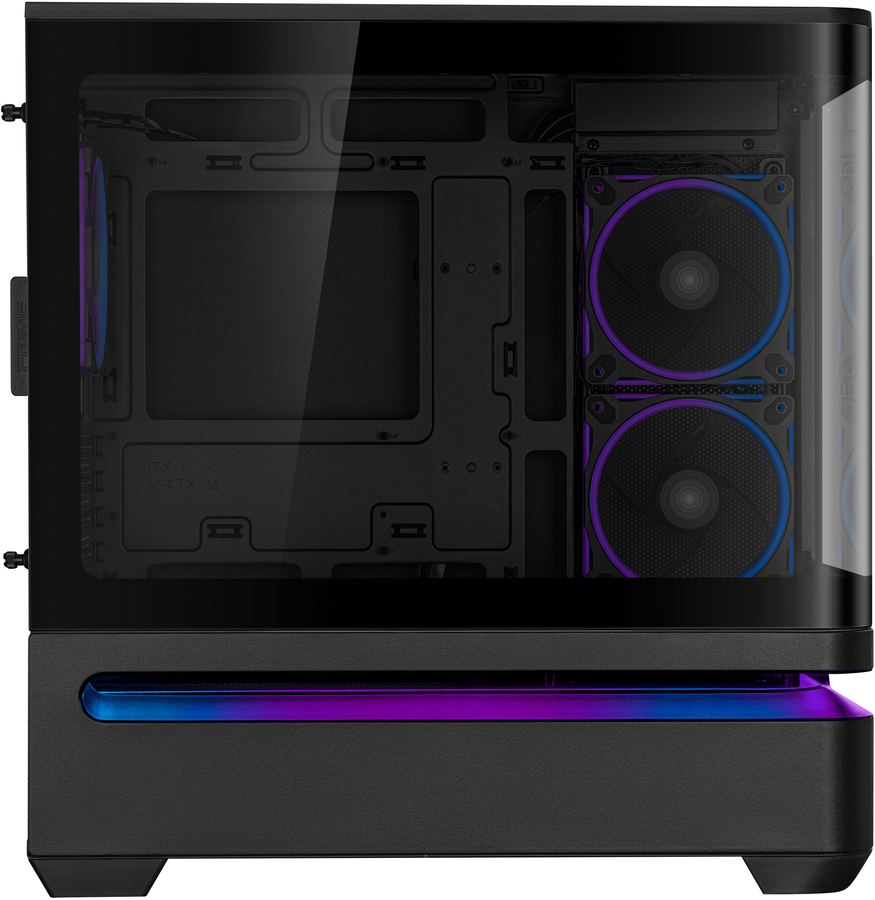

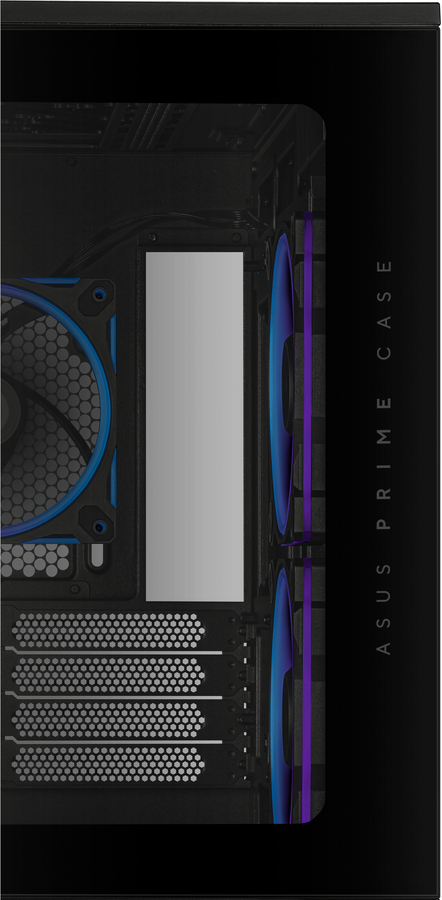

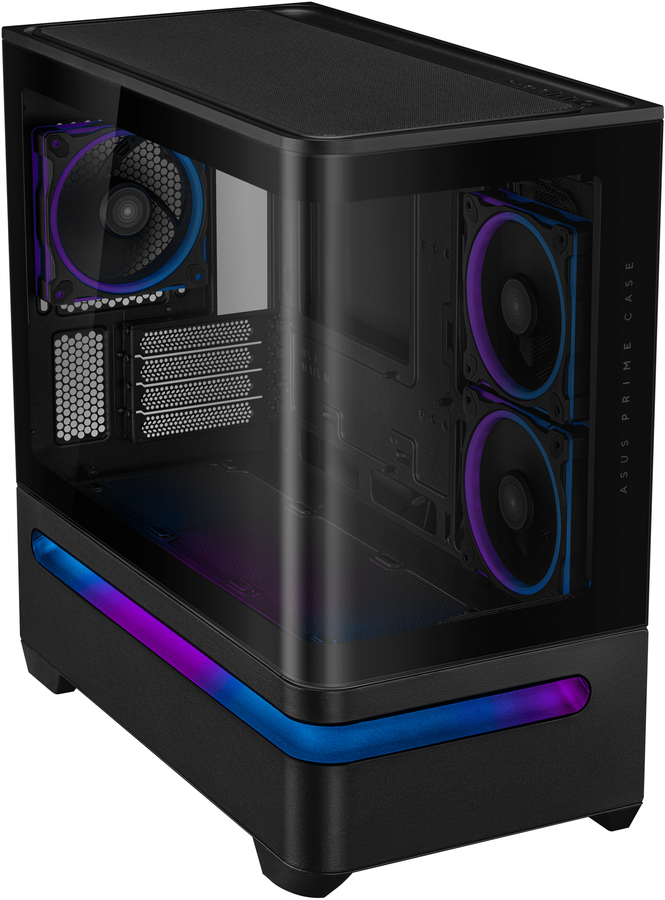

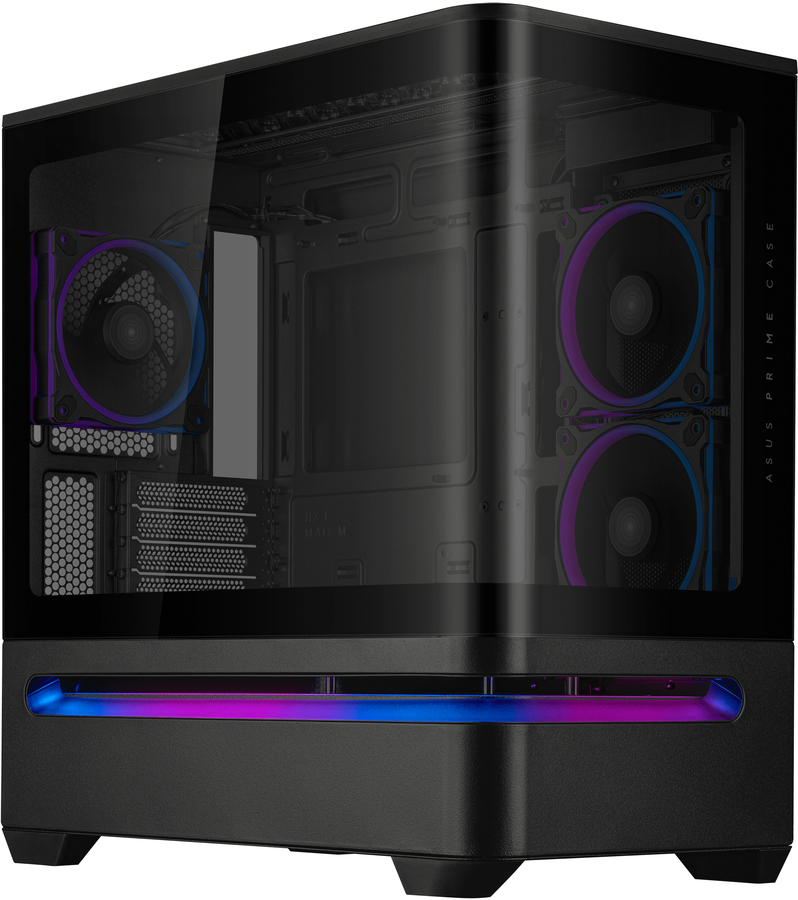

The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. A curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent provides optimal cooling for the graphics card, and an integrated ARGB light band works seamlessly with Aura Sync. |
|
Design |
|
Form factor |
Midi Tower |
|
Type |
PC |
|
Product colour |
Black |
|

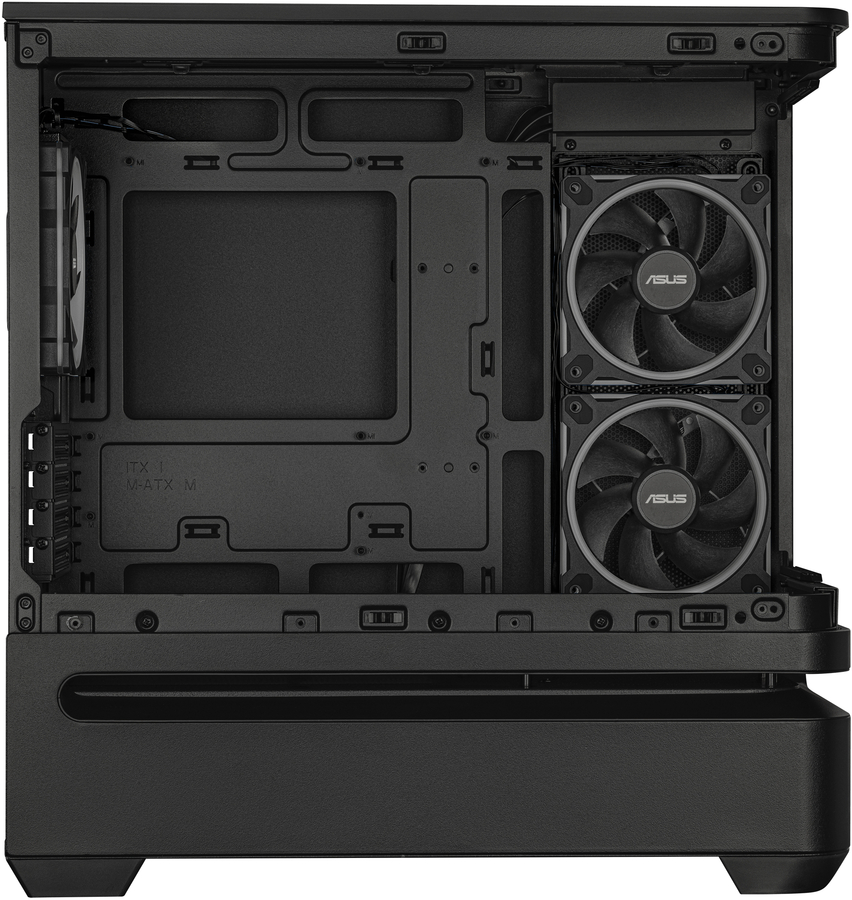

Supported motherboard form factors |
micro ATX, Mini-ITX |
|
Number of 3.5" bays |
2 |
|
Number of 5.25" bays |
0 |
|
Number of 2.5" bays |
2 |
|
Number of internal 3.5" bays |
2 |
|
Number of internal 5.25" bays |
0 |
|
Number of external 5.25" bays |
0 |
|
Number of expansion slots |
4 |
|
Side window |
Yes |
|
Illumination |
Yes |
|
Illumination colour |
Multi |
|
Tempered glass panel(s) |
Yes |
|
Anti-dust filter |
Yes |
|

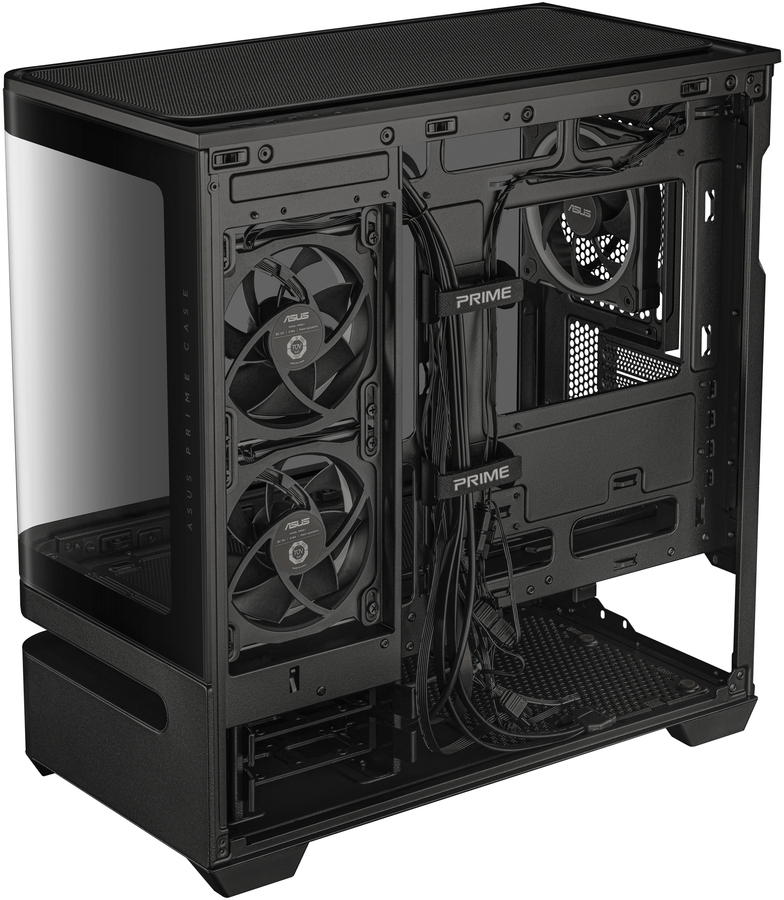

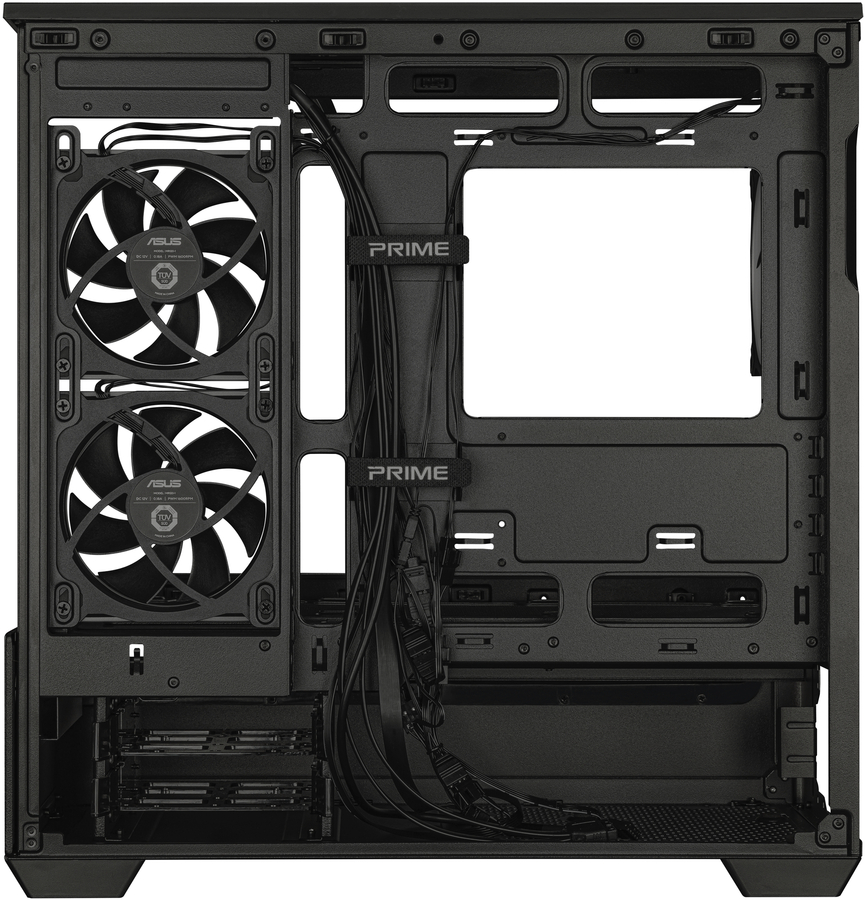

Cable management |
Yes |
|
Maximum CPU cooler height |
17.5 cm |
|
Maximum graphics card length |
42 cm |
|
Maximum PSU length |
20 cm |
|
Power supply |
|
Power supply included |
No |
|
Power supply location |
Bottom |
|

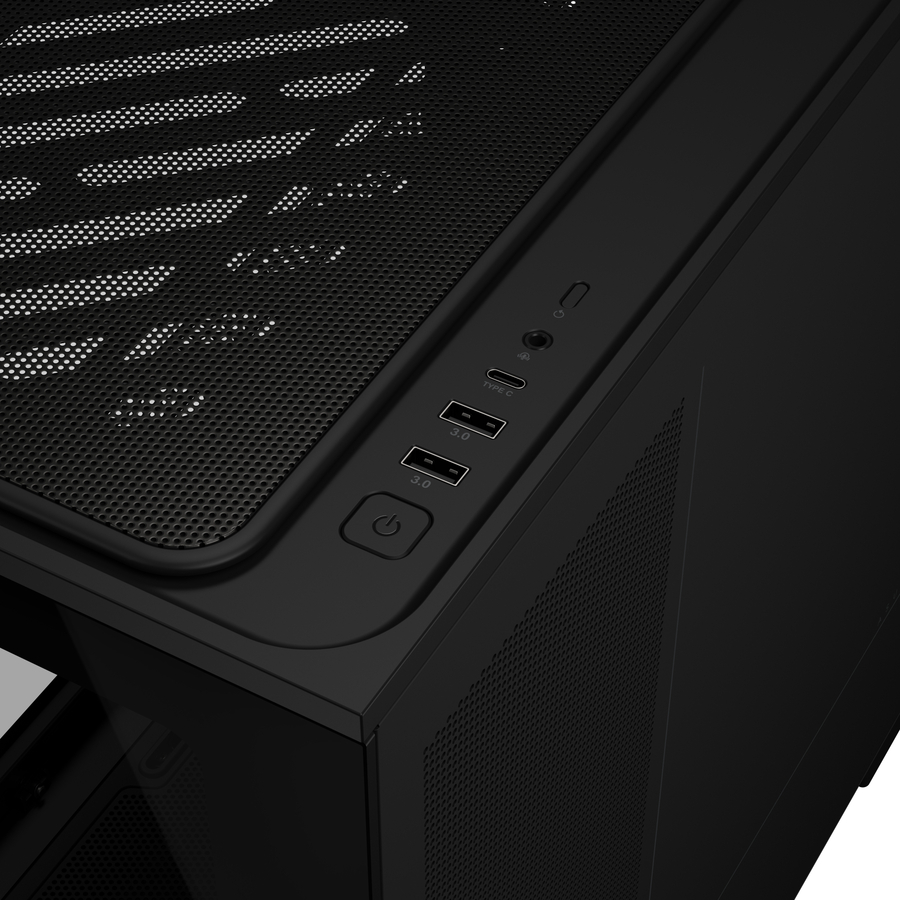

Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
Combo headphone/mic port |
Yes |
|
Cooling |
|

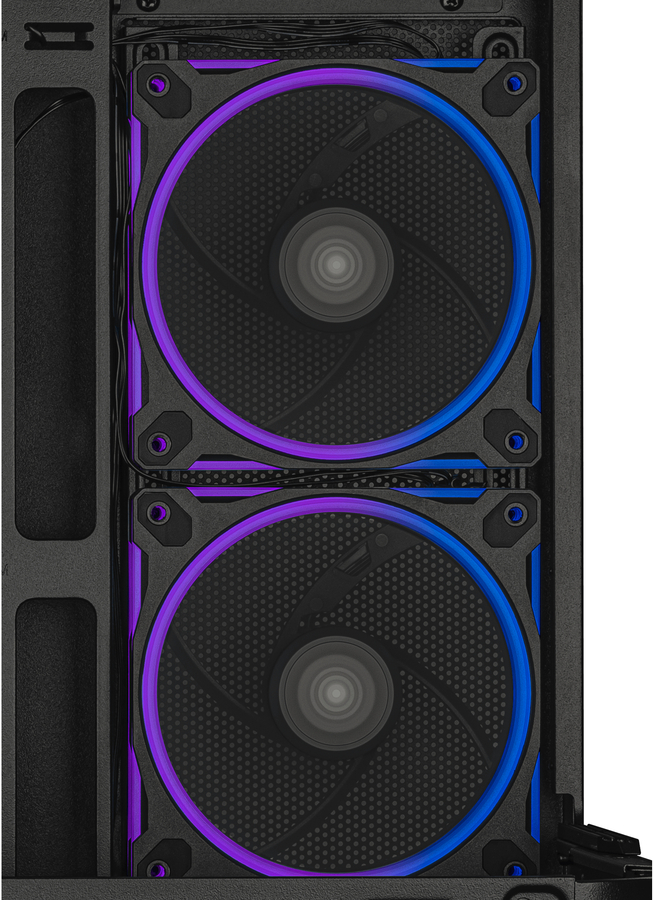

Side fans installed |
2x 120 mm |
|

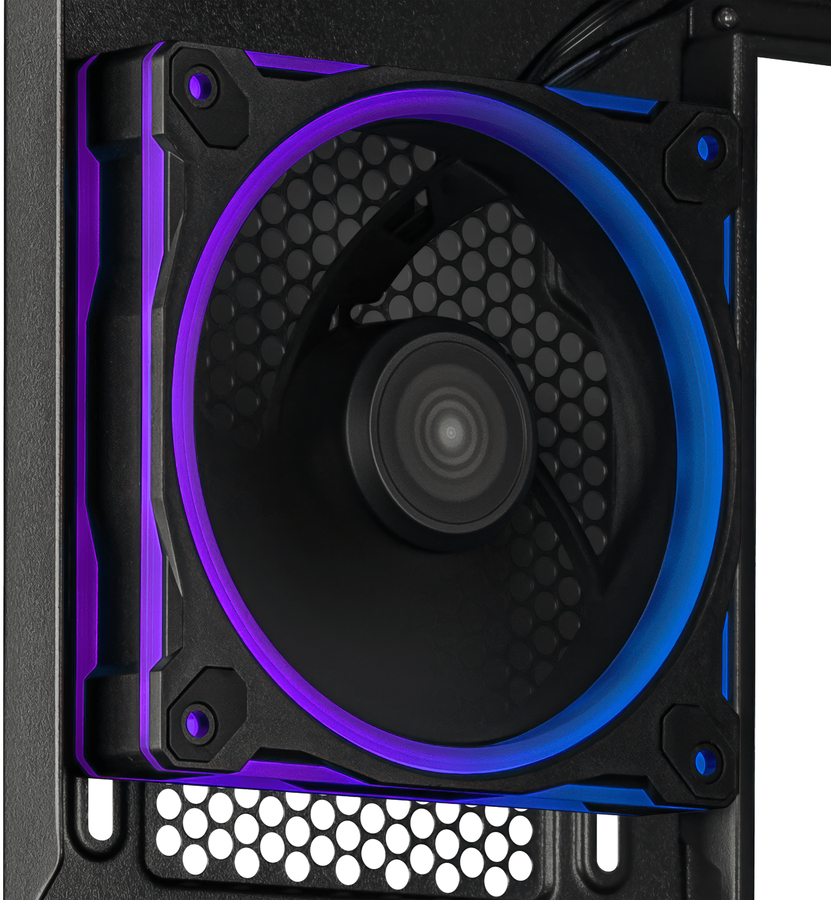

Rear fans installed |
1x 120 mm |
|
Number of rear fans supported (max) |
1 |
|
Rear fans diameters supported |
120 mm |
|
Number of top fans supported (max) |
3 |
|
Top fans diameters supported |
120,140 mm |
|
Front radiator installed |
No |
|
Rear radiator installed |
No |
|
Top radiator installed |
No |
|
Top radiator sizes supported |
360 mm |
|
Storage |
|
Supported HDD sizes |
2.5,3.5" |
|
Weight & dimensions |
|
Width |
236 mm |
|
Depth |
460 mm |
|
Height |
441 mm |
|
Weight |
9.1 kg |
|
Packaging data |
|
Package width |
500 mm |
|
Package depth |
308 mm |
|
Package height |
526 mm |
|
Package weight |
11.3 kg |
