General Information |
|
Summary |
Serious gaming specs

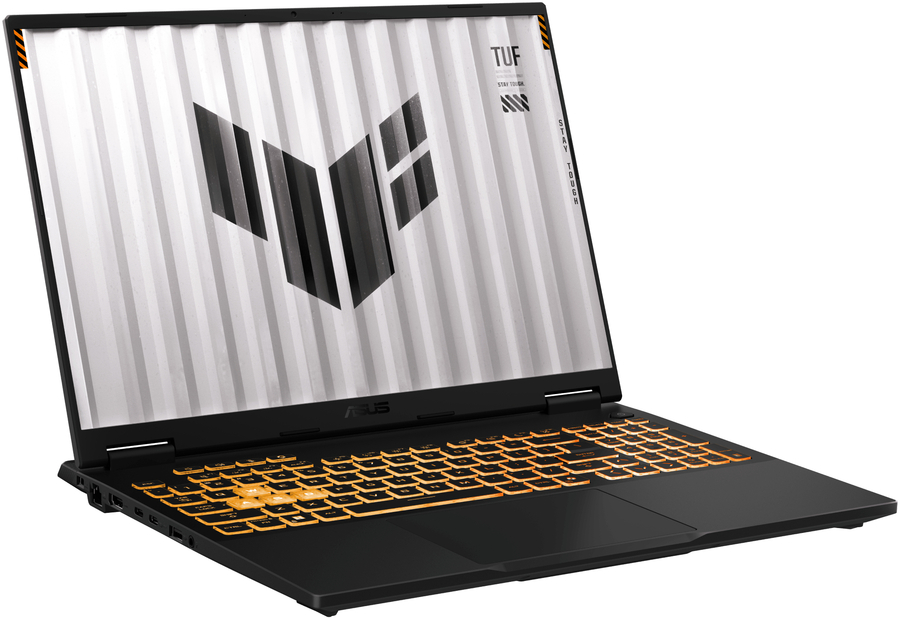

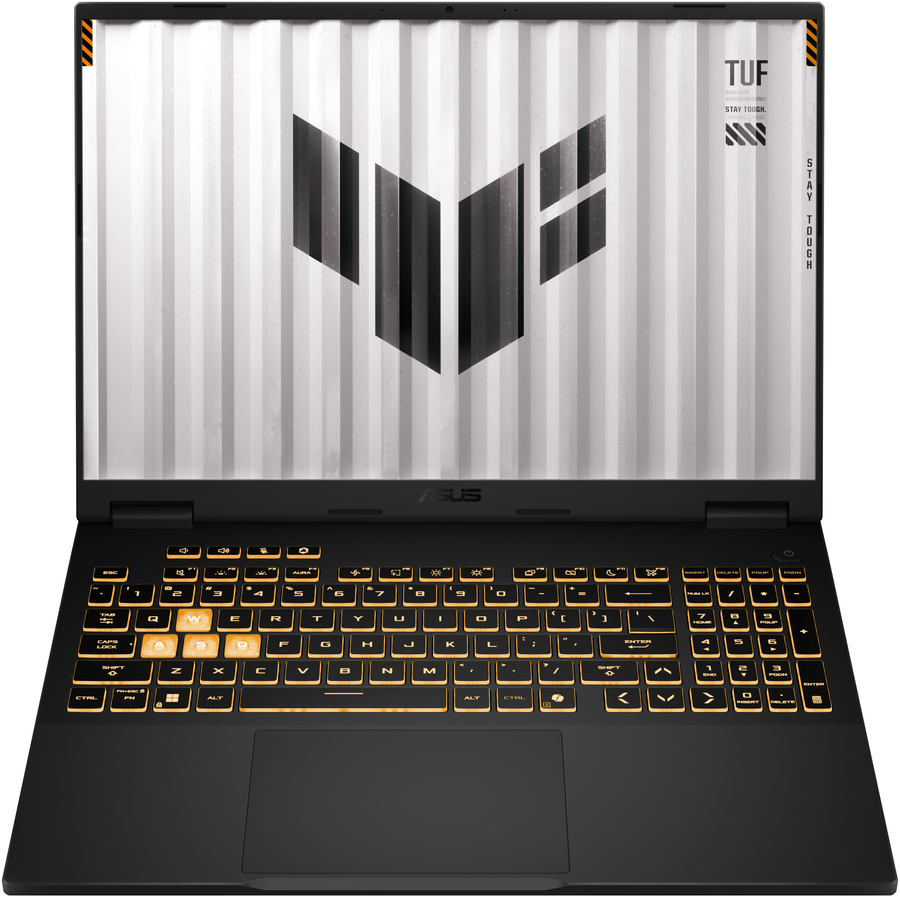

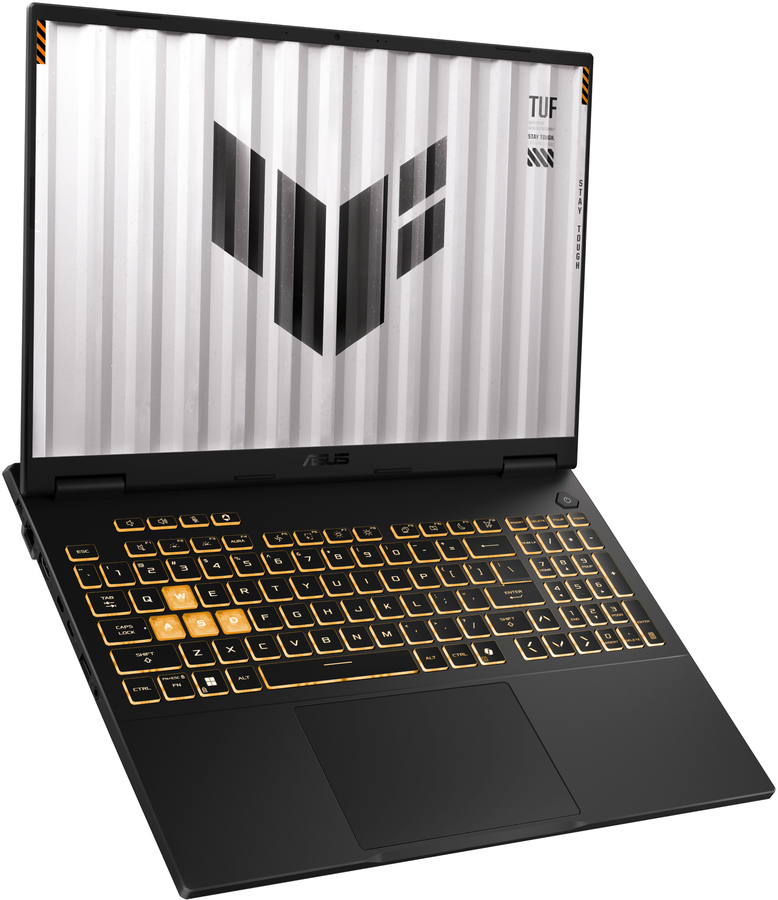

As a member of the TUF Gaming family, the F16 boasts some seriously impressive specs, giving you access to the very best of gaming on Windows 11. Featuring up to an Intel® Core™ Ultra 9 processor 275HX and up to an NVIDIA® GeForce RTX™ 5070 Laptop GPU, the F16 can easily play the latest games or keep your workflow on schedule. Paired with up to 32GB of DDR5 5600MHz memory per slot and up to 4TB of expandable PCIe Gen 4 storage, this little machine is ready for anything, right out of the box. |
|
Design |
|
Product type |
Laptop |
|
Product colour |
Grey |
|
Form factor |
Clamshell |
|
Colour name |
Jaeger Gray |
|
Market positioning |
Gaming |
|
Introduction year |
2025 |
|
Display |
|
Display diagonal |
40.6 cm (16") |
|
Display resolution |
1920 x 1200 pixels |
|
Touchscreen |
No |
|
HD type |
WUXGA |
|
Panel type |
IPS-Level |
|
Native aspect ratio |
16:10 |
|
Anti-glare screen |
Yes |
|
RGB colour space |
sRGB |
|
Colour gamut |
100% |
|
Maximum refresh rate |
165 Hz |
|
Processor |
|
Processor family |
Intel® Core™ i7 |
|
Processor manufacturer |
Intel |
|
Processor model |
i7-14650HX |
|
Processor generation |
Intel® Core™ i7 (14th gen) |
|
Processor cores |
16 |
|
Processor threads |
24 |
|
Processor boost frequency |
5.2 GHz |
|
Performance cores |
8 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
5.2 GHz |
|
Efficient-core Max Turbo Frequency |
3.7 GHz |
|
Performance-core base frequency |
2.2 GHz |
|
Efficient-core base frequency |
1.6 GHz |
|
Processor cache |
30 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
55 W |
|
Maximum turbo power |
157 W |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory clock speed |
5600 MHz |
|
Memory form factor |
SO-DIMM |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
1 TB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
No |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
Yes |
|
Discrete graphics card model |
NVIDIA® GeForce RTX™ 5050 |
|
On-board graphics card model |
Intel® UHD Graphics |
|
Discrete GPU manufacturer |
NVIDIA |
|
Discrete graphics card memory |
8 GB |
|
Discrete graphics memory type |
GDDR7 |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
NVIDIA G-SYNC |
Yes |
|
Audio |
|
Audio system |
Dolby Atmos |
|
Number of built-in speakers |
2 |
|
Built-in microphone |
Yes |
|
Camera |
|
Front camera |
Yes |
|
Front camera resolution |
1920 x 1080 pixels |
|
Front camera HD type |
Full HD |
|
Infrared (IR) camera |
Yes |
|
Network |
|
Mobile network connection |
No |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
Antenna type |
2x2 |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.1 |
|
Thunderbolt 4 ports quantity |
1 |
|
Intel® Thunderbolt 4 |
Yes |
|
Combo headphone/mic port |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
Performance |
|
Motherboard chipset |
Intel HM770 Express |
|
Keyboard |
|
Numeric keypad |
Yes |
|
Pointing device |
Touchpad |
|
Keyboard backlit |
Yes |
|
Keyboard backlit colour |
RGB |
|
Keyboard backlit zone |
1-zone RGB |
|
Copilot key |
Yes |
|
Software |
|
Operating system installed |
Windows 11 Home |
|
Operating system architecture |
64-bit |
|
Microsoft Copilot |
Yes |
|
Battery |
|
Battery capacity |
90 Wh |
|
Battery technology |
Lithium-Ion (Li-Ion) |
|
Number of battery cells |
4 |
|
Power |
|
USB Type-C charging port |
Yes |
|
AC adapter power |
280 W |
|
AC adapter frequency |
50 - 60 Hz |
|
AC adapter input voltage |
100 - 240 V |
|
AC adapter output current |
14 A |
|
AC adapter output voltage |
20 V |
|
USB Power Delivery (USB PD) |
Yes |
|
Security |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Face recognition |
Yes |
|
Windows Hello |
Yes |
|
Password protection |
Yes |
|
Password protection type |
BIOS, User |
|
Weight & dimensions |
|
Weight |
2.2 kg |
|
Width |
354 mm |
|
Depth |
269 mm |
|
Height (front) |
1.79 cm |
|
Height (rear) |
2.73 cm |
|
Packaging content |
|
AC adapter included |
Yes |
