General Information |
|
Summary |
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2/Gen2+ comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
* Lockerstor 2 Gen2/Gen2+ (AS6702T/AS6702T v2) 10GbE not supported.

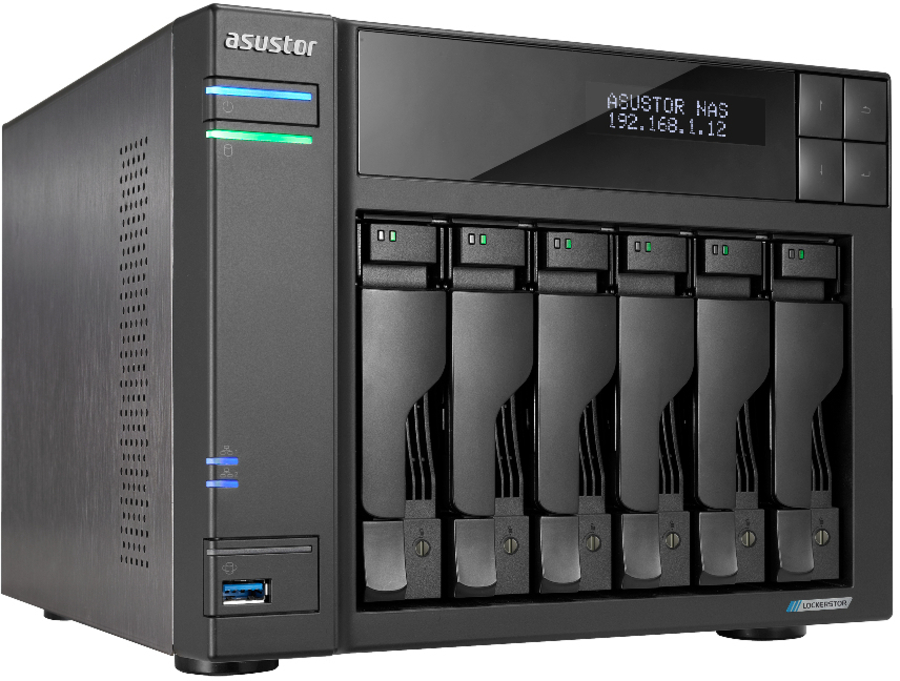

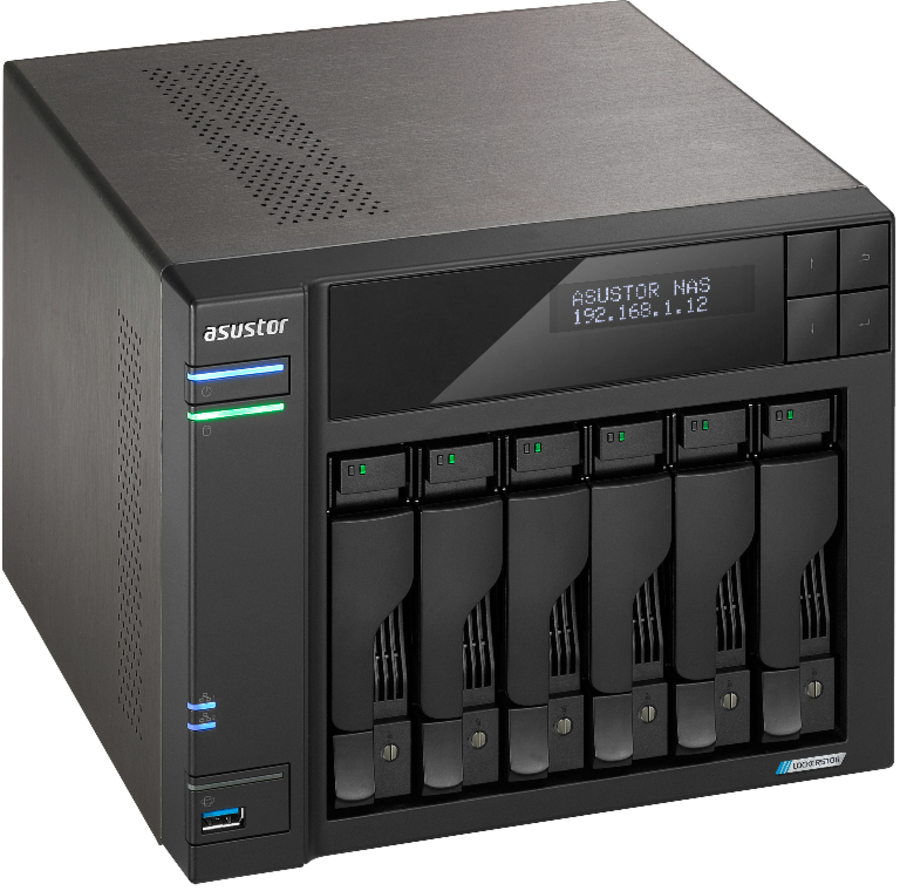

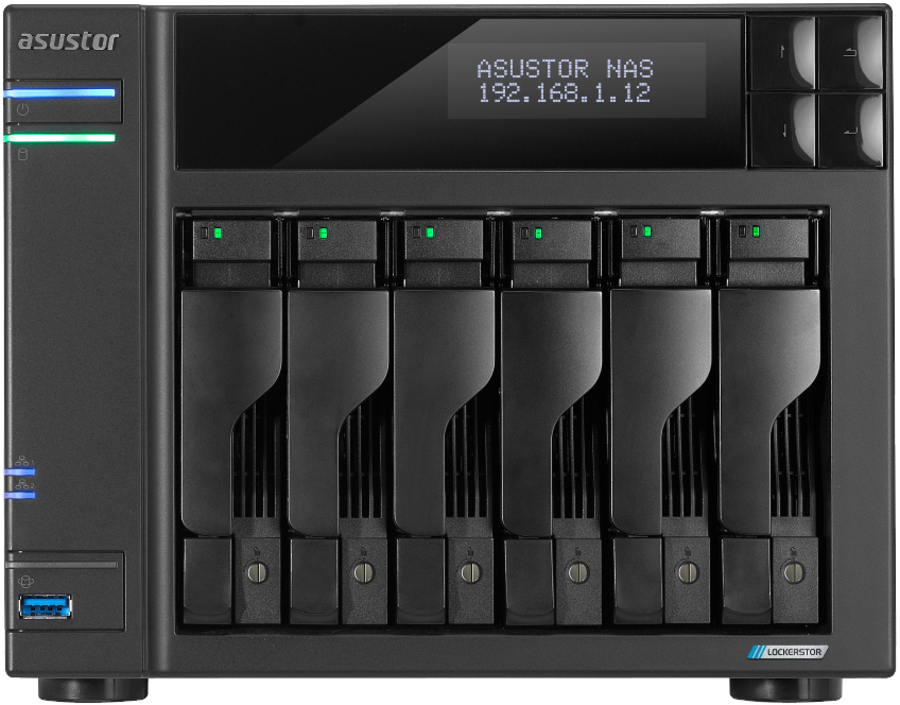

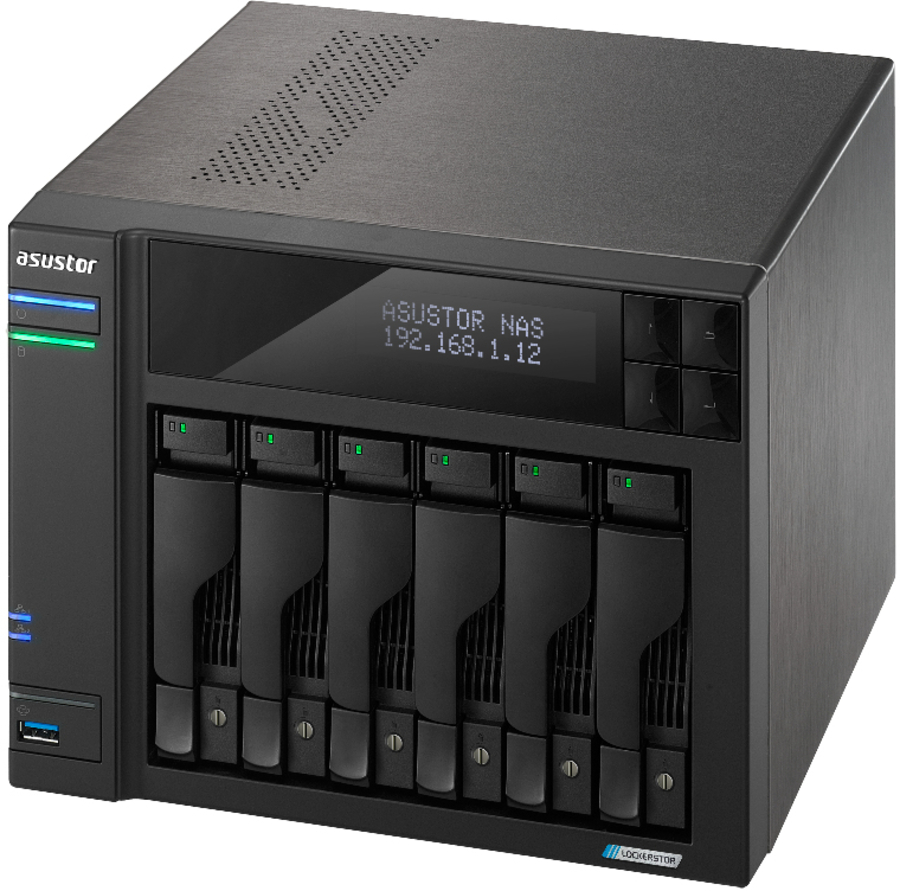

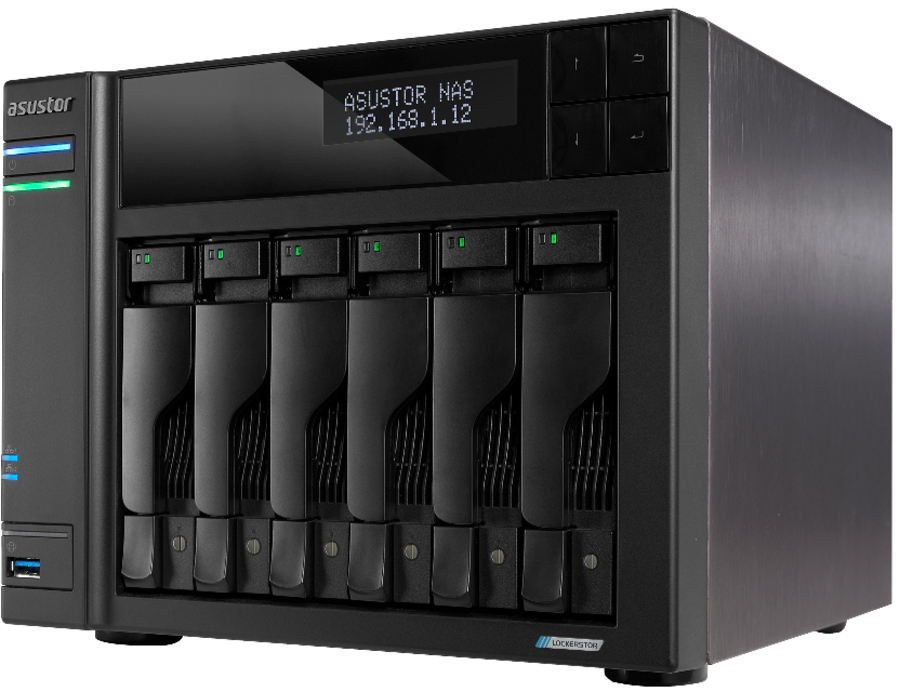

All New Hardware – Same Great Case
ASUSTOR Ultimate 6 bays hybrid storage. Giant space and elastic high speed with M.2 or 10G card. |
|
Storage |
|
Storage drives installed |
Yes |
|
Number of storage drives supported |
6 |
|
Installed storage drive type |
HDD |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive interface |
M.2, Serial ATA, Serial ATA II, Serial ATA III |
|
RAID support |
Yes |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
Number of M.2 (M & B) slots |
4 |
|
RAID levels |
0, 1, 5, 6, 10, JBOD |
|
Supported file systems |
BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
|
Processor |
|
Processor family |
Intel® Celeron® |
|
Processor manufacturer |
Intel |
|
Processor model |
N5105 |
|
Processor frequency |
2 GHz |
|
Processor boost frequency |
2.9 GHz |
|
Processor cores |
4 |
|
Processor threads |
4 |
|
On-board graphics card model |
Intel® UHD Graphics |
|
Memory |
|
Internal memory |
8 GB |
|
Internal memory type |
DDR4 |
|
Maximum RAM supported |
16 GB |
|
Memory slots |
2 |
|
Memory form factor |
SO-DIMM |
|
Flash memory |
8000 MB |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
100,1000,2500 Mbit/s |
|
Jumbo frames support |
Yes |
|
Wake-on-LAN ready |
Yes |
|
Supported network protocols |
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
|
HDMI ports quantity |
1 |
|
HDMI version |
2.0b |
|
Design |
|
Chassis type |
Desktop |
|
Cooling type |
Active |
|
Product colour |
Black |
|
Number of fans |
1 fan(s) |
|
Fan diameter |
12 cm |
|
Built-in display |
Yes |
|
Display type |
LCD |
|
Performance |
|
Type |
NAS |
|
Device class |
Home & Home Office |
|
Backup function |
Yes |
|
Backup features |
Cloud, USB drive, iSCSI LUN |
|
Noise level |
18.1 dB |
|
Browser supported |
Firefox, Chrome, Safari, Microsoft Edge |
|
Software |
|
Operating system installed |
ADM |
|
Operating system version |
4.1 |
|
Windows operating systems supported |
Yes |
|
Linux operating systems supported |
Yes |
|
Mac operating systems supported |
MacOS |
|
Server operating systems supported |
Windows Server 2003, Windows Server 2008, Windows Server 2012 Core, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
|
Power |
|
Power supply location |
External |
|
Power supply unit (PSU) capacity |
250 W |
|
Power consumption (typical) |
48.5 W |
|
Power consumption (sleep) |
0.81 W |
|
Power consumption (HDD standby) |
27.7 W |
|
AC input voltage |
100 - 240 V |
|
Weight & dimensions |
|
Width |
233 mm |
|
Depth |
230 mm |
|
Height |
185.5 mm |
|
Weight |
4.4 kg |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Other features |
|
Certification |
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
