Kioxia KXD8DRJ97T68 7680GB E1.S PCIe5 XD8 15MM 1DWPD SED Bare SSD

Price: $1563.00

Manufacturer: Kioxia

7680 GB, E1.S, PCIe 5.0, NVMe 2.0, BiCS FLASH TLC, 12500 MB/s, 21 W

Availability
Ottawa Store: Inquire Online Here National Warehouse (Shipping Availability): Usually Ships in 24-48 Hours

Product #	Manufacturer #	UPC #	Status
60089625	KXD8DRJ97T68	-	Active

General Information

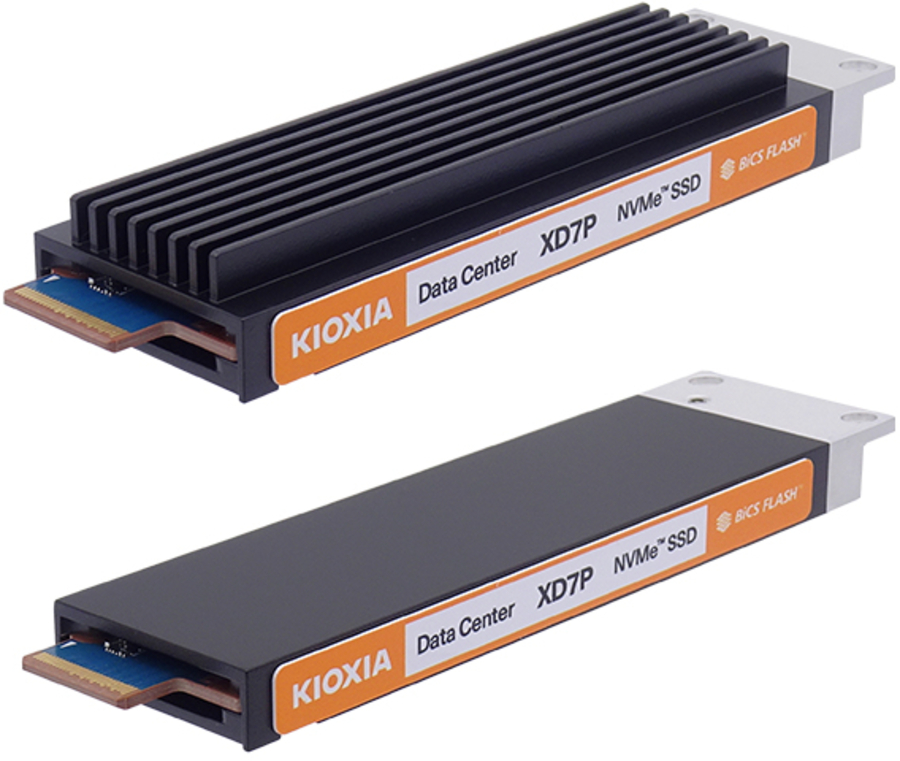

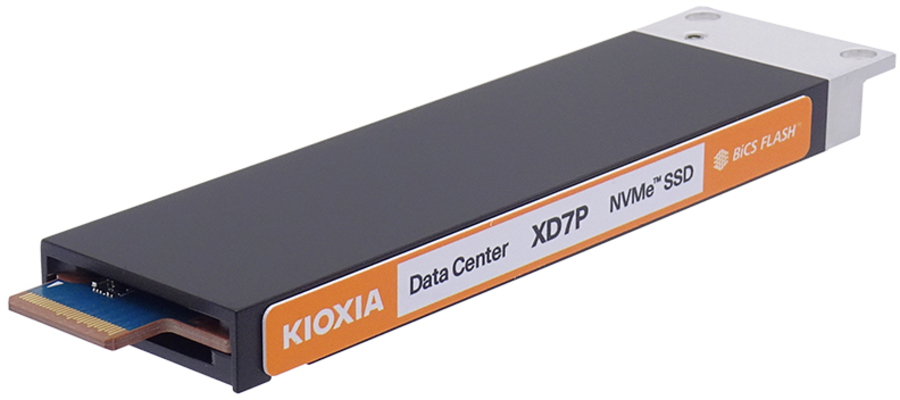

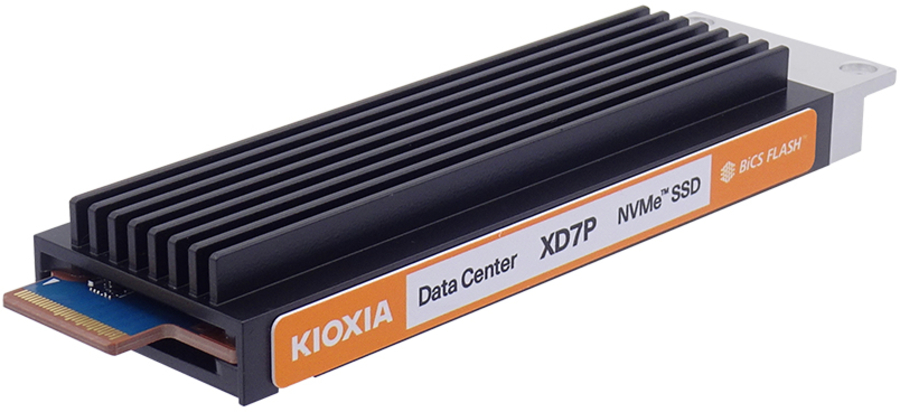

Summary	KIOXIA XD7P Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification. In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD7P Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB.
Features
SSD capacity	7.68 TB
SSD form factor	E1.S
Interface	PCI Express 5.0
NVMe	Yes
Memory type	BiCS FLASH TLC
Component for	PC
Hardware encryption	Yes
NVMe version	2.0
Data transfer rate	128 Gbit/s
Random read (4KB)	2300000 IOPS
Random write (4KB)	250000 IOPS
Sequential read speed (ATTO)	12500 MB/s
Sequential write speed (ATTO)	5800 MB/s
Mean time between failures (MTBF)	2500000 h
Drive writes per day (DWPD)	1
Power
Power consumption (max)	21 W
Weight & dimensions
Width	33 mm
Depth	118 mm
Height	15 mm
Weight	95 g
Operational conditions
Operating temperature (T-T)	0 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating vibration	1.24 G
Operating shock	700 G
